Manufacturer

Whirlpool

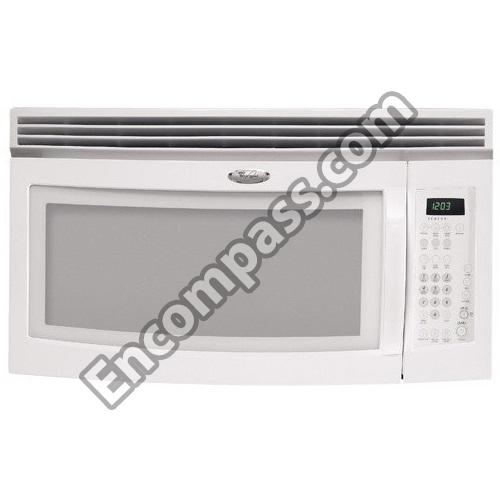

Model Number

GH5184XPQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
8184590 8184590 BLADE-STIR
8205378 8205378 BRACKET, CONTROL
8206565 8206565 BRACKET, HOLDER
8184670 8184670 BRKT-SUPPT
8184669 8184669 BRKT-SUPPT
W10325860 W10325860 CAPACITOR
W10217709 W10217709 CAPACITOR, 125 V
8205213 8205213 CASE, OUTER (BISCUIT)
8205212 8205212 CASE, OUTER (BLACK)
8205207 8205207 CASE, OUTER (WHITE)
8169321 8169321 CATCH
W10615742 W10615742 CLIP
8205416 8205416 COMPLETE DOOR (STAINLESS)
8204933 8204933 COOK GUIDE LABEL
8205640 8205640 CORD, POWER
8184884 8184884 COVER, FAN
8184604 8184604 COVER, INLET INCLUDES NAILS AND BUSHINGS
8184925 8184925 COVER, LAMP
4393756 4393756 COVER, TERMINAL
8184124 8184124 COVER-PLT
8184897 8184897 COVER-PLT
8204676 8204676 COVR-DUCT
8204790 8204790 COVR-DUCT
8169646 8169646 COVR-LIGHT
8184202 8184202 COVR-TERML
8184889 8184889 COVRLIGHT
8169635 8169635 CUSHION
W10843943 W10843943 DAMPER
8204674 8204674 DAMPER
8185031 8185031 DEFLCTR-AR
8184667 8184667 DEFLCTR-AR

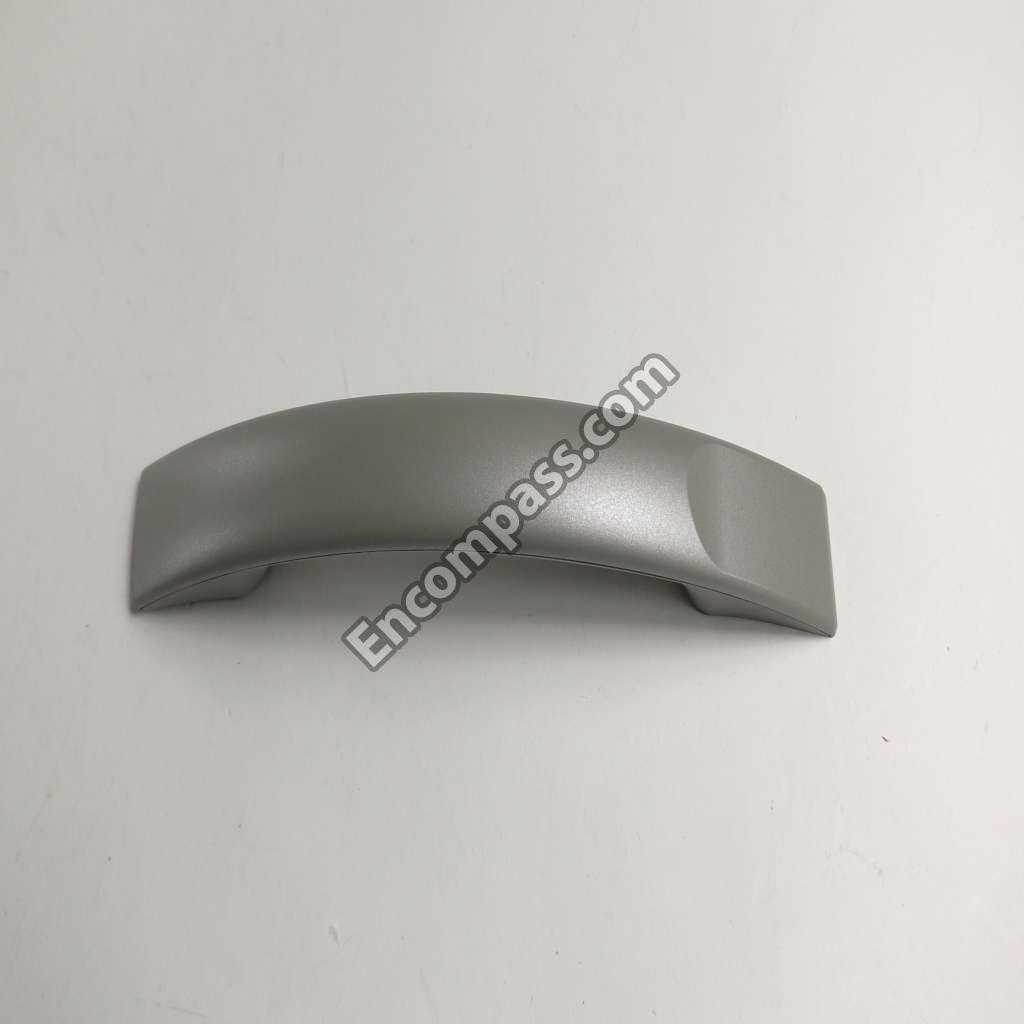

W10272107 W10272107 DOOR HANDLE

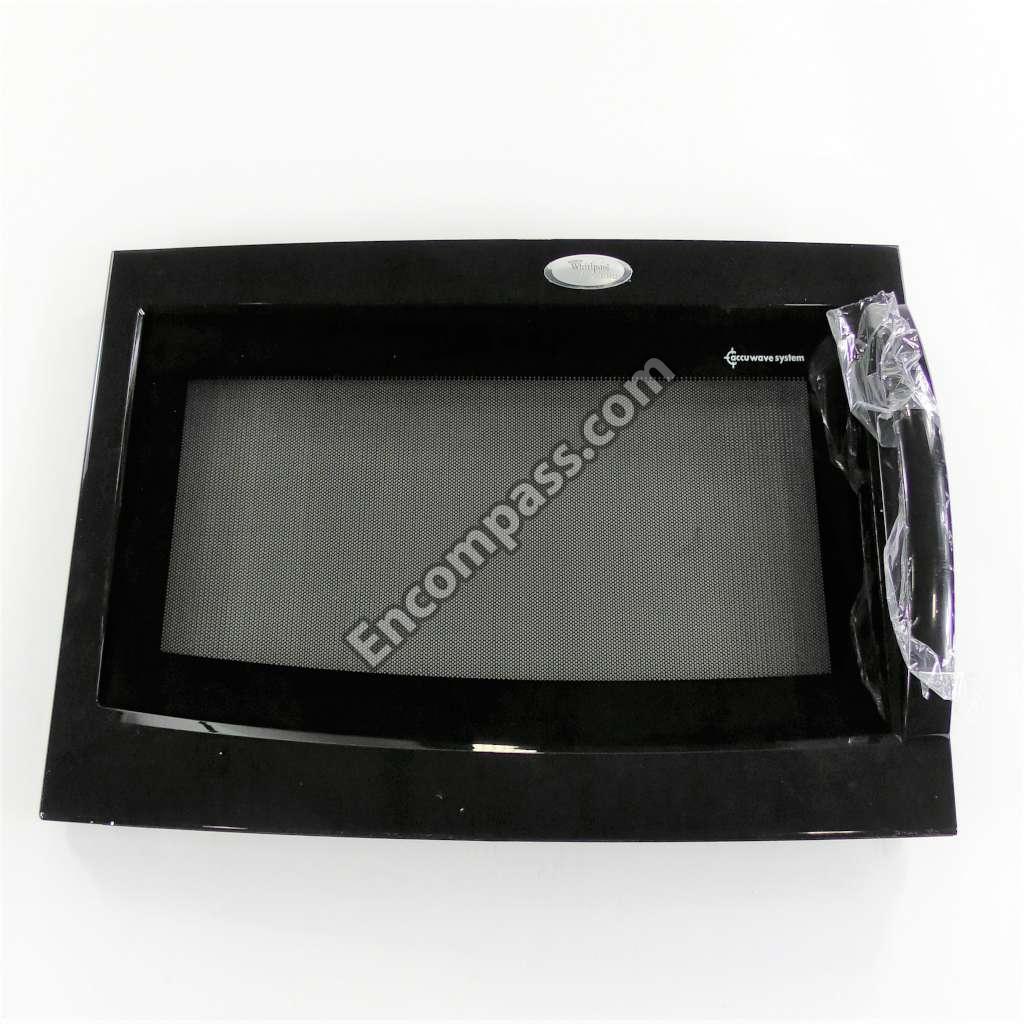

8205413 8205413 DOOR/MW
8205414 8205414 DOOR/MW
8205415 8205415 DOOR/MW
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
8184875 8184875 FAN

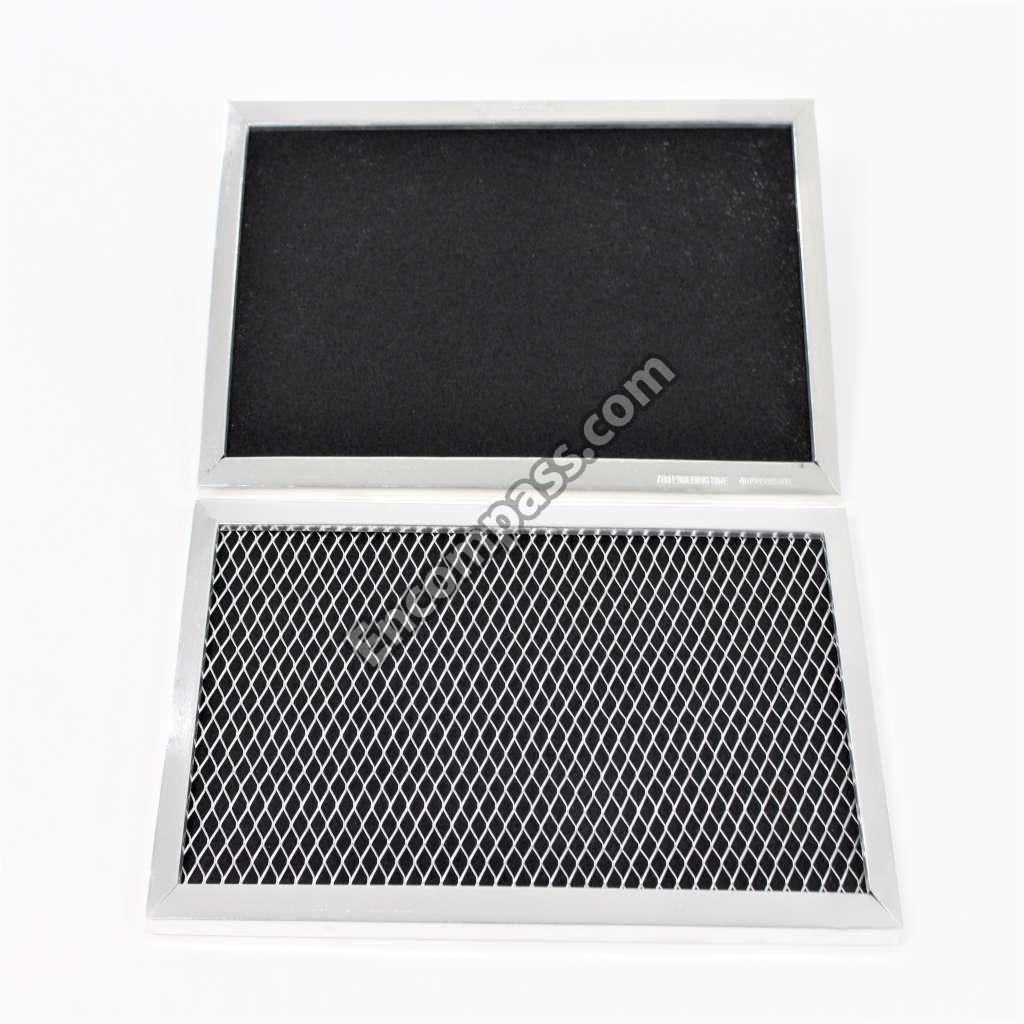

W10112514A W10112514A FILTER, CHARCOAL
W10113040A W10113040A FILTER, CHARCOAL
8184019A 8184019A FILTER, FAN HOOD
W11707984 W11707984 FUSE
8184141 8184141 GLASS-LAMP
W10189668 W10189668 GLASS-LAMP

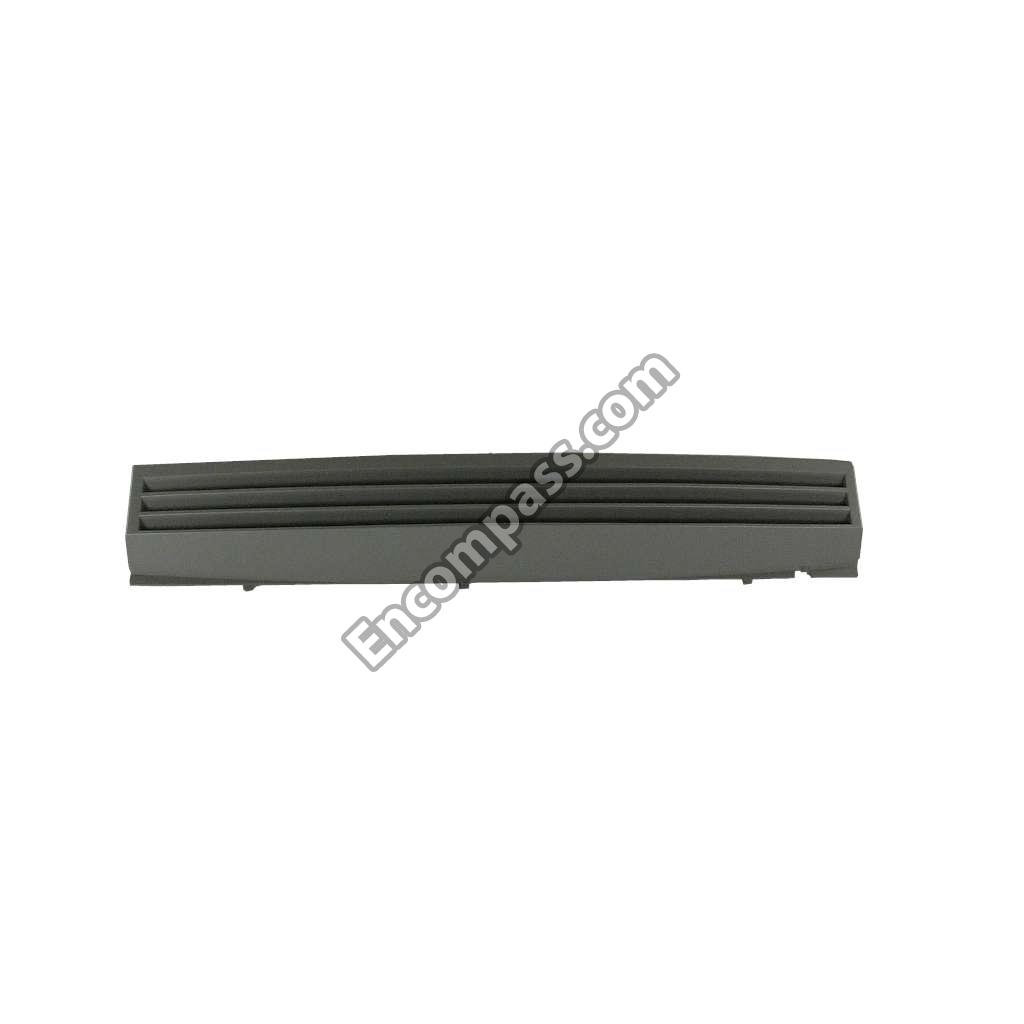

W10450188 W10450188 GRILL-VENT

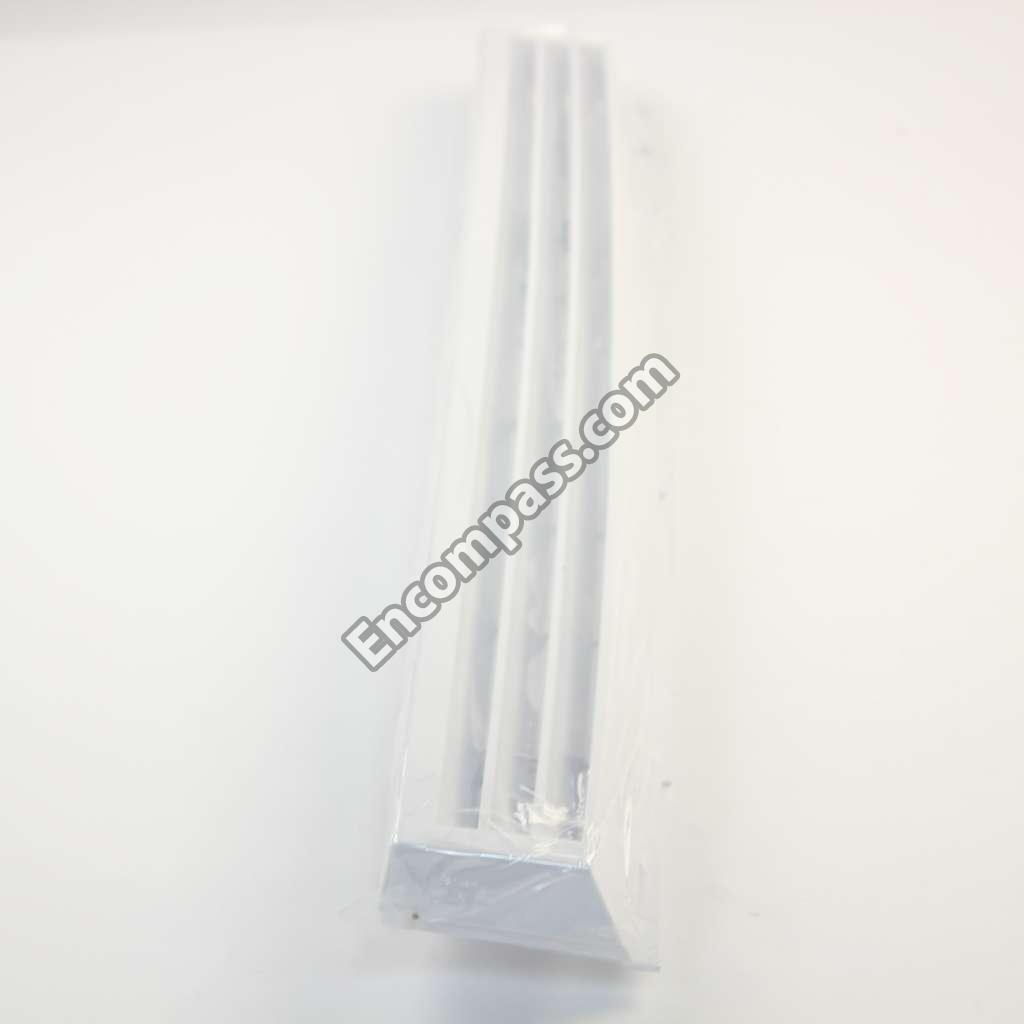

W10450172 W10450172 GRILL-VENT

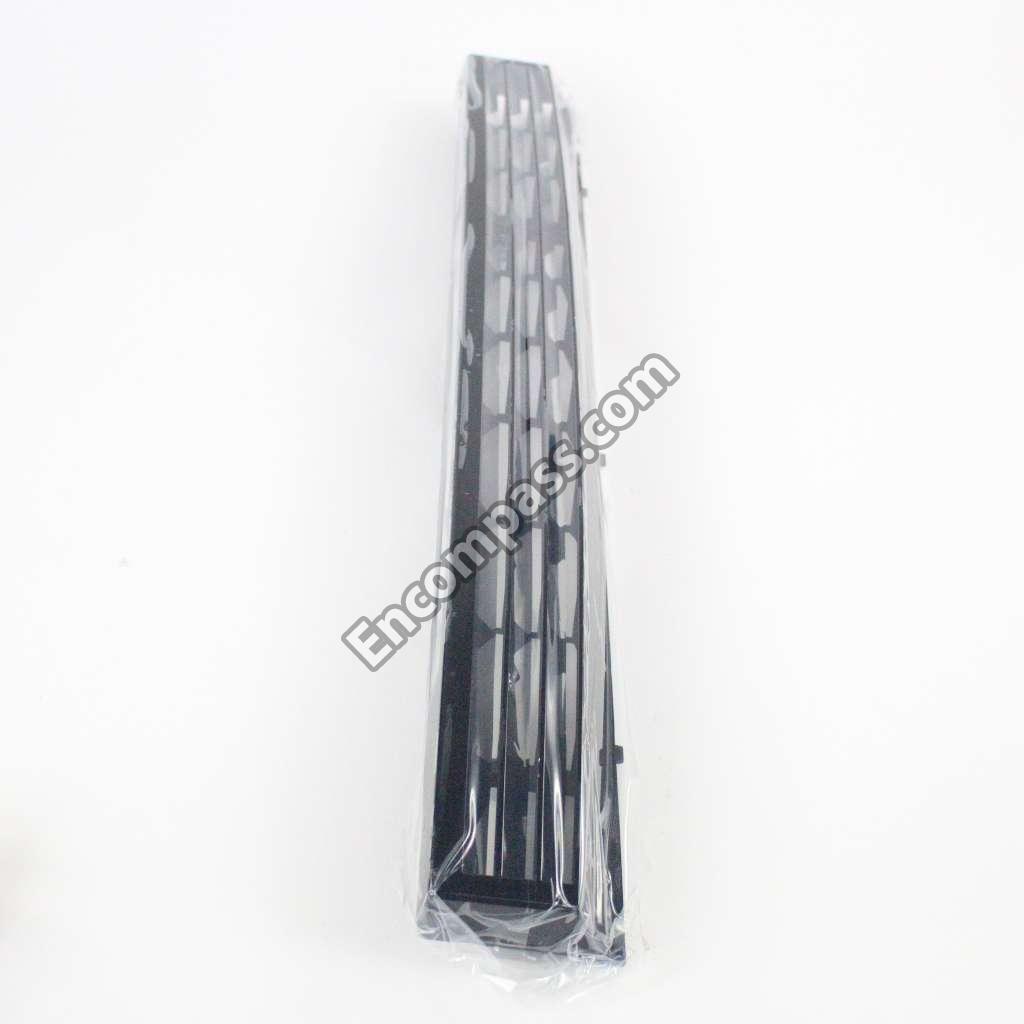

W10450187 W10450187 GRILLE, VENT (BLACK)
W10450189 W10450189 GRILLE, VENT (STAINLESS)
8185350 8185350 GUIDE-AIR
W10246505 W10246505 HANDLE (BLACK)
W10275307 W10275307 HANDLE, DOOR (BISCUIT)
8184887 8184887 HARNS-WIRE
W10295692 W10295692 HNDLE-DOOR
W10117908 W10117908 HOLDER, FUSE
8184926 8184926 HOLDER, LAMP
8204662 8204662 HOOK, RACK (4)
8184894 8184894 HOUSING
8206446 8206446 HUMIDITY, SENSOR
8205947 8205947 INSTALLATION, HARDWARE
8184059 8184059 INSTRUCTN, INSTALL

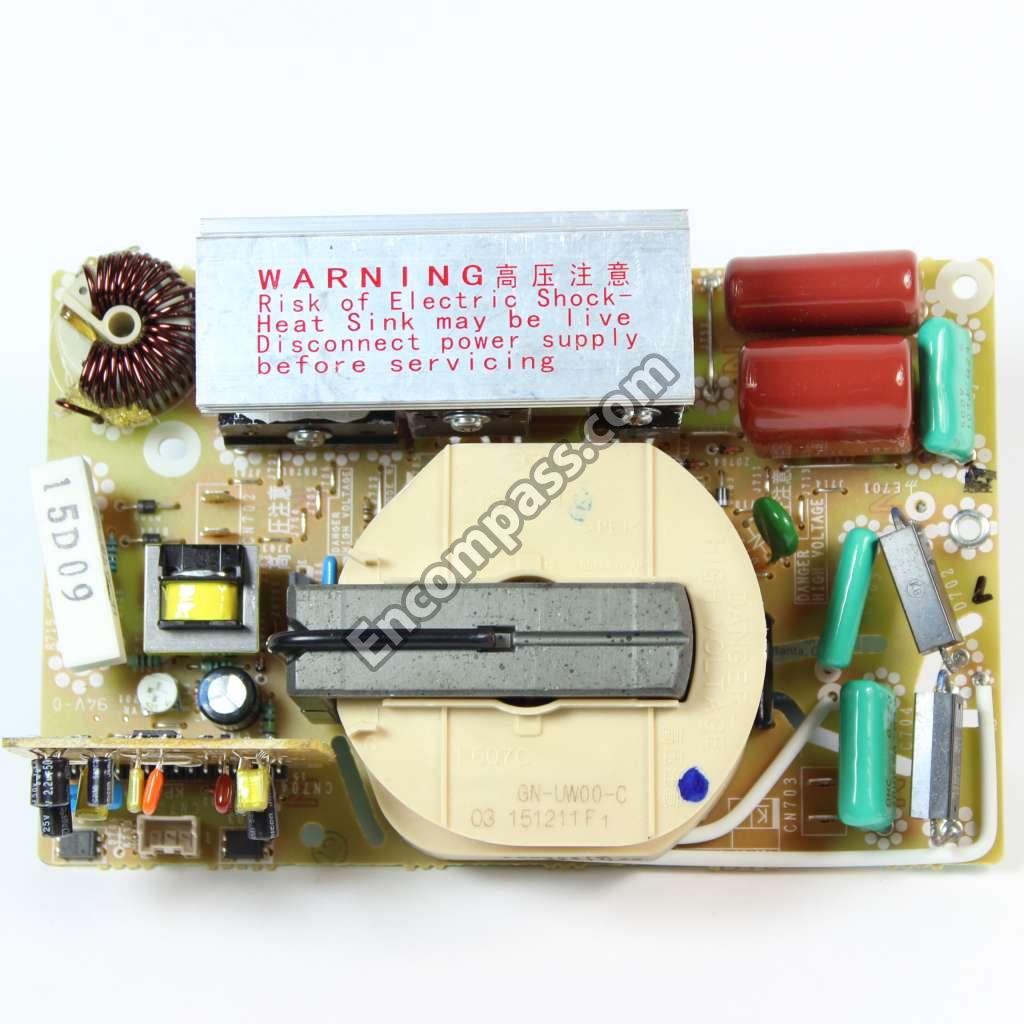

W10217710 W10217710 INVERTER 1100 W
8206232A 8206232A LAMP
8169319 8169319 LATCH, PIVOT
WP8533914 WP8533914 LOCKWASHER
W10114254 W10114254 LOWER HINGE
8205421 8205421 MICROCOMPUTER

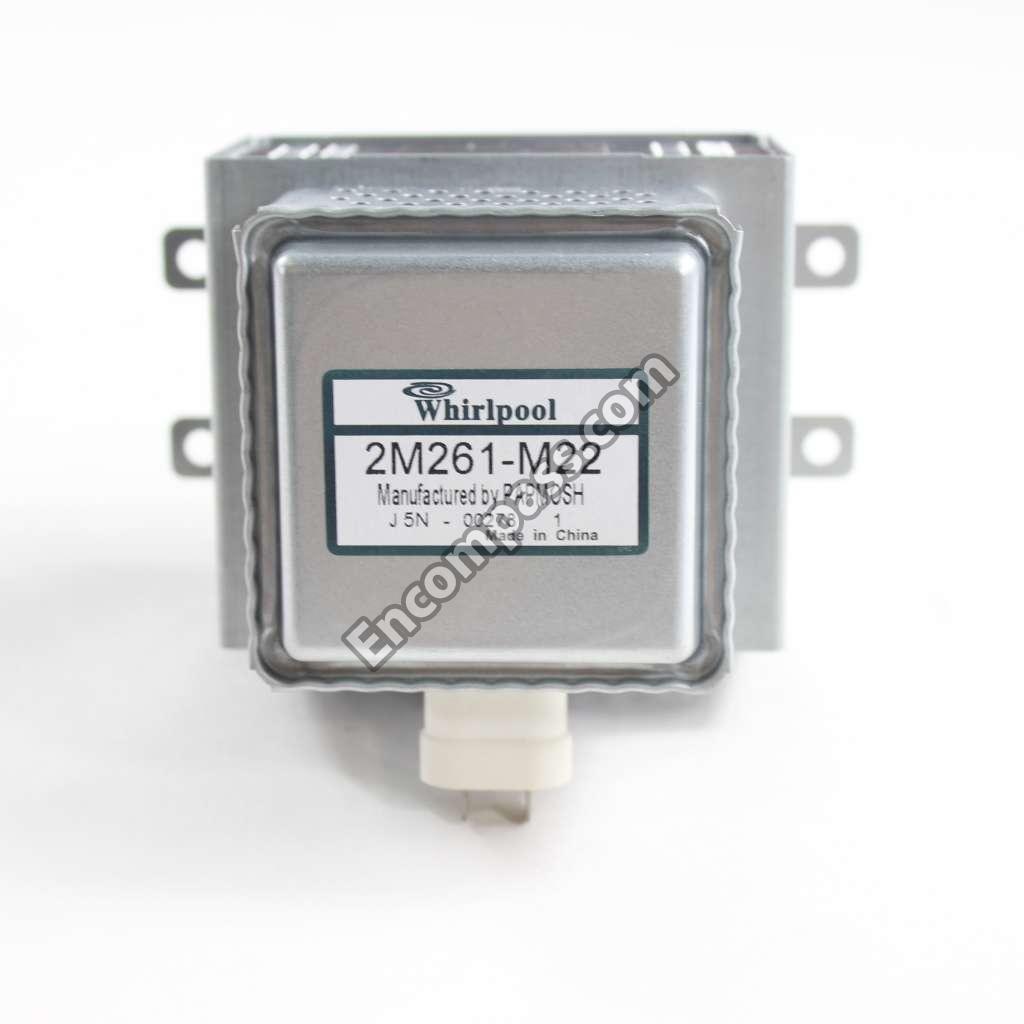

8206317 8206317 MICROWAVE MAGNETRON
100000 100000 MISCELLANEOUS
WPW10114253 WPW10114253 MOTOR, FAN-ASSY
W10642989 W10642989 MOTOR, TURNTABLE
8184581 8184581 MOTOR-STIR
W10841143 W10841143 NAILS/BUSHINGS
8204922 8204922 OWNERS MANUAL
8205418 8205418 PANEL ASY, CONTROL INCLUDES CAMERA LENS AND MEMBRANE SWITCH (BISCUIT)
8205923 8205923 PANEL ASY, CONTROL INCLUDES CAMERA LENS AND MEMBRANE SWITCH (STAINLESS)
8205417 8205417 PANL-CNTRL
8205419 8205419 PANL-CNTRL
8184922 8184922 PIN-HINGE
8205412 8205412 PLATE, BOTTOM
8205211 8205211 PLATE, CAM
8169697 8169697 PLATE, DAMPER
WP8169704 WP8169704 PLATE, GRILL MISCELLANEOUS (SCREW, TOP MOUNTNG)
8184106 8184106 PLATE, MOUNTING
8184052 8184052 RACK
W10315274 W10315274 RACK-MEAL
8184582 8184582 RANGE THERMOSTAT
8184203 8184203 REFLECTOR
8184959 8184959 REFLECTOR, LAMP
8169320 8169320 RING-E
W11252182 W11252182 RING-TURN
8185190 8185190 ROD-LOCKING LINK
8184135 8184135 ROD-REL
4393836 4393836 SCREW
4393832 4393832 SCREW
4393838 4393838 SCREW
8189541 8189541 SCREW
8169480 8169480 SCREW
WP4393834 WP4393834 SCREW
W11380570 W11380570 SCREW
8169479 8169479 SCREW
8169474 8169474 SCREW
8184200 8184200 SCREW
8184199 8184199 SCREW
8184198 8184198 SCREW
8169475 8169475 SCREW
WP8184485 WP8184485 SHIELD
8204754 8204754 SHIELD
8184129 8184129 SPACER
8184109 8184109 SPACER
8169374 8169374 SPRING
8169438 8169438 SPRING, INTERLOCK
8204789 8204789 SUPPORT
8185189 8185189 SUPPORT, INTERLOCK
W10211974 W10211974 SWITCH, MICRO V15T16-CP200
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
8204911 8204911 TECH SHEET
8205926 8205926 TEMPLATE
8183987 8183987 TEMPLATE, WALL
WP8184503 WP8184503 THERMOSTAT/BRACKET
W10479659 W10479659 THRMST-FIX
8183999 8183999 THRMST-FIX
8183994 8183994 THRMST-FIX
4393799 4393799 TURNTABLE
8204679 8204679 UPPER HINGE
4393861 4393861 WHEEL, PLASTIC
W10615910 W10615910 WIRE HARNESS
