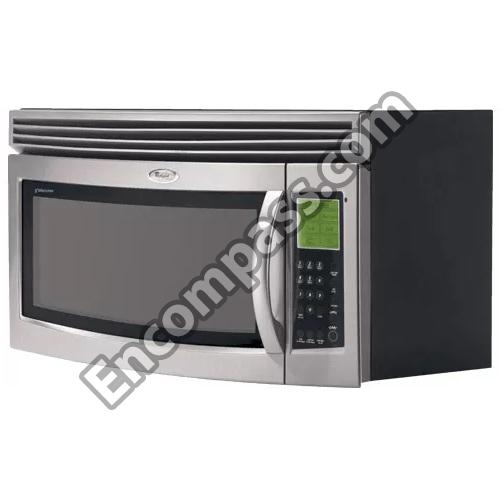

Model Image
Manufacturer

Whirlpool

Model Number

GH6177XPS5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10110597 W10110597 ADAPTER
8184590 8184590 BLADE-STIR
W10117908 W10117908 BLOCK-FUSE
8184915 8184915 BRKT-CNTRL
8184670 8184670 BRKT-SUPPT
W10216700 W10216700 BRKTCNTRL
W10244598 W10244598 BRKTSUPPT
W10510202 W10510202 BULB-LIGHT
8185058 8185058 BUSHING
8205211 8205211 CAM-PLATE
W10325860 W10325860 CAPACTR-DM
W10217709 W10217709 CAPACTR-DM
8205399 8205399 CASE, OUTER (BISCUIT)
8205398 8205398 CASE, OUTER (BLACK/STAINLESS)
8205237 8205237 CONTROL BOARD
8204711 8204711 COOK BOOK
8184891 8184891 COOK GUIDE LABEL
8205640 8205640 CORD-POWER
W10110595 W10110595 COVER
8184884 8184884 COVER, FAN
8184604 8184604 COVER, INLET INCLUDES NAILS AND BUSHINGS
8205239 8205239 COVER-PLT
8184897 8184897 COVER-PLT
W10110596 W10110596 COVER-PLT
W10114259 W10114259 COVER-PLT
8184885 8184885 COVR-LIGHT
8169646 8169646 COVR-LIGHT
W10110598 W10110598 COVR-TERML
8184889 8184889 COVRLIGHT
8169635 8169635 CUSHION
W10843943 W10843943 DAMPER
8206556 8206556 DAMPER
8185031 8185031 DEFLCTR-AR
8184667 8184667 DEFLCTR-AR
W10272107 W10272107 DOOR HANDLE
8205228 8205228 DOOR/MW
8205229 8205229 DOOR/MW
8205230 8205230 DOOR/MW
8205231 8205231 DOOR/MW
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
WP8184837 WP8184837 ELEMENT
8184875 8184875 FAN
8206086 8206086 FERRITE
100000 100000 FILM, BACK INCLUDED WITH 4
W10112514A W10112514A FILTER
W10113040A W10113040A FILTER
8205853 8205853 FILTER
W11707984 W11707984 FUSE-THRML
8184141 8184141 GLASS-LAMP
W10189668 W10189668 GLASS-LAMP
WP8184862 WP8184862 GRILL
W10450172 W10450172 GRILL-VENT
W10450187 W10450187 GRILL-VENT
W10450189 W10450189 GRILL-VENT
W10450188 W10450188 GRILL-VENT
8184886 8184886 GUIDE-AIR
W10275307 W10275307 HANDLE (BISCUIT)
W10851464 W10851464 HANDLE-PAN
8205947 8205947 HARD-MOUNT
8184887 8184887 HARNS-WIRE
8205021 8205021 HARNS-WIRE
8205022 8205022 HARNS-WIRE
8206231 8206231 HARNS-WIRE
W10114360 W10114360 HARNS-WIRE
W10114362 W10114362 HARNS-WIRE
W10114358 W10114358 HARNS-WIRE
W10114361 W10114361 HARNS-WIRE
W10256914 W10256914 HARNS-WIRE
W10110601 W10110601 HARNS-WIRE
W10258106 W10258106 HARNS-WIRE
W10114263 W10114263 HARNS-WIRE
W10114264 W10114264 HARNS-WIRE
W10114359 W10114359 HARNS-WIRE
WPW10510203 WPW10510203 HEATER
W10256901 W10256901 HINGEDOOR
W10256902 W10256902 HINGEDOOR
W10295692 W10295692 HNDLE-DOOR
W10246505 W10246505 HNDLE-DOOR
W10114258 W10114258 HOLDER
8204669 8204669 HOLDER, LAMP
8184894 8184894 HOUSING
W10256911 W10256911 HOUSNGLMP
8185189 8185189 INTERLOCK
8206565 8206565 INTERLOCK
W10217710 W10217710 INVERTER
8204989 8204989 INVERTER 40 W
8184914 8184914 LCD ASSEMBLY
8204670 8204670 LMP-BASLES
8206317 8206317 MICROWAVE MAGNETRON
WPW10114253 WPW10114253 MOTOR, FAN ASSEMBLY
W10642989 W10642989 MOTOR, TURNTABLE
8184581 8184581 MOTOR-STIR
W10841143 W10841143 NAIL
W10748097 W10748097 PAN-CRISP
W10256904 W10256904 PANL-CNTRL
W10256906 W10256906 PANL-CNTRL
W10256907 W10256907 PANL-CNTRL
W10220011 W10220011 PANLCNTRL
8184922 8184922 PIN-HINGE
8184132 8184132 PLATE
W10256913 W10256913 PLATE
W10222516 W10222516 PLATE, MOUNTING
W10244597 W10244597 PLATEGIDE
W10315274 W10315274 RACK-MEAL
8205549 8205549 RACK-MEAL
8184194 8184194 REFLECTOR
W11252182 W11252182 RING-TURN
8185190 8185190 ROD-REL
WP8169704 WP8169704 SCREW
4393274 4393274 SCREW
4393832 4393832 SCREW
8189541 8189541 SCREW
WP4393834 WP4393834 SCREW
W11380570 W11380570 SCREW
8169479 8169479 SCREW
8184200 8184200 SCREW
8184199 8184199 SCREW
8184198 8184198 SCREW
8169474 8169474 SCREW
8169475 8169475 SCREW
W10244600 W10244600 SCREW
8184913 8184913 SEAL
8205236 8205236 SENSOR
8206446 8206446 SENSOR
8204754 8204754 SHIELD
8206460 8206460 SHIELD
W10110592 W10110592 SHIELD
W10114357 W10114357 SHIELD
W10114356 W10114356 SHIELD, FRONT
8184129 8184129 SPACER
8169647 8169647 SPRING
8169438 8169438 SPRING
W10840759 W10840759 SUPPORT
W10840795 W10840795 SUPPORT
W10840794 W10840794 SUPPORT
8205401 8205401 SUPPORT
W10211972 W10211972 SWITCH
W10269458 W10269458 SWITCH
W10211974 W10211974 SWITCH
8205610 8205610 TECH SHEET
8205926 8205926 TEMPLATE
8184582 8184582 THERMOSTAT/BRACKET
W10479659 W10479659 THRMST-FIX
8183999 8183999 THRMST-FIX
8205578 8205578 THRMST-FIX
8184951 8184951 THRMST-FIX
8204995 8204995 THRMST-FIX
4393799 4393799 TURNTABLE
W10170439 W10170439 USE & CARE GUIDE
W10615910 W10615910 WIRE HARNESS
W10111830 W10111830 WIRE-GROND
W10256903 W10256903 WRAPERCAB
