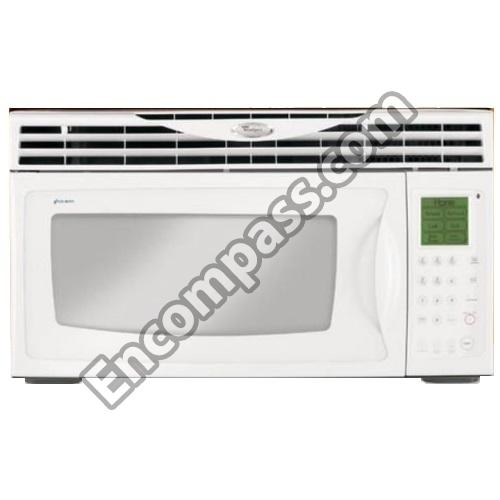

Model Image
Manufacturer

Whirlpool

Model Number

GH9177XLT0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
8206565 8206565 BRACKET, HOLDER
8184915 8184915 BRKT-CNTRL
8184917 8184917 BRKT-CNTRL
8184670 8184670 BRKT-SUPPT
8184669 8184669 BRKT-SUPPT
WP8184837 WP8184837 BROWNER, HALOGEN
8185058 8185058 BUSHING
W10325860 W10325860 CAPACITOR
W10217709 W10217709 CAPACITOR, 125 V
8184899 8184899 CASE, OUTER (WHITE)
8185033 8185033 CATCH
W10615742 W10615742 CLIP
8185079 8185079 COMPLETE DOOR (BISCUIT)
8185077 8185077 COMPLETE DOOR (WHITE)
8185081 8185081 CONTROL PANEL ASSEMBLY (BLACK)
8185080 8185080 CONTROL PANEL ASSEMBLY (WHITE)
8205640 8205640 CORD, POWER
8184884 8184884 COVER, FAN
8184604 8184604 COVER, INLET INCLUDES NAILS AND BUSHINGS
4393756 4393756 COVER, TERMINAL
8184124 8184124 COVER-PLT
8185061 8185061 COVER-PLT
8184897 8184897 COVER-PLT
8204676 8204676 COVR-DUCT
8204790 8204790 COVR-DUCT
8184885 8184885 COVR-LIGHT
8169646 8169646 COVR-LIGHT
8184889 8184889 COVRLIGHT
8169635 8169635 CUSHION
W10843943 W10843943 DAMPER
8204674 8204674 DAMPER
8185031 8185031 DEFLCTR-AR
8184667 8184667 DEFLCTR-AR
W10189669 W10189669 DOOR LATCH, DOOR
8185035 8185035 DOOR/MW
8185037 8185037 DOOR/MW
8185038 8185038 DOOR/MW
8185078 8185078 DOOR/MW
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
W10510202 W10510202 ELEMENT
8184875 8184875 FAN
100000 100000 FILM, BACK INCLUDED WITH 4
W10112514A W10112514A FILTER, CHARCOAL
W10113040A W10113040A FILTER, CHARCOAL
8205068 8205068 FRAME ASY, OUTER INCLUDES 5 (WHITE)
W11707984 W11707984 FUSE
W10121103 W10121103 FUSE (2) 4 AMP/250 VOLT
8184141 8184141 GLASS-LAMP
W10189668 W10189668 GLASS-LAMP
8185060 8185060 GRILL, INSULATION PLATE
8185073 8185073 GRILL-VENT
8185074 8185074 GRILL-VENT
8185075 8185075 GRILL-VENT
8205532 8205532 GRILLE, VENT (BISCUIT)
8205531 8205531 GRILLE, VENT (BLACK)
8184671 8184671 GRILLE, VENT (WHITE)
8184886 8184886 GUIDE-AIR
W10851464 W10851464 HANDLE-PAN
8184887 8184887 HARNS-WIRE
8205021 8205021 HARNS-WIRE
8205022 8205022 HARNS-WIRE
WPW10510203 WPW10510203 HEATER, QUARTZ
W10114254 W10114254 HINGE, LOWER
8204679 8204679 HINGE, UPPER
W10117908 W10117908 HOLDER, FUSE
8204669 8204669 HOLDER, LAMP
W10315274 W10315274 HOOK, RACK (4)
8184894 8184894 HOUSING
8206446 8206446 HUMIDITY, SENSOR
W10217710 W10217710 INVERTER 1100 W
8204989 8204989 INVERTER 40 W
8204670 8204670 LAMP
8169319 8169319 LATCH, PIVOT
8184914 8184914 LCD ASSEMBLY
LIT8204711 LIT8204711 LITERATURE PARTS (COOK BOOK)
LIT8184891 LIT8184891 LITERATURE PARTS (COOK GUIDE LABEL)
LIT8184059 LIT8184059 LITERATURE PARTS (INSTALLATION INSTRUCTIONS)
LIT8184722 LIT8184722 LITERATURE PARTS (TECH SHEET)
LIT8184721 LIT8184721 LITERATURE PARTS (USE & CARE GUIDE)
8205533 8205533 MICROCPTR
8206317 8206317 MICROWAVE MAGNETRON
WPW10114253 WPW10114253 MOTOR, FAN-ASSY
W10642989 W10642989 MOTOR, TURNTABLE
8184581 8184581 MOTOR-STIR
W10841143 W10841143 NAILS/BUSHINGS
8185076 8185076 NAMEPLATE
W10347031 W10347031 PAN, CRISPING
W10748097 W10748097 PAN-CRISP
8205070 8205070 PANEL-DOOR
8205069 8205069 PANEL-DOOR
8184922 8184922 PIN-HINGE
8205934 8205934 PLATE
8184132 8184132 PLATE
8205211 8205211 PLATE, CAM
8184902 8184902 PLATE, DAMPER
8205947 8205947 PLATE, GRILL MISCELLANEOUS (INSTALLATION, HARDWARE)
WP8169704 WP8169704 PLATE, GRILL MISCELLANEOUS (SCREW, TOP MOUNTNG)
8183987 8183987 PLATE, GRILL MISCELLANEOUS (TEMPLATE, WALL)
8184603 8184603 PLATE, GRILL MISCELLANEOUS (WIRE HARNESS (INCLUDES LIGHT SOCKETS))
8184895 8184895 PLATE, MOUNTING
WP8184862 WP8184862 RACK-MEAL
8184582 8184582 RANGE THERMOSTAT
8184194 8184194 REFLECTOR
8169320 8169320 RING-E
W11252182 W11252182 RING-TURN
8185190 8185190 ROD-LOCKING LINK
8184135 8184135 ROD-REL
4393836 4393836 SCREW
4393832 4393832 SCREW
4393838 4393838 SCREW
8189541 8189541 SCREW
8169479 8169479 SCREW
8169474 8169474 SCREW
W11380570 W11380570 SCREW
WP4393834 WP4393834 SCREW
8184200 8184200 SCREW
8184199 8184199 SCREW
8184198 8184198 SCREW
8169475 8169475 SCREW
8184913 8184913 SEAL
8184919 8184919 SENSOR, LIGHT CAMERA LENS
WP8184485 WP8184485 SHIELD
8204754 8204754 SHIELD
8184129 8184129 SPACER
8184109 8184109 SPACER
8169374 8169374 SPRING
8169647 8169647 SPRING
8169438 8169438 SPRING, INTERLOCK
8184108 8184108 STIRRER SHAFT/BLADE
8204789 8204789 SUPPORT
8185189 8185189 SUPPORT, INTERLOCK
W10269458 W10269458 SWITCH, MICRO SZM-V16-FC-62
W10211974 W10211974 SWITCH, MICRO V15T16-CP200
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
8185082 8185082 SWTCH-MEMB
8205926 8205926 TEMPLATE
8184951 8184951 THERMOSTAT
WP8184503 WP8184503 THERMOSTAT/BRACKET
W10479659 W10479659 THRMST-FIX
8183999 8183999 THRMST-FIX
8204995 8204995 THRMST-FIX
4393799 4393799 TURNTABLE
W10615910 W10615910 WIRE HARNESS
8184900 8184900 WRAPERCAB
8184901 8184901 WRAPERCAB
