Model Image
Manufacturer

Whirlpool

Model Number

GI0FSAXVY011

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10184223 W10184223 ADAPTER, BIN (CENTER)
W10187469 W10187469 ADAPTER, BIN (OUTER)
WPW10312691 WPW10312691 AIR-BAFFLE
W10318914 W10318914 ARM-EJECTR
WPW10175514 WPW10175514 ARM-SHUT
WPW10122563 WPW10122563 ARM-STRIPR
W10555984 W10555984 ASSEMBLY, AIR GRILLE
67006434 67006434 AXLE, ROLLER (2)
67003794 67003794 BAR, TEMP CONTROL
WP627985 WP627985 BIMETL-DEF
WPW10451501 WPW10451501 BIN CONTROL LEVER
WPW10451500 WPW10451500 BIN CONTROL LEVER
67006981 67006981 BIN, LOWER
W10184227 W10184227 BIN, UPPER
WP12977502 WP12977502 BIN-CNTLV
WP12977402 WP12977402 BIN-CNTLV
WPW10324088 WPW10324088 BIN-ICE
WP67006337 WP67006337 BLADE- FAN
WP12825803 WP12825803 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
WPW10162500 WPW10162500 BOARD, L.V.
WP67006390 WP67006390 BOX- HV CO
WP12227304WD WP12227304WD BRACE- CRI
W10858097 W10858097 BRACKET
WPW10330995 WPW10330995 BRACKET
WPW10330994 WPW10330994 BRACKET
WPW10334463 WPW10334463 BRACKET
W10857648 W10857648 BRACKET
67006325 67006325 BRACKET, FILTER BASE
N_P N_P CABINET (NOT A SERVICABLE PART)
W11395888 W11395888 CAP-FILTER
WPW10350564 WPW10350564 CAPACITOR
WP13005706 WP13005706 CHUTE
W10281329 W10281329 CLAMP
M0108106 M0108106 CLAMP
W11456069 W11456069 CLAMP
W11673433 W11673433 CLIP
W11712696 W11712696 CLIP
WP628379 WP628379 CLIP
WP2315522 WP2315522 CLIP
W11661170 W11661170 CLIP
12996601 12996601 CLIP, BUSHING
10623002 10623002 CLIP, EVAPORATOR
W10165970 W10165970 CLIP, FAN MOTOR
WP12028505AP WP12028505AP CLOSER
WPW10507886 WPW10507886 COMPRESSOR
WPW10346415 WPW10346415 CONDENSER
WPW10334458 WPW10334458 CONNECTOR
WPW10127427 WPW10127427 CONTROL

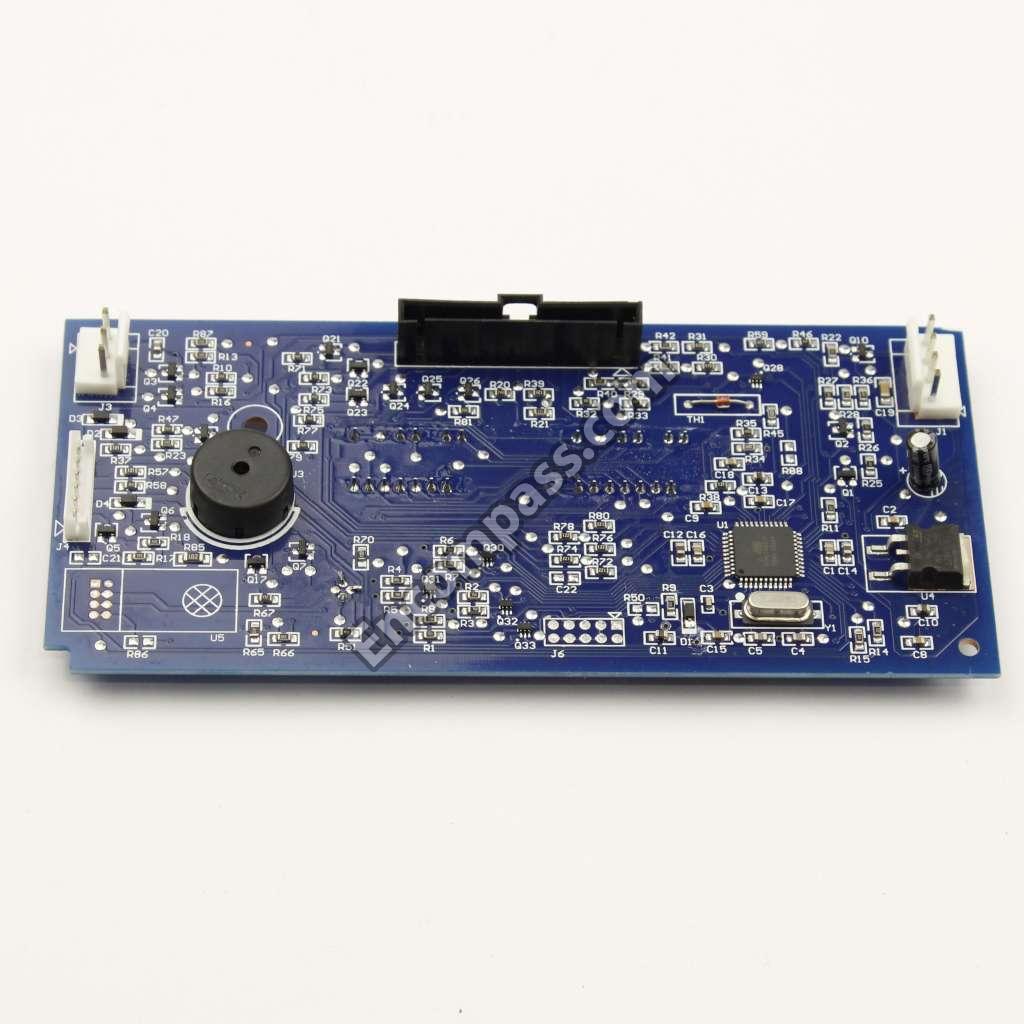

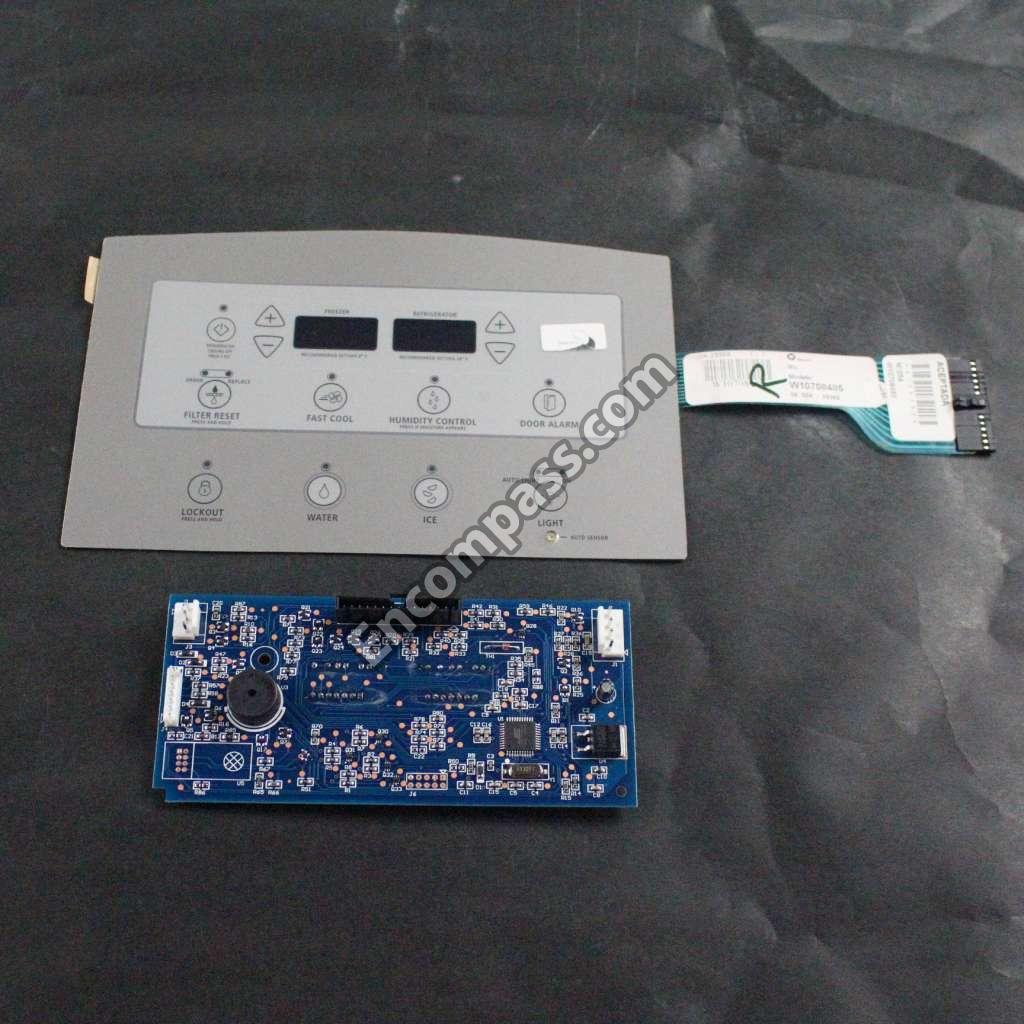

W10740218 W10740218 CONTROL BOARD

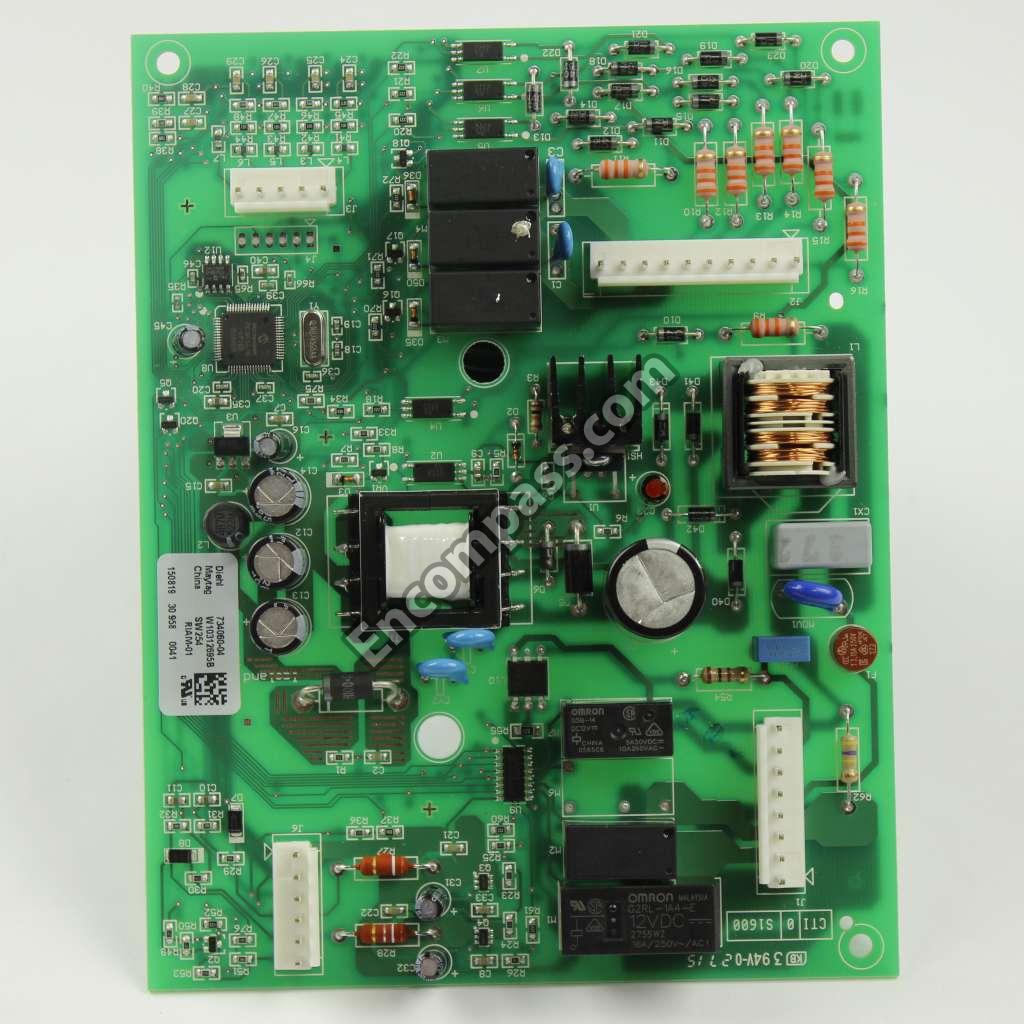

WPW10312695 WPW10312695 CONTROL BOARD
12656202 12656202 CONTROL, HOUSING
WPW10310690 WPW10310690 COVER
W10827015 W10827015 COVER
WPW10337648 WPW10337648 COVER
WPW10191117 WPW10191117 COVER
W10118194 W10118194 COVER
W10118193 W10118193 COVER
W10296536 W10296536 COVER
12987301 12987301 COVER, CHILLER VENT
12961602 12961602 COVER, CONTROL BOX
W10191141 W10191141 COVER, FILL TUBE (APOLLO GREY)
13033601 13033601 COVER, ICE BOX HARNESS
67006318 67006318 COVER, LIGHT
12921801 12921801 COVER, LIGHT
12960101 12960101 COVER, UPPER WATER TANK
67006329 67006329 COVER, WATER TANK (LOWER)
WP67003924 WP67003924 COVER- FZ
WPW10270394 WPW10270394 COVER-BACK
W10308421 W10308421 COVER-EVAP
WP67006331 WP67006331 COVER-FILT
W10327050 W10327050 CUP-FILL
12963002SP 12963002SP DAM (LEFT HAND)
12963102SP 12963102SP DAM (RIGHT HAND)
W10356558 W10356558 DIVIDER
WP67002321 WP67002321 DIVIDER- P
12977863SQ 12977863SQ DOOR ASSEMBLY MS
13107853SQ 13107853SQ DOOR ASSEMBLY SS
13107878SQ 13107878SQ DOOR ASSEMBLY SS
W10917988 W10917988 DOOR HINGE
W11592374 W11592374 DOOR HINGE
W11592375 W11592375 DOOR HINGE
WP12722813AP WP12722813AP DRAWER SLIDE RAIL
WPW10143759 WPW10143759 DRIER-UV
WP12656105 WP12656105 ENDCAP
WP12656018 WP12656018 ENDCAP
W11536253 W11536253 EVAPORATOR
W10850438 W10850438 EVAPORATOR MOTOR
WPW10351019 WPW10351019 EXTENSION
WP67006010 WP67006010 EXTR- GLAS
WP12587703AP WP12587703AP FILLER
EDR4RXD1 EDR4RXD1 FILTER
12691605 12691605 FOIL, LIGHT
WP67006185 WP67006185 FRAME
WPW10121444 WPW10121444 FRONT COVER
WP67005923 WP67005923 FRONT- CRI
W10815413 W10815413 FUNNEL
W11451451 W11451451 GASKET
WP67006341 WP67006341 GASKET
W11250029 W11250029 GASKET
WPW10714545 WPW10714545 GASKET ASSEMBLY
67006429 67006429 GASKET, HV CONTROL BOX
67002329 67002329 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
W10830055 W10830055 GASKET-FIP
12002497 12002497 GEAR
WP67006655 WP67006655 GLASS SHELF
WP12463912 WP12463912 GLASS SHELF
W11125512 W11125512 GLASS SHELF
WPW10235368 WPW10235368 GLIDE
WPW10235370 WPW10235370 GLIDE
W10235358 W10235358 GLIDE
WP542638 WP542638 GREASE
W11176847 W11176847 GRILLE
WPW10534155 WPW10534155 GRILLE
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W10151687 W10151687 GROMMET
W11676465 W11676465 GROMMET- F
W10224276 W10224276 GUIDE, ENERGY
WPW10223025K WPW10223025K HANDLE
WPW10223019K WPW10223019K HANDLE
12952005 12952005 HARNESS-FZ LIGHT (INCL.THERMISTOR)
W10312698 W10312698 HARNS-WIRE
WP12729123 WP12729123 HEATER
W10443023 W10443023 HOUSING
W10464777 W10464777 HOUSING
W11434460 W11434460 HOUSING
WP2195914 WP2195914 HOUSING-IM
WPW10300024 WPW10300024 ICEMAKER
WP63052-2 WP63052-2 IMPELLER
WPW10312696 WPW10312696 INLET VALVE
W10121282 W10121282 INSERT
W11676504 W11676504 INSERT
W11706807 W11706807 INSULATION
W11498983 W11498983 KNOB
W10251967 W10251967 LADDER
W10273464 W10273464 LADDER
W10251966 W10251966 LADDER
WPW10141622 WPW10141622 LEVELER
4396822 4396822 LIGHT BULB
W11679940 W11679940 LIGHT BULB
W10450032 W10450032 MAT
W10450033 W10450033 MAT
833938 833938 MISCELLANEOUS (KIT, TERMINAL CONNECTOR)
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
876029 876029 MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10300025 WPW10300025 MOLD-ICE
WPW10162697 WPW10162697 MOTOR
WPW10317991 WPW10317991 MOTOR
W11613295 W11613295 MOTOR-COND
WPW10393265 WPW10393265 NAMEPLATE
WPW10185234 WPW10185234 PAD
799344 799344 PAINT, BULK (1 QT. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP67002659 WP67002659 PAN- CRISP
WPW10655368 WPW10655368 PAN-DRIP
W11490183 W11490183 PAN-UTILTY
W11727651 W11727651 PLATE
W11346622 W11346622 RESERVOIR
W10826790 W10826790 RETAINER, GLIDE (LEFT HAND)
W10826791 W10826791 RETAINER, GLIDE (RIGHT HAND)
67006295 67006295 RING, TARGET
WP67005149 WP67005149 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
12992301 12992301 SCREW
W11311945 W11311945 SCREW
WPW10288153 WPW10288153 SCREW
WP489474 WP489474 SCREW
8533917 8533917 SCREW
WP98165 WP98165 SCREW
WP67006415 WP67006415 SCREW
W10854958 W10854958 SCREW
W11686675 W11686675 SCREW
WP489349 WP489349 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
W10829281 W10829281 SCREW
W10001240 W10001240 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPW10287601 WPW10287601 SEAL
WPM0500703 WPM0500703 SEAL- O RI
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
W11028221 W11028221 SHAFT
W10187463 W10187463 SHELF, MINI (STATIONARY)
W11469652 W11469652 SHIELD
12999501 12999501 SHIM, TOP HINGE (LEFT HAND)
12999502 12999502 SHIM, TOP HINGE (RIGHT HAND)
W11556315 W11556315 SHROUD
W10121281 W10121281 SHROUD
W11700329 W11700329 SHROUD- EV
W11658403 W11658403 SLIDE
WP67005864 WP67005864 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
W11378860 W11378860 SPACER
WP12565502 WP12565502 SPRING- CH
WPW10448874 WPW10448874 START-DEV
W11703060 W11703060 STOP-DOOR
W10236396 W10236396 STRAP
WP12227305WD WP12227305WD SUPPORT
W11445850 W11445850 SWITCH
WP2313326 WP2313326 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
W10476702 W10476702 TECH SHEET
WP67006387 WP67006387 THERMOSTAT
WP1117510 WP1117510 TORX SCREW WRENCH TORX KEY
WP67001719 WP67001719 TRACK
W11547653 W11547653 TRAY-DRIP
W11676505 W11676505 TRAY-DRIP
WPW10231486 WPW10231486 TRIM-SHELF
WPW10233569 WPW10233569 TUBE
W10619951 W10619951 TUBE-DRAIN
W10275942 W10275942 TUBE-WATER
W10329360 W10329360 USE & CARE GUIDE
WP978025 WP978025 VALVE
978026 978026 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978028 978028 VALVE, ACCESS
876764 876764 VALVE, ACCESS
W11415785 W11415785 WATER TUBE
WPW10123444K WPW10123444K WHEEL
W11666013 W11666013 WIRE HARNESS
