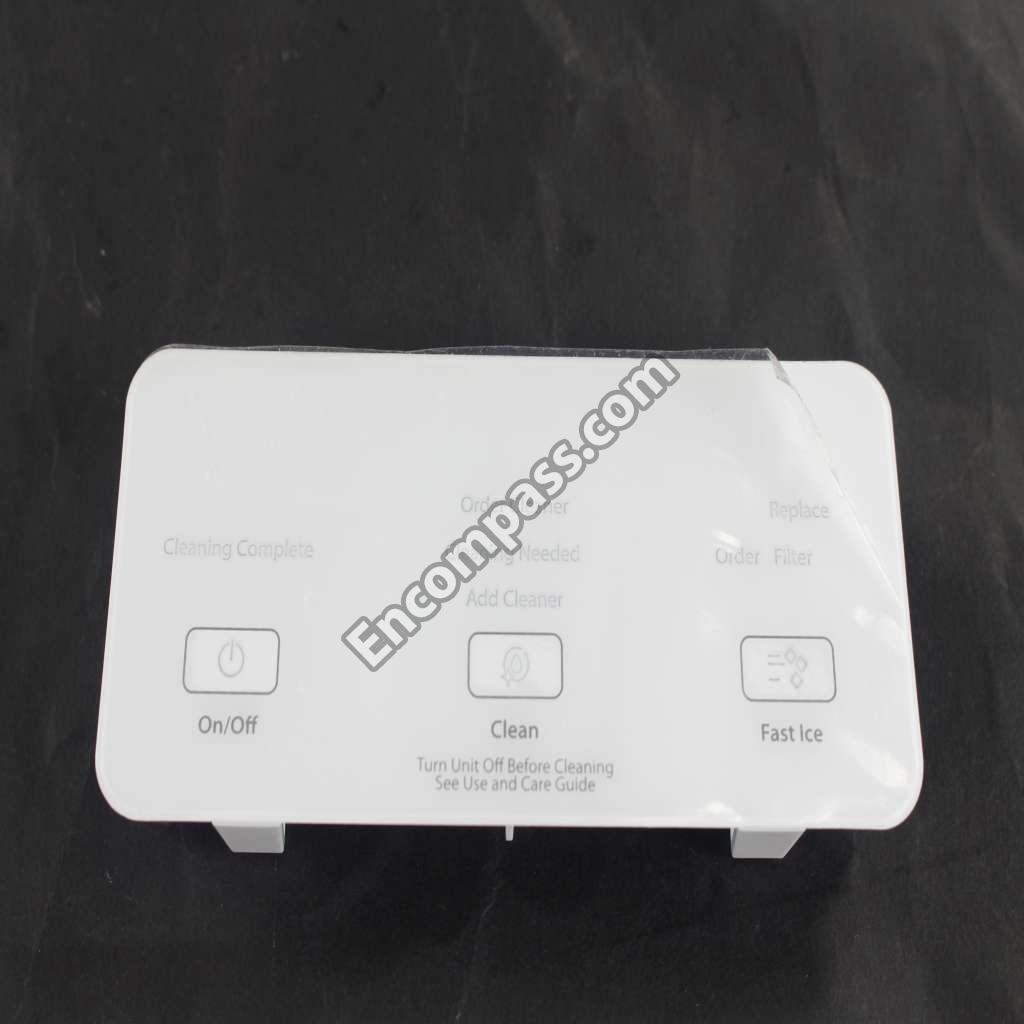

Model Image
Manufacturer

Whirlpool

Model Number

GI15NDXZS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 Whirlpool "MISCELLANEOUS, INSULATION (2 PIECES, 3"" X 24"" X 48"")"
876029 876029 Whirlpool "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
2217445 2217445 Whirlpool BASE, UNIT
WP2188935 WP2188935 Whirlpool BLADE-FAN
W10477560 W10477560 Whirlpool BOX-CNTRL
WP2185532 WP2185532 Whirlpool BRACKET
W11679650 W11679650 Whirlpool BRACKET
N_P N_P Whirlpool CABINET AND LINER (NOT SERVICED)
W10486874 W10486874 Whirlpool CAM, DOOR
W11023835 W11023835 Whirlpool CAP-DRAIN
W11223751 W11223751 Whirlpool CATCH-ASM
WP488366 WP488366 Whirlpool CLAMP
W10670799 W10670799 Whirlpool CLAMP
W10526623 W10526623 Whirlpool CLAMP
2185960 2185960 Whirlpool CLAMP, POWER CORD
A201435 A201435 Whirlpool CLIP, COMPRESSOR MOUNTING
1115375 1115375 Whirlpool CLIP, WIRING
WPW10206473 WPW10206473 Whirlpool COIL-SOLND
W11735041 W11735041 Whirlpool COMPRESSOR
WP2313624 WP2313624 Whirlpool CONDENSER
W10814354 W10814354 Whirlpool CONTROL BOARD
W11034363 W11034363 Whirlpool CONTROL BOARD
W10512292 W10512292 Whirlpool COVER
W10475416 W10475416 Whirlpool COVER
2217394 2217394 Whirlpool COVER, WIRING
WP2162358 WP2162358 Whirlpool COVER-TERM
WPW10136199 WPW10136199 Whirlpool COVER-UNIT
W10517693Q W10517693Q Whirlpool DOOR ASSEMBLY
W10502166Q W10502166Q Whirlpool DOOR ASSEMBLY
W10512905Q W10512905Q Whirlpool DOOR ASSEMBLY
WP2217294 WP2217294 Whirlpool DOOR GASKET
WP2185742 WP2185742 Whirlpool DOOR-INNER
W10843121 W10843121 Whirlpool DRIER-TUBE
WPW10218037 WPW10218037 Whirlpool EVAPORATOR
W11309713 W11309713 Whirlpool FLR-ENDCAP
W11309706 W11309706 Whirlpool FLR-ENDCAP
W11309712 W11309712 Whirlpool FLR-ENDCAP
W11309714 W11309714 Whirlpool FLR-ENDCAP
WPW10534030 WPW10534030 Whirlpool GAS VALVE
WP759113 WP759113 Whirlpool GAS VALVE
2217367 2217367 Whirlpool GASKET, BOTTOM
W11624957 W11624957 Whirlpool GASKET-TOP
WP542638 WP542638 Whirlpool GREASE
W10919199 W10919199 Whirlpool GRID-CUTTR
WP2185571B WP2185571B Whirlpool GRILLE
WP2185571W WP2185571W Whirlpool GRILLE
2185965 2185965 Whirlpool GROMMET (4)
WP2208493B WP2208493B Whirlpool HANDLE
WP2208493W WP2208493W Whirlpool HANDLE
W11123917 W11123917 Whirlpool HARNESS
W11126268 W11126268 Whirlpool HARNS-PUMP
W10476696 W10476696 Whirlpool HINGE
W10476703 W10476703 Whirlpool HINGE
W10476697 W10476697 Whirlpool HINGE
W10476704 W10476704 Whirlpool HINGE
2185927 2185927 Whirlpool HOLDER, SCOOP
W11033204 W11033204 Whirlpool HOSE
W11266112 W11266112 Whirlpool HOUSING
W10761663 W10761663 Whirlpool INSTALLATION INSTRUCTIONS
8193716 8193716 Whirlpool LEVLER-LEG
W10492487 W10492487 Whirlpool LIGHT
WP4317852 WP4317852 Whirlpool MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A Whirlpool MISCELLANEOUS, CLEANER, STAINLESS STEEL
833938 833938 Whirlpool MISCELLANEOUS, KIT, TERMINAL CONNECTOR
212643 212643 Whirlpool MISCELLANEOUS, SEALER, GUM (4 FEET)
F2WC9I1 F2WC9I1 Whirlpool MISCELLANEOUS, WATER FILTER
W10124096 W10124096 Whirlpool MOTOR, FAN
W11178521 W11178521 Whirlpool NAMEPLATE
WP3400909 WP3400909 Whirlpool NUT
3400240 3400240 Whirlpool NUT
W10136999 W10136999 Whirlpool NUT
W11624931 W11624931 Whirlpool OVERLOAD
2217397 2217397 Whirlpool PAD, FOAM
2185675 2185675 Whirlpool PAD-FOAM
W10532250 W10532250 Whirlpool PAD-FOAM
799344 799344 Whirlpool PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 Whirlpool PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 Whirlpool PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
W11614100 W11614100 Whirlpool PAN-WATER
WP2185625 WP2185625 Whirlpool PAN-WATER
W10340986 W10340986 Whirlpool PANEL
2185712 2185712 Whirlpool PIN, HINGE
2301979 2301979 Whirlpool PLATE, CONDENSER FAN MOTOR MOUNTING
W11542867 W11542867 Whirlpool PUMP
W11542868 W11542868 Whirlpool PUMP
WP2217224 WP2217224 Whirlpool RELAY-STRT
W11420408 W11420408 Whirlpool SCOOP
WP8281196 WP8281196 Whirlpool SCREW
8281197 8281197 Whirlpool SCREW
WP489128 WP489128 Whirlpool SCREW
489472 489472 Whirlpool SCREW
WP489069 WP489069 Whirlpool SCREW
WP3400884 WP3400884 Whirlpool SCREW
WP488163 WP488163 Whirlpool SCREW
348689 348689 Whirlpool SCREW
WP250830 WP250830 Whirlpool SCREW
WP489442 WP489442 Whirlpool SCREW
WP3400886 WP3400886 Whirlpool SCREW
W11661566 W11661566 Whirlpool SCREW
W11447718 W11447718 Whirlpool SCREW
W10531302 W10531302 Whirlpool SCREW
W10495264 W10495264 Whirlpool SCREW
8534075 8534075 Whirlpool SCREW (BLACK)
8534077 8534077 Whirlpool SCREW (WHITE)
WP503695 WP503695 Whirlpool SEALER
WP505587 WP505587 Whirlpool SEALER
A201441 A201441 Whirlpool SHIM
836667 836667 Whirlpool SPACER
2185678 2185678 Whirlpool SPACER
W10486558 W10486558 Whirlpool STOP-DOOR
W10486561 W10486561 Whirlpool STOP-DOOR
W10486559 W10486559 Whirlpool STOP-DOOR
W10486560 W10486560 Whirlpool STOP-DOOR
W11291138 W11291138 Whirlpool SWITCH
W11171663 W11171663 Whirlpool SWITCH
W11238399 W11238399 Whirlpool TAPE
W10282061 W10282061 Whirlpool TAPE
W10761657 W10761657 Whirlpool TECH SHEET
WPW10511923 WPW10511923 Whirlpool THERMISTOR
WP2262071 WP2262071 Whirlpool TIE-WIRE
W10861644 W10861644 Whirlpool TOOL
W10512750 W10512750 Whirlpool TOP-CABNET
W10320117 W10320117 Whirlpool TOP-CABNET
WP1117510 WP1117510 Whirlpool TORX SCREW WRENCH, TORX KEY
WPW10485951 WPW10485951 Whirlpool TRANSFORMR
WPW10678300 WPW10678300 Whirlpool TUBE
WPW10217922 WPW10217922 Whirlpool TUBE
WPW10678299 WPW10678299 Whirlpool TUBE
W10863947 W10863947 Whirlpool TUBE
W11097809 W11097809 Whirlpool TUBE
W10528572 W10528572 Whirlpool TUBE
W10737551 W10737551 Whirlpool TUBE, DRAIN
W10541618 W10541618 Whirlpool USE AND CARE GUIDE
W10881366 W10881366 Whirlpool VALVE
