Model Image
Manufacturer

Whirlpool

Model Number

GI6FARXXY07

Description

26 Cu. Ft. French Door Bottom Mount Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
799340 799340 (12 OZ. SPRAY CAN) (ENAMEL,BLACK (1 QT. UNCUT))
WPW10284682 WPW10284682 ADAPTER (LEFT HAND)
WPW10284683 WPW10284683 ADAPTER (RIGHT HAND)
WPW10378254 WPW10378254 ARM,SHUTOFF
W11185686 W11185686 ASSEMBLY,ICE BIN
W10882923 W10882923 ASSEMBLY,ICEMAKER
WPW10312691 WPW10312691 ASSEMBLY,IMPINGER
W11290115 W11290115 ASSEMBLY,LED
WPW10300025 WPW10300025 ASSEMBLY,MOLD AND HEATER
WPW10515763 WPW10515763 ASSEMBLY,ROLLER (LEFT HAND)
WPW10515762 WPW10515762 ASSEMBLY,ROLLER (RIGHT HAND)
WPW10353552 WPW10353552 ASSEMBLY,SEPERATOR
WPW10309866 WPW10309866 ASSEMBLY,SOLENOID
W11227371 W11227371 ASSEMBLY,SPIGOT BODY
67006434 67006434 AXLE,ROLLER
606755 606755 BAG

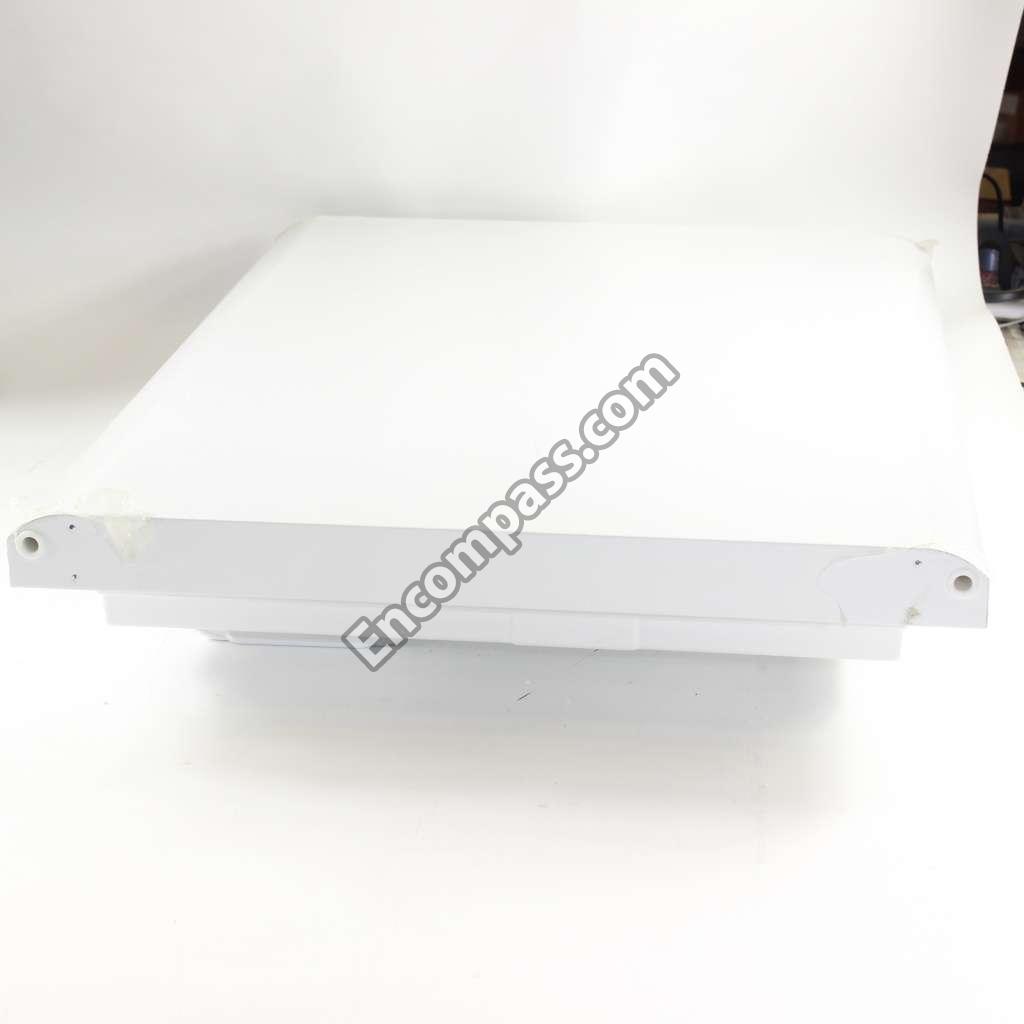

W11727651 W11727651 BASEPAN
W11218042 W11218042 BASKET,UPPER
WPW10293682 WPW10293682 BIN,LOWER
WP12825803 WP12825803 BLADE,FAN
WP67006337 WP67006337 BLADE,FAN

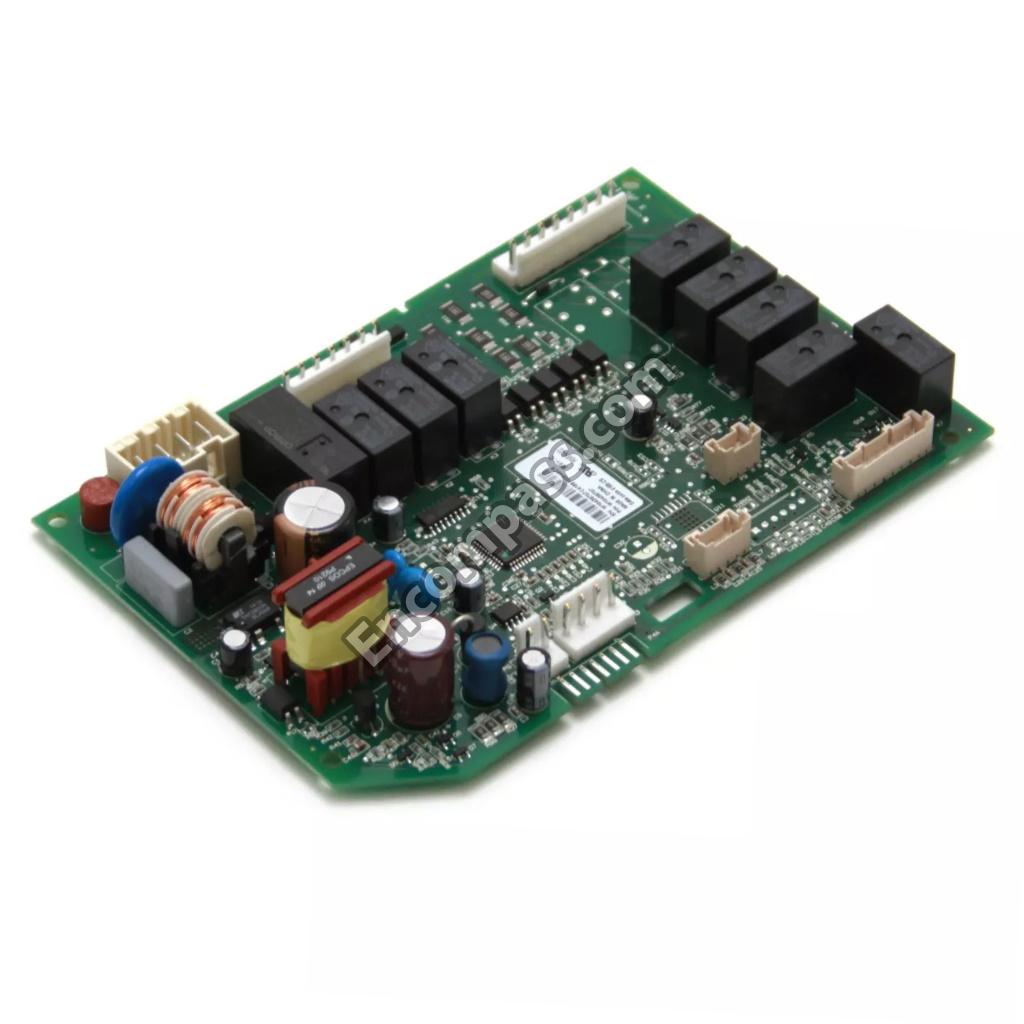

W11035752 W11035752 BOARD,CONTROL
W10285271 W10285271 BOX,HV CONTROL
WP12642303WD WP12642303WD BRACE,CRISPER COVER
WP12227305WD WP12227305WD BRACE,PANTRY
WPW10330994 WPW10330994 BRACKET,DOOR (LEFT HAND)
WPW10330995 WPW10330995 BRACKET,DOOR (RIGHT HAND)
67006325 67006325 BRACKET,FILTER BASE
W10174827 W10174827 BRACKET,ICE DOOR
W10346971 W10346971 BRACKET,SOLENOID
W10502642 W10502642 BRACKET,WATER TANK & VALVE
WPW10141622 WPW10141622 BRAKE,ROLLER
WPW10224961 WPW10224961 BUCKET,GALLON
WPW10212139 WPW10212139 BUCKET,SMALL
WPW10323808 WPW10323808 BUCKET,UPPER
8009 8009 BULB,LIGHT
4396822 4396822 BULB-LIGHT
N_P N_P CABINET (NOT A SERVICABLE PART)
WPW10662129 WPW10662129 CAPACITOR
W11395888 W11395888 CARTRIDGE,BYPASS
WP4317852 WP4317852 CEMENT,ALUMILASTIC (1 1/4 OZ.)
W11456069 W11456069 CLAMP,TUBE
W10174818 W10174818 CLIP MOTOR COUPLING
10623002 10623002 CLIP, EVAPORATOR
12996601 12996601 CLIP,BUSHING
W10281329 W10281329 CLIP,DRIER
W11712696 W11712696 CLIP,FAN MOTOR
W10165970 W10165970 CLIP,FAN MOTOR
W11673433 W11673433 CLIP,HEATER
WP628379 WP628379 CLIP,THERMAL FUSE
WP12028505AP WP12028505AP CLOSURE,DOOR (GREY)
WPW10507886 WPW10507886 COMPRESSOR
WPW10346415 WPW10346415 CONDENSER
WPW10334458 WPW10334458 CONNECTOR,WATER TUBE
W11184112 W11184112 CONTROL BOARD

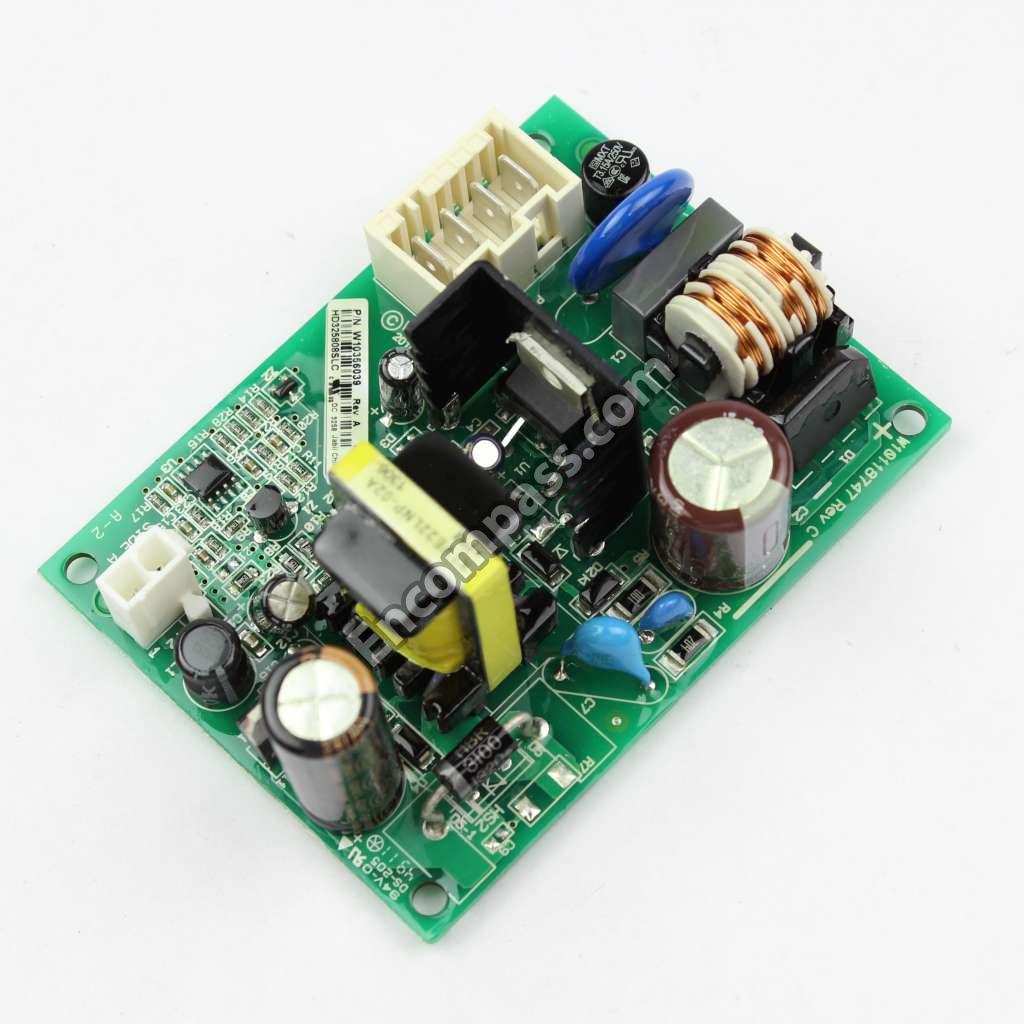

WPW10356039 WPW10356039 CONTROL,POWER SUPPLY ELECTRONIC
WP503695 WP503695 CORK,SEALER
12961602 12961602 COVER,CONTROL BOX
W10308421 W10308421 COVER,EVAPORATOR
W10191141 W10191141 COVER,FILL TUBE (GREY)
WP67006331 WP67006331 COVER,FILTER
W10460383 W10460383 COVER,FRONT
WPW10337648 WPW10337648 COVER,LEFT HINGE (GREY)
67006318 67006318 COVER,LIGHT
67006329 67006329 COVER,LOWER WATER TANK
WPW10191117 WPW10191117 COVER,RIGHT HINGE (GREY)
WP67003924 WP67003924 COVER,THERMISTOR
W10211854 W10211854 COVER,UNIT
12960101 12960101 COVER,UPPER WATER TANK
W10208592 W10208592 COVER,VALVE
WPW10309869 WPW10309869 COVER,WIRING
W10377998 W10377998 CUP,FILL
4392899 4392899 CUSTOMER TOUCH-UP MATERIAL (ENAMEL,BISQUE (.6 OZ. BOTTLE))
4392901 4392901 CUSTOMER TOUCH-UP MATERIAL (ENAMEL,BISQUE (12 OZ. SPRAY CAN))
12963002SP 12963002SP DAM (LEFT HAND)
12963102SP 12963102SP DAM (RIGHT HAND)
WPW10196393 WPW10196393 DAMPER,CONTROL
WPW10448874 WPW10448874 DEVICE,START
WPW10309864 WPW10309864 DIVIDER,ICE BOX
W10146439 W10146439 DIVIDER,UPPER BASKET
12977863SQ 12977863SQ DOOR,FREEZER (STAINLESS)
13107315SQ 13107315SQ DOOR,LEFT (MONO-STAINLESS)
13107316SQ 13107316SQ DOOR,RIGHT (STAINLESS)
WPW10317279 WPW10317279 DOOR-ICE
WPW10143759 WPW10143759 DRIER
W10318914 W10318914 EJECTOR
W10118193 W10118193 ENCLOSURE,WATER VALVE CONNECTOR
W10395616 W10395616 ENDCAP,PANTRY (LEFT HAND)
W10395615 W10395615 ENDCAP,PANTRY (RIGHT HAND)
W11536253 W11536253 EVAPORATOR
WPW10351019 WPW10351019 EXTENSION,SHUTOFF ARM
WP12587703AP WP12587703AP FILLER,WRAPPER (GREY)
EDR4RXD1 EDR4RXD1 FILTER,WATER
W11469652 W11469652 FOIL,HOUSING
W10142628 W10142628 FOIL,ICE BOX
WPW10329866 WPW10329866 FRAME,CRISPER
W10815413 W10815413 FUNNEL,DRAIN
W11250029 W11250029 GASKET
WP67006341 WP67006341 GASKET,DAMPER
WPW10714545 WPW10714545 GASKET,DOOR (GREY)
W10830055 W10830055 GASKET,DOOR (GREY)
WPB8381501 WPB8381501 GASKET,DRAIN
W11451451 W11451451 GASKET,FOAM
W10856123 W10856123 GASKET,FOAM
67006429 67006429 GASKET,HV CONTROL BOX
12002497 12002497 GEAR
WPW10474716 WPW10474716 GEAR (LEFT HAND)
WPW10474715 WPW10474715 GEAR (RIGHT HAND)
WP67006704 WP67006704 GLASS,CRISPER
W10346889 W10346889 GLIDE,PANTRY (LEFT HAND)
W10346888 W10346888 GLIDE,PANTRY (RIGHT HAND)
WP542638 WP542638 GREASE,SILICONE (1/2 OZ.)
W11176847 W11176847 GRILLE,AIR
W10555984 W10555984 GRILLE,AIR
WPW10534155 WPW10534155 GRILLE,TOE (GREY)
WPW10169124 WPW10169124 GROMMET,COMPRESSOR
WPW10137529 WPW10137529 GROMMET,CONDENSER
W11676465 W11676465 GROMMET,FAN MOTOR
W10151687 W10151687 GROMMET,FAN MOTOR
W10357229 W10357229 GUIDE,ENERGY
WPW10435760 WPW10435760 GUIDE-ICE
W11351147 W11351147 HANDLE
WP67005912 WP67005912 HANDLE,CRISPER PAN
WPW10223025K WPW10223025K HANDLE,DOOR (STAINLESS)
WPW10223019K WPW10223019K HANDLE,DOOR (STAINLESS)
W11029433 W11029433 HARNESS,ICEMAKER
W10860749 W10860749 HARNESS,UNIT (INCLUDES POWER CORD)
WP12729123 WP12729123 HEATER,DEFROST
W10917988 W10917988 HINGE,CENTER (RIGHT) (GREY)
W11592375 W11592375 HINGE,TOP (LEFT HAND)
W11592374 W11592374 HINGE,TOP (RIGHT HAND)
W10443023 W10443023 HOUSING,LIGHT
W10121282 W10121282 INLET,BLOWER
W11706807 W11706807 INSULATION
12820505 12820505 INSULATION
876370 876370 INSULATION (2 PIECES,3" X 24" X 48")
876029 876029 KIT,FOAM SLAB (30" X 32 1/2" X 1 1/2")
833938 833938 KIT,TERMINAL CONNECTOR
W10273464 W10273464 LADDER,CENTER
W10251968 W10251968 LADDER,SIDE (LEFT HAND)
W10251965 W10251965 LADDER,SIDE (RIGHT HAND)
W10118194 W10118194 LID,ENCLOSURE
W10296541 W10296541 LID,HV CONTROL BOX
W11679940 W11679940 LIGHT BULB
W11676504 W11676504 LINER,DIVIDER
31462A 31462A MISCELLANEOUS,CLEANER,STAINLESS STEEL
212643 212643 MISCELLANEOUS,SEALER,GUM (4 FEET)
WP505587 WP505587 MISCELLANEOUS,SEALER,MASTIC (1 QT)
W11238399 W11238399 MISCELLANEOUS,TAPE,VINYL (3/4 X 108")
W11434460 W11434460 MODULE,LIGHT
WPW10468891 WPW10468891 MODULE,LIGHT
W11671282 W11671282 MOTOR,AUGER
W11334745 W11334745 MOTOR,EVAPORATOR (INCLUDES HEATER HARNESS,DEFROST THERMOSTAT AND THERMISTOR)
W11613295 W11613295 MOTOR,FAN
W11529245 W11529245 MOTOR,FAN
WPW10205979 WPW10205979 MOTOR,ICE DOOR
W10190541 W10190541 MOUNT,CRISPER SUPPORT
W10348259 W10348259 MOUNT,GEAR (LEFT HAND)
W10348260 W10348260 MOUNT,GEAR (RIGHT HAND)
WP12722815AP WP12722815AP MULLION,DOOR (GREY)
WPW10393265 WPW10393265 NAMEPLATE (GREY)
WPW10368730 WPW10368730 PAD,ICE (GREY)
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
799344 799344 PAINT,BULK (1 QT. WHITE)
285006 285006 PAINT,PRESSURIZED SPRAY (12 OZ. ENAMEL,BLACK)
350942 350942 PAINT,PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT,PRESSURIZED SPRAY (12 OZ. WHITE)
72032 72032 PAINT,TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT,TOUCH-UP (1/2OZ. WHITE)
WP67004515 WP67004515 PAN,CRISPER
WPW10655368 WPW10655368 PAN,DRAIN
WPW10330534 WPW10330534 PAN,PANTRY
WP67003405 WP67003405 PLATE,PIVOT
WPW10326469 WPW10326469 RAIL,CENTER CRISPER
W11489993 W11489993 RAIL,SIDE (LEFT HAND)
W11489994 W11489994 RAIL,SIDE (RIGHT HAND)
WP67005149 WP67005149 ROLLER
W11573362 W11573362 SCREW
WP67006908 WP67006908 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
12992301 12992301 SCREW
WPW10273971 WPW10273971 SCREW
WPW10288153 WPW10288153 SCREW
W11311945 W11311945 SCREW
WP489474 WP489474 SCREW
WP98165 WP98165 SCREW
W10001240 W10001240 SCREW
W10709795 W10709795 SCREW
67006425 67006425 SCREW
W10185612 W10185612 SCREW
W10854958 W10854958 SCREW
W11686675 W11686675 SCREW
67006564 67006564 SCREW
WP489349 WP489349 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
W10309863 W10309863 SCROLL,BLOWER
WPM0500703 WPM0500703 SEAL
WPW10287601 WPW10287601 SEAL,ICE CHUTE
W11173556 W11173556 SHAFT,RACK
W11028221 W11028221 SHAFT,RACK
WP12204826 WP12204826 SHELF,GLASS
W11402525 W11402525 SHELF,GLIDE OUT
W11197490 W11197490 SHELF,MINI
12999501 12999501 SHIM,TOP HINGE (LEFT HAND)
12999502 12999502 SHIM,TOP HINGE (RIGHT HAND)
W11556315 W11556315 SHROUD,CONDENSER FAN
W11700329 W11700329 SHROUD,EVAPORATOR
W11658402 W11658402 SLIDE,DOOR
WP67005864 WP67005864 SLIDE,HUMIDITY CONTROL
W11447232 W11447232 SOCKET,LIGHT
W11703060 W11703060 STOP,DOOR (GREY)
W11661170 W11661170 STRAP,BALE
WPW10122563 WPW10122563 STRIPPER,ICE
WP13062602 WP13062602 SUPPORT,CRISPER FRAME
WPW10346124 WPW10346124 SUPPORT,ICE DOOR
W11445850 W11445850 SWITCH,LIGHT
W11396033 W11396033 SWITCH,ROCKER
W10475393 W10475393 TECH SHEET
WP627985 WP627985 THERMOSTAT
WP1117510 WP1117510 TORX SCREW WRENCH,TORX KEY
W11192301 W11192301 TRAY,DISPENSER (GREY)
WPW10267863 WPW10267863 TRAY,DISPENSER SLIDE (GREY)
W11547653 W11547653 TRAY,DRIP
WPW10231345 WPW10231345 TRIM,CRISPER
WP67006010 WP67006010 TRIM,PANTRY GLASS

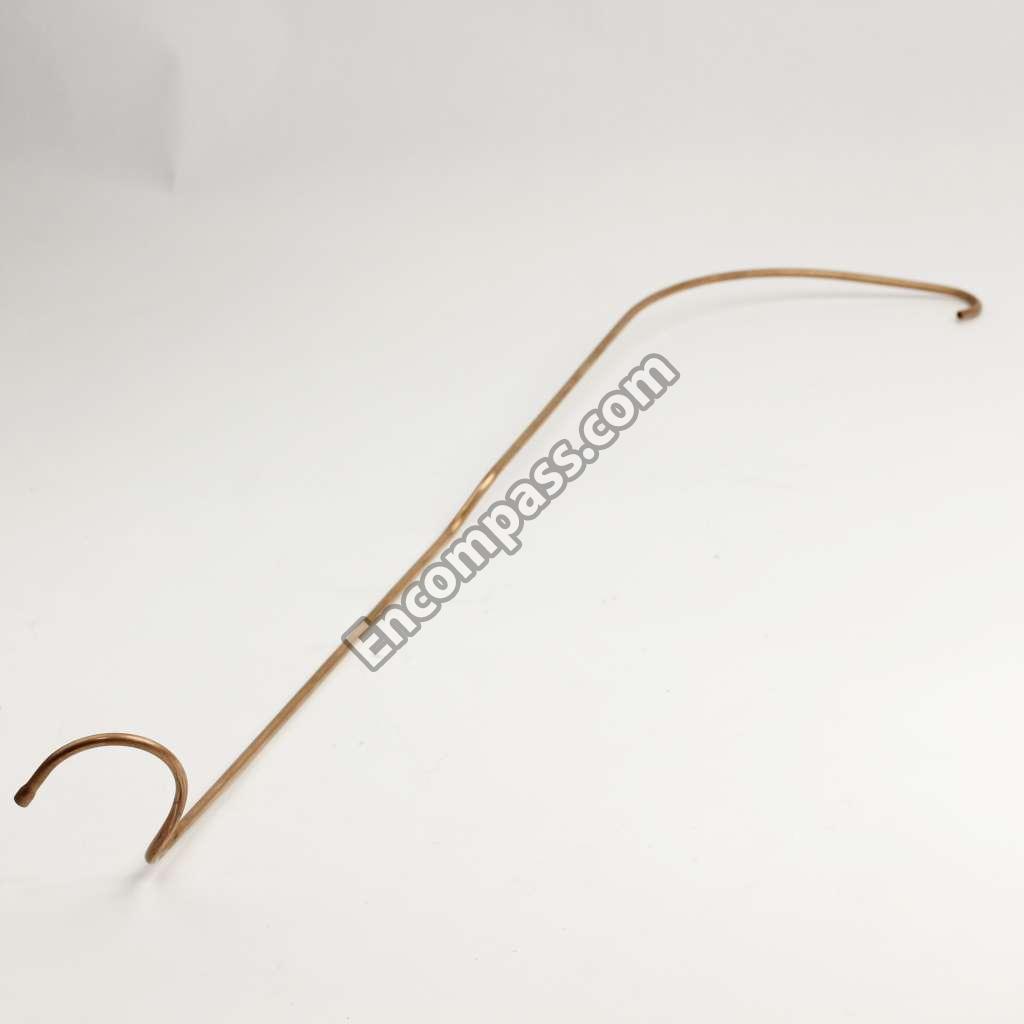

WPW10233569 WPW10233569 TUBE,DISCHARGE
W10619951 W10619951 TUBE,DRAIN
WPW10296451 WPW10296451 TUBE,WATER
WPW10444033 WPW10444033 TUBE,WATER

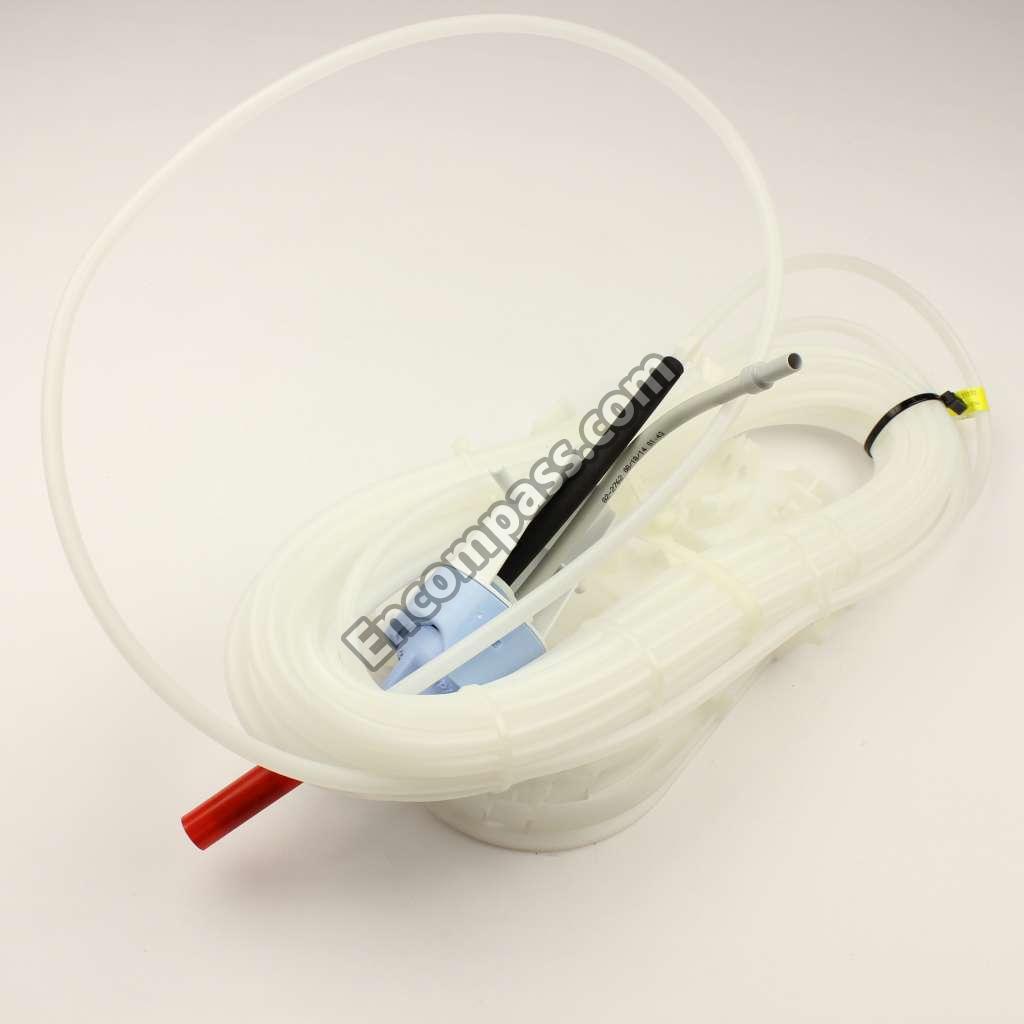

W11415785 W11415785 TUBE,WATER
W10314956 W10314956 USE AND CARE GUIDE
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE,ACCESS
978027 978027 VALVE,ACCESS
978030 978030 VALVE,ACCESS
978029 978029 VALVE,ACCESS
978026 978026 VALVE,ACCESS
876764 876764 VALVE,ACCESS
WPW10498990 WPW10498990 VALVE,SOLENOID

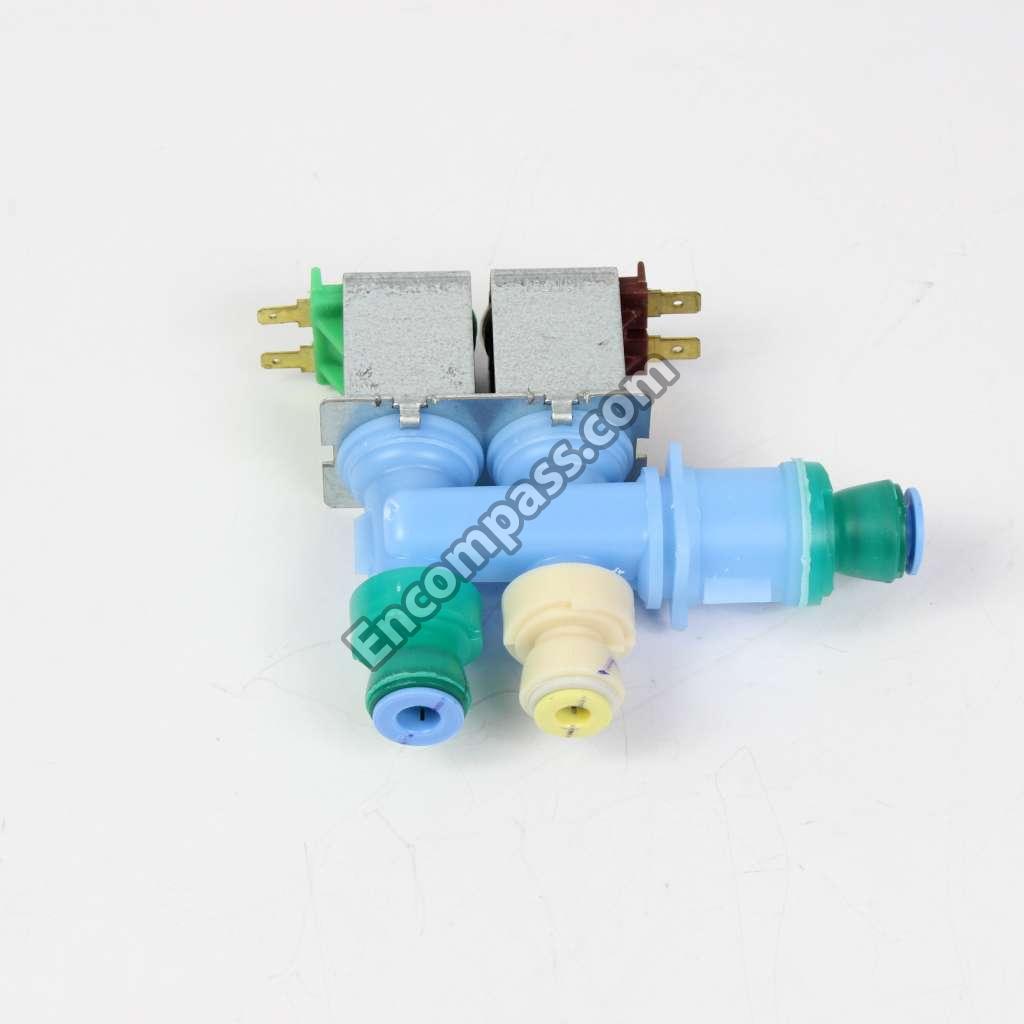

WPW10312696 WPW10312696 VALVE,WATER INLET
W11045978 W11045978 WALL,DISPENSER FALSE (GREY)
W11378860 W11378860 WASHER
WPW10123444K WPW10123444K WHEEL,BLOWER
WP63052-2 WP63052-2 YOKE,ICE DISPENSER
