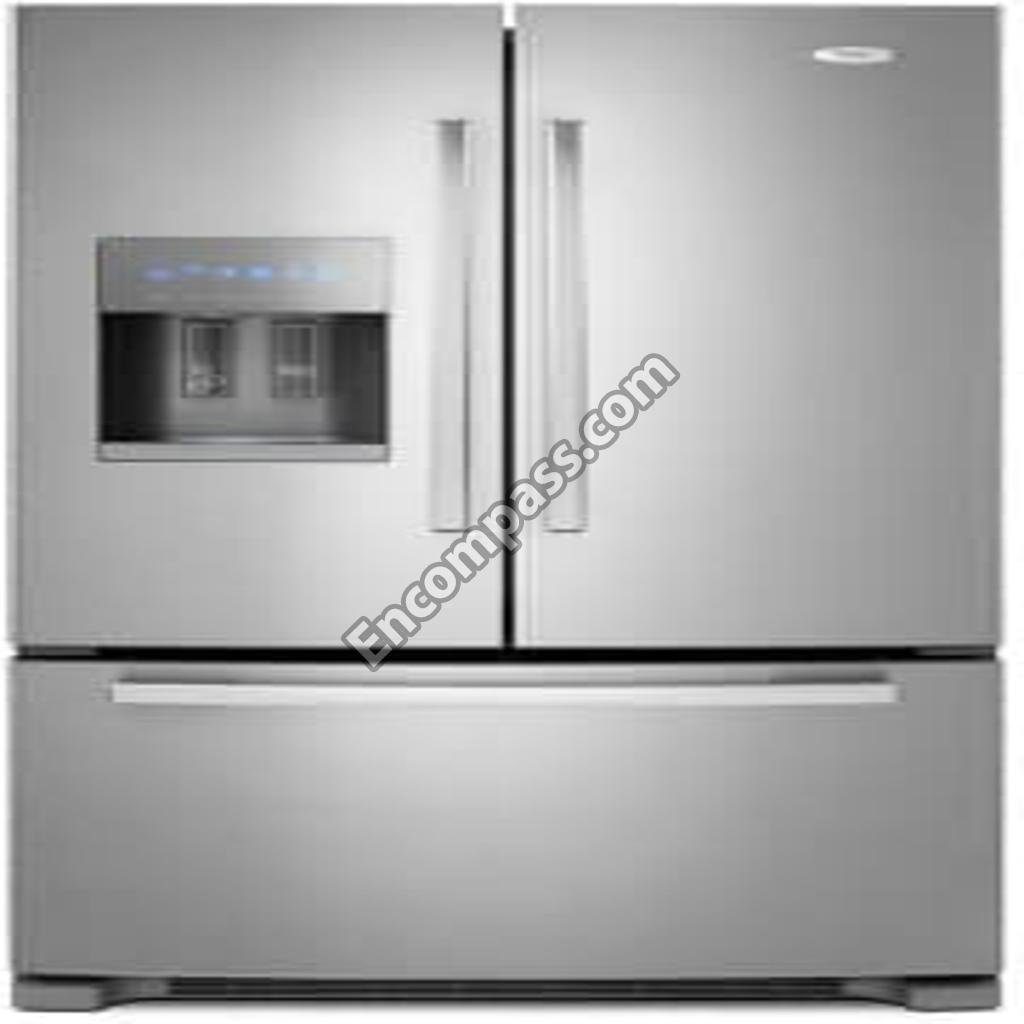

Model Image
Manufacturer

Whirlpool

Model Number

GI6FDRXXY01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10312691 WPW10312691 AIR-BAFFLE
W10318914 W10318914 ARM-EJECTR
WPW10175514 WPW10175514 ARM-SHUT
WPW10122563 WPW10122563 ARM-STRIPR
W10555984 W10555984 ASSEMBLY, AIR GRILLE
67006434 67006434 AXLE, ROLLER (2)
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
WP67003795 WP67003795 BAR- TEMP
W11218042 W11218042 BASKET-FZR
WPW10224961 WPW10224961 BIN CONTROL LEVER
WPW10212139 WPW10212139 BIN CONTROL LEVER
WPW10323808 WPW10323808 BIN CONTROL LEVER
WPW10293682 WPW10293682 BIN-FREEZR
WP67006337 WP67006337 BLADE- FAN
WP12825803 WP12825803 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
W10285271 W10285271 BOX
WP12642303WD WP12642303WD BRACE- CRI
WPW10284682 WPW10284682 BRACKET
WPW10284683 WPW10284683 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
W10174827 W10174827 BRACKET
W10346971 W10346971 BRACKET
W10348259 W10348259 BRACKET
W10348260 W10348260 BRACKET
67006325 67006325 BRACKET, FILTER BASE
67006324 67006324 BRACKET, WATER TANK & VALVE
N_P N_P CABINET (NOT A SERVICABLE PART)
W11395888 W11395888 CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11456069 W11456069 CLAMP
W10281329 W10281329 CLAMP
31462A 31462A CLEANER, STNLS STEEL MAGIC
W11673433 W11673433 CLIP
W11712696 W11712696 CLIP
WP628379 WP628379 CLIP
WP2315522 WP2315522 CLIP
W10174818 W10174818 CLIP
12996601 12996601 CLIP, BUSHING WIRE (LEFT DOOR)
10623002 10623002 CLIP, EVAPORATOR
W10165970 W10165970 CLIP, FAN MOTOR
WP12028505AP WP12028505AP CLOSER
WP67003639 WP67003639 CLOSER
WP67003638 WP67003638 CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WPW10346415 WPW10346415 CONDENSER
WPW10334458 WPW10334458 CONNECTOR
WPW10196393 WPW10196393 CONTROL
W11184112 W11184112 CONTROL BOARD
W11125428 W11125428 CONTROL BOARD
WPW10226427 WPW10226427 CONTROL BOARD
WPW10285199 WPW10285199 CONTROL BOARD
12656202 12656202 CONTROL, HOUSING
W11033771 W11033771 COUPLING
W10827015 W10827015 COVER
WPW10309869 WPW10309869 COVER
W11226688 W11226688 COVER
WPW10337634 WPW10337634 COVER
WPW10337648 WPW10337648 COVER
WP67005956 WP67005956 COVER
WPW10191117 WPW10191117 COVER
W10118194 W10118194 COVER
W10118193 W10118193 COVER
W10337647 W10337647 COVER
W10316171 W10316171 COVER
12961602 12961602 COVER, CONTROL BOX
12587703W 12587703W COVER, CORNER (2) (WHITE)
67003485 67003485 COVER, CORNER (BLK)
W10191141 W10191141 COVER, FILL TUBE (APOLLO GREY)
12981401B 12981401B COVER, FILL TUBE (BLACK)
12981401W 12981401W COVER, FILL TUBE (WHITE)
WPW10319847 WPW10319847 COVER, MC BACK
67005958 67005958 COVER, RIGHT HINGE (WHITE)
67006329 67006329 COVER, WATER TANK (LOWER)
12960101 12960101 COVER, WATER TANK (UPPER)
WP67003924 WP67003924 COVER- FZ
W10308421 W10308421 COVER-EVAP
WP67006331 WP67006331 COVER-FILT
W10884722 W10884722 COVER-FRNT
W10327050 W10327050 CUP-FILL
72032 72032 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (BLACK))
72017 72017 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (WHITE))
350942 350942 CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (13 OZ. SPRAY CAN))
12963002SP 12963002SP DAM (LEFT SIDE)
12963102SP 12963102SP DAM (RIGHT SIDE)
WPW10309864 WPW10309864 DIVIDER
WP67002759 WP67002759 DIVIDER
W10146439 W10146439 DIVIDER
12977863BQ 12977863BQ DOOR ASSEMBLY BL
W10918113 W10918113 DOOR HINGE
W11592375 W11592375 DOOR HINGE
W10918164 W10918164 DOOR HINGE
W10917988 W10917988 DOOR HINGE
W11592374 W11592374 DOOR HINGE
13107304BQ 13107304BQ DOOR RIGHT, (BLACK)
13107306SQ 13107306SQ DOOR RIGHT, (STAINLESS)
13107304WQ 13107304WQ DOOR RIGHT, (WHITE)
13107303BQ 13107303BQ DOOR, LEFT (BLACK)
13107305SQ 13107305SQ DOOR, LEFT (STAINLESS)
13107303WQ 13107303WQ DOOR, LEFT (WHITE)
W10346235 W10346235 DOOR-CHUTE
12977863WQ 12977863WQ DOR-FIP WH
WP12722815AP WP12722815AP DRAWER SLIDE RAIL
WP12722815W WP12722815W DRAWER SLIDE RAIL
WP67003531 WP67003531 DRAWER- PA
WPW10143759 WPW10143759 DRIER-UV
W10874836 W10874836 ENDCAP
12002730 12002730 EVAPORATOR
W11334745 W11334745 EVAPORATOR MOTOR
W11529245 W11529245 EVAPORATOR MOTOR
WPW10121440 WPW10121440 EXTENSION
W10367416 W10367416 EXTENSION
WP67006010 WP67006010 EXTR- GLAS
W10309863 W10309863 FAN-SCROLL
W10206339 W10206339 FASTENER
WP12587703AP WP12587703AP FILLER
EDR4RXD1 EDR4RXD1 FILTER
WPW10329866 WPW10329866 FRAME
12977846SQ 12977846SQ FREEZER DOOR (STAINLESS)
WP67005912 WP67005912 FRONT, CRISPER PAN
W10815413 W10815413 FUNNEL
W10856123 W10856123 GASKET
WP67006341 WP67006341 GASKET
W11250029 W11250029 GASKET
WPW10436253 WPW10436253 GASKET ASSEMBLY
WPW10714545 WPW10714545 GASKET ASSEMBLY
WPW10443321 WPW10443321 GASKET ASSEMBLY
W11378944 W11378944 GASKET ASSEMBLY
W11396037 W11396037 GASKET ASSEMBLY
W10830055 W10830055 GASKET, DOOR, RIGHT HAND (GREY)
67006429 67006429 GASKET, HV CONTROL
67002329 67002329 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
W11451451 W11451451 GASKET- FO
WPW10474716 WPW10474716 GEAR
WPW10474715 WPW10474715 GEAR
12002497 12002497 GEAR (INCLUDES BOTH)
W11033333 W11033333 GLASS SHELF
W11402525 W11402525 GLASS SHELF
WP67006704 WP67006704 GLASS- CRI
WPW10235370 WPW10235370 GLIDE
WP542638 WP542638 GREASE
W11176847 W11176847 GRILLE
WPW10534155 WPW10534155 GRILLE
WPW10534153 WPW10534153 GRILLE-FRT
WPW10534154 WPW10534154 GRILLE-FRT
WPW10169124 WPW10169124 GROMMET
W10852725 W10852725 GROMMET
WPW10137529 WPW10137529 GROMMET
W10151687 W10151687 GROMMET
W11676465 W11676465 GROMMET- F
W10310959 W10310959 GUIDE, ENERGY
W10499850 W10499850 GUIDE-ICE
WPW10223023K WPW10223023K HANDLE
WPW10223022K WPW10223022K HANDLE
WPW10223025K WPW10223025K HANDLE
W11351146 W11351146 HANDLE
W11351147 W11351147 HANDLE
WPW10222984K WPW10222984K HANDLE
12952005 12952005 HARNESS-FZ LIGHT (INCL.THERMISTOR)
WP12729123 WP12729123 HEATER
13000002WD 13000002WD HINGE, CENTER (RT) (WHITE)
W11684721 W11684721 HOUSING
W11434460 W11434460 HOUSING
WP2195914 WP2195914 HOUSING-IM
W11185686 W11185686 ICE-CONTNR
WPW10300024 WPW10300024 ICEMAKER
WP63052-2 WP63052-2 IMPELLER
WPW10498990 WPW10498990 INLET VALVE
WPW10312696 WPW10312696 INLET VALVE
WPW10121434 WPW10121434 INSERT
W11676504 W11676504 INSERT
W10121282 W10121282 INSERT
W11706807 W11706807 INSULATION
876029 876029 INSULATION
876370 876370 INSULATION
W11498983 W11498983 KNOB
W10251966 W10251966 LADDER
W10273464 W10273464 LADDER
W10251965 W10251965 LADDER
W10311756 W10311756 LENS-LIGHT
WPW10141622 WPW10141622 LEVELER
W11290115 W11290115 LIGHT
W11679940 W11679940 LIGHT BULB
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10300025 WPW10300025 MOLD-ICE
WPW10205979 WPW10205979 MOTOR
W11671282 W11671282 MOTOR
W11613295 W11613295 MOTOR-COND
12722815B 12722815B MULLION, DOOR (BLACK)
WP2220214 WP2220214 NAMEPLATE
WPW10368730 WPW10368730 PAD
W10368728 W10368728 PAD
W10368729 W10368729 PAD
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP67004515 WP67004515 PAN- CRISP
WPW10655368 WPW10655368 PAN-DRIP
W11727651 W11727651 PLATE
W11489993 W11489993 RAIL
W11489994 W11489994 RAIL
WPW10326469 WPW10326469 RAIL-CENTR
W10502642 W10502642 RESERVOIR
W10204187 W10204187 RETAINER
WP67005149 WP67005149 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
WP67006908 WP67006908 SCREW
W10709798 W10709798 SCREW
12992301 12992301 SCREW
WP12992902 WP12992902 SCREW
WP67006415 WP67006415 SCREW
WP98165 WP98165 SCREW
W10709795 W10709795 SCREW
W11311945 W11311945 SCREW
W10854958 W10854958 SCREW
W11686675 W11686675 SCREW
WP489349 WP489349 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
8533917 8533917 SCREW
W10001240 W10001240 SCREW
W10829281 W10829281 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPW10287601 WPW10287601 SEAL
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER, GUM (4 FEET)
WPW10353552 WPW10353552 SEPARATOR
W11173556 W11173556 SHAFT
W11028221 W11028221 SHAFT
W11197490 W11197490 SHELF-CANT
W10142628 W10142628 SHIELD
W11469652 W11469652 SHIELD
W11045976 W11045976 SHIELD
W11045975 W11045975 SHIELD
W11045978 W11045978 SHIELD
12999501 12999501 SHIM, TOP HINGE (LEFT)
12999502 12999502 SHIM, TOP HINGE (RIGHT)
W11556315 W11556315 SHROUD
W11700329 W11700329 SHROUD- EV
W11658402 W11658402 SLIDE
WP67005864 WP67005864 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
WPW10309866 WPW10309866 SOLENOID
W11227371 W11227371 SPIGOT
WPW10197428 WPW10197428 START-DEV
12968202W 12968202W STOP, DOOR (WHITE)
W11703060 W11703060 STOP-DOOR
W11708403 W11708403 STOP-DOOR
WP12227305WD WP12227305WD SUPPORT
WP13062602 WP13062602 SUPPORT
W10190541 W10190541 SUPPORT
W11445850 W11445850 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
W10341192 W10341192 TECH SHEET
833938 833938 TERMINAL
628532 628532 THERMOSTAT (ALSO ORDER 542369 CEMENT)
WP1117510 WP1117510 TORX KEY
WP67001719 WP67001719 TRACK
W11547653 W11547653 TRAY-DRIP
WPW10267863 WPW10267863 TRAY-DRIP
W11192301 W11192301 TRAY-DRIP
W10267860 W10267860 TRAY-DRIP
W10267861 W10267861 TRAY-DRIP
W11045970 W11045970 TRAY-DRIP
W11045971 W11045971 TRAY-DRIP
W10310696 W10310696 TRIM-BASKT
WPW10231345 WPW10231345 TRIM-SHELF
WPW10217747 WPW10217747 TUBE
W10619951 W10619951 TUBE-DRAIN
W10314956 W10314956 USE & CARE GUIDE
WP978025 WP978025 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
67006346 67006346 WASHER
WPW10296451 WPW10296451 WATER TUBE
W11415785 W11415785 WATER TUBE
WPW10290356 WPW10290356 WATERLINE, CABINET (W/NUT)
WPW10123444K WPW10123444K WHEEL
WPW10322960 WPW10322960 WIRE HARNESS
