Model Image
Manufacturer

Whirlpool

Model Number

GL5030VW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP691581 WP691581 ACTUATOR
279264 279264 AIR CHANNEL BOX
WP72107 WP72107 ALMOND
350956 350956 ALMOND
WP342847 WP342847 BAFFLE, DRUM
WP348780 WP348780 BASE, MOTOR
WP3394508 WP3394508 BEARNG-RNG
341241 341241 BELT, DRIVE
3400500 3400500 BOLT, 5/16-18 X 3/4
279900 279900 BOX
694538 694538 BRACKET, COIL
3396009 3396009 BRACKET, CONTROL
3976435 3976435 BRACKET, SUPPORT
279793 279793 BULKHEAD
279536 279536 BURNER-GAS
3399581 3399581 CABINET (INCLUDES ILLUS. NO.`S 5,7,16,41, & 57) (ALMOND)
3399580 3399580 CABINET (INCLUDES ILLUS. NO.`S 5,7,16,41, & 57) (WHITE)

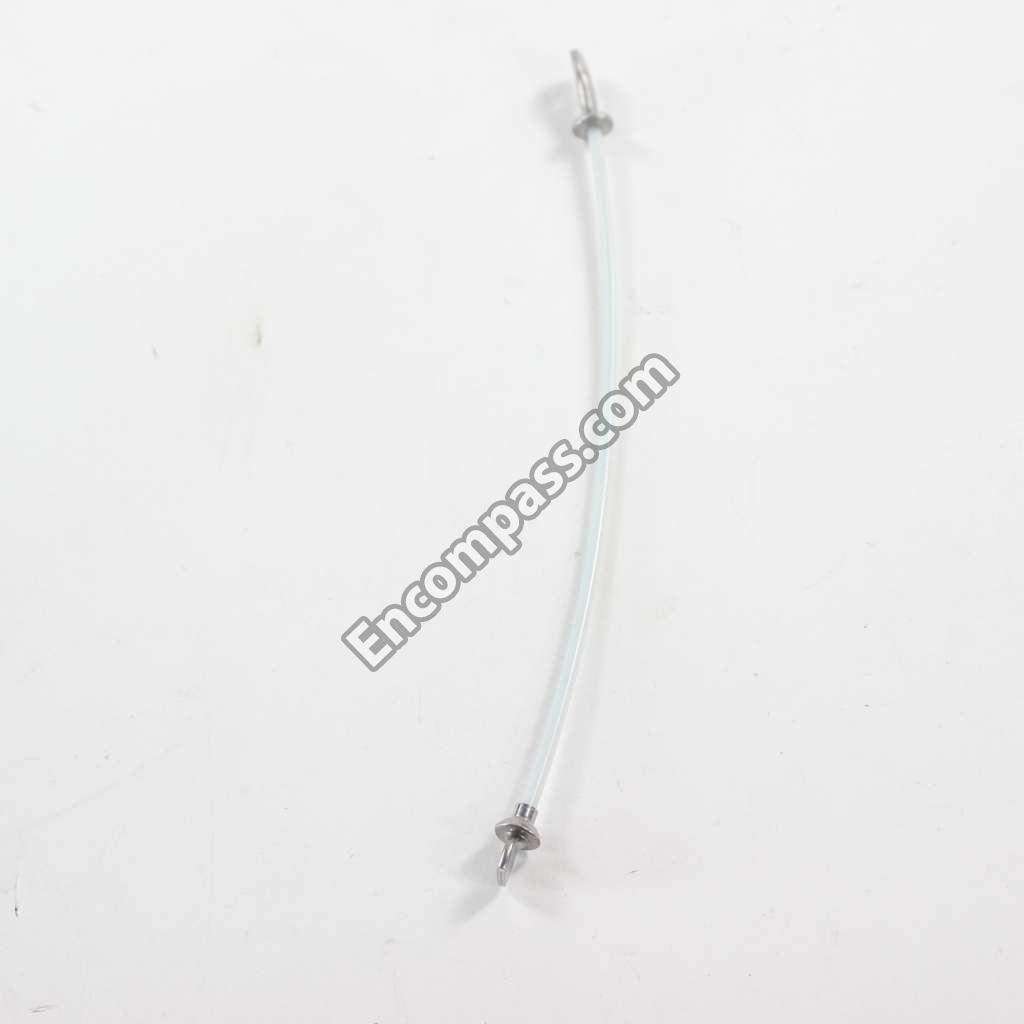

WP230131 WP230131 CABLE, DOOR (2)
3352243 3352243 CAP, END (L.H.)
3352238 3352238 CAP, END (R.H.)
279505 279505 CHUTE
WP660658 WP660658 CLAMP
341029 341029 CLAMP, PIPE
279771 279771 CLIP
353253 353253 CLIP
WP98997 WP98997 CLIP
279220 279220 CLIP
279638 279638 CLIP
WP297092 WP297092 CLIP
WP98234 WP98234 CLIP (2)
694510 694510 CLIP, HARNESS
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
279834 279834 COIL, 60 HZ. (2 TERMINAL) MAIN)
3352169 3352169 CONTROL KNOB, TEMPERATURE
49572A 49572A CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
W11736322 W11736322 COVER
697368 697368 COVER
WP697367 WP697367 COVER, LINT SCREEN (WHITE)
279570 279570 DOOR LATCH
689485 689485 DOOR, FRONT (ALMOND)
348737 348737 DOOR, FRONT (WHITE)
280078 280078 DOOR, REAR
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
3396775 3396775 DRUM ASSEMBLY
285367 285367 ENAMAL, TOAST (1 QT. UNCUT)
WP90296 WP90296 FASTENER, FLAT (2)
49621 49621 FEET-LVLNG
WP3392519 WP3392519 FUSE-THRML
279923 279923 GAS VALVE
261890 261890 GOLDEN HARVEST
261891 261891 GOLDEN HARVEST (UNCUT)
WP337182 WP337182 GUIDE, CABLE (L.H)
WP337183 WP337183 GUIDE, CABLE (R.H.)
WP3977746 WP3977746 HANDLE, DOOR (ALMOND)
WP348721 WP348721 HANDLE, DOOR (WHITE)
3391746 3391746 HARNESS, WIRING
WP61894 WP61894 HEATER, THERMOSTAT (NOTE: USED WITH 660039 THERMOSTAT ONLY)
WPW10044470 WPW10044470 HINGE
WPW10044480 WPW10044480 HINGE
WP238460 WP238460 HINGE, DOOR (L.H.)
WP238456 WP238456 HINGE, DOOR (R.H.)
WP8066217 WP8066217 HINGE, TOP (2))
WP8577230 WP8577230 HOUSING
WP691366 WP691366 IDLER PULLEY ASSEMBLY
279311 279311 IGNITOR
LIT3391774 LIT3391774 INSTRUCTIONS, INSTALLATION
279243 279243 KIT, CONVERSION (TYPE 1 TO TYPE 3)
3391829 3391829 KNOB, PUSH-TO-START
WP694424 WP694424 LEAK LIMITER
350941 350941 LEVELER (THINNER)
LIT3390376 LIT3390376 LIST, SERVICE PARTS
WP18776 WP18776 LOCK
WP358160 WP358160 NUT
WP689559 WP689559 NUT
WP358473 WP358473 NUT
98460 98460 NUT
799344 799344 PAINT
978883 978883 PAINT
72112 72112 PAINT, (TOUCH-UP 1/2 OZ.) (TOAST)
285366 285366 PAINT, SPRAY (13 OZ.) (PLATINUM)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
3391777 3391777 PANEL, CONTROL
347736 347736 PANEL, REAR
8066156 8066156 PANEL, REAR CONSOLE
W10295523 W10295523 PIPE PLUG
285368 285368 PLATINUM (UNCUT)
WP660975 WP660975 PLUG, TOP TO CABINET 689587 (ALT.) 694010 (ALT.)
W11222083 W11222083 POWER CORD
350938 350938 PRIMER, GRAY
WP8066184 WP8066184 PULLEY-MTR
WP338906 WP338906 RADIANT, SENSOR
WP341196 WP341196 RANGE THERMOSTAT
WP694674 WP694674 RANGE THERMOSTAT
691707 691707 RECEPTACLE, DOOR LATCHING (3-WAY) (USES TERMINAL 94614)
339392 339392 SCREEN
WP965173 WP965173 SCREW
WP488729 WP488729 SCREW
WPW10366705 WPW10366705 SCREW
WP694091 WP694091 SCREW
WP98129 WP98129 SCREW
WP488627 WP488627 SCREW
WP681414 WP681414 SCREW
WP489069 WP489069 SCREW
WP693995 WP693995 SCREW
WP388326 WP388326 SCREW
W11693756 W11693756 SCREW
WP3390631 WP3390631 SCREW
WP3400036 WP3400036 SCREW, 10-24 X 1
690372 690372 SCREW, 11-16 X 7/8
WP90767 WP90767 SCREW, 8 A X 3/8
694421 694421 SCREW, BRACKET MOUNTING (8-32 X 1/2) (2)
WP694423 WP694423 SCREW, REGULATOR ADJUSTMENT
239087 239087 SEAL
WP3394196 WP3394196 SEAL
WP339956 WP339956 SEAL FOAM
W11415783 W11415783 SEAL, LINT CHUTE
W11613302 W11613302 SEAL-DOOR
WPW10359270 WPW10359270 SHAFT
WPW10359269 WPW10359269 SHAFT, DRUM ROLLER (R.H.)
W11233063 W11233063 SHIELD
350930 350930 SPRAY (13 OZ.) (WHITE)
WP337186 WP337186 SPRING, DOOR (2)
WP694422 WP694422 SPRING, REGULATOR ADJUSTMENT
358472 358472 STOP, PUSH-IN (2)
22965 22965 STRAP, GROUND
349241T 349241T SUPPORT
686770 686770 SUPPORT PROTECTOR
337445 337445 SUPPORT, HEATER BOX (2)
279827 279827 SWITCH, MOTOR START (USE W/3391886 MOTOR)
279173 279173 SWITCH, PUSH-TO-START
694720 694720 SWITCH, TEMPERATURE
W10820036 W10820036 SWITCH-LID
WP94614 WP94614 TERMINAL, FEMALE

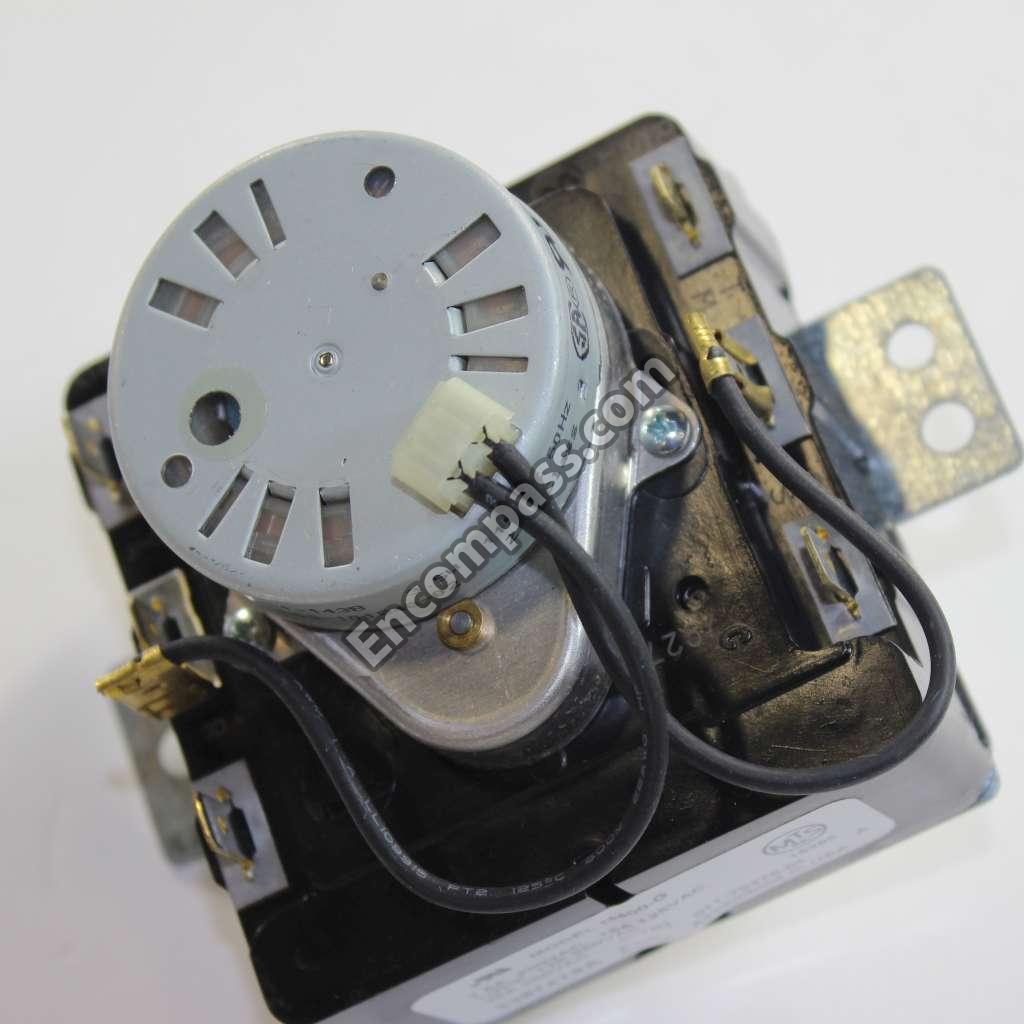

279561 279561 TIMER
3391823 3391823 TIMER KNOB ASSEMBLY
285365 285365 TOAST
279841 279841 TOE PANEL
279835 279835 TOEPNL
3393386 3393386 TOP (ALMOND)
3393385 3393385 TOP (WHITE)
WPW10512946 WPW10512946 TRI-RING (4)
689529 689529 UPPER FRONT PANEL (ALMOND)
337470 337470 UPPER FRONT PANEL (WHITE)
LIT3391353 LIT3391353 USE & CARE GUIDE
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP694089 WP694089 WHEEL
WP3401850 WP3401850 WIRE HARNESS
303485 303485 WIRE, GROUND
69085-3 69085-3 WIRE, GROUND
690236 690236 WIRE, GROUND (MOTOR)
72113 72113 WIRE, SPLICING 25 FT. BLACK 12 GA. 150~C (PLATINUM)
