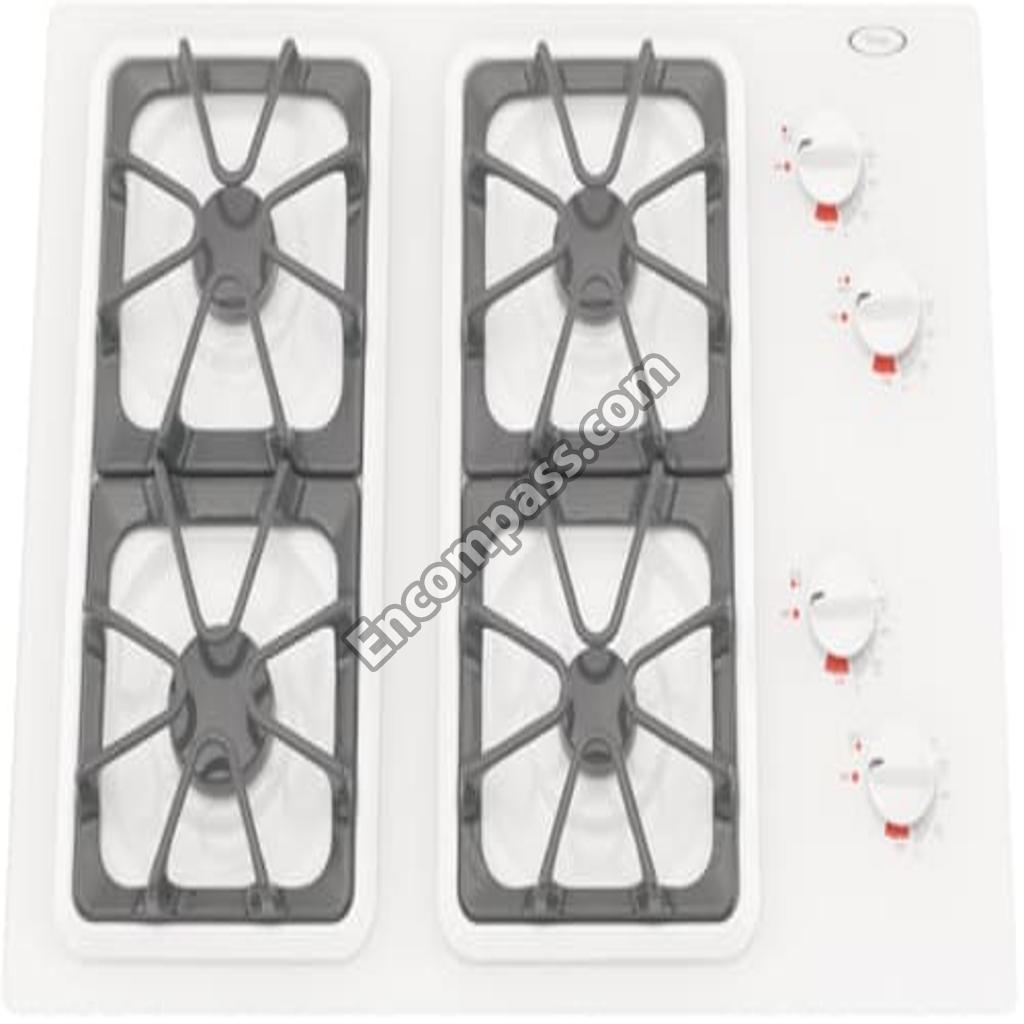

Model Image
Manufacturer

Whirlpool

Model Number

GLT3034LT02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
100000 100000 6K (1)
3192734 3192734 BOWL, LEFT (BISCUIT)
3191249 3191249 BOWL, LEFT (BLACK)
3191250 3191250 BOWL, LEFT (WHITE)
3192733 3192733 BOWL, RIGHT (BISCUIT)
3191305 3191305 BOWL, RIGHT (BLACK)
3191306 3191306 BOWL, RIGHT (WHITE)
4456777 4456777 BOX, BURNER
3192491 3192491 BRACKET, MANIFOLD
WP4455980 WP4455980 BURNR-HEAD
WP4455979 WP4455979 BURNR-HEAD
WP4455981 WP4455981 BURNR-HEAD
4173634 4173634 BUSHING, CORD
WP3191905 WP3191905 CAP-BURNER
WP3191899 WP3191899 CAP-BURNER
WP3191901 WP3191901 CAP-BURNER
WP3191903 WP3191903 CAP-BURNER
WP8273343 WP8273343 CAP-BURNER
WP8273344 WP8273344 CAP-BURNER
WP3191904 WP3191904 CAP-BURNER
WP8273345 WP8273345 CAP-BURNER
WP3191898 WP3191898 CAP-BURNER
WP3192741 WP3192741 CNVRSN-KIT
8285074 8285074 COOKTOP
8285076 8285076 COOKTOP
8285075 8285075 COOKTOP
WP8522853 WP8522853 GRATE (4) (ESPRESSO)
WPW10447925 WPW10447925 GRATE-KIT
8186533 8186533 HARDWARE
WP4454571 WP4454571 HARDWARE KIT (MOUNTING)
4456627 4456627 HARNESS, WIRE (IGNITOR 28``)
4456626 4456626 HARNESS, WIRE IGNITOR 15``
WPW10128448 WPW10128448 HOLDER-ORF
WPW10155784 WPW10155784 HOLDER-ORF
WPW10155785 WPW10155785 HOLDER-ORF
4455834 4455834 INSTALLATION INSTRUCTIONS
W11245276 W11245276 KNOB
8285072 8285072 KNOB
8285073 8285073 KNOB
9759440 9759440 L.P. CONVERSION INSTRUCTIONS
9759354 9759354 PIPE-MNFLD
W10392007 W10392007 POWER CORD
W10203756 W10203756 RAIL (BURNER)
WPW10110491 WPW10110491 RANGE SPARK MODULE
3191638 3191638 SAFE COOKING TIPS
WP3186217 WP3186217 SCREW
WP3177991 WP3177991 SCREW
WP12990527 WP12990527 SCREW
W10491985 W10491985 SCREW
WP3400093 WP3400093 SCREW
WP3400806 WP3400806 SCREW
WP4449809 WP4449809 SCREW
WP3368921 WP3368921 SCREW-TORX
WP3191933 WP3191933 SEAL-FOAM
WP3188425 WP3188425 SEAL-SWTCH
3191320 3191320 TUBING, BURNER LR & LF
3191318 3191318 TUBING, BURNER RR & RF
8285326 8285326 USE & CARE GUIDE
WP4456816 WP4456816 VALVE-BRNR
WP4456817 WP4456817 VALVE-BRNR
WP4456905 WP4456905 WIRE HARNESS
3192098 3192098 WIRING DIAGRAM
