Manufacturer
Whirlpool
Model Number
GLT3615LT01
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
(LF) (MOUSE GRAY) |
|
|
BEZEL, COOKTOP (LR,RR) (WHITE) |
|
|
BOWL, BURNER (LF) (LR) (RR) (BISCUIT) |
|
|
BOWL, BURNER (RF) (CENTER) (BISCUIT) |
|
|
BOWL-DRIP |
|
|
BOWL-DRIP |
|
|
BOWL-DRIP |
|
|
BRACKET |
|
|
BRACKET, MANIFOLD |
|
|
BURNER BOX |
|
|
BUSHING |
|
|
CAP BURNER, MOUSE (GRAY) (6K RF-LR) |
|
|
CAP, BURNER (BLACK) (LF) |
|
|
CAP, BURNER (LARGE (3) (GREY)) |
|
|
CAP, BURNER 6K (1) (ESPRESSO 12.5K) |
|
|
CAP, BURNER 6K ESPRESSO |
|
|
CAP, BURNER 9.5K BLACK |
|
|
CAP, BURNER LEFT FRONT (ESPRESSO RIGHT REAR) |
|
|
CAP, BURNER RF, LF, LR (BLACK) |
|
|
COOKTOP |
|
|
COOKTOP |
|
|
COOKTOP, GLASS (BLACK) |
|
|
GRATE, BURNER (ESPRESSO) |
|
|
GRATE, BURNER (MOUSE GRAY) |
|
|
GRATE, BURNER BLACK |
|
|
GROMMET, GLASS (BISCUIT) |
|
|
GROMMET, GLASS COOKTOP (4) |
|
|
GROMMET, GLASS COOKTOP(4) (WHITE) |
|
|
GUIDE BOOK STICKER |
|
|
HARDWARE KIT (MOUNTING |
|
|
HARNESS & SWITCHES |
|
|
HARNESS, IGNITOR 15`` (2) |
|
|
HARNESS, WIRE (IGNITOR 28``) |
|
|
HEAD, BURNER (AUXI) |
|
|
HEAD, BURNER (LR, RR) |
|
|
HEAD, BURNER (RAPID (12K)) |
|
|
HOLDER-ORF |
|
|
HOLDER-ORF |
|
|
HOLDER-ORF |
|
|
KNOB |
|
|
KNOB |
|
|
KNOB |
|
|
LITERATURE PARTS (INSTALLATION INSTRUCTIONS) |
|
|
LITERATURE PARTS (LP CONVERSION INSTRUCTIONS) |
|
|
LITERATURE PARTS (USE & CARE GUIDE) |
|
|
LITERATURE PARTS (WIRING DIAGRAM) |
|
|
NUT |
|
|
PIPE, MANIFOLD |
|
|
POWER CORD |
|
|
RAIL (BURNER) |
|
|
RAIL, CENTER |
|
|
RANGE SPARK MODULE |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW, 7-18 X 3/4 |
|
|
SCREW, 8-18 X 3/8 |
|
|
SEAL-FOAM |
|
|
SEAL-SWTCH |
|
|
SHIELD, HEAT |
|
|

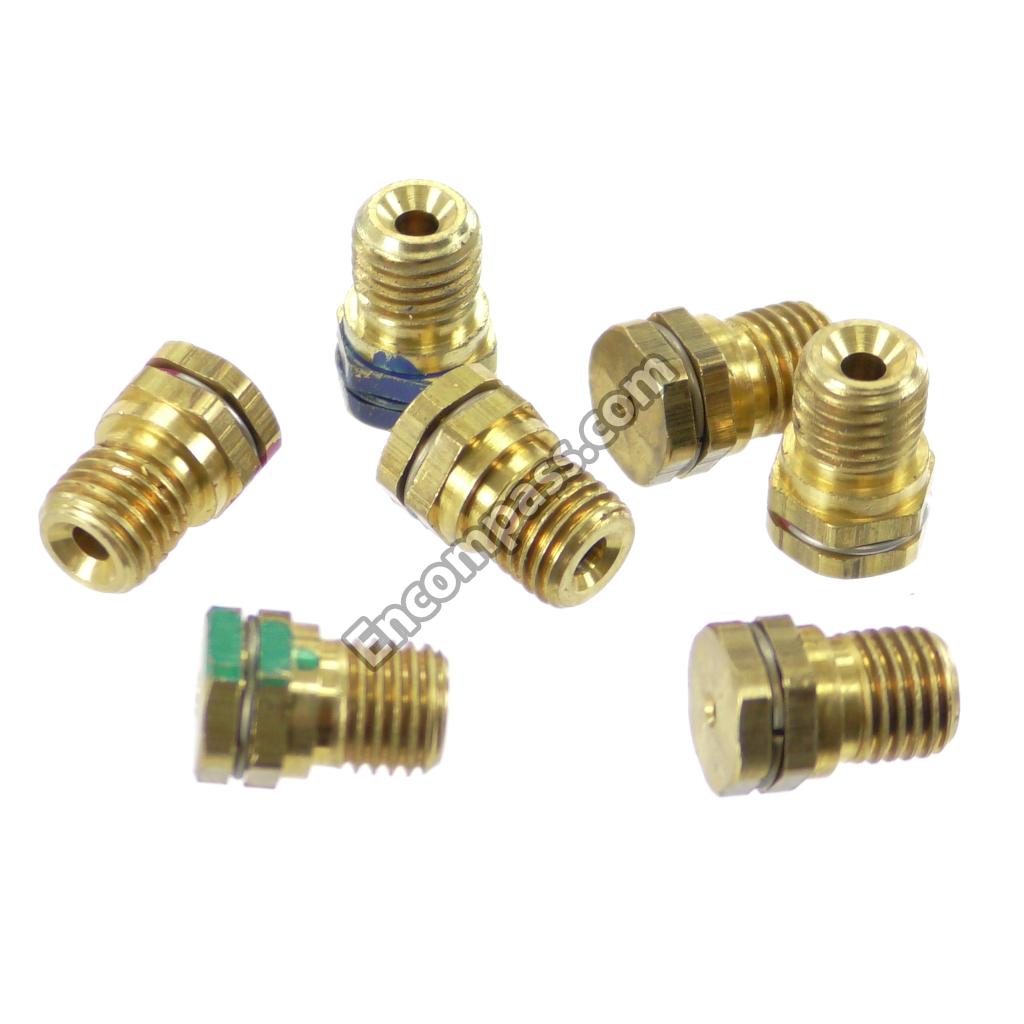

SPUD KIT |
|
|
TUBING, GAS BURNER (CENTER) |
|
|
TUBING, GAS BURNER (LF) |
|
|
TUBING, GAS BURNER (LR) |
|
|
TUBING, GAS BURNER (RF) |
|
|
TUBING, GAS BURNER (RR) |
|
|
VALVE, GAS BURNER BURNER, (RF) (LR) |
|
|
VALVE, GAS BURNER REAR |
|
|
WIRE, GROUND JUMPER |
|
|
WIRING HARNESS PARTS |
