Model Image
Manufacturer

Whirlpool

Model Number

GR396LXGQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
350956 350956 ALMOND
WP72107 WP72107 ALMOND
8273888A 8273888A ANCHOR-TIP
8274034 8274034 BACK, MAIN
WP8203546 WP8203546 BLOCK, TERMINAL
3195914 3195914 BRACKET, DOOR LATCH
3196455 3196455 BRACKET, ELEMENT
3196437 3196437 BRACKET, FLUE
3195810 3195810 BRACKET, IND LIGHT
WP3196794 WP3196794 BRKT-GLASS
W10838990 W10838990 BRKT-MNTG
W11728255 W11728255 BRKT-SRVCE
238614 238614 BUMPER
3196439 3196439 BUTTON, PLUG
W10355051 W10355051 CLEANER, COOKTOP
WP3196925 WP3196925 CLIP, DOOR STOP (2)
3196025 3196025 CLIP, GLASS (4)
313660 313660 CLIP, GROUND WIRE
3196696 3196696 CLIP, HARNESS
W10404688 W10404688 CLIP, OVEN SUPPORT
3196576 3196576 CLIP, PANEL (4)
261886 261886 COFFEE
8053445 8053445 CONTROL, RANGE (ALMOND)
8053443 8053443 CONTROL, RANGE (BLACK)
8053444 8053444 CONTROL, RANGE (WHITE)
8053544 8053544 COOKTOP (ALMOND)
8053545 8053545 COOKTOP (BLACK)
8053543 8053543 COOKTOP (WHITE)
WPW10326122 WPW10326122 COVER-BLCK
WP8272473 WP8272473 COVER-REAR
WP9761013 WP9761013 DOOR DOOR LATCH
WPW10202216 WPW10202216 DOOR HANDLE
8522446 8522446 DOOR HANDLE
WP8053807 WP8053807 DOOR HINGE
8184858 8184858 DOOR TRIM
8184859 8184859 DOOR TRIM
8184860 8184860 DOOR TRIM
WPW10016370 WPW10016370 DOOR TRIM
8522435 8522435 DOOR TRIM
W10296838 W10296838 DRAWER, STORAGE
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
WP8203528 WP8203528 ELEMENT, SURFACE (INCLUDES NO. 8) (2500 W - LF)
WPW10308477 WPW10308477 ELMNT-BAKE
W10856603 W10856603 ELMNT-BROL
285367 285367 ENAMAL, TOAST (1 QT. UNCUT)
3186192 3186192 ENDCAP (ALMOND LEFT HAND)
3186193 3186193 ENDCAP (ALMOND RIGHT HAND)
3186189 3186189 ENDCAP (BLACK (RIGHT))
3186188 3186188 ENDCAP (BLACK LH)
3186190 3186190 ENDCAP (WHITE, LEFT HAND)
3186191 3186191 ENDCAP (WHITE, RIGHT HAND)
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25`)
WP3196037 WP3196037 FOOT, FRONT (2)
WPW10058460 WPW10058460 FOOT-LEVEL
8522694 8522694 FRAME, FRONT (NON-SERVICEABLE)
WPW10316950 WPW10316950 FRAME, GLASS
W11542153 W11542153 GASKT-DOOR

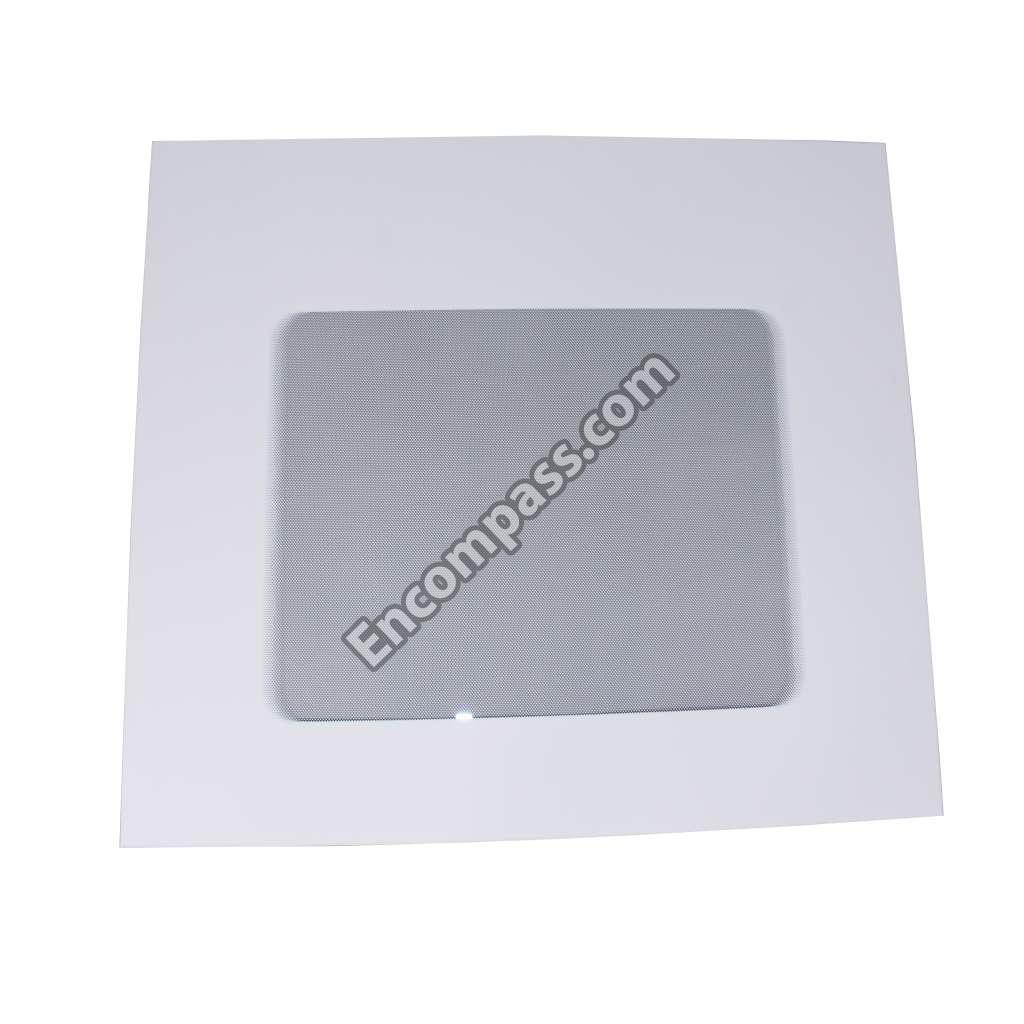

WP8053834 WP8053834 GLASS DOOR
WPW10118455 WPW10118455 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
WPW10118456 WPW10118456 GLASS, OUTER DOOR (ALMOND)
261582 261582 GREASE
WP3195996 WP3195996 GRILL, BROILER (OPTIONAL)
LIT3191638 LIT3191638 GUIDE BOOK STICKER
LIT8053402 LIT8053402 GUIDE, USE & CARE
WPW10202217 WPW10202217 HANDLE
3196108 3196108 HARNESS, WIRE (DOOR SWITCH)
8053514 8053514 HARNS-WIRE
8053721 8053721 HARNS-WIRE
261890 261890 HARVEST GOLD
261891 261891 HARVEST GOLD (UNCUT)
WP3149404 WP3149404 INFINITE CONTROL SWITCH
WP3149400 WP3149400 INFINITE CONTROL SWITCH
LIT3195945 LIT3195945 INSTALLATION INSTR (TEMPLET)
LIT8053714 LIT8053714 INSTRUCTIONS, INSTALLATION
WPW10278991 WPW10278991 INSULATION
WPW10208653 WPW10208653 INSULATION
WP8272612 WP8272612 INSULATION
3196436 3196436 INSULATION, VENT
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
8053475 8053475 KNOB
8053477 8053477 KNOB, ACCUSIMMER (ALMOND)

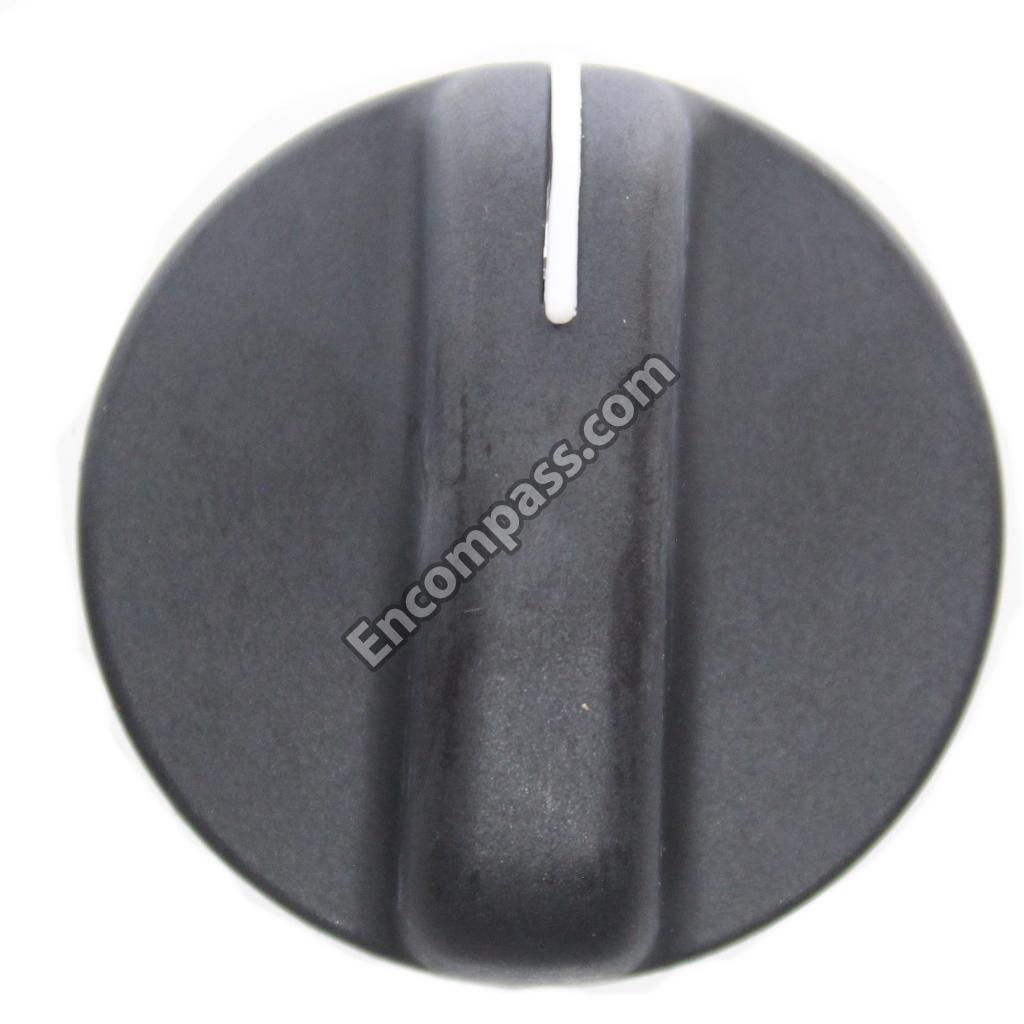

WP3196231 WP3196231 KNOB, CONTROL (2)
WP3196233 WP3196233 KNOB, CONTROL (4) (ALMOND)

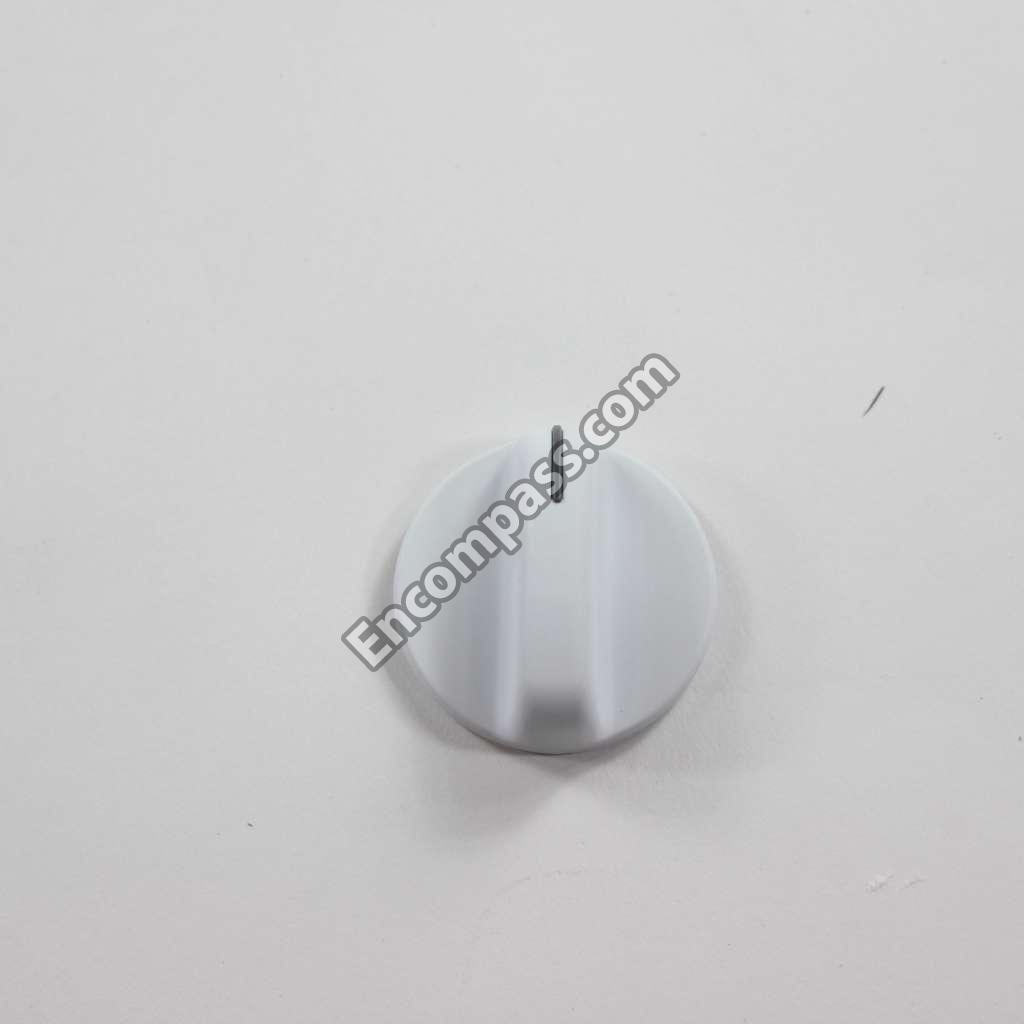

8053476 8053476 KNOB, INFINITE (2) ACCUSIM/KEEP WARM (WHITE)
WP3196232 WP3196232 KNOB, INFINITE (4)
WP3196068 WP3196068 LENS, LIGHT (2)
8009 8009 LIGHT BULB
8053632 8053632 LIGHT, INDICATOR (ACCUSIMMER)
8053722 8053722 LIGHT, INDICATOR (HOT SURFACE)
313102 313102 LIGHT, INDICATOR (TOP ELEMENTS (2))
8053620 8053620 LIMITER, TEMP. ALL SURFACE ELMNTS
3186292 3186292 LINER, DOOR
261888 261888 NEW AVOCADO
WP112432 WP112432 NUT, T-BLOCK (4)
978883 978883 PAINT
799344 799344 PAINT
72112 72112 PAINT, (TOUCH-UP 1/2 OZ.) (TOAST)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285366 285366 PAINT, SPRAY (13 OZ.) (PLATINUM)
72109 72109 PAINT, TOUCH-UP 1/2 OZ. (AVOCADO)
72108 72108 PAINT, TOUCH-UP 1/2 OZ. (COFFEE)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP3196076 WP3196076 PAN, BROILER
8053501 8053501 PANEL, BACKGUARD (ALMOND)
8053499 8053499 PANEL, BACKGUARD (BLACK)
8053500 8053500 PANEL, BACKGUARD (WHITE)
W11230488 W11230488 PANEL, DRAWER FRNT (BLACK)
W11219377 W11219377 PANEL, DRAWER FRNT (WHITE)
8053340 8053340 PANEL, DRAWER FRONT (ALMOND)
8053832 8053832 PANEL, SIDE (2) (BLACK-TEXTURED)
WPW10575396 WPW10575396 PANEL-SIDE
8053831 8053831 PANEL-SIDE
814381 814381 PIN HINGE KIT
285368 285368 PLATINUM (UNCUT)
WPW10256908 WPW10256908 RACK, OVEN (3)
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
WP8054068 WP8054068 RETAINER
3195717 3195717 RETAINER, SIDE (2)
3196815 3196815 RIVET, PUSH (2) (ALMOND)
WP3196814 WP3196814 RIVET, PUSH (2) (WHITE)
WP3196813 WP3196813 RIVET, PUSH (BLACK)
3196715 3196715 ROD, DOOR LATCH
WP3196154 WP3196154 SCREW
W11244557 W11244557 SCREW
WP489491 WP489491 SCREW
3196172 3196172 SCREW
WP7101P246-60 WP7101P246-60 SCREW
WP98008545 WP98008545 SCREW
WP3196174 WP3196174 SCREW
3196171 3196171 SCREW
W11233072 W11233072 SCREW
WP4449746 WP4449746 SCREW
WP3196175 WP3196175 SCREW
WP3196170 WP3196170 SCREW
WP3400832 WP3400832 SCREW
WP3196164 WP3196164 SCREW (2)
WP3400016 WP3400016 SCREW (2)
W10491985 W10491985 SCREW 8-18 X .250
3400964 3400964 SCREW, GROUND
WP179051 WP179051 SCREW, HANDLE (2)
8522414 8522414 SEAL, WINDOW
WP8524109 WP8524109 SEAL-OVEN
WP8053344 WP8053344 SENSOR
8053911 8053911 SHIELD, HEAT
3196092 3196092 SHIELD, INNER (2)
3196091 3196091 SHIELD, OUTER (2)
W11594027 W11594027 SOCKT-LITE
W10855029 W10855029 SOLENOID ASSY.
W10877054 W10877054 SPACER
WP3195546 WP3195546 SPACER, DRAWER
WP8053334 WP8053334 SPACER, GLIDE
350930 350930 SPRAY (13 OZ.) (WHITE)
3149191 3149191 SPRING, LOCATOR
3169573 3169573 STRAP, GROUND
3196156 3196156 SUPPORT, CORNER LR
3195987 3195987 SUPPORT, CORNER RR
3186198 3186198 SUPPORT, ENDCAP (LEFT HAND)
3186199 3186199 SUPPORT, ENDCAP (RIGHT HAND)
3195736 3195736 SUPPORT, FRONT (2)
W10823698 W10823698 SURFACE ELEMENT
W10823711 W10823711 SURFACE ELEMENT
WP3196262 WP3196262 SWITCH, DOOR
WP3148952 WP3148952 SWITCH, INFINITE (6`` UNIT (2))
8053511 8053511 SWITCH, ROTARY
LIT8053302 LIT8053302 TECH SHEET
WP3196548 WP3196548 THERMAL, FUSE
285365 285365 TOAST
W10016380 W10016380 TRIM, TOP
3169110 3169110 TUBE, OVEN VENT
WPW10134285 WPW10134285 TUBE-VENT
242828 242828 WIRE (12 GA. 150 C BLACK)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
3184020 3184020 WIRE, GROUND
242829 242829 WIRE, RED 12 GA. 150~C
72113 72113 WIRE, SPLICING 25 FT. BLACK 12 GA. 150~C (PLATINUM)
242826 242826 WIRE, WHITE 14 GA. 150~C
242832 242832 WIRE, YELLOW 14 GA. 200~C
