Model Image
Manufacturer

Whirlpool

Model Number

GR556LRKS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
WP72107 WP72107 ALMOND
350956 350956 ALMOND
WP9751745 WP9751745 ANCHOR-TIP
9751051 9751051 BACK PANEL, CHASSIS
9755038PC 9755038PC BACKSPLASH
9755038PW 9755038PW BACKSPLASH
9755038PB 9755038PB BACKSPLASH
9755038SS 9755038SS BACKSPLASH
9751904GM 9751904GM BAFFLE, CONVECTION
9781592 9781592 BAFFLE, GLASS
9755035PC 9755035PC BCKSPL-GLS
9755035PW 9755035PW BCKSPL-GLS
9755035PB 9755035PB BCKSPL-GLS
4453359 4453359 BLADE, FAN (2)
4454949 4454949 BLOCK, FUSE
WP8203546 WP8203546 BLOCK-TERM
4453436 4453436 BOX, EVAP (L.H. ADAPTER)
4453355 4453355 BOX, EVAP (LEFT)
4453437 4453437 BOX, EVAP (R.H. ADAPTER)
4453356 4453356 BOX, EVAP (RIGHT)
4453361 4453361 BOX, EVAP (TOP)
9752344 9752344 BOX-TERMNL
9755119 9755119 BRACKET, HOLD DOWN
9751629 9751629 BRACKET, PIVOT
9755099 9755099 BRACKET, POWER CONTROL BOARD
9755043 9755043 BRACKET, SUPPORT
4453677 4453677 BRACKET, TOP
9755092GM 9755092GM BRACKET, VENT TRIM
9753691 9753691 BRKT-SUPRT
238614 238614 BUMPER
8523835 8523835 BURNER BOX
9780578 9780578 BUTTON-PLG
9750693 9750693 CHANNEL
W10355051 W10355051 CLEANER, COOKTOP
WP90016 WP90016 CLIP
WP98997 WP98997 CLIP
8011446 8011446 CLIP (4)
313660 313660 CLIP, (1)
9755140 9755140 CLIP, HARNESS
9782633 9782633 CLIP, HINGE
4453657 4453657 CLIP, STANDOFF
9755627 9755627 COMPRESSOR
9755591CB 9755591CB CONSOLE / MEMBRANE (BLACK)
9755591CS 9755591CS CONSOLE / MEMBRANE (STAINLESS)
9755090 9755090 CONTROL BOARD

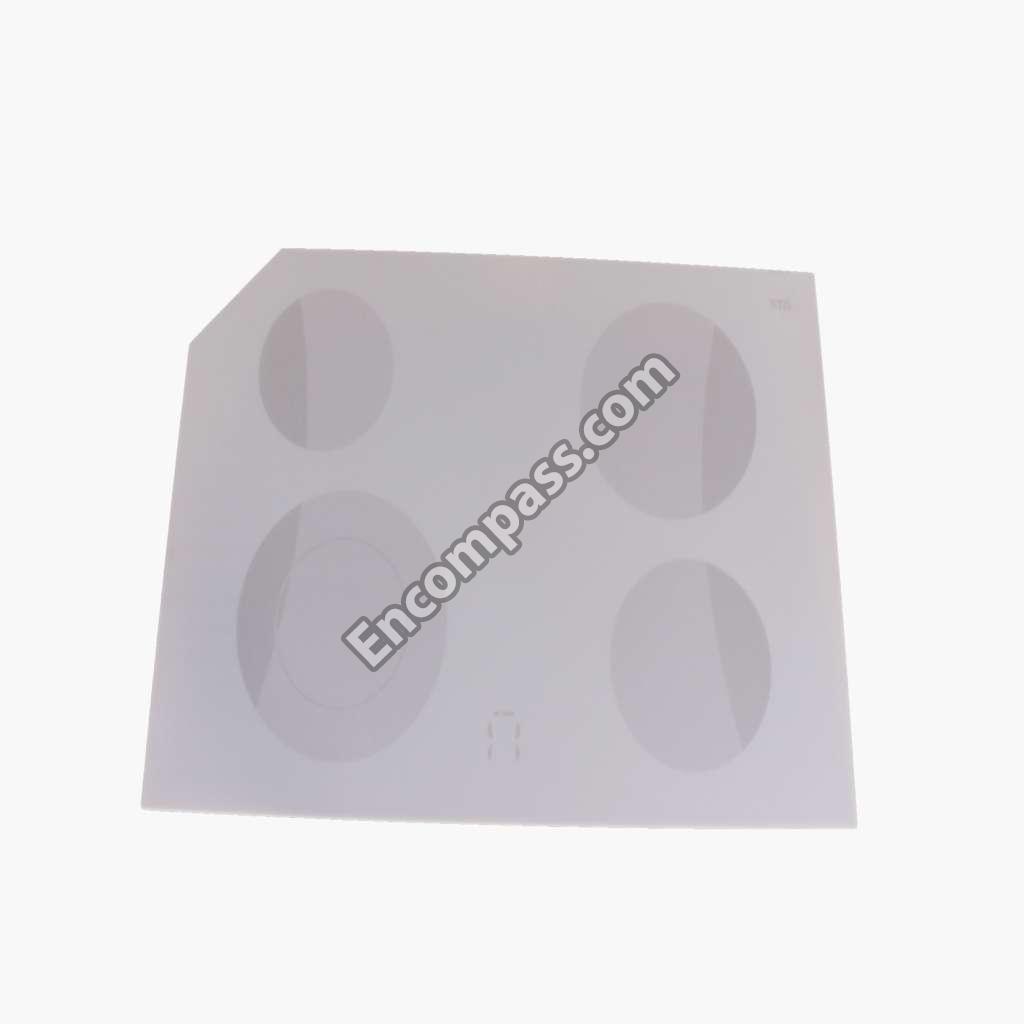

9755133CB 9755133CB COOKTOP
9755133CW 9755133CW COOKTOP
9755133CC 9755133CC COOKTOP, CERAN (BISCUIT)
9755042 9755042 COVER, BACKSPLASH
9755036PC 9755036PC COVER, LOWER LEFT SIDE (BISCUIT)
9755036PB 9755036PB COVER, LOWER LEFT SIDE (BLACK)
9755036SS 9755036SS COVER, LOWER LEFT SIDE (STAINLESS)
9755036PW 9755036PW COVER, LOWER LEFT SIDE (WHITE)
9755037PC 9755037PC COVER, LOWER RIGHT SIDE (BISCUIT)
9755037PB 9755037PB COVER, LOWER RIGHT SIDE (BLACK)
9755037SS 9755037SS COVER, LOWER RIGHT SIDE (STAINLESS)
9755037PW 9755037PW COVER, LOWER RIGHT SIDE (WHITE)
9755391 9755391 COVER, VENT (BLACK)
9755393 9755393 COVER, VENT (GRAY)
9752345 9752345 COVER-BOX
9751353 9751353 COVER-REAR
WP2162358 WP2162358 COVER-TERM
9755142 9755142 DEFLCTR-VT
9781771 9781771 DEFLECTOR, STEAM
9755192 9755192 DOOR SWITCH
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
4453686 4453686 DUAL CNTL, BIMETAL
9751653 9751653 DUCT, TOP
9782634 9782634 DUCT-FAN
9751789 9751789 DUCT-FAN
4453682 4453682 ELEMENT, BAKE
4453681 4453681 ELEMENT, BROIL

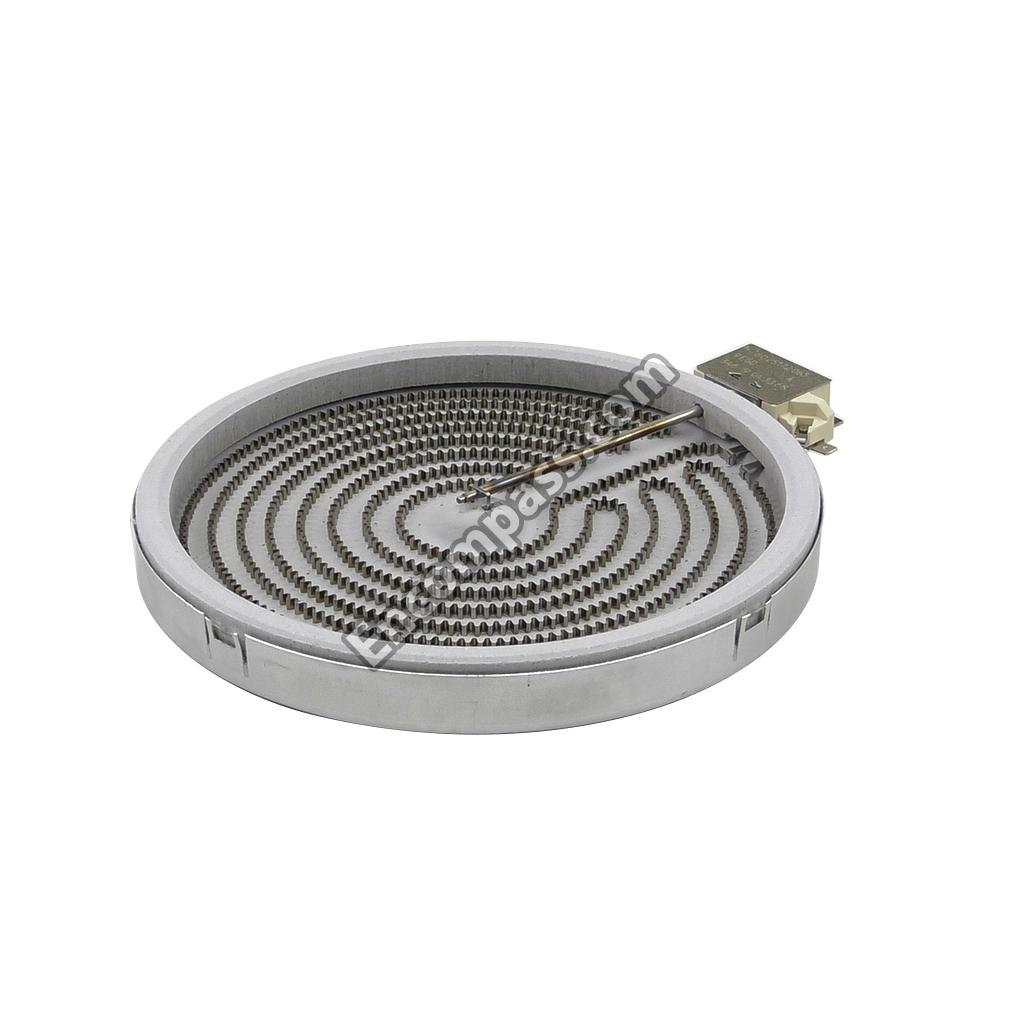

W10823699 W10823699 ELEMENT, SURFACE (1500W - LR & CR)
W10823698 W10823698 ELEMENT, SURFACE (1800W RR)
W10823697 W10823697 ELEMENT, SURFACE (L.F. (2200W))
4453348 4453348 EVAPORATOR/CNDENSR
WP9781543 WP9781543 FAN, CONVECTION (ASSEMBLY)
9755390 9755390 FAN-CONVCT
WP90296 WP90296 FASTENER, FLAT (2)
WPW10058460 WPW10058460 FOOT-LEVEL
9781602 9781602 FRAME, GLASS
9750514GM 9750514GM FRONT-MAIN
WPW10017410 WPW10017410 FUSE
9781449 9781449 GASKET, DOOR GLASS (4)
4453668 4453668 GASKET, DUCT
WP3184533 WP3184533 GASKET, LENS
9755179 9755179 GASKET, OVEN
9751841 9751841 GASKET, VENT COVER (BLACK)
9755184 9755184 GASKET, VENT COVER (GRAY)
WP9780939 WP9780939 GASKT-CKTP
9755093 9755093 GASKT-CKTP
9755118 9755118 GASKT-CKTP
9755064PC 9755064PC GLASS, DOOR (BISCUIT)
9755064PW 9755064PW GLASS, DOOR (WHITE)
9755064PB 9755064PB GLASS-DOOR
9755138 9755138 GLASS-DOOR
9755150 9755150 GROMMET
1188564 1188564 GROMMET (4)
9755154 9755154 GROMMET, SQ BTM
3169573 3169573 GROUND STRAP
9755066PW 9755066PW HANDLE, DOOR (WHITE)
4453365 4453365 HARNESS, WIRE (COOLING MODULE)
9755108 9755108 HARNS-WIRE
9755103 9755103 HARNS-WIRE
9755107 9755107 HARNS-WIRE
9755193 9755193 HARNS-WIRE
9755120 9755120 HARNS-WIRE
9755121 9755121 HARNS-WIRE
9755101 9755101 HARNS-WIRE
9782005 9782005 HINGE, DOOR L OR R
WP9782033 WP9782033 HINGE, DOOR R OR L
9755066PC 9755066PC HNDLE-DOOR
9755066PB 9755066PB HNDLE-DOOR
8186363 8186363 HOSE
9781936 9781936 HOT LIGHT
4453352 4453352 HOUSING, FAN (CONDENSER)
4453358 4453358 HOUSING, FAN (EVAP)
WP9750638 WP9750638 INFINITE SWITCH (1400W - RF)
WP9750639 WP9750639 INFINITE SWITCH (1800W (2))
WP9750641 WP9750641 INFINITE SWITCH, 2400W, LF-RR
9755054 9755054 INSULATION
9755055 9755055 INSULATION
9754006 9754006 INSULATION
9755116 9755116 INSULATION
9755117 9755117 INSULATION
8523840 8523840 INSULATION (2)
9755053 9755053 INSULATION, FRONT COOLING MODULE
9755052 9755052 INSULATION, REAR COOLING
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
9755065FC 9755065FC KNOB
9755065FW 9755065FW KNOB
9755065FB 9755065FB KNOBS, CONTROL (BLACK)
WP9781049 WP9781049 LENS, LIGHT
WP3196068 WP3196068 LENS, LIGHT (2)
8009 8009 LIGHT BULB
9755136 9755136 LIGHT-IND
9781600GM 9781600GM LINER, DOOR
LIT9755129 LIT9755129 LITERATURE PARTS (INSTALLATION INSTRUCTIONS)
LIT9755145 LIT9755145 LITERATURE PARTS (QUICK REF. GUIDE)
LIT9755067 LIT9755067 LITERATURE PARTS (TECH SHEET)
LIT9752775 LIT9752775 LITERATURE PARTS (TEMPLATE, ANTI-TIP)
LIT9755084 LIT9755084 LITERATURE PARTS (USE & CARE GUIDE)
LIT9755063 LIT9755063 LITERATURE PARTS (WIRING DIAGRAM)
9782613 9782613 MICROCPTR
WP6610333 WP6610333 MICROCPTR
4453357 4453357 MOTOR, FAN
9750888 9750888 NUT
WP3400968 WP3400968 NUT
WP112432 WP112432 NUT, T-BLOCK (4)
9782611 9782611 OVEN LOCK ASSEMBLY
9755044GM 9755044GM OVEN-MAIN
WP2217223 WP2217223 OVERLOAD
799344 799344 PAINT
978883 978883 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
4453353 4453353 PAN, DRAIN
9755034PC 9755034PC PANEL, LOWER (BISCUIT)
9755034PB 9755034PB PANEL, LOWER (BLACK)
9755034PW 9755034PW PANEL, LOWER (WHITE)
9755068PC 9755068PC PANEL, LOWER GLASS (BISCUIT)
9755068PB 9755068PB PANEL, LOWER GLASS (BLACK)
9755068PW 9755068PW PANEL, LOWER GLASS (WHITE)
9755031PC 9755031PC PANEL, OVEN DOOR LEFT SIDE (BISCUIT)
9755031PB 9755031PB PANEL, OVEN DOOR LEFT SIDE (BLACK)
9755031PW 9755031PW PANEL, OVEN DOOR LEFT SIDE (WHITE)
9755032PB 9755032PB PANEL, OVEN DOOR RIGHT SIDE (BLACK)
9755032SS 9755032SS PANEL, OVEN DOOR RIGHT SIDE (STAINLESS)
9755455CB 9755455CB PANEL-BKGD
9755455CC 9755455CC PANEL-BKGD
9755455CW 9755455CW PANEL-BKGD
9782500PB 9782500PB PANEL-CBNT
9782500PC 9782500PC PANEL-CBNT
9782500PW 9782500PW PANEL-CBNT
9755032PC 9755032PC PANEL-DOOR
9755031SS 9755031SS PANEL-DOOR
9755032PW 9755032PW PANEL-DOOR
9755591CC 9755591CC PANL-CNTRL
9755591CW 9755591CW PANL-CNTRL
4453346 4453346 PLATE, BASE
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
9750823 9750823 RACK, STANDARD
9750827 9750827 RACK-OVEN
WP9759944 WP9759944 RANGE THERMOSTAT
9755048 9755048 REAR DUCT
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
9755626 9755626 RELAY-ASSEMBLY
9750676 9750676 RETAINER, GLASS
9755047 9755047 RETAINER, INSULATION
9750523 9750523 ROD, LOCK
9781460 9781460 ROD-CERAN
9781459 9781459 ROD-CERAN
3400853 3400853 SCREW
W10873471 W10873471 SCREW
8533832 8533832 SCREW
WP681414 WP681414 SCREW
9781509 9781509 SCREW
9780272 9780272 SCREW
WP4159387 WP4159387 SCREW
WP3400832 WP3400832 SCREW
9751871 9751871 SCREW
9751808 9751808 SCREW
9750887 9750887 SCREW
8533833 8533833 SCREW
WP3400016 WP3400016 SCREW (2)
8533820 8533820 SCREW (BISCUIT)
8533825 8533825 SCREW (BLACK)
8533818 8533818 SCREW (BRIGHT ZINC)
8533819 8533819 SCREW (WHITE)
4159388 4159388 SCREW, 10 X 1/2
254217 254217 SCREW, 10A X 3/8 (2)
WP179051 WP179051 SCREW, HANDLE (2)
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP9755177 WP9755177 SEAL, GLASS
4453666 4453666 SEAL, REAR
8190047 8190047 SEAL, SIDE
WP9782081 WP9782081 SENSOR, OVEN
9782326 9782326 SHEILD, HEAT
9782493 9782493 SHIELD, BAFFLE
9781586 9781586 SHIELD, DOOR
9782507 9782507 SHIELD, FAN
9782494 9782494 SHIELD, FENCE
9755100 9755100 SHIELD, POWER CONTROL BOARD
9780664 9780664 SHIELD-HT
9755049 9755049 SIDE DUCT
9750147 9750147 SIDE-BASE
4453337 4453337 SLEEVE
4453703 4453703 SLEEVE, THERMAL
W11594027 W11594027 SOCKT-LITE
4453375 4453375 SPACER (2)
9781502 9781502 SPACER, DOOR (8)
4453347 4453347 SPACER, EVAP
4453435 4453435 SPACER, MOTOR
100000 100000 SPLICING WIRES--25FT. LENGTH
350930 350930 SPRAY (13 OZ.) (WHITE)
9752892 9752892 SPRT-ELMNT
9755331 9755331 SPRT-ELMNT
9781553 9781553 SUPPORT
4453362 4453362 SUPPORT (LEFT HAND)
4453363 4453363 SUPPORT (RIGHT HAND)
4453340 4453340 SUPPORT, FAN
9755146 9755146 SUPPRESSOR, TRANS
W10823692 W10823692 SURFACE ELEMENT
WP9755173 WP9755173 SWITCH, INFINITE (1000/2400W - LF)
9754291 9754291 SWITCH, INTERLOC
WP4450934 WP4450934 THERMOSTAT
WP341196 WP341196 THERMOSTAT, 205~F (96~C) (ALTERNATE)
WPW10339879 WPW10339879 TIE-WIRE
WP9782111 WP9782111 TIE-WIRE
9755039 9755039 TRIM, BOTTOM GLASS
9782632PC 9782632PC TRIM, COOKTOP (LEFT HAND) (BISCUIT)
9782632PB 9782632PB TRIM, COOKTOP (LEFT HAND) (BLACK)
9782632SS 9782632SS TRIM, COOKTOP (LEFT HAND) (STAINLESS)
9782632PW 9782632PW TRIM, COOKTOP (LEFT HAND) (WHITE)
9782631PC 9782631PC TRIM, COOKTOP (RIGHT HAND) (BISCUIT)
9782631PB 9782631PB TRIM, COOKTOP (RIGHT HAND) (BLACK)
9782631SS 9782631SS TRIM, COOKTOP (RIGHT HAND) (STAINLESS)
9782631PW 9782631PW TRIM, COOKTOP (RIGHT HAND) (WHITE)
9755040PW 9755040PW TRIM-VENT
4453368 4453368 TUBE, CHARGE
4453366 4453366 TUBE, DISCHARGE
4453367 4453367 TUBE, DISCHARGE (W/ DRYER)
4453376 4453376 TUBE, SUCTION
9755575 9755575 VENT BACK, OVEN
9755576 9755576 VENT BOX, OVEN
9755040PC 9755040PC VENT, DOOR (BISCUIT)
9755040PB 9755040PB VENT, DOOR (BLACK)
8523834 8523834 VENT, TUBE
9752003 9752003 WASHER, PIVOT
WP9782182 WP9782182 WIRE
8316781 8316781 WIRE
242828 242828 WIRE (12 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
242832 242832 WIRE, YELLOW 14 GA. 200~C
