Model Image
Manufacturer

Whirlpool

Model Number

GS563LXSB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11447673 W11447673 ANCHOR-TIP
8053967 8053967 BAFFLE-HT
3400228 3400228 BOLT
WP3195097 WP3195097 BOTTM-OVEN
W11457094 W11457094 BOX, FLUE
W11379351 W11379351 BOX-BURNER, GAS SEALED
8053971 8053971 BRACE
WP9763252 WP9763252 BRACKET, CONTROL (BISCUIT)
WP9763262 WP9763262 BRACKET, CONTROL (BLACK)
W10462909 W10462909 BRACKET, DRAWER (STAINLESS MODEL)
WP3196794 WP3196794 BRKT-GLASS
9762253 9762253 BRKT-MNTG
8523412 8523412 BRKT-MNTG
W10525122 W10525122 BRKT-MNTG
W11502236 W11502236 BRKT-SUPRT
8523249 8523249 BRKT-SUPRT
WP8273701 WP8273701 BURNER BASE (SMALL (1))
WP8273700 WP8273700 BURNR-BASE
WP8054078 WP8054078 BURNR-BRLR
WP4455981 WP4455981 BURNR-HEAD
WP4455979 WP4455979 BURNR-HEAD
WP4455980 WP4455980 BURNR-HEAD
WP9758078 WP9758078 BURNR-OVEN
WP9763243 WP9763243 CAP, BURNER LF - RF (GREY)
3192487 3192487 CAP, BURNER LR (BLACK)
WP9763242 WP9763242 CAP, BURNER RR (GREY)

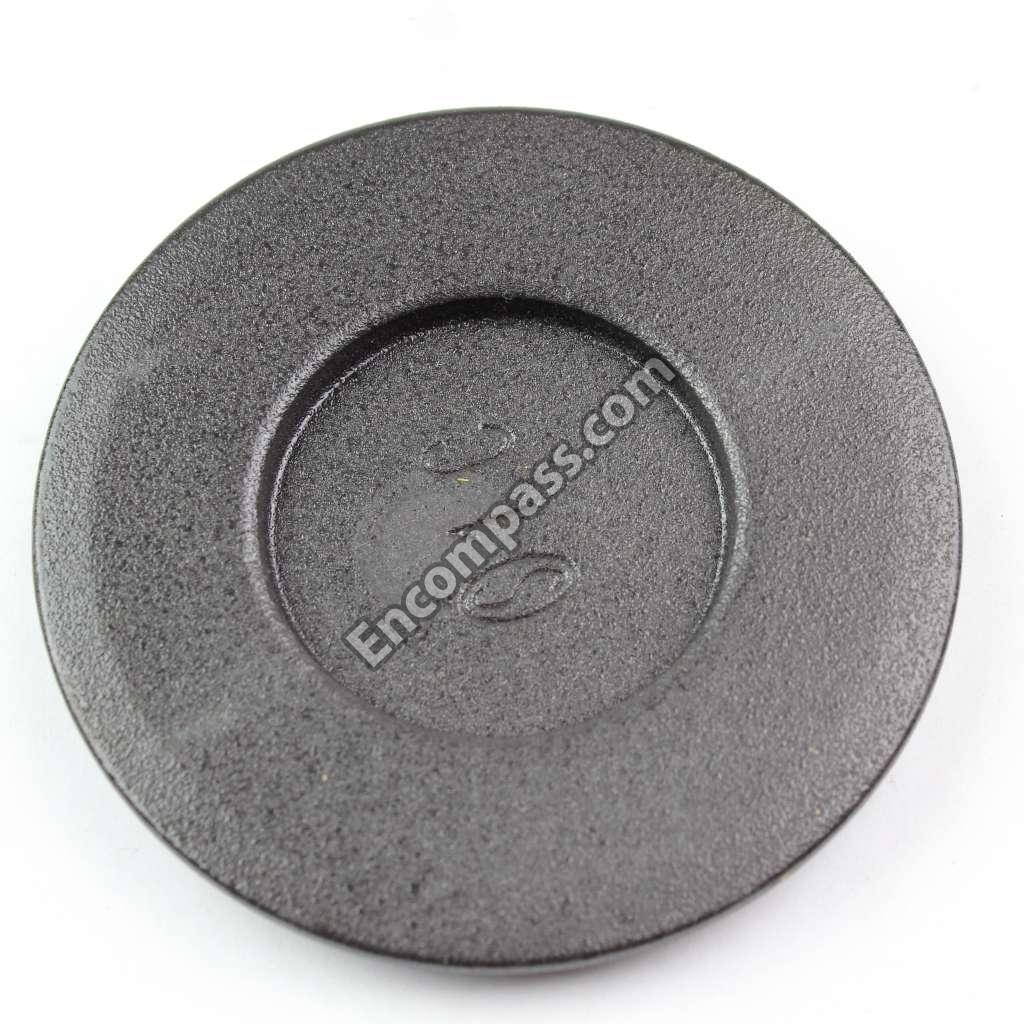

WP3192486 WP3192486 CAP-BURNER
WP3192488 WP3192488 CAP-BURNER
9763246 9763246 CAP-BURNER
9763247 9763247 CAP-BURNER
9763248 9763248 CAP-BURNER
9763244 9763244 CAP-BURNER
WP8273564 WP8273564 CLIP
WP9781235 WP9781235 CLIP
9761512 9761512 CLIP
9761517 9761517 CLIP
16515 16515 CLIP, HARNESS
3196696 3196696 CLIP, HARNESS
3196576 3196576 CLIP, PANEL (6)
3196896 3196896 CLIP, WIRE
WPW10155287 WPW10155287 CNNCTR CABLE, FLEX

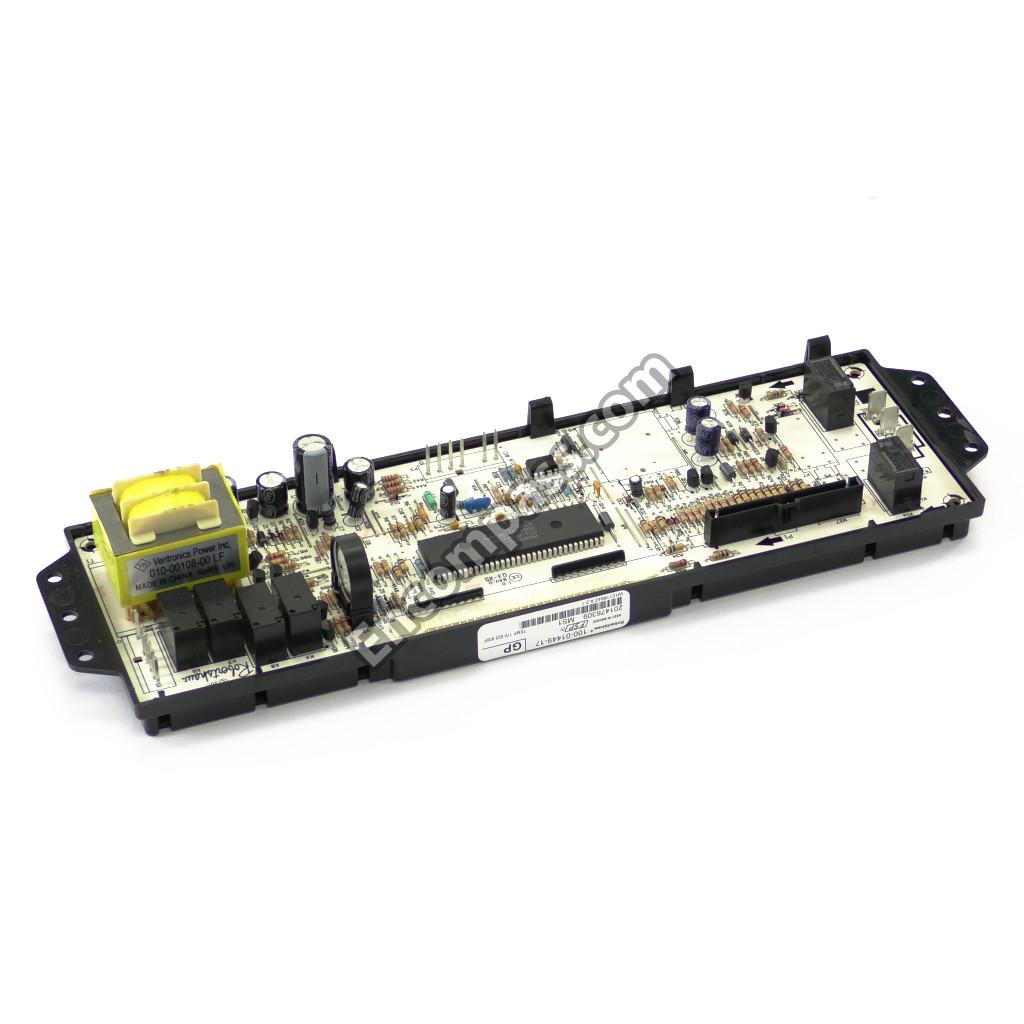

WPW10116542 WPW10116542 CONTROL BOARD
8195546 8195546 COOKTOP
W11213958 W11213958 COOKTOP
W11213959 W11213959 COOKTOP
W10222733 W10222733 COVER-REAR
9756366 9756366 COVER-REAR
9760190 9760190 COVERREAR
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
W10347464 W10347464 DOOR HINGE
WP8523177 WP8523177 DOOR TRIM
WP8523175 WP8523175 DOOR TRIM
WP8523178 WP8523178 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
WP8523173 WP8523173 DOOR TRIM
8184858 8184858 DOOR TRIM
WP8523167 WP8523167 DOOR TRIM
WP9762391 WP9762391 DOOR TRIM
W10296838 W10296838 DRAWER, STORAGE
W10184435 W10184435 ENDCAP (LEFT HAND BISCUIT)
W11219664 W11219664 ENDCAP-PNL
W11219370 W11219370 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
W11230611 W11230611 ENDCAP-PNL
W11230612 W11230612 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
3186489 3186489 FITTING, BROILER
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WPW10293048 WPW10293048 GAS VALVE
W11542153 W11542153 GASKT-DOOR
WPW10118455 WPW10118455 GLASS DOOR
WPW10118454 WPW10118454 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
W10010670 W10010670 GLASS, OUTER DOOR (BISCUIT)
WPW10114344 WPW10114344 GLIDE-DRWR
WP8053334 WP8053334 GLIDE-DRWR
9762229 9762229 GRATE (ESPRESSO)
9762228 9762228 GRATE (GRAY)
9763283 9763283 GRATE-BRNR
261582 261582 GREASE
W10162212 W10162212 GUIDE, USE & CARE
9761981 9761981 HANDLE, DOOR (STAINLESS STEEL)
WP9762251 WP9762251 HANDLE, DRAWER
WP8524207 WP8524207 HARNESS, BAKE &
8523599 8523599 HARNS-WIRE
W10095210 W10095210 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
9761978 9761978 HNDLE-DOOR
9761979 9761979 HNDLE-DOOR
9761980 9761980 HNDLE-DOOR
WP9758079 WP9758079 IGNTR-OVEN
WP8054129 WP8054129 IGNTR-OVEN
WP8523793 WP8523793 IGNTR-SURF
9762997 9762997 INSTRUCTIONS, INSTALLATION (ENGLISH)
9757143 9757143 INSTRUCTIONS, INSTALLATION (FRENCH)
WPW10208653 WPW10208653 INSULATION
WPW10278991 WPW10278991 INSULATION
W11688737 W11688737 INSULATION
W11684915 W11684915 INSULATION
9761490 9761490 INSULATION
799832 799832 KIT, PORCELAIN REPAIR (WHITE)

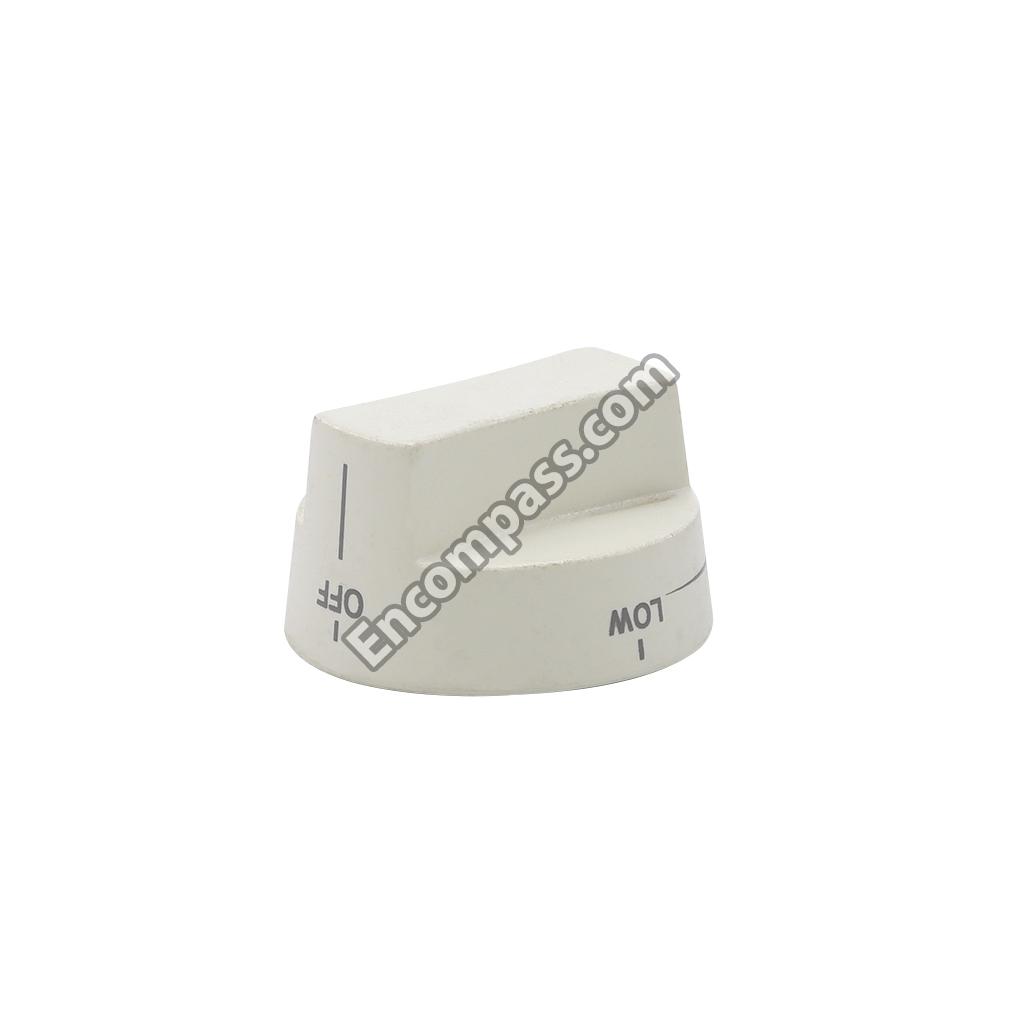

WP8273279 WP8273279 KNOB
W11242931 W11242931 KNOB
8522625 8522625 KNOB
8522626 8522626 KNOB
8009 8009 LIGHT BULB
WP9761344 WP9761344 LINER-DOOR
9757613 9757613 NAMEPLATE
WP8273060 WP8273060 NUT

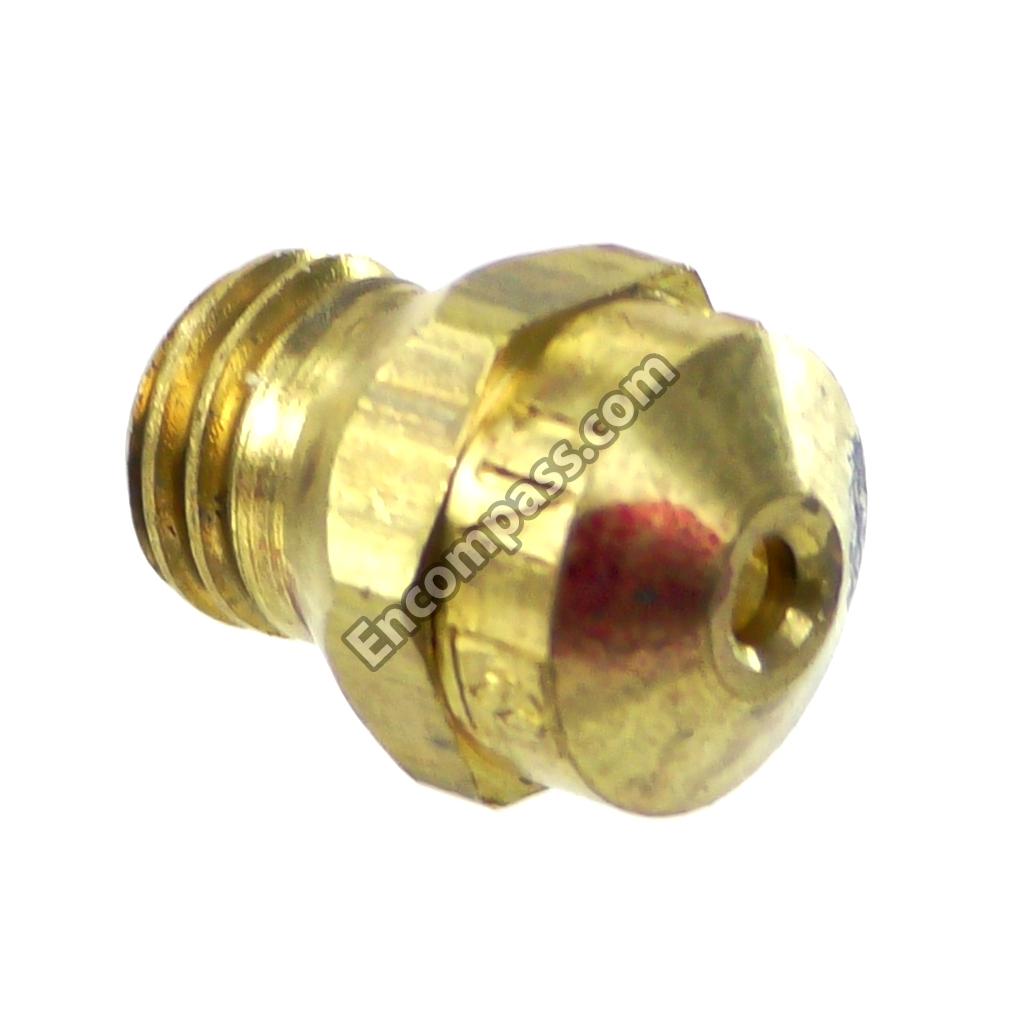

WP8273064 WP8273064 ORIFICE
WP8273065 WP8273065 ORIFICE
WP8273067 WP8273067 ORIFICE
799344 799344 PAINT
978883 978883 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350956 350956 PAINT, PRESSURIZED SPRAY (12 OZ.) (ALMOND)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)

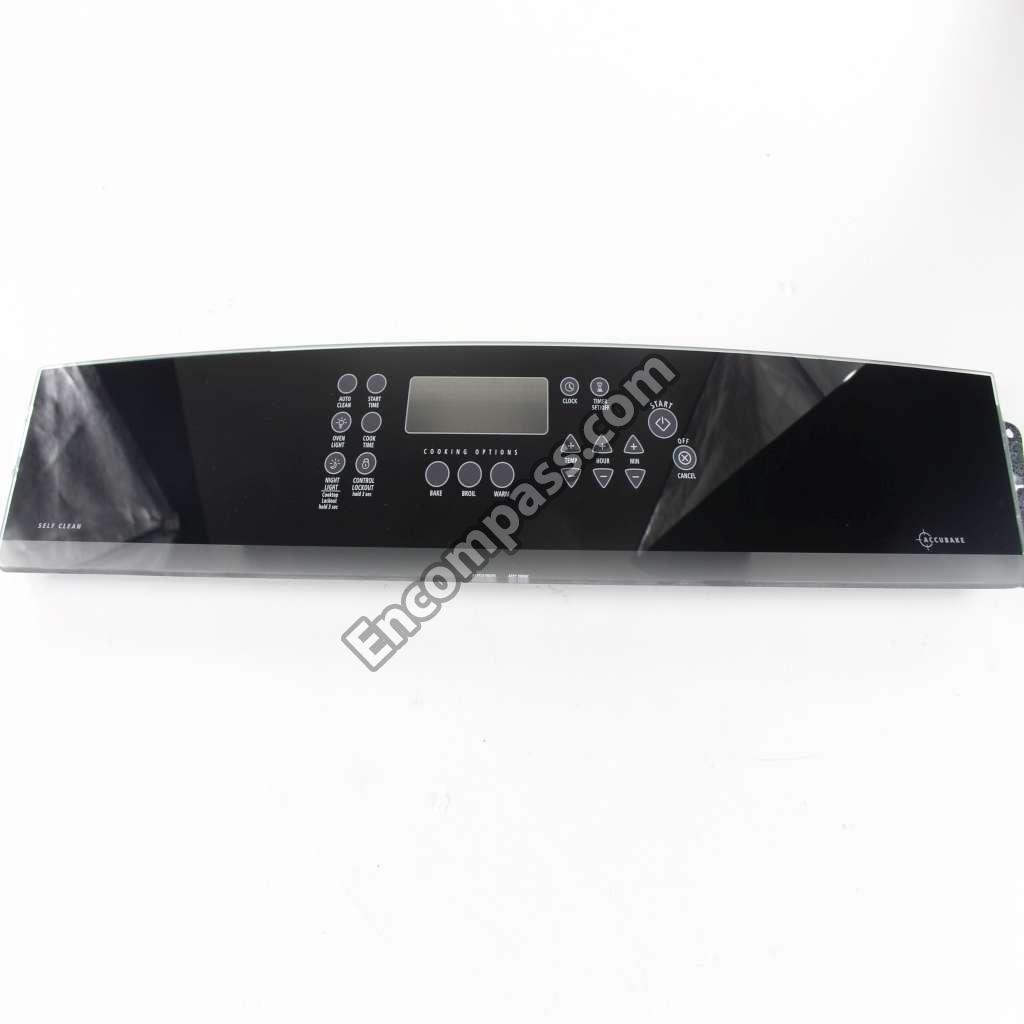

9762586 9762586 PANEL, CONTROL (BLACK)
9762588 9762588 PANEL, CONTROL (UNVSL SLVR FOR SS)
8053832 8053832 PANEL, SIDE (2) (BLACK-TEXTURED)
W10162246 W10162246 PANEL, SIDE (BISCUIT)
W11230486 W11230486 PANEL-DRWR
W11230490 W11230490 PANEL-DRWR
W11230473 W11230473 PANEL-DRWR
W10022110 W10022110 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
9762585 9762585 PANL-CNTRL
9762587 9762587 PANL-CNTRL
WP8523854 WP8523854 PANL-MNFLD
8523855 8523855 PANL-MNFLD
8523856 8523856 PANL-MNFLD
9762230 9762230 PIPE-MNFLD
WP9757891 WP9757891 POWER CORD
WPW10256908 WPW10256908 RACK-OVEN
WP8274022 WP8274022 RACK-OVEN
WP8274021 WP8274021 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
WPW10331686 WPW10331686 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
9762589 9762589 REFLECTOR
W11539580 W11539580 RETAINER
9761448 9761448 RETAINER
9761449 9761449 RETAINER
WP3196813 WP3196813 RIVET
WP3196814 WP3196814 RIVET
3196815 3196815 RIVET, PUSH (2) (ALMOND)
9757239 9757239 ROD-DOOR
W10078370 W10078370 ROD-LATCH
9762761 9762761 SAFER COOKING TIPS (ENGLISH
W10065852 W10065852 SAFER COOKING TIPS (FRENCH)
WP3196174 WP3196174 SCREW
WP3196175 WP3196175 SCREW
WPW10031790 WPW10031790 SCREW
WP3196164 WP3196164 SCREW
W10491985 W10491985 SCREW
WP98008545 WP98008545 SCREW
WPW10067840 WPW10067840 SCREW
WP3196152 WP3196152 SCREW
W11169708 W11169708 SCREW
W10777162 W10777162 SCREW
WP3400016 WP3400016 SCREW
W11684507 W11684507 SCREW
W11233072 W11233072 SCREW
3196265 3196265 SCREW
WP8273062 WP8273062 SCREW
WP8273096 WP8273096 SCREW
WP3400832 WP3400832 SCREW
WP3196557 WP3196557 SCREW
3196167 3196167 SCREW (ALMOND)
3196166 3196166 SCREW (WHITE)
3400964 3400964 SCREW, GROUND
WP3368921 WP3368921 SCREW-TORX
WPW10181986 WPW10181986 SENSOR
8053505 8053505 SHIELD
WP8053910 WP8053910 SHIELD, HEAT
WP8272747 WP8272747 SHIELD-HT
8053969 8053969 SHIELD-HT
8053968 8053968 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
WPW10244872 WPW10244872 SPACER, GLIDE (STAINLESS STEEL)
W10137062 W10137062 SPREADER, FLAME (BROILER)
WP8053970 WP8053970 SPREADER, FLAME (OVEN)
W10854965 W10854965 SPUD-ORFCE
100000 100000 STNLSS MDL ONLY
9757490 9757490 SUPPORT
9756911 9756911 SUPPRESSOR
WP9757262 WP9757262 SWTCH-LITE
9763256 9763256 SWTCH-MEMB
9762983 9762983 TECH SHEET (ENGLISH)
W10041630 W10041630 TECH SHEET (FRENCH)
9757142 9757142 TEMPLATE-ANTI TIP
9761976 9761976 TRIM, TOP (BISCUIT)
9761975 9761975 TRIM-DOOR
9761977 9761977 TRIM-DOOR
WP8272222 WP8272222 TUBING (BROILER FITTING TO VALVE)
WP8273697 WP8273697 TUBING, BURNER W/ORIFICE (RIGHT REAR)
WP8273692 WP8273692 TUBING-GAS
WP8273694 WP8273694 TUBING-GAS
8272470 8272470 TUBING-GAS
8523433 8523433 TUBING-GAS
8273696 8273696 TUBING-GAS
WP72107 WP72107 TUCHUP
WP8273004 WP8273004 VALVE (RIGHT REAR)
WP9757218 WP9757218 VALVE-BRNR

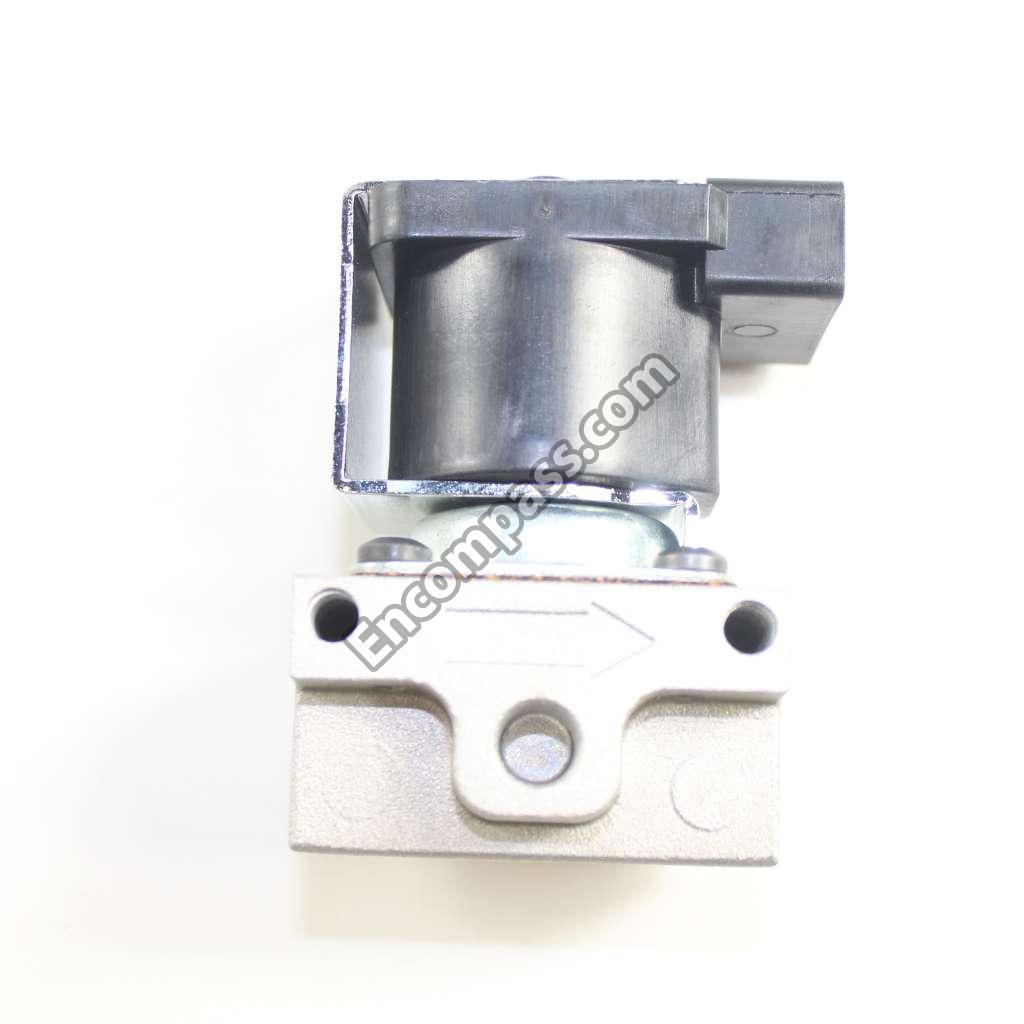

W11035583 W11035583 VALVE-SOLN
242828 242828 WIRE (12 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
WPW10295998 WPW10295998 WIRE HARNESS
W10045060 W10045060 WIRE-GROND
