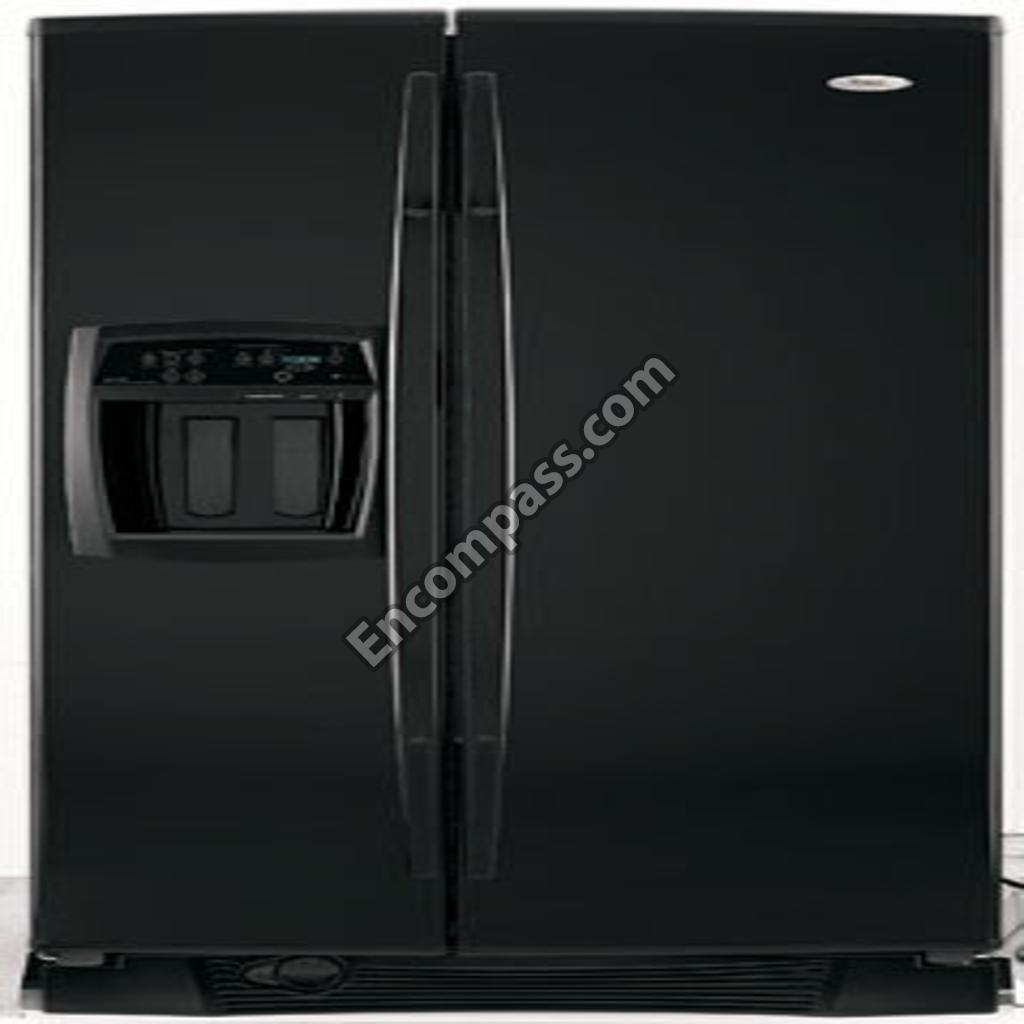

Model Image
Manufacturer

Whirlpool

Model Number

GS6NBEXRB01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4210463RW 4210463RW ACCESSORY PARTS, MAINTENANCE BRUSH FOR DRYERS AND REFRIGERATORS
2255424 2255424 AIR DIFFUSER ASM
2198580 2198580 AIR DUCT FREEZER
2313359 2313359 AIR DUCT, UPPER
2261265 2261265 AIR SEAL, THERMISTOR
WP627843 WP627843 ARM-EJECTR
W10297244 W10297244 ARM-STRIPR
W10852517 W10852517 AUGER
W10896764 W10896764 BAFFLE, AIR
WP2301190 WP2301190 BASKET, SLOPED
2301191 2301191 BASKET, TALL
WP2304309 WP2304309 BASKET, TILT-OUT (2)
2255413 2255413 BEARING BODY
WP627985 WP627985 BIMETL-DEF
WPW10225581 WPW10225581 BIMETL-DEF
WPW10158506 WPW10158506 BIN CONTROL LEVER
2257020 2257020 BLADE, FIXED
W10278731 W10278731 BLADE, ROTARY A
W10278732 W10278732 BLADE, ROTARY B
W10278733 W10278733 BLADE, ROTARY C
W11458267 W11458267 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
2198602 2198602 BLOCK, BLADE
2260519 2260519 BLOCK, HOUSING SUPPORT
2315057KA 2315057KA BOTTLE
2303141 2303141 BOTTOM HINGE (FC)
WP2303583 WP2303583 BRACKET
WP2181929 WP2181929 BRACKET
WP2305202 WP2305202 BRACKET
WP2198641 WP2198641 BRACKET
2303113B 2303113B BRACKET, DOOR STOP (BLACK)
2200082B 2200082B BRACKET, DOOR STOP (BLACK)
2303113 2303113 BRACKET, DOOR STOP (CHROME)
WP2200082 WP2200082 BRACKET, DOOR STOP (CHROME)
2256035 2256035 BRACKET, DUAL CRISPER
2305208 2305208 BRACKET, MOTOR
WP2260503B WP2260503B BUTTON
2260503US 2260503US BUTTON, WATER FILTER (UNIVERSAL SILVER)
2260503W 2260503W BUTTON, WATER FILTER (WHITE)
WP941839 WP941839 BUTTON-PLG
940014 940014 BUTTON-PLG
100000 100000 CABINET, (NOT A SERVICEABLE PART)
2255226 2255226 CAM ASSEMBLY
WP2223752 WP2223752 CAM-DOOR
WP2182179 WP2182179 CAM-DOOR
WP2223751 WP2223751 CAM-DOOR
WPW10329686 WPW10329686 CAM-DOOR
WP2198643 WP2198643 CAMERA LENS
2255225 2255225 CAMERA LENS, LIGHT
W11298978 W11298978 CAMERA LENS-LIGHT
WP2317782 WP2317782 CAMERA LENS-LIGHT
2260502T 2260502T CAP, WATER FILTER (BISCUIT)
WP2260518B WP2260518B CAP-FILTER
WP2260518MG WP2260518MG CAP-FILTER
WP2260518W WP2260518W CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP488366 WP488366 CLAMP
2185960 2185960 CLAMP, POWER CORD
549193 549193 CLAMP, SERVICE CORD
2217192 2217192 CLEANER, (STAINLESS STEEL)
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
W11623163 W11623163 CLIP
WP2161324 WP2161324 CLIP
489396 489396 CLIP
WP1115374 WP1115374 CLIP
W10683556 W10683556 CLIP
WP2255411 WP2255411 CLIP
WP1108439 WP1108439 CLIP
WP2155013 WP2155013 CLIP
2155547 2155547 CLIP, HEAT
2255199 2255199 CLIP, RETAINING
W10169512 W10169512 CLIP, WIRE & TUBE
2305447 2305447 CLIP, WIRING
2215823 2215823 CLIP-AIR, DUCT
2198597 2198597 COMPLETE ICEMAKER ASSEMBLY
W10309994 W10309994 COMPRESSOR
2324712 2324712 CONDENSER ASSEMBLY
2255228 2255228 CONNECTING ROD
WP2305242 WP2305242 CONNECTOR
WP2304163 WP2304163 CONTROL BOARD
WP2303843 WP2303843 CONTROL BOARD
W11629974 W11629974 CONTROL BOARD
2255623 2255623 CONTROL BOX
2255222 2255222 CONTROL BOX
2187965 2187965 CONTROL BOX HARNESS (INCLUDES 21)
WP2220458 WP2220458 COUPLING
WP2220457 WP2220457 COUPLING
W10133000 W10133000 COVER
WP2198587 WP2198587 COVER
WP2223242 WP2223242 COVER
WP2203408W WP2203408W COVER
WP2203408B WP2203408B COVER
WP2203407W WP2203407W COVER
WP2203407B WP2203407B COVER
WP2223307 WP2223307 COVER, CRISPER
2305244 2305244 COVER, CRUSHER
2305219 2305219 COVER, ELECTRONIC CONTROL
2206314 2206314 COVER, EVAPORATOR (INCLUDES 9)
2255558 2255558 COVER, RECEIVER
WP2162358 WP2162358 COVER-TERM
WP2188755 WP2188755 COVER-UNIT
WPW10233488 WPW10233488 CRISPER PAN
2305206 2305206 CRUSHER BIN
WP628356 WP628356 CUP-FILL
WP2255421 WP2255421 DAIRY DOOR
2179350 2179350 DEFLECTOR
WPW10151374 WPW10151374 DIFFUSER
L2303161B L2303161B DOOR ASSEMBLY BL
L2303161T L2303161T DOOR ASSEMBLY BT
L2303161LA L2303161LA DOOR ASSEMBLY LA
L2303161LB L2303161LB DOOR ASSEMBLY LB
L2255535LAP L2255535LAP DOOR ASSEMBLY MS
L2255535SAP L2255535SAP DOOR ASSEMBLY MS
L2303161SA L2303161SA DOOR ASSEMBLY SA
L2303161SB L2303161SB DOOR ASSEMBLY SB
L2321771LB L2321771LB DOOR ASSEMBLY WH
WP2223463K WP2223463K DOOR BIN
WP2255420 WP2255420 DOOR COMPARTMENT
2261601 2261601 DOOR CONTROL ASM
2159082 2159082 DOOR GASKET, MAGNETIC (SERVICE) (BLACK)
2159083 2159083 DOOR GASKET, MAGNETIC (SERVICE) (BLACK)
2159074 2159074 DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
2159075 2159075 DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
WP2203770 WP2203770 DOOR HINGE
8201707 8201707 DOOR HINGE
WP2203771 WP2203771 DOOR HINGE
2305443 2305443 DOOR LATCH, BIN
WP2223334 WP2223334 DOOR TRIM
WP2171157 WP2171157 DOOR TRIM
WP2318736 WP2318736 DOOR TRIM
WP2305258 WP2305258 DOOR-CHUTE
WP2255720 WP2255720 DOOR-ICE
W10843121 W10843121 DRIER-TUBE
WPW10135090 WPW10135090 ELECTRONIC CONTROL
WP2304103 WP2304103 ELECTRONIC CONTROL
2315060 2315060 ENERGY GUIDE
2255611 2255611 ESCUTCHEON, CONTROL BOX
2194744 2194744 ESCUTCHEON, MEAT PAN CONTROL
WP2188823 WP2188823 EVAPORATOR
WP2315549 WP2315549 EVAPORATOR MOTOR
WP2182120 WP2182120 FAN-SCROLL
489285 489285 FASTENER, PUSH-ON
2308165 2308165 FERRITE BEAD
2315169 2315169 FILLER, WRAPPER (APOLLO GRAY)
2196150 2196150 FILLER, WRAPPER (BISCUIT)
2196097 2196097 FILLER, WRAPPER (BLACK)
2196094 2196094 FILLER, WRAPPER (WHITE)
EDR3RXD1 EDR3RXD1 FILTER
WP2256096 WP2256096 FITTING
W11566763 W11566763 FITTING
2172957 2172957 FLAPPER, DRAIN EXTENSION
WP2198633 WP2198633 FLIPPER
2255423 2255423 FLOOR, CAN RACK
2188928 2188928 FOAM, SHIELD
2255422 2255422 FRAME, CAN RACK
WP2223517 WP2223517 FRAME-SHLF
WPW10289690 WPW10289690 FRONT COVER
2305257T 2305257T FRONT COVER ASSEMBLY (INCLUDES ITEMS 16, 17, 18, 19, 20, & 21) (BISCUIT)
2305257US 2305257US FRONT COVER ASSEMBLY (INCLUDES ITEMS 16, 17, 18, 19, 20, & 21) (UNIVERSAL SILVER)
WPW10167169 WPW10167169 FRONT COVER ASSEMBLY (INCLUDES ITEMS 16, 17, 18, 19, 20, & 21) (WHITE)
4386774 4386774 FRONT ROLLER (2)
4388500 4388500 GASKET
WP2155789 WP2155789 GASKET
WP2304241 WP2304241 GASKET
WP2223591 WP2223591 GLASS SHELF
WP2223714 WP2223714 GLASS, MEAT COVER
WP542638 WP542638 GREASE
W10188056 W10188056 GRILLE (BISCUIT)
2303494B 2303494B GRILLE (BLACK)
2303494US 2303494US GRILLE (UNIVERSAL SILVER)
W10188054 W10188054 GRILLE (WHITE)
2322626AP 2322626AP GRILLE, SLIDE (APOLLO GRAY)
2322626T 2322626T GRILLE, SLIDE (BISCUIT)
2322626B 2322626B GRILLE, SLIDE (BLACK)
2322626W 2322626W GRILLE, SLIDE (WHITE)
WP4387558 WP4387558 GROMMET
WP2176759 WP2176759 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
2260517 2260517 GUARD, FAN
WP2313351T WP2313351T HANDLE (BISCUIT)
WP2313351B WP2313351B HANDLE (BLACK)
2313351US 2313351US HANDLE (UNIVERSAL SILVER)
WP2313351W WP2313351W HANDLE (WHITE)
2310237 2310237 HARNESS, FAN TUBE EVAPORATOR (INCLUDES 6)
2187817 2187817 HARNESS, UNIT
2304289 2304289 HEAT SHIELD AND DRAIN PAN
WP2323198 WP2323198 HEATER
2203408AP 2203408AP HINGE COVER (APOLLO GRAY)
2203407AP 2203407AP HINGE COVER (APOLLO GRAY)
2203408T 2203408T HINGE COVER (BISCUIT)
2203407T 2203407T HINGE COVER (BISCUIT)
WP2212369 WP2212369 HOLDER
WPW10121138 WPW10121138 HOUSING
WP2195914 WP2195914 HOUSING-IM
2305336 2305336 ICE BIN
2320329 2320329 ICE CONTAINER (COMPLETE)
WPW10159839 WPW10159839 INLET VALVE
2308394 2308394 INSTRUCTION SHEET, DOOR REMOVAL
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
2255992 2255992 KNOB, FC
2223309 2223309 KNOB, HUMIDITY CONTROL
2255232 2255232 KNOB, RC
WP2319866 WP2319866 LADDER
2198609 2198609 LADDER (LEFT SIDE)
2198610 2198610 LADDER (RIGHT SIDE)
W10238081 W10238081 LED ASSEMBLY
W11679940 W11679940 LIGHT BULB
WP2302848 WP2302848 LIGHT SHIELD
8201651 8201651 LOUVER-CAB
WP2223464KA WP2223464KA MAT, BIN
WPW10233491 WPW10233491 MEAT PAN ASSEMBLY
2220407 2220407 MODULAR ICEMAKER SERVICE SHEET
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD-ICE
WPW10184813 WPW10184813 MOTOR
WP2252130 WP2252130 MOTOR
WP2188874 WP2188874 MOTOR-COND
W10190935 W10190935 MOTOR-MODL
WP2220214 WP2220214 NAMEPLATE
3400971 3400971 NUT, HEX
WP2154697 WP2154697 OVERLOAD
2318409 2318409 OWNER`S MANUAL
2305247WL 2305247WL PAD, ICE & WATER (FOR BISCUIT MODEL)
2305247GM 2305247GM PAD, ICE & WATER (FOR BLACK, STAINLESS, AND STAINLESS VCM MODELS)
2305247MG 2305247MG PAD, ICE & WATER (FOR MONOCHROMATIC STAINLESS AND MONOCHROMATIC SATINA MODELS)
2305247CG 2305247CG PAD, ICE & WATER (FOR WHITE MODEL)
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
8171358 8171358 PAINT, BULK (1 QT.) (GRAPHITE`)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ.) (GRAPHITE)
WP2198634 WP2198634 PIN-DOOR
2255227 2255227 PIVOT ARM
WP939101 WP939101 PLATE
L2255535T L2255535T REFRIGERATOR DOOR (INCLUDES ITEM 6) (BISCUIT)
L2255535B L2255535B REFRIGERATOR DOOR (INCLUDES ITEM 6) (BLACK)
L2255535SB L2255535SB REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLESS STEEL)
L2255535LB L2255535LB REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLESS-VCM)
L2255535W L2255535W REFRIGERATOR DOOR (INCLUDES ITEM 6) (WHITE)
W10920279 W10920279 RELAY-STRT
WPW10276792 WPW10276792 RESERVOIR
WP2155590 WP2155590 RETAINER
489229 489229 ROLL PIN
WPW10250570 WPW10250570 ROLLER-CAB
2305474 2305474 SAFETY BARRIER
489136 489136 SCREW
WPW10141625 WPW10141625 SCREW
489340 489340 SCREW
WP8533993 WP8533993 SCREW
627068 627068 SCREW
WP3196557 WP3196557 SCREW
WP4449745 WP4449745 SCREW
WP8533920 WP8533920 SCREW
WP489491 WP489491 SCREW
WP3400012 WP3400012 SCREW
WP8281163 WP8281163 SCREW
WP3400065 WP3400065 SCREW
WP8281164 WP8281164 SCREW
WP3400806 WP3400806 SCREW
798639 798639 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WP489500 WP489500 SCREW
WP489483 WP489483 SCREW
WPW10141645 WPW10141645 SCREW
WP489464 WP489464 SCREW
WP489497 WP489497 SCREW
WP8281227 WP8281227 SCREW
WP489478 WP489478 SCREW
WP489427 WP489427 SCREW
W10850698 W10850698 SCREW
WP681249 WP681249 SCREW
W10759522 W10759522 SCREW
WPW10142283 WPW10142283 SCREW
W11544659 W11544659 SCREW
8533917 8533917 SCREW
W10142289 W10142289 SCREW 8-18 X 5/8
4389654 4389654 SCREW NO.8 X 3/8 HEX
2006254 2006254 SCREW, 6-19 X .250
WP2198628 WP2198628 SEAL
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER, GUM (4 FEET)
2305458AP 2305458AP SEPARATOR ASSEMBLY (APOLLO GRAY)
2305458T 2305458T SEPARATOR ASSEMBLY (BISCUIT)
2305458B 2305458B SEPARATOR ASSEMBLY (BLACK)
2305458W 2305458W SEPARATOR ASSEMBLY (WHITE)
2303922 2303922 SERVICE SHEET
WP2305243 WP2305243 SHAFT
WP2205837K WP2205837K SHELF (2)
2301290 2301290 SHELF TRACK (LEFT SIDE)
2301289 2301289 SHELF TRACK (RIGHT SIDE)
2301294 2301294 SHELF TRACK, DUAL (LEFT SIDE)
2301293 2301293 SHELF TRACK, DUAL (RIGHT SIDE)
2211746K 2211746K SHELF, SLIDE OUT
2255160 2255160 SHELF, SLIDE OUT (2)
WP2223288 WP2223288 SHELF-CANT
2261773 2261773 SHIELD
2305538 2305538 SHIELD, ELECTRICAL (INTERNAL)
2255666 2255666 SHIELD, HEAT
2303234 2303234 SHIELD, WIRING
WP2181911 WP2181911 SHIM
W11661094 W11661094 SLEEVE
WP2212365 WP2212365 SLEEVE
2182757 2182757 SLIDE MEAT PAN CONTROL
2223308 2223308 SLIDE, HUMIDITY CONTROL
2212321 2212321 SLIDE, ICE MAKER MOUNTING
2315398 2315398 SLIDE, ICE MAKER SHUT OFF
WPW10233485 WPW10233485 SNACK BIN ASM
W11606038 W11606038 SOCKET
WP1119005 WP1119005 SPACER
WP1119007 WP1119007 SPACER
W10187441 W10187441 SPIGOT
8171357 8171357 SPRAY
W10852956 W10852956 SPRING
WP2198608 WP2198608 SPRING
WP2198635 WP2198635 SPRING
489203 489203 SPRING, WASHER
WP2319792 WP2319792 START-DEV
WP2196483 WP2196483 STUD-SHELF
W11223328 W11223328 STUD-SHELF
WP2305204 WP2305204 SUPPORT
4388358 4388358 SUPPORT KIT (CONTAINS RIGHT AND LEFT)
W11457217 W11457217 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
WP2188819 WP2188819 THERMISTOR
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX KEY
WP2223320 WP2223320 TRACK
2305253T 2305253T TRAY, HOUSING (BISCUIT)
2305253B 2305253B TRAY, HOUSING (BLACK)
2305253US 2305253US TRAY, HOUSING (UNIVERSAL SILVER)
2305253W 2305253W TRAY, HOUSING (WHITE)
WPW10614158 WPW10614158 TRAY-EVAP
WP2195905 WP2195905 TRIM-BASKT
W11512417 W11512417 TRIVET
WP2205765 WP2205765 TUBE
2261599 2261599 TUBE, CONDENSER TO HEAT LOOP
WP2317708 WP2317708 TUBE, WATER DISPENSER
WP2305227 WP2305227 UNION
W10466698 W10466698 UNIT COVER, BOTTOM
2304904 2304904 UNIT MOUNTING FRAME
2305374 2305374 UNIT MOUNTING RAIL
WP978025 WP978025 VALVE
978029 978029 VALVE
978030 978030 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978028 978028 VALVE, ACCESS (1/2``)
3400972 3400972 WASHER
WP2212370 WP2212370 WASHER
WP2305382 WP2305382 WASHER
WP2198661 WP2198661 WASHER
WP489235 WP489235 WASHER
W10856867 W10856867 WASHER
WPW10296832 WPW10296832 WATER TUBE
WPW10350006 WPW10350006 WATER TUBE
WP2172890 WP2172890 WIRE
2310019 2310019 WIRE ASSEMBLY, FREEZER DOOR
2187813 2187813 WIRE ASSEMBLY, IDI MOTOR
2187814 2187814 WIRE ASSEMBLY, USER INTERFACE
WP2187467 WP2187467 WIRE HARNESS
2311637 2311637 WIRE HARNESS, DUAL CRISPER
2303927 2303927 WIRING SHEET
Main Menu x
