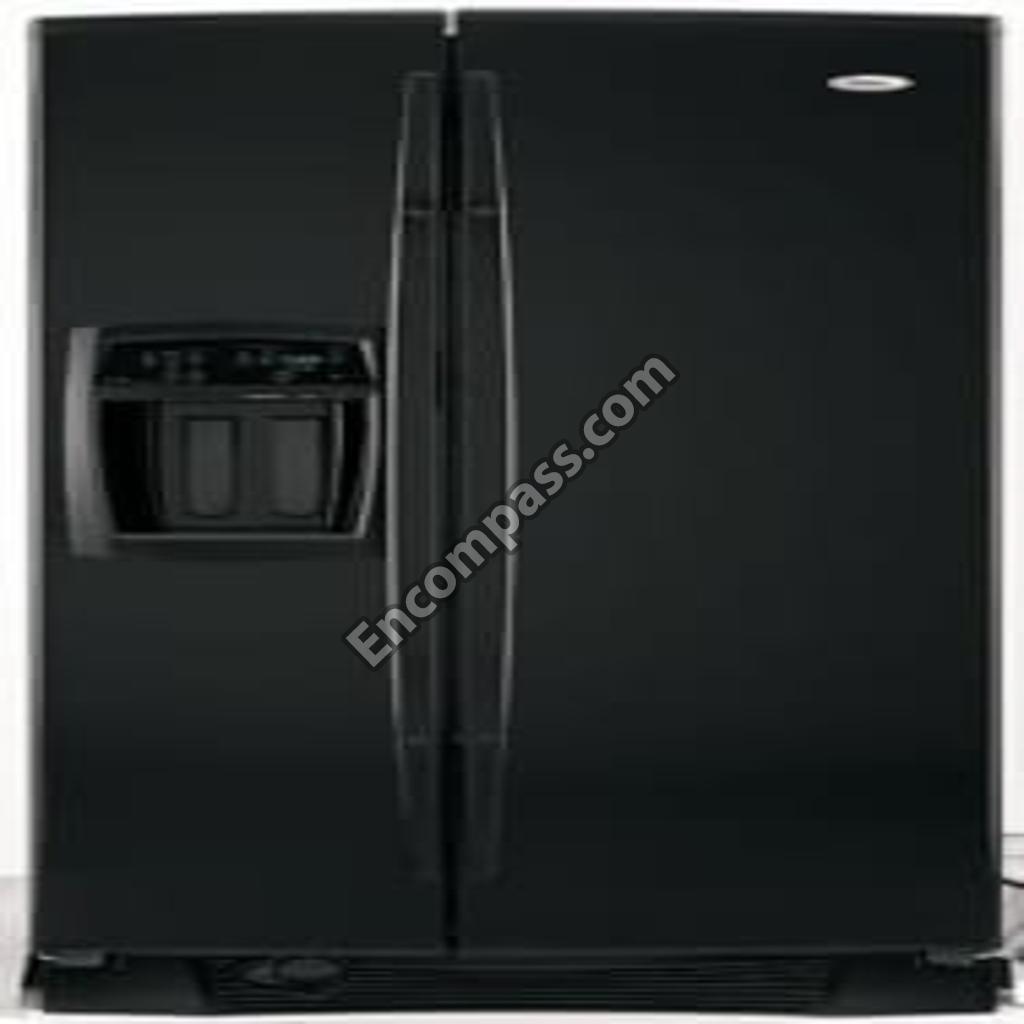

Model Image
Manufacturer

Whirlpool

Model Number

GS6NBEXRB02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4210463RW 4210463RW Whirlpool ACCESSORY PARTS, MAINTENANCE BRUSH FOR DRYERS AND REFRIGERATORS
2255424 2255424 Whirlpool AIR DIFFUSER ASM
2198580 2198580 Whirlpool AIR DUCT FREEZER
2313359 2313359 Whirlpool AIR DUCT, UPPER
2261265 2261265 Whirlpool AIR SEAL, THERMISTOR
WP627843 WP627843 Whirlpool ARM-EJECTR
W10297244 W10297244 Whirlpool ARM-STRIPR
W10852517 W10852517 Whirlpool AUGER
W10896764 W10896764 Whirlpool BAFFLE, AIR
2301191 2301191 Whirlpool BASKET, SLOPED
WP2301190 WP2301190 Whirlpool BASKET, TALL
WP2304309 WP2304309 Whirlpool BASKET, TILT-OUT (2)
2255413 2255413 Whirlpool BEARING BODY
WP627985 WP627985 Whirlpool BIMETL-DEF
WPW10225581 WPW10225581 Whirlpool BIMETL-DEF
WPW10158506 WPW10158506 Whirlpool BIN CONTROL LEVER
2257020 2257020 Whirlpool BLADE, FIXED
W10278731 W10278731 Whirlpool BLADE, ROTARY A
W10278732 W10278732 Whirlpool BLADE, ROTARY B
W10278733 W10278733 Whirlpool BLADE, ROTARY C
W11458267 W11458267 Whirlpool BLADE-FAN
WP2169142 WP2169142 Whirlpool BLADE-FAN
2198602 2198602 Whirlpool BLOCK, BLADE
2260519 2260519 Whirlpool BLOCK, HOUSING SUPPORT
2315057KA 2315057KA Whirlpool BOTTLE
2303141 2303141 Whirlpool BOTTOM HINGE (FC)
WP2303583 WP2303583 Whirlpool BRACKET
WP2181929 WP2181929 Whirlpool BRACKET
WP2305202 WP2305202 Whirlpool BRACKET
WP2198641 WP2198641 Whirlpool BRACKET
2303113B 2303113B Whirlpool BRACKET, DOOR STOP (BLACK)
2200082B 2200082B Whirlpool BRACKET, DOOR STOP (BLACK)
2303113 2303113 Whirlpool BRACKET, DOOR STOP (CHROME)
WP2200082 WP2200082 Whirlpool BRACKET, DOOR STOP (CHROME)
2256035 2256035 Whirlpool BRACKET, DUAL CRISPER
2305208 2305208 Whirlpool BRACKET, MOTOR
WP2260503B WP2260503B Whirlpool BUTTON
2260503AP 2260503AP Whirlpool BUTTON, WATER FILTER (APOLLO GREY)
2260503W 2260503W Whirlpool BUTTON, WATER FILTER (WHITE)
WP941839 WP941839 Whirlpool BUTTON-PLG
940014 940014 Whirlpool BUTTON-PLG
100000 100000 Whirlpool CABINET, (NOT A SERVICEABLE PART)
2255226 2255226 Whirlpool CAM ASSEMBLY
WP2223752 WP2223752 Whirlpool CAM-DOOR
WP2182179 WP2182179 Whirlpool CAM-DOOR
WP2223751 WP2223751 Whirlpool CAM-DOOR
WPW10329686 WPW10329686 Whirlpool CAM-DOOR
WP2198643 WP2198643 Whirlpool CAMERA LENS
2255225 2255225 Whirlpool CAMERA LENS, LIGHT
W11298978 W11298978 Whirlpool CAMERA LENS-LIGHT
WP2317782 WP2317782 Whirlpool CAMERA LENS-LIGHT
2260502T 2260502T Whirlpool CAP, WATER FILTER (BISCUIT)
WP2260518B WP2260518B Whirlpool CAP-FILTER
WP2260518W WP2260518W Whirlpool CAP-FILTER
WP2260518AP WP2260518AP Whirlpool CAP-FILTER
WPW10662129 WPW10662129 Whirlpool CAPACITOR
4387478 4387478 Whirlpool CAPACITOR (SERVICE)
WP4317852 WP4317852 Whirlpool CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP488366 WP488366 Whirlpool CLAMP
2185960 2185960 Whirlpool CLAMP, POWER CORD
549193 549193 Whirlpool CLAMP, SERVICE CORD
2217192 2217192 Whirlpool CLEANER, (STAINLESS STEEL)
WP2315522 WP2315522 Whirlpool CLIP
WP628379 WP628379 Whirlpool CLIP
W11623163 W11623163 Whirlpool CLIP
WP2161324 WP2161324 Whirlpool CLIP
489396 489396 Whirlpool CLIP
WP1115374 WP1115374 Whirlpool CLIP
W10683556 W10683556 Whirlpool CLIP
WP2255411 WP2255411 Whirlpool CLIP
WP2155013 WP2155013 Whirlpool CLIP
2155547 2155547 Whirlpool CLIP, HEAT
2223314 2223314 Whirlpool CLIP, RETAINING
W10169512 W10169512 Whirlpool CLIP, WIRE & TUBE
2305447 2305447 Whirlpool CLIP, WIRING
2215823 2215823 Whirlpool CLIP-AIR, DUCT
2198597 2198597 Whirlpool COMPLETE ICEMAKER ASSEMBLY
W10139460 W10139460 Whirlpool COMPRESSOR (INCLUDES ITEMS 10, 11, 19) (ALSO ORDER 876765 TUBE KIT)
2324712 2324712 Whirlpool CONDENSER ASSEMBLY
2255228 2255228 Whirlpool CONNECTING ROD
WP2305242 WP2305242 Whirlpool CONNECTOR
WP2304163 WP2304163 Whirlpool CONTROL BOARD
WP2303843 WP2303843 Whirlpool CONTROL BOARD
W11629974 W11629974 Whirlpool CONTROL BOARD
2255623 2255623 Whirlpool CONTROL BOX
2255222 2255222 Whirlpool CONTROL BOX
2187965 2187965 Whirlpool CONTROL BOX HARNESS (INCLUDES 21)
WP2220458 WP2220458 Whirlpool COUPLING
WP2220457 WP2220457 Whirlpool COUPLING
W10133000 W10133000 Whirlpool COVER
WP2198587 WP2198587 Whirlpool COVER
WP2223242 WP2223242 Whirlpool COVER
WP2203408W WP2203408W Whirlpool COVER
WP2203408B WP2203408B Whirlpool COVER
WP2203407W WP2203407W Whirlpool COVER
WP2203407B WP2203407B Whirlpool COVER
WP2223307 WP2223307 Whirlpool COVER, CRISPER
2305244 2305244 Whirlpool COVER, CRUSHER
2305219 2305219 Whirlpool COVER, ELECTRONIC CONTROL
2206314 2206314 Whirlpool COVER, EVAPORATOR (INCLUDES 8)
2255558 2255558 Whirlpool COVER, RECEIVER
WP2162358 WP2162358 Whirlpool COVER-TERM
WP2188755 WP2188755 Whirlpool COVER-UNIT
WPW10233488 WPW10233488 Whirlpool CRISPER PAN
2305206 2305206 Whirlpool CRUSHER BIN
WP628356 WP628356 Whirlpool CUP-FILL
WP2255421 WP2255421 Whirlpool DAIRY DOOR
2179350 2179350 Whirlpool DEFLECTOR
WPW10151374 WPW10151374 Whirlpool DIFFUSER
L2321771B L2321771B Whirlpool DOOR ASSEMBLY BL
L2321771T L2321771T Whirlpool DOOR ASSEMBLY BT
L2321771SAP L2321771SAP Whirlpool DOOR ASSEMBLY MS
L2321771LAP L2321771LAP Whirlpool DOOR ASSEMBLY MS
L2255535SAP L2255535SAP Whirlpool DOOR ASSEMBLY MS
L2255535LAP L2255535LAP Whirlpool DOOR ASSEMBLY MS
L2321771SB L2321771SB Whirlpool DOOR ASSEMBLY SS
L2321771LB L2321771LB Whirlpool DOOR ASSEMBLY ST
L2321771W L2321771W Whirlpool DOOR ASSEMBLY WH
WP2223463K WP2223463K Whirlpool DOOR BIN
WP2255420 WP2255420 Whirlpool DOOR COMPARTMENT
2261601 2261601 Whirlpool DOOR CONTROL ASM
2159082 2159082 Whirlpool DOOR GASKET, MAGNETIC (SERVICE) (BLACK)
2159083 2159083 Whirlpool DOOR GASKET, MAGNETIC (SERVICE) (BLACK)
2159074 2159074 Whirlpool DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
2159075 2159075 Whirlpool DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
WP2203770 WP2203770 Whirlpool DOOR HINGE
8201707 8201707 Whirlpool DOOR HINGE
WP2203771 WP2203771 Whirlpool DOOR HINGE
2305443 2305443 Whirlpool DOOR LATCH, BIN
WP2223334 WP2223334 Whirlpool DOOR TRIM
WP2171157 WP2171157 Whirlpool DOOR TRIM
WP2318736 WP2318736 Whirlpool DOOR TRIM
WP2305258 WP2305258 Whirlpool DOOR-CHUTE
WP2255720 WP2255720 Whirlpool DOOR-ICE
W10843121 W10843121 Whirlpool DRIER-TUBE
WPW10143759 WPW10143759 Whirlpool DRIER-UV
WPW10135091 WPW10135091 Whirlpool ELECTRONIC CONTROL
WP2304103 WP2304103 Whirlpool ELECTRONIC CONTROL
2318649 2318649 Whirlpool ENERGY GUIDE
2255611 2255611 Whirlpool ESCUTCHEON, CONTROL BOX
2194744 2194744 Whirlpool ESCUTCHEON, MEAT PAN CONTROL
WP2188823 WP2188823 Whirlpool EVAPORATOR
WP2315549 WP2315549 Whirlpool EVAPORATOR MOTOR
WP2182120 WP2182120 Whirlpool FAN-SCROLL
489285 489285 Whirlpool FASTENER, PUSH-ON
2308165 2308165 Whirlpool FERRITE BEAD
2315169 2315169 Whirlpool FILLER, WRAPPER (APOLLO GRAY)
2304849 2304849 Whirlpool FILLER, WRAPPER (BISCUIT)
2304848 2304848 Whirlpool FILLER, WRAPPER (BLACK)
2304846 2304846 Whirlpool FILLER, WRAPPER (WHITE)
EDR3RXD1 EDR3RXD1 Whirlpool FILTER
WP2256096 WP2256096 Whirlpool FITTING
W11566763 W11566763 Whirlpool FITTING
2172957 2172957 Whirlpool FLAPPER, DRAIN EXTENSION
WP2198633 WP2198633 Whirlpool FLIPPER
2255423 2255423 Whirlpool FLOOR, CAN RACK
2188928 2188928 Whirlpool FOAM, SHIELD
2255422 2255422 Whirlpool FRAME, CAN RACK
WP2223517 WP2223517 Whirlpool FRAME-SHLF
WPW10289690 WPW10289690 Whirlpool FRONT COVER
2321769T 2321769T Whirlpool FRONT COVER ASSEMBLY (INCLUDES ITEMS 16, 17, 18, 19, 20, & 21) (BISCUIT)
WPW10167169 WPW10167169 Whirlpool FRONT COVER ASSEMBLY (INCLUDES ITEMS 16, 17, 18, 19, 20, & 21) (BLACK)
WP2321769US WP2321769US Whirlpool FRONT COVER ASSEMBLY (INCLUDES ITEMS 16, 17, 18, 19, 20, & 21) (UNIVERSAL SILVER)
4386774 4386774 Whirlpool FRONT ROLLER (2)
4388500 4388500 Whirlpool GASKET
WP2155789 WP2155789 Whirlpool GASKET
WP2304241 WP2304241 Whirlpool GASKET
W10136735 W10136735 Whirlpool GASKET ASSEMBLY
WPW10136734 WPW10136734 Whirlpool GASKET ASSEMBLY
WP2223591 WP2223591 Whirlpool GLASS SHELF
WP2223714 WP2223714 Whirlpool GLASS, MEAT COVER
WP542638 WP542638 Whirlpool GREASE
2303494AP 2303494AP Whirlpool GRILLE (APOLLO GREY)
W10188056 W10188056 Whirlpool GRILLE (BISCUIT)
2303494B 2303494B Whirlpool GRILLE (BLACK)
W10188054 W10188054 Whirlpool GRILLE (WHITE)
2322626AP 2322626AP Whirlpool GRILLE, SLIDE (APOLLO GRAY)
2322626T 2322626T Whirlpool GRILLE, SLIDE (BISCUIT)
2322626B 2322626B Whirlpool GRILLE, SLIDE (BLACK)
2322626W 2322626W Whirlpool GRILLE, SLIDE (WHITE)
WP4387558 WP4387558 Whirlpool GROMMET
WP2176759 WP2176759 Whirlpool GROMMET
876811 876811 Whirlpool GROMMET (4) ((PRODUCTION))
2260517 2260517 Whirlpool GUARD, FAN
WP2313351T WP2313351T Whirlpool HANDLE (BISCUIT)
WP2313351B WP2313351B Whirlpool HANDLE (BLACK)
2313351US 2313351US Whirlpool HANDLE (UNIVERSAL SILVER)
WP2313351W WP2313351W Whirlpool HANDLE (WHITE)
2310237 2310237 Whirlpool HARNESS, FAN EVAPORATOR (INCLUDES 5)
2187817 2187817 Whirlpool HARNESS, UNIT
2217194 2217194 Whirlpool HEAT SHIELD AND DRAIN PAN
WP2323198 WP2323198 Whirlpool HEATER
2203408AP 2203408AP Whirlpool HINGE COVER (APOLLO GRAY)
2203407AP 2203407AP Whirlpool HINGE COVER (APOLLO GRAY)
2203408T 2203408T Whirlpool HINGE COVER (BISCUIT)
2203407T 2203407T Whirlpool HINGE COVER (BISCUIT)
WP2212369 WP2212369 Whirlpool HOLDER
WPW10121138 WPW10121138 Whirlpool HOUSING
WP2195914 WP2195914 Whirlpool HOUSING-IM
2305336 2305336 Whirlpool ICE BIN
2320329 2320329 Whirlpool ICE CONTAINER (COMPLETE)
WPW10159839 WPW10159839 Whirlpool INLET VALVE
2308394 2308394 Whirlpool INSTRUCTION SHEET, DOOR REMOVAL
W11553819 W11553819 Whirlpool INSULATION
799833 799833 Whirlpool KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
2255992 2255992 Whirlpool KNOB, FC
2223309 2223309 Whirlpool KNOB, HUMIDITY CONTROL
2255232 2255232 Whirlpool KNOB, RC
WP2319866 WP2319866 Whirlpool LADDER
2198609 2198609 Whirlpool LADDER (LEFT SIDE)
2198610 2198610 Whirlpool LADDER (RIGHT SIDE)
W10238081 W10238081 Whirlpool LED ASSEMBLY
W11679940 W11679940 Whirlpool LIGHT BULB
WP2302848 WP2302848 Whirlpool LIGHT SHIELD
8201651 8201651 Whirlpool LOUVER-CAB
WPW10233491 WPW10233491 Whirlpool MEAT PAN ASSEMBLY
2220407 2220407 Whirlpool MODULAR ICEMAKER SERVICE SHEET
8201515 8201515 Whirlpool MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 Whirlpool MOLD-ICE
WPW10184813 WPW10184813 Whirlpool MOTOR
WP2252130 WP2252130 Whirlpool MOTOR
WP2188874 WP2188874 Whirlpool MOTOR-COND
WP2220214 WP2220214 Whirlpool NAMEPLATE
3400971 3400971 Whirlpool NUT, HEX
WP2154697 WP2154697 Whirlpool OVERLOAD
2318587 2318587 Whirlpool OWNER`S MANUAL
2305247WL 2305247WL Whirlpool PAD, ICE & WATER (FOR BISCUIT MODEL)
2305247GM 2305247GM Whirlpool PAD, ICE & WATER (FOR BLACK, STAINLESS, AND STAINLESS VCM MODELS)
2305247MG 2305247MG Whirlpool PAD, ICE & WATER (FOR MONOCHROMATIC STAINLESS AND MONOCHROMATIC SATINA MODELS)
2305247CG 2305247CG Whirlpool PAD, ICE & WATER (FOR WHITE MODEL)
799344 799344 Whirlpool PAINT
4392900 4392900 Whirlpool PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 Whirlpool PAINT, BULK (1 QT.) (BLACK (UNCUT))
8171358 8171358 Whirlpool PAINT, BULK (1 QT.) (GRAPHITE`)
350930 350930 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 Whirlpool PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 Whirlpool PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP80051 WP80051 Whirlpool PAINT, TOUCH-UP (1/2OZ.) (GRAPHITE)
WP2198634 WP2198634 Whirlpool PIN-DOOR
2255227 2255227 Whirlpool PIVOT ARM
WP939101 WP939101 Whirlpool PLATE
L2255535T L2255535T Whirlpool REFRIGERATOR DOOR (INCLUDES ITEM 6) (BISCUIT)
L2255535B L2255535B Whirlpool REFRIGERATOR DOOR (INCLUDES ITEM 6) (BLACK)
L2255535SB L2255535SB Whirlpool REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLESS STEEL)
L2255535LB L2255535LB Whirlpool REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLESS-VCM)
L2255535W L2255535W Whirlpool REFRIGERATOR DOOR (INCLUDES ITEM 6) (WHITE)
W10920279 W10920279 Whirlpool RELAY-STRT
WPW10276792 WPW10276792 Whirlpool RESERVOIR
WP2155590 WP2155590 Whirlpool RETAINER
489229 489229 Whirlpool ROLL PIN
WPW10250570 WPW10250570 Whirlpool ROLLER-CAB
2304895 2304895 Whirlpool SAFETY BARRIER
489136 489136 Whirlpool SCREW
WPW10141625 WPW10141625 Whirlpool SCREW
489340 489340 Whirlpool SCREW
WP8533993 WP8533993 Whirlpool SCREW
627068 627068 Whirlpool SCREW
WP3196557 WP3196557 Whirlpool SCREW
WP4449745 WP4449745 Whirlpool SCREW
WP8533920 WP8533920 Whirlpool SCREW
WP489491 WP489491 Whirlpool SCREW
WP3400012 WP3400012 Whirlpool SCREW
WP8281163 WP8281163 Whirlpool SCREW
WP3400065 WP3400065 Whirlpool SCREW
WP8281164 WP8281164 Whirlpool SCREW
WP3400806 WP3400806 Whirlpool SCREW
798639 798639 Whirlpool SCREW
WP3-24004-109 WP3-24004-109 Whirlpool SCREW
W10759522 W10759522 Whirlpool SCREW
WP489500 WP489500 Whirlpool SCREW
WP489483 WP489483 Whirlpool SCREW
WPW10141645 WPW10141645 Whirlpool SCREW
WP489464 WP489464 Whirlpool SCREW
WP489497 WP489497 Whirlpool SCREW
WP8281227 WP8281227 Whirlpool SCREW
WP489478 WP489478 Whirlpool SCREW
WP489427 WP489427 Whirlpool SCREW
W10850698 W10850698 Whirlpool SCREW
WP681249 WP681249 Whirlpool SCREW
WPW10142283 WPW10142283 Whirlpool SCREW
W11544659 W11544659 Whirlpool SCREW
8533917 8533917 Whirlpool SCREW
W10142289 W10142289 Whirlpool SCREW 8-18 X 5/8
4389654 4389654 Whirlpool SCREW NO.8 X 3/8 HEX
2006254 2006254 Whirlpool SCREW, 6-19 X .250
WP2198628 WP2198628 Whirlpool SEAL
WP505587 WP505587 Whirlpool SEALER
WP503695 WP503695 Whirlpool SEALER
212643 212643 Whirlpool SEALER, GUM (4 FEET)
2305458AP 2305458AP Whirlpool SEPARATOR ASSEMBLY (APOLLO GRAY)
2305458T 2305458T Whirlpool SEPARATOR ASSEMBLY (BISCUIT)
2305458B 2305458B Whirlpool SEPARATOR ASSEMBLY (BLACK)
2305458W 2305458W Whirlpool SEPARATOR ASSEMBLY (WHITE)
2303922 2303922 Whirlpool SERVICE SHEET
WP2305243 WP2305243 Whirlpool SHAFT
WP2205837K WP2205837K Whirlpool SHELF (2)
2301290 2301290 Whirlpool SHELF TRACK (LEFT SIDE)
2301289 2301289 Whirlpool SHELF TRACK (RIGHT SIDE)
2301294 2301294 Whirlpool SHELF TRACK, DUAL (LEFT SIDE)
2301293 2301293 Whirlpool SHELF TRACK, DUAL (RIGHT SIDE)
2211746K 2211746K Whirlpool SHELF, SLIDE OUT
2255160 2255160 Whirlpool SHELF, SLIDE OUT (2)
WP2223288 WP2223288 Whirlpool SHELF-CANT
2261773 2261773 Whirlpool SHIELD
2305538 2305538 Whirlpool SHIELD, ELECTRICAL (INTERNAL)
2255666 2255666 Whirlpool SHIELD, HEAT
2303234 2303234 Whirlpool SHIELD, WIRING
WP2181911 WP2181911 Whirlpool SHIM
W11661094 W11661094 Whirlpool SLEEVE
WP2212365 WP2212365 Whirlpool SLEEVE
2182757 2182757 Whirlpool SLIDE MEAT PAN CONTROL
2223308 2223308 Whirlpool SLIDE, HUMIDITY CONTROL
2212321 2212321 Whirlpool SLIDE, ICE MAKER MOUNTING
2315398 2315398 Whirlpool SLIDE, ICE MAKER SHUT OFF
WPW10233485 WPW10233485 Whirlpool SNACK BIN ASM
W11606038 W11606038 Whirlpool SOCKET
WP1119005 WP1119005 Whirlpool SPACER
WP1119007 WP1119007 Whirlpool SPACER
W10187441 W10187441 Whirlpool SPIGOT
8171357 8171357 Whirlpool SPRAY
W10852956 W10852956 Whirlpool SPRING
WP2198608 WP2198608 Whirlpool SPRING
WP2198635 WP2198635 Whirlpool SPRING
489203 489203 Whirlpool SPRING, WASHER
WP2304885 WP2304885 Whirlpool START-DEV
WP2196483 WP2196483 Whirlpool STUD-SHELF
W11223328 W11223328 Whirlpool STUD-SHELF
WP2305204 WP2305204 Whirlpool SUPPORT
4388358 4388358 Whirlpool SUPPORT KIT (CONTAINS RIGHT AND LEFT)
W11457217 W11457217 Whirlpool SWITCH
W11384469 W11384469 Whirlpool SWITCH
W11238399 W11238399 Whirlpool TAPE
833938 833938 Whirlpool TERMINAL
WP2188819 WP2188819 Whirlpool THERMISTOR
WPW10339879 WPW10339879 Whirlpool TIE-WIRE
WP1117510 WP1117510 Whirlpool TORX KEY
WP2223320 WP2223320 Whirlpool TRACK
2305253T 2305253T Whirlpool TRAY, HOUSING (BISCUIT)
2305253B 2305253B Whirlpool TRAY, HOUSING (BLACK)
2305253US 2305253US Whirlpool TRAY, HOUSING (UNIVERSAL SILVER)
2305253W 2305253W Whirlpool TRAY, HOUSING (WHITE)
WPW10614158 WPW10614158 Whirlpool TRAY-EVAP
WP2195905 WP2195905 Whirlpool TRIM-BASKT
W11512417 W11512417 Whirlpool TRIVET
WP2205765 WP2205765 Whirlpool TUBE
2261599 2261599 Whirlpool TUBE, CONDENSER TO HEAT LOOP
8201597 8201597 Whirlpool TUBE, FILTER INLET
WP2317708 WP2317708 Whirlpool TUBE, WATER DISPENSER
WP2305227 WP2305227 Whirlpool UNION
W10466698 W10466698 Whirlpool UNIT COVER, BOTTOM
2304904 2304904 Whirlpool UNIT MOUNTING FRAME
2305374 2305374 Whirlpool UNIT MOUNTING RAIL
WP978025 WP978025 Whirlpool VALVE
876764 876764 Whirlpool VALVE
978026 978026 Whirlpool VALVE
978027 978027 Whirlpool VALVE
978029 978029 Whirlpool VALVE
978030 978030 Whirlpool VALVE
978028 978028 Whirlpool VALVE, ACCESS (1/2``)
3400972 3400972 Whirlpool WASHER
WP2212370 WP2212370 Whirlpool WASHER
WP2305382 WP2305382 Whirlpool WASHER
WP2198661 WP2198661 Whirlpool WASHER
WP489235 WP489235 Whirlpool WASHER
W10856867 W10856867 Whirlpool WASHER
WPW10350006 WPW10350006 Whirlpool WATER TUBE
WP2172890 WP2172890 Whirlpool WIRE
2310084 2310084 Whirlpool WIRE ASSEMBLY, FREEZER DOOR
2187813 2187813 Whirlpool WIRE ASSEMBLY, IDI MOTOR
2187814 2187814 Whirlpool WIRE ASSEMBLY, USER INTERFACE
WP2187467 WP2187467 Whirlpool WIRE HARNESS
2311637 2311637 Whirlpool WIRE HARNESS, DUAL CRISPER
2303927 2303927 Whirlpool WIRING SHEET
Main Menu x
