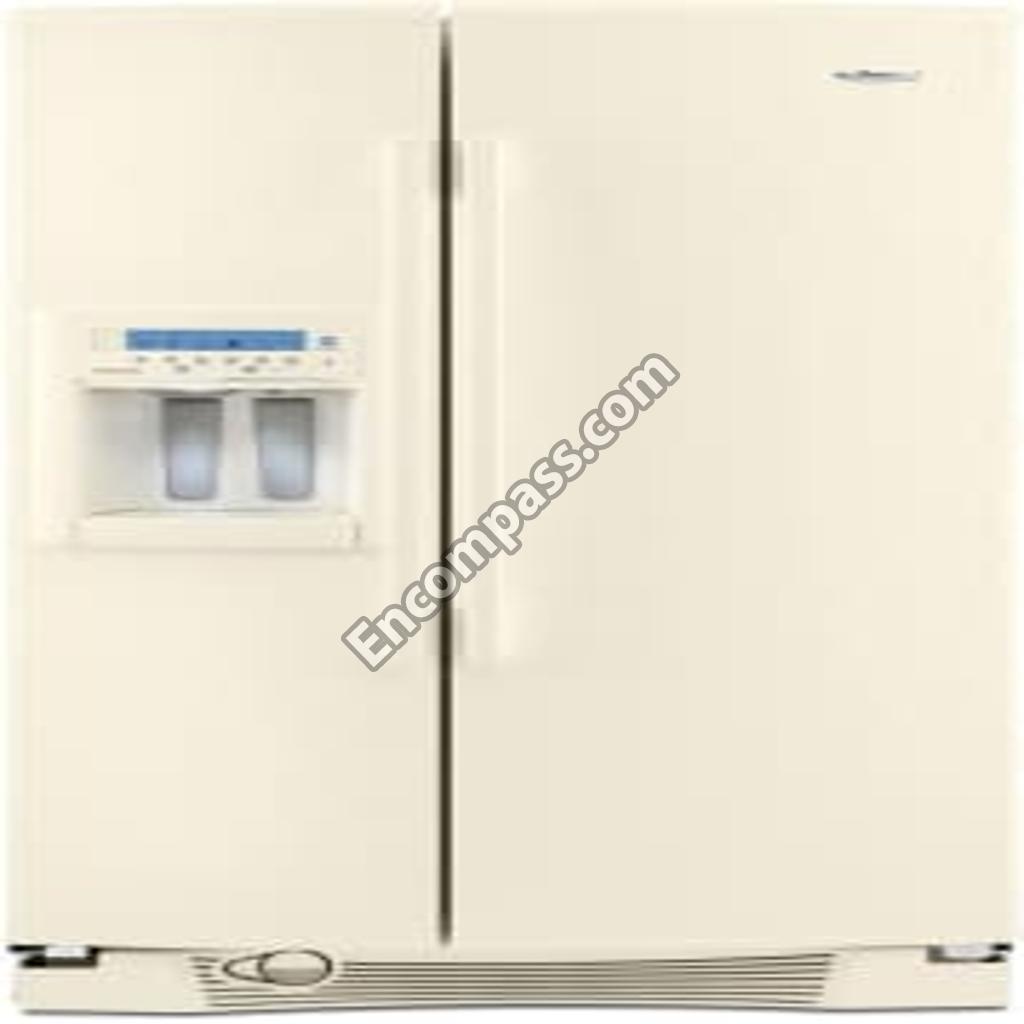

Model Image
Manufacturer

Whirlpool

Model Number

GS6NHAXVT02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4210463RW 4210463RW ACCESSORY PARTS, MAINTENANCE BRUSH FOR DRYERS AND REFRIGERATORS
2255424 2255424 AIR DIFFUSER ASM
2198580 2198580 AIR DUCT FREEZER
2313359 2313359 AIR DUCT, UPPER
WP627843 WP627843 ARM-EJECTR
W10297244 W10297244 ARM-STRIPR
W10852517 W10852517 AUGER-ICE
W10896764 W10896764 BAFFLE, AIR
W10127842 W10127842 BARRIER
2301191 2301191 BASKET, SLOPED
WP2301190 WP2301190 BASKET, TALL
WPW10225581 WPW10225581 BIMETL-DEF
WP627985 WP627985 BIMETL-DEF
WPW10158506 WPW10158506 BIN CONTROL LEVER
W10188746 W10188746 BIN-CRUSH
W10142356 W10142356 BIN-DOOR
W10174543 W10174543 BINCRUSH
W10156818 W10156818 BLADE, FAN
2257020 2257020 BLADE, FIXED
W10278731 W10278731 BLADE, ROTARY A
W10278732 W10278732 BLADE, ROTARY B
W10278733 W10278733 BLADE, ROTARY C
WP2169142 WP2169142 BLADE-FAN
2317239 2317239 BLOCK, BLADE
2260519 2260519 BLOCK, HOUSING SUPPORT
2303141 2303141 BOTTOM HINGE (FC)
WP2303583 WP2303583 BRACKET
WP2181929 WP2181929 BRACKET
WP2305202 WP2305202 BRACKET
WP2198641 WP2198641 BRACKET
W10185570 W10185570 BRACKET
WPW10219801 WPW10219801 BRACKET
2323534B 2323534B BRACKET, DOOR STOP (BLACK)
2323534 2323534 BRACKET, DOOR STOP (ZINC)
2305208 2305208 BRACKET, MOTOR
WP2260503B WP2260503B BUTTON
2260503MG 2260503MG BUTTON, WATER FILTER (MIDNIGHT GREY)
2260503W 2260503W BUTTON, WATER FILTER (WHITE)
N_P N_P CABINET (NOT A SERVICEABLE PART)
WP2182179 WP2182179 CAM-DOOR
WP2223751 WP2223751 CAM-DOOR
WPW10329686 WPW10329686 CAM-DOOR
WP2198643 WP2198643 CAMERA LENS
W11298978 W11298978 CAMERA LENS-LIGHT
WP2223506 WP2223506 CAMERA LENS-LIGHT
W11239891 W11239891 CAMERA LENS-LIGHT
2260502T 2260502T CAP, WATER FILTER (BISCUIT)
WP2260518B WP2260518B CAP-FILTER
WP2260518W WP2260518W CAP-FILTER
WP2260518MG WP2260518MG CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP488366 WP488366 CLAMP
549193 549193 CLAMP, SERVICE CORD
2217192 2217192 CLEANER, (STAINLESS STEEL)
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
W11623163 W11623163 CLIP
WP2161324 WP2161324 CLIP
489396 489396 CLIP
W10683556 W10683556 CLIP
WP2255411 WP2255411 CLIP
WP2155013 WP2155013 CLIP
2155547 2155547 CLIP, HEAT
2215823 2215823 CLIP-AIR, DUCT
2198597 2198597 COMPLETE ICEMAKER ASSEMBLY
W10139462 W10139462 COMPRESSOR (INCLUDES ITEMS 11, 12, 20, & 31)
2324712 2324712 CONDENSER ASSEMBLY
WPW10271543 WPW10271543 CONNECTOR
WP2305242 WP2305242 CONNECTOR
WPW10120820 WPW10120820 CONTROL BOARD
WPW10356040 WPW10356040 CONTROL BOARD
W11629974 W11629974 CONTROL BOARD
2323186 2323186 CONTROL BOX
WP2220458 WP2220458 COUPLING
WP2220457 WP2220457 COUPLING
2323188 2323188 COVER
WP2198587 WP2198587 COVER
WP2223242 WP2223242 COVER
WP2203408B WP2203408B COVER
WP2203408W WP2203408W COVER
WP2203407B WP2203407B COVER
WP2203407W WP2203407W COVER
W10128735 W10128735 COVER
W10173569 W10173569 COVER
W10139321 W10139321 COVER
W10151311 W10151311 COVER
WP2223307 WP2223307 COVER, CRISPER (INCLUDES 11 & 12)
2323634 2323634 COVER, DISPENSER MOTOR
2322743 2322743 COVER, ELECTRONIC CONTROL
2206314 2206314 COVER, EVAPORATOR (INCLUDES NO.8)
2323581 2323581 COVER, THIMBLE
WP2188755 WP2188755 COVER-UNIT
WPW10233488 WPW10233488 CRISPER PAN
WPW10272168 WPW10272168 CUP-FILL
WP2255421 WP2255421 DAIRY DOOR
2179350 2179350 DEFLECTOR
W10899382 W10899382 DIFFUSER
2317250 2317250 DIVIDER-CHAMBER
LW10168054B LW10168054B DOOR ASSEMBLY BL
LW10167186 LW10167186 DOOR ASSEMBLY BL
LW10168054T LW10168054T DOOR ASSEMBLY BT
LW10169212 LW10169212 DOOR ASSEMBLY BT
LW10210161 LW10210161 DOOR ASSEMBLY MS
LW10169214 LW10169214 DOOR ASSEMBLY MS
LW10169213 LW10169213 DOOR ASSEMBLY MS
LW10210160 LW10210160 DOOR ASSEMBLY SS
LW10167187 LW10167187 DOOR ASSEMBLY SS
LW10210162 LW10210162 DOOR ASSEMBLY ST
LW10168054W LW10168054W DOOR ASSEMBLY WH
LW10167185 LW10167185 DOOR ASSEMBLY WH
WP2255420 WP2255420 DOOR COMPARTMENT
2261601 2261601 DOOR CONTROL ASM
2159082 2159082 DOOR GASKET, MAGNETIC (SERVICE) (BLACK)
2159083 2159083 DOOR GASKET, MAGNETIC (SERVICE) (BLACK)
2159074 2159074 DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
2159075 2159075 DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
WP2203770 WP2203770 DOOR HINGE
WP2203771 WP2203771 DOOR HINGE
WP2223877 WP2223877 DOOR LATCH
WP2223334 WP2223334 DOOR TRIM
WP2156022 WP2156022 DOOR TRIM
WP2305258 WP2305258 DOOR-CHUTE
WP2255720 WP2255720 DOOR-ICE
WPW10143759 WPW10143759 DRIER-UV
WPW10211153 WPW10211153 ELECTRONIC CONTROL (USER INTERFACE)
W10127816 W10127816 ENDCAP, HANDLE (STAINLESS)
W10127813 W10127813 ENDCAP-HDL
W10127814 W10127814 ENDCAP-HDL
W10127815 W10127815 ENDCAP-HDL
W10194138 W10194138 ENERGY GUIDE
W10175967 W10175967 ESCUTCHEON
WP2188823 WP2188823 EVAPORATOR
WP2315549 WP2315549 EVAPORATOR MOTOR
2322770T 2322770T FACIA, FRONT (BISCUIT)
2322770B 2322770B FACIA, FRONT (BLACK)
2322770NO 2322770NO FACIA, FRONT (NICKEL ONE)
2322770S 2322770S FACIA, FRONT (STAINLESS)
2322770W 2322770W FACIA, FRONT (WHITE)
WP2182120 WP2182120 FAN-SCROLL
W10143043 W10143043 FILLER
2304849 2304849 FILLER, WRAPPER (BISCUIT)
2304848 2304848 FILLER, WRAPPER (BLACK)
2304846 2304846 FILLER, WRAPPER (WHITE)
EDR3RXD1 EDR3RXD1 FILTER
WP2303216 WP2303216 FITTING
W11566763 W11566763 FITTING
WP2198633 WP2198633 FLIPPER
2255423 2255423 FLOOR, CAN RACK
2255422 2255422 FRAME, CAN RACK
WP2223517 WP2223517 FRAME-SHLF
WPW10289690 WPW10289690 FRONT COVER
WP2322702B WP2322702B FRONT COVER
WP2322702W WP2322702W FRONT COVER
WP2322702NO WP2322702NO FRONT COVER ASSEMBLY (INCLUDES ITEMS 14, 16, 17, 18, 19, 20, & 21) (NICKEL ONE)
WP2322702S WP2322702S FRONT COVER ASSEMBLY (INCLUDES ITEMS 14, 16, 17, 18, 19, 20, & 21) (STAINLESS STEEL)
4386774 4386774 FRONT ROLLER (2)
4388500 4388500 GASKET
WP2155789 WP2155789 GASKET
WP2304241 WP2304241 GASKET
W10136735 W10136735 GASKET ASSEMBLY
WPW10136734 WPW10136734 GASKET ASSEMBLY
WP2223591 WP2223591 GLASS SHELF
WP2223714 WP2223714 GLASS, MEAT COVER
WP542638 WP542638 GREASE
W10188056 W10188056 GRILLE
W10188057 W10188057 GRILLE
W10139837 W10139837 GRILLE
W10188055 W10188055 GRILLE (BLACK)
W10188054 W10188054 GRILLE (WHITE)
2322626AP 2322626AP GRILLE, SLIDE (APOLLO GREY)
2322626T 2322626T GRILLE, SLIDE (BISCUIT)
2322626B 2322626B GRILLE, SLIDE (BLACK)
2322626W 2322626W GRILLE, SLIDE (WHITE)
WP2176759 WP2176759 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
2323357 2323357 GROMMET, DRIVE SHAFT
W10210942A W10210942A HANDLE
W10210943A W10210943A HANDLE
WPW10257120 WPW10257120 HANDLE
W10210944A W10210944A HANDLE
W10291104 W10291104 HARNESS, UNIT
W10193352 W10193352 HARNS-DISP
W10193374 W10193374 HARNS-WIRE
W11225843 W11225843 HARNS-WIRE
2217194 2217194 HEAT SHIELD AND DRAIN PAN
WP2323198 WP2323198 HEATER
2203408AP 2203408AP HINGE COVER (APOLLO GREY)
2203407AP 2203407AP HINGE COVER (APOLLO GREY)
2203408T 2203408T HINGE COVER (BISCUIT)
2203407T 2203407T HINGE COVER (BISCUIT)
W10138965 W10138965 HINGE-DOOR
WP2212369 WP2212369 HOLDER
WPW10121138 WPW10121138 HOUSING
WP2195914 WP2195914 HOUSING-IM
W10188747 W10188747 ICE-CONTNR
WP2321753 WP2321753 INLET VALVE
W10206334 W10206334 INSTRUCTION SHEET, DOOR REMOVAL
W11553819 W11553819 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
2223309 2223309 KNOB, HUMIDITY CONTROL
WP2319866 WP2319866 LADDER
W10140685 W10140685 LATCH-BIN
WPA3073101 WPA3073101 LIGHT BULB
W11679940 W11679940 LIGHT BULB
2198609 2198609 LIGHT LADDER (LEFT SIDE)
2198610 2198610 LIGHT LADDER (RIGHT SIDE)
WP2302848 WP2302848 LIGHT SHIELD
W10238081 W10238081 LIGHT-IND
8201651 8201651 LOUVER-CAB
WP2223464KA WP2223464KA MAT, BIN (2)
WPW10233491 WPW10233491 MEAT PAN ASSEMBLY
2220407 2220407 MODULAR ICEMAKER SERVICE SHEET
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD-ICE
WPW10205978 WPW10205978 MOTOR
WP2323603 WP2323603 MOTOR
WP2188874 WP2188874 MOTOR-COND
WP2220214 WP2220214 NAMEPLATE
2322750GM 2322750GM PAD, ICE & WATER (BLACK, STAINLESS MODEL)
2322750AP 2322750AP PAD, ICE & WATER (MONO STAINLESS MONO SATINA VCM AND BISCUIT MODELS)
2322750CG 2322750CG PAD, ICE & WATER (WHITE MODEL)
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT)
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
8171358 8171358 PAINT, BULK (1 QT.) (GRAPHITE`)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ.) (GRAPHITE)
WP2198634 WP2198634 PIN-DOOR
WPW10276792 WPW10276792 RESERVOIR
WP2155590 WP2155590 RETAINER
W10204187 W10204187 RETAINER
489229 489229 ROLL PIN
WPW10250570 WPW10250570 ROLLER-CAB
489136 489136 SCREW
WPW10141625 WPW10141625 SCREW
489340 489340 SCREW
WPW10171469 WPW10171469 SCREW
WP8533993 WP8533993 SCREW
WP4449745 WP4449745 SCREW
WPW10288153 WPW10288153 SCREW
WP3400012 WP3400012 SCREW
WP8281163 WP8281163 SCREW
WP3400065 WP3400065 SCREW
WP8281164 WP8281164 SCREW
WPW10142283 WPW10142283 SCREW
W10759522 W10759522 SCREW
WP3400806 WP3400806 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WP3400906 WP3400906 SCREW
WP489500 WP489500 SCREW
WP489483 WP489483 SCREW
WPW10141645 WPW10141645 SCREW
WP489464 WP489464 SCREW
WP489497 WP489497 SCREW
WP8281227 WP8281227 SCREW
WP489478 WP489478 SCREW
WP489427 WP489427 SCREW
W10850698 W10850698 SCREW
WP681249 WP681249 SCREW
W11544659 W11544659 SCREW
8533917 8533917 SCREW
W10141518 W10141518 SCREW
W10267047 W10267047 SCREW
W10142289 W10142289 SCREW 8-18 X 5/8
4389654 4389654 SCREW NO.8 X 3/8 HEX
2006254 2006254 SCREW, 6-19 X .250
WP2198628 WP2198628 SEAL
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER, GUM (4 FEET)
2322658T 2322658T SEPARATOR ASSEMBLY (BISCUIT)
2322658B 2322658B SEPARATOR ASSEMBLY (BLACK)
2322658MG 2322658MG SEPARATOR ASSEMBLY (MIDNIGHT GREY)
2322658S 2322658S SEPARATOR ASSEMBLY (STAINLESS)
2322658W 2322658W SEPARATOR ASSEMBLY (WHITE)
W10156107 W10156107 SERVICE AND WIRING SHEET
WP2323355 WP2323355 SHAFT
WP2205837K WP2205837K SHELF (2)
2301290 2301290 SHELF TRACK (LEFT SIDE)
2301289 2301289 SHELF TRACK (RIGHT SIDE)
2301294 2301294 SHELF TRACK, DUAL (LEFT SIDE)
2301293 2301293 SHELF TRACK, DUAL (RIGHT SIDE)
2211746K 2211746K SHELF, SLIDE OUT
2255160 2255160 SHELF, SLIDE OUT (2)
WP2223288 WP2223288 SHELF-CANT
2223680 2223680 SHIELD, HEAT
2303234 2303234 SHIELD, WIRING
WP2181911 WP2181911 SHIM
W11661094 W11661094 SLEEVE
WP2212365 WP2212365 SLEEVE
2182757 2182757 SLIDE MEAT PAN CONTROL
2223308 2223308 SLIDE, HUMIDITY CONTROL
2212321 2212321 SLIDE, ICE MAKER MOUNTING
2315398 2315398 SLIDE, ICE MAKER SHUT OFF
WPW10233485 WPW10233485 SNACK BIN ASM
W11606038 W11606038 SOCKET
WPW10191429 WPW10191429 SOCKET
WP1119005 WP1119005 SPACER
WP1119007 WP1119007 SPACER
W10187441 W10187441 SPIGOT
8171357 8171357 SPRAY
W10852956 W10852956 SPRING
WP2198608 WP2198608 SPRING
WP2198635 WP2198635 SPRING
WPW10189190 WPW10189190 START-DEV
WP2196483 WP2196483 STUD-SHELF
W11223328 W11223328 STUD-SHELF
WP2305204 WP2305204 SUPPORT
4388358 4388358 SUPPORT KIT (CONTAINS RIGHT AND LEFT)
W11457217 W11457217 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX KEY
WP2223320 WP2223320 TRACK
2322645T 2322645T TRAY, HOUSING (BISCUIT)
2322645B 2322645B TRAY, HOUSING (BLACK)
2322645NO 2322645NO TRAY, HOUSING (NICKEL ONE)
2322645W 2322645W TRAY, HOUSING (WHITE)
WPW10614158 WPW10614158 TRAY-EVAP
W10284481 W10284481 TRIM
WP2195905 WP2195905 TRIM-BASKT
W11512417 W11512417 TRIVET
W10858105 W10858105 TUBE
WP2205765 WP2205765 TUBE
8201597 8201597 TUBE, FILTER INLET
W10466698 W10466698 UNIT COVER, BOTTOM
2304904 2304904 UNIT MOUNTING FRAME
2305374 2305374 UNIT MOUNTING RAIL
W10162458 W10162458 USE & CARE GUIDE
WP978025 WP978025 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
876764 876764 VALVE
978028 978028 VALVE, ACCESS (1/2``)
WP2212370 WP2212370 WASHER
WP2198661 WP2198661 WASHER
WP489235 WP489235 WASHER
W10856867 W10856867 WASHER
WP2317708 WP2317708 WATER TUBE
WPW10350006 WPW10350006 WATER TUBE
2317243 2317243 WIPER
2310527 2310527 WIRE ASSEMBLY, RC-LIGHT
WP2187467 WP2187467 WIRE HARNESS
Main Menu x
