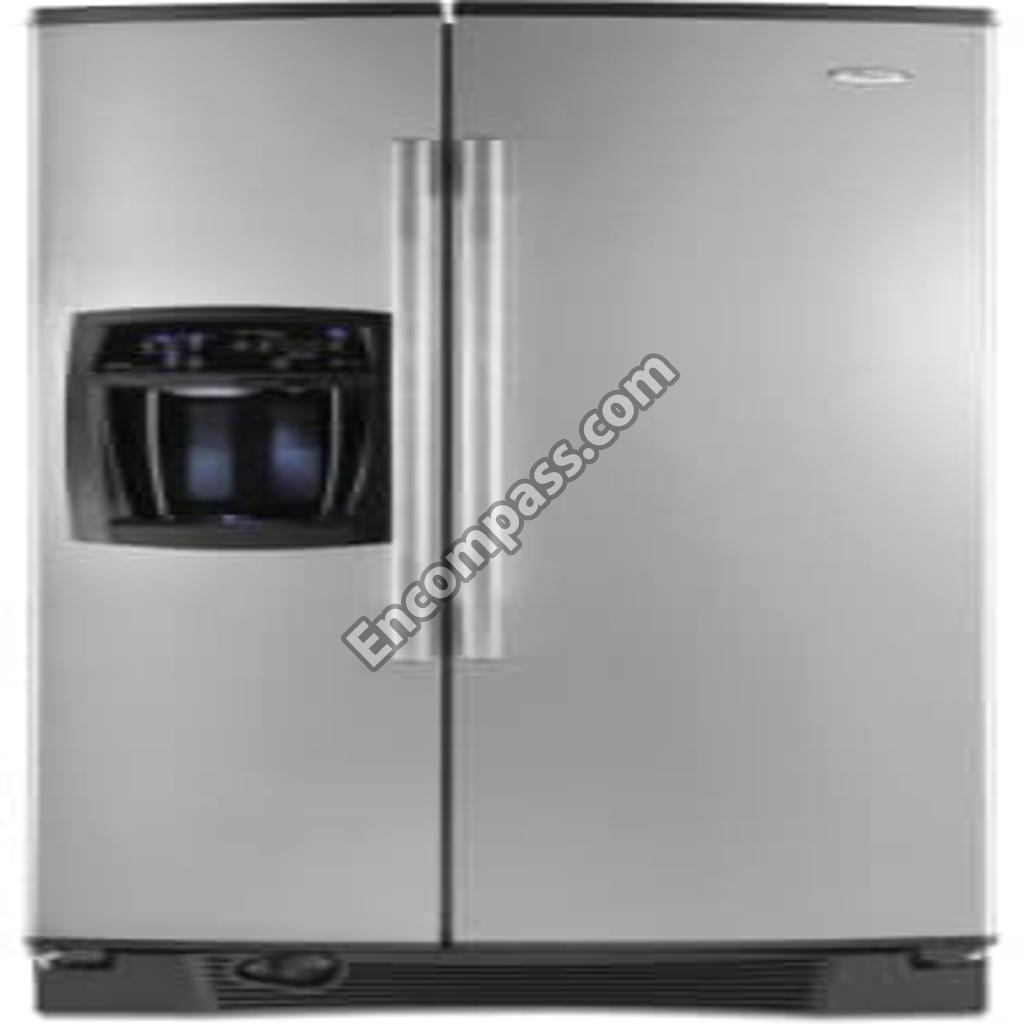

Model Image
Manufacturer

Whirlpool

Model Number

GS6NVEXVL01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2217192 2217192 ACCESSORIES (CLEANER, STAINLESS STEEL)
4210463RW 4210463RW ACCESSORY PARTS, MAINTENANCE BRUSH FOR DRYERS AND REFRIGERATORS
2261265 2261265 AIR SEAL, THERMISTOR
WP627843 WP627843 ARM-EJECTR
W10297244 W10297244 ARM-STRIPR
W10852517 W10852517 AUGER-ICE
W10896764 W10896764 BAFFLE, AIR
2223314 2223314 BALE STRAP
2301191 2301191 BASKET, SLOPED
WP2301190 WP2301190 BASKET, SQUARE
WP2304309 WP2304309 BASKET, TILT OUT
2255413 2255413 BEARING BODY
WP627985 WP627985 BIMETL-DEF
WPW10225581 WPW10225581 BIMETL-DEF
WPW10158506 WPW10158506 BIN CONTROL LEVER
W10188746 W10188746 BIN-CRUSH
W10138753 W10138753 BINCRUSH
2257020 2257020 BLADE, FIXED
W10278731 W10278731 BLADE, ROTARY A
W10278732 W10278732 BLADE, ROTARY B
W10278733 W10278733 BLADE, ROTARY C
W11458267 W11458267 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
2317239 2317239 BLOCK, BLADE
2260519 2260519 BLOCK, HOUSING SUPPORT
489340 489340 BOLT
2255623 2255623 BOX, CONTROL
WP2303583 WP2303583 BRACKET
WP2181929 WP2181929 BRACKET
WP2305202 WP2305202 BRACKET
WP2198641 WP2198641 BRACKET
2303113B 2303113B BRACKET, DOOR STOP (BLACK)
2200082B 2200082B BRACKET, DOOR STOP (BLACK)
2303113 2303113 BRACKET, DOOR STOP (ZINC)
WP2200082 WP2200082 BRACKET, DOOR STOP (ZINC)
2256035 2256035 BRACKET, DUAL CRISPER LIGHTS
2305208 2305208 BRACKET, MOTOR
WP2260503B WP2260503B BUTTON
2260503W 2260503W BUTTON, WATER FILTER (WHITE)
940014 940014 BUTTON-PLG
N_P N_P CABINET (NOT A SERVICABLE PART)
2255226 2255226 CAM ASSEMBLY
WP2223752 WP2223752 CAM-DOOR
WP2182179 WP2182179 CAM-DOOR
WP2223751 WP2223751 CAM-DOOR
WPW10329686 WPW10329686 CAM-DOOR
WP2198643 WP2198643 CAMERA LENS
2255225 2255225 CAMERA LENS, LIGHT
W11298978 W11298978 CAMERA LENS-LIGHT
WP2317782 WP2317782 CAMERA LENS-LIGHT
WP2260518B WP2260518B CAP-FILTER
WP2260518W WP2260518W CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP488366 WP488366 CLAMP
2185960 2185960 CLAMP, POWER CORD
549193 549193 CLAMP, POWER CORD
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
W11623163 W11623163 CLIP
WP2161324 WP2161324 CLIP
489396 489396 CLIP
WP1115374 WP1115374 CLIP
W10683556 W10683556 CLIP
WP2255411 WP2255411 CLIP
WP2155013 WP2155013 CLIP
W10169512 W10169512 CLIP
2155547 2155547 CLIP, HEAT SHIELD
2305447 2305447 CLIP, WIRING
2215823 2215823 CLIP-AIR, DUCT
2198597 2198597 COMPLETE ICEMAKER ASSEMBLY
W10139460 W10139460 COMPRESSOR (INCLUDES ITEMS 10, 11, 19) (ALSO ORDER 876765 TUBE KIT)
2324712 2324712 CONDENSER ASSEMBLY
2255228 2255228 CONNECTING ROD
WPW10271543 WPW10271543 CONNECTOR
WP2305242 WP2305242 CONNECTOR
WP2303843 WP2303843 CONTROL BOARD
W11629974 W11629974 CONTROL BOARD
2255222 2255222 CONTROL BOX
2187965 2187965 CONTROL BOX HARNESS
WPW10135091 WPW10135091 CONTROL, ELECTRONIC
WP2304103 WP2304103 CONTROL, USER-INTERFACE
WP2304170 WP2304170 CONTROL, USER-INTERFACE (INCLUDES ITEM 18)
WP2220458 WP2220458 COUPLING
WP2220457 WP2220457 COUPLING
WP2198587 WP2198587 COVER
WP2223242 WP2223242 COVER
WP2203408B WP2203408B COVER
WP2203408W WP2203408W COVER
WP2203407W WP2203407W COVER
WP2203407B WP2203407B COVER
W10173569 W10173569 COVER
W10139321 W10139321 COVER
2305219 2305219 COVER, CONTROL
WP2223307 WP2223307 COVER, CRISPER
2206314 2206314 COVER, EVAPORATOR
W10133000 W10133000 COVER-BOX
WP2188755 WP2188755 COVER-UNIT
WPW10233488 WPW10233488 CRISPER PAN
WPW10272168 WPW10272168 CUP-FILL
2179350 2179350 DEFLECTOR, AIR
WPW10151374 WPW10151374 DIFFUSER
2317250 2317250 DIVIDER-CHAMBER
LW10149863 LW10149863 DOOR ASSEMBLY BL
LW10169205 LW10169205 DOOR ASSEMBLY BL
LW10149864 LW10149864 DOOR ASSEMBLY SS
LW10169207 LW10169207 DOOR ASSEMBLY SS
LW10149865 LW10149865 DOOR ASSEMBLY ST
LW10169209 LW10169209 DOOR ASSEMBLY ST
LW10149862 LW10149862 DOOR ASSEMBLY WH
LW10169204 LW10169204 DOOR ASSEMBLY WH
2159082 2159082 DOOR GASKET, MAGNETIC (SERVICE) (BLACK)
2159083 2159083 DOOR GASKET, MAGNETIC (SERVICE) (BLACK)
2159074 2159074 DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
2159075 2159075 DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
WP2203770 WP2203770 DOOR HINGE
WP2203771 WP2203771 DOOR HINGE
WP2223334 WP2223334 DOOR TRIM
WP2171157 WP2171157 DOOR TRIM
WP2156022 WP2156022 DOOR TRIM
WP2305258 WP2305258 DOOR-CHUTE
WP2256101 WP2256101 DOOR-COMP
WP2255720 WP2255720 DOOR-ICE
WPW10143759 WPW10143759 DRIER-UV
2198580 2198580 DUCT, AIR
2313359 2313359 DUCT, UPPER
W10127813 W10127813 ENDCAP-HDL
W10127814 W10127814 ENDCAP-HDL
W10127816 W10127816 ENDCAP-HDL
W10194141 W10194141 ENERGY GUIDE
W10175967 W10175967 ESCUTCHEON
WP2188823 WP2188823 EVAPORATOR
WP2315549 WP2315549 EVAPORATOR MOTOR
WP2182120 WP2182120 FAN-SCROLL
489285 489285 FASTENER, PUSH-ON
2308165 2308165 FERRITE BEAD
2304848 2304848 FILLER, WRAPPER (BLACK)
2304846 2304846 FILLER, WRAPPER (WHITE)
EDR3RXD1 EDR3RXD1 FILTER
WP2256096 WP2256096 FITTING
W11566763 W11566763 FITTING
WP2198633 WP2198633 FLIPPER
2304904 2304904 FRAME, UNIT MOUNTING
WP2223517 WP2223517 FRAME-SHLF
WPW10289690 WPW10289690 FRONT COVER
WPW10167169 WPW10167169 FRONT COVER ASSEMBLY (BLACK)
4386774 4386774 FRONT ROLLER (2)
4388500 4388500 GASKET
WP2155789 WP2155789 GASKET
WP2304241 WP2304241 GASKET
WPW10136734 WPW10136734 GASKET ASSEMBLY
WP2223714 WP2223714 GLASS, MEAT COVER
WP542638 WP542638 GREASE
2303494B 2303494B GRILLE (BLACK)
W10188054 W10188054 GRILLE (WHITE)
2322626B 2322626B GRILLE, SLIDE (BLACK)
2322626W 2322626W GRILLE, SLIDE (WHITE)
WP4387558 WP4387558 GROMMET
WP2176759 WP2176759 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
2260517 2260517 GUARD, FAN
W10273556 W10273556 HANDLE
W10210942A W10210942A HANDLE
W10210943A W10210943A HANDLE
2187817 2187817 HARNESS, UNIT
W11225843 W11225843 HARNS-WIRE
WP2323198 WP2323198 HEATER
2303141 2303141 HINGE, BOTTOM LEFT
W10138965 W10138965 HINGE-DOOR
WP2212369 WP2212369 HOLDER
WPW10121138 WPW10121138 HOUSING
WP2195914 WP2195914 HOUSING-IM
W10140651 W10140651 ICECONTNR
WPW10159839 WPW10159839 INLET VALVE
2308394 2308394 INSTRUCTION SHEET, DOOR REMOVAL
W11553819 W11553819 INSULATION
2255992 2255992 KNOB, FREEZER COMPARTMENT
2223309 2223309 KNOB, HUMIDITY CONTROL
2255232 2255232 KNOB, REFRIGERATOR COMPARTMENT
WP2319866 WP2319866 LADDER
2198609 2198609 LADDER (LEFT HAND)
2198610 2198610 LADDER (RIGHT HAND)
W10140685 W10140685 LATCH-BIN
W10238081 W10238081 LED ASSEMBLY
W11679940 W11679940 LIGHT BULB
8201651 8201651 LOUVER-CAB
WP2223464KA WP2223464KA MAT, BIN
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.)
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
2220407 2220407 MODULAR ICEMAKER SERVICE SHEET
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD-ICE
WPW10184813 WPW10184813 MOTOR
WP2252130 WP2252130 MOTOR
WP2188874 WP2188874 MOTOR-COND
WP2220214 WP2220214 NAMEPLATE
3400971 3400971 NUT, HEX
2255611 2255611 OVERLAY, SIDE CONTROL
2318587 2318587 OWNER`S MANUAL
2305247GM 2305247GM PAD, ICE & WATER (BLACK)
2305247CG 2305247CG PAD, ICE & WATER (WHITE)
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
8171358 8171358 PAINT, BULK (1 QT.) (GRAPHITE`)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ.BRUSH TOUCH-UP KIT GRAPHITE)
WPW10233491 WPW10233491 PAN, MEAT
WPW10233485 WPW10233485 PAN, SNACK
W10162865 W10162865 PANLCNTRL
WP2198634 WP2198634 PIN-DOOR
2255227 2255227 PIVOT ARM
2305374 2305374 RAIL, UNIT
WPW10276792 WPW10276792 RESERVOIR
WP2155590 WP2155590 RETAINER
489229 489229 ROLL PIN
WPW10250570 WPW10250570 ROLLER-CAB
489136 489136 SCREW
WPW10141625 WPW10141625 SCREW
WP8533993 WP8533993 SCREW
627068 627068 SCREW
WP3196557 WP3196557 SCREW
WP4449745 WP4449745 SCREW
WPW10288153 WPW10288153 SCREW
WP8533988 WP8533988 SCREW
WP3400012 WP3400012 SCREW
WP8281163 WP8281163 SCREW
WP3400065 WP3400065 SCREW
WP8281164 WP8281164 SCREW
W10759522 W10759522 SCREW
WP3400806 WP3400806 SCREW
WP3-24004-109 WP3-24004-109 SCREW
798639 798639 SCREW
WP489500 WP489500 SCREW
WP489483 WP489483 SCREW
WPW10141645 WPW10141645 SCREW
WP489464 WP489464 SCREW
WP489497 WP489497 SCREW
WP8281227 WP8281227 SCREW
WP489478 WP489478 SCREW
WP489427 WP489427 SCREW
WP681249 WP681249 SCREW
WPW10142283 WPW10142283 SCREW
W11544659 W11544659 SCREW
8533917 8533917 SCREW
W10142289 W10142289 SCREW 8-18 X 5/8
4389654 4389654 SCREW NO.8 X 3/8 HEX
2006254 2006254 SCREW, 6-19 X .250
WP2198628 WP2198628 SEAL
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
2305458B 2305458B SEPARATOR ASSEMBLY (BLACK)
2305458W 2305458W SEPARATOR ASSEMBLY (WHITE)
WP2305243 WP2305243 SHAFT
2255160 2255160 SHELF
2301290 2301290 SHELF TRACK (LEFT HAND)
2301289 2301289 SHELF TRACK (RIGHT HAND)
2301294 2301294 SHELF TRACK, DUAL (LEFT HAND)
2301293 2301293 SHELF TRACK, DUAL (RIGHT HAND)
WP2205837K WP2205837K SHELF, LOWER CANTILEVER
2211746K 2211746K SHELF, UPPER SLIDE OUT
WP2223288 WP2223288 SHELF-CANT
2261773 2261773 SHIELD, ELECTRICAL
2305538 2305538 SHIELD, ELECTRICAL (INTERNAL)
2188928 2188928 SHIELD, FOAM
2304289 2304289 SHIELD, HEAT
2255666 2255666 SHIELD, HEAT
WP2302848 WP2302848 SHIELD, LIGHT
2303234 2303234 SHIELD, WIRING
WP2181911 WP2181911 SHIM
W11661094 W11661094 SLEEVE
WP2212365 WP2212365 SLEEVE
2223308 2223308 SLIDE, HUMIDITY CONTROL
2315398 2315398 SLIDE, ICE MAKER SHUT OFF
2212321 2212321 SLIDE, ICEMAKER MOUNTING (RIGHT HAND)
2182757 2182757 SLIDE-CONTROL, MEAT PAN
W11606038 W11606038 SOCKET
WP1119005 WP1119005 SPACER
WP1119007 WP1119007 SPACER
W10187441 W10187441 SPIGOT
8171357 8171357 SPRAY
W10852956 W10852956 SPRING
WP2198608 WP2198608 SPRING
WP2198635 WP2198635 SPRING
WP2304885 WP2304885 START-DEV
WP2196483 WP2196483 STUD-SHELF
W11223328 W11223328 STUD-SHELF
WP2305204 WP2305204 SUPPORT
4388358 4388358 SUPPORT KIT (CONTAINS RIGHT AND LEFT)
W11457217 W11457217 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
WP2188819 WP2188819 THERMISTOR
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH TORX KEY
WP2223320 WP2223320 TRACK
2305253B 2305253B TRAY, HOUSING (BLACK)
2305253W 2305253W TRAY, HOUSING (WHITE)
WPW10614158 WPW10614158 TRAY-EVAP
WP2195905 WP2195905 TRIM-BASKT
W11512417 W11512417 TRIVET
WP2205765 WP2205765 TUBE
WP2317708 WP2317708 TUBE, DOOR
8201597 8201597 TUBE, FILTER INLET
W10466698 W10466698 UNIT COVER, BOTTOM
WP978025 WP978025 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS
3400972 3400972 WASHER
WP2212370 WP2212370 WASHER
WP2305382 WP2305382 WASHER
WP2198661 WP2198661 WASHER
WP489235 WP489235 WASHER
W10856867 W10856867 WASHER
489203 489203 WASHER, SPRING
WPW10350006 WPW10350006 WATER TUBE
2317243 2317243 WIPER
2311637 2311637 WIRE ASSEMBLY, CRISPER LIGHT
2310084 2310084 WIRE ASSEMBLY, FREEZER DOOR
WP2187467 WP2187467 WIRE HARNESS
2187813 2187813 WIRE HARNESS, IDI MOTOR
W10178851 W10178851 WIRE-JUMPR
W10152828 W10152828 WIRING SHEET
Main Menu x
