Model Image
Manufacturer

Whirlpool

Model Number

GS773LXSS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11447673 W11447673 ANCHOR-TIP
9757143 9757143 ANTI-TIP TEMPLATE (ENGLISH/FRENCH)
8274152 8274152 BAFFLE-HT
8053967 8053967 BAFFLE-HT
3400228 3400228 BOLT
WP3195097 WP3195097 BOTTM-OVEN
W11379351 W11379351 BOX-BURNER, GAS SEALED
8053971 8053971 BRACE
WP3196794 WP3196794 BRKT-GLASS
9762253 9762253 BRKT-MNTG
8523412 8523412 BRKT-MNTG
W10525122 W10525122 BRKT-MNTG
W10010830 W10010830 BRKT-MNTG
8523249 8523249 BRKT-SUPRT
WP8273701 WP8273701 BURNER BASE (SMALL (1))
WP8273700 WP8273700 BURNR-BASE
WP8054078 WP8054078 BURNR-BRLR
WP4455981 WP4455981 BURNR-HEAD
WP4455979 WP4455979 BURNR-HEAD
WP4455980 WP4455980 BURNR-HEAD
WP9758078 WP9758078 BURNR-OVEN
WP3196068 WP3196068 CAMERA LENS-LIGHT
WP9763243 WP9763243 CAP, BURNER (LF, RF) (WHITE)
WP9763242 WP9763242 CAP, BURNER (RR) (WHITE)
3192487 3192487 CAP, BURNER LR (BLACK)
WP3192486 WP3192486 CAP-BURNER
WP3192488 WP3192488 CAP-BURNER
9763244 9763244 CAP-BURNER
3196896 3196896 CLAMP, CABLE
3196696 3196696 CLAMP, CABLE
WP9781235 WP9781235 CLIP
9761512 9761512 CLIP
9761517 9761517 CLIP
3196025 3196025 CLIP, GLASS (6)
16515 16515 CLIP, HARNESS
3196576 3196576 CLIP, PANEL (6)

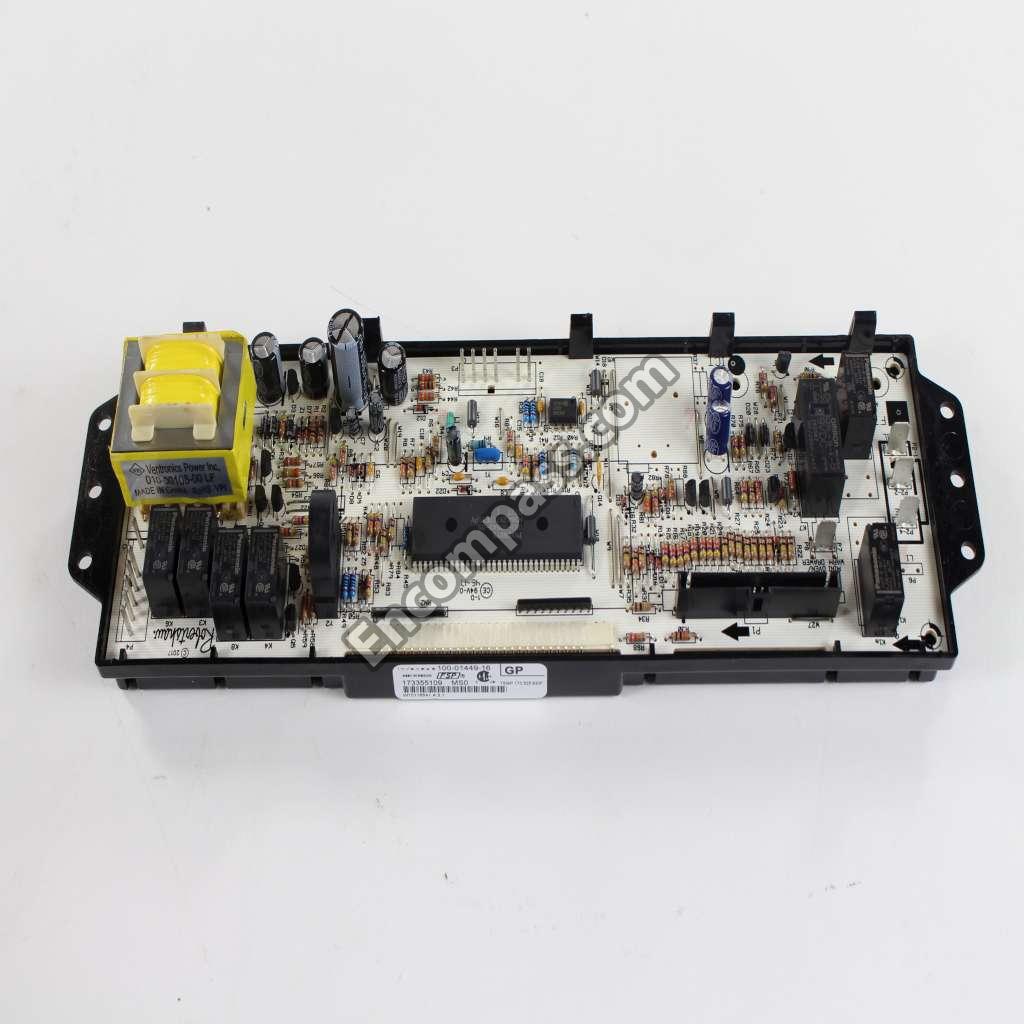

WPW10116541 WPW10116541 CONTROL BOARD
W11213958 W11213958 COOKTOP
W11213959 W11213959 COOKTOP
W10036170 W10036170 COVER, UPPER
8054062 8054062 COVER-PLT
W10222733 W10222733 COVER-REAR
9760190 9760190 COVERREAR
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
W10347464 W10347464 DOOR HINGE
WP8523177 WP8523177 DOOR TRIM
WP8523175 WP8523175 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
W10761018 W10761018 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
8184858 8184858 DOOR TRIM
W10761014 W10761014 DOOR TRIM
WP9762391 WP9762391 DOOR TRIM
8272610 8272610 DRAWR-WARM
W10207401 W10207401 ELMNT-WARM
W11219370 W11219370 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
3186489 3186489 FITTING, BROILER
W11457094 W11457094 FLUE-OVEN
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
100000 100000 FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WPW10293048 WPW10293048 GAS VALVE
W11542153 W11542153 GASKT-DOOR
WPW10118455 WPW10118455 GLASS DOOR
WPW10118454 WPW10118454 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
WPW10330077 WPW10330077 GLASS-DOOR
WP9763264 WP9763264 GLSS SWTCH MEMBRN (BLACK)
WP9763257 WP9763257 GLSS SWTCH MEMBRN (WHITE)
9762228 9762228 GRATE, BURNER (2) (GRAY)
9763283 9763283 GRATE-BRNR
261582 261582 GREASE
WP3195996 WP3195996 GRID-PAN
9761981 9761981 HANDLE (STAINLESS STEEL)
WP8524207 WP8524207 HARNESS, BAKE/BROIL
WPW10155287 WPW10155287 HARNS-WIRE
8523599 8523599 HARNS-WIRE
9758531 9758531 HARNS-WIRE
W10095220 W10095220 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
9761978 9761978 HNDLE-DOOR
9761979 9761979 HNDLE-DOOR
WP9758079 WP9758079 IGNTR-OVEN
WP8054129 WP8054129 IGNTR-OVEN
WP8523793 WP8523793 IGNTR-SURF
W10106820 W10106820 INSERT-CKTP LCKOUT
9762998 9762998 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
WPW10278991 WPW10278991 INSULATION
W11688737 W11688737 INSULATION
8524233 8524233 INSULATION
W11684915 W11684915 INSULATION
9761490 9761490 INSULATION
8053915 8053915 INSULATION, VENT
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP8273279 WP8273279 KNOB
W11242931 W11242931 KNOB
8522625 8522625 KNOB
9762581 9762581 KNOB
9762583 9762583 KNOB
8009 8009 LIGHT BULB
WP8523265 WP8523265 LIGHT-IND
WP9761344 WP9761344 LINER-DOOR
9757613 9757613 NAMEPLATE
WP8273060 WP8273060 NUT
WP8273065 WP8273065 ORIFICE
WP8273067 WP8273067 ORIFICE
8273063 8273063 ORIFICE
9763003 9763003 OWNERS MANUAL
799344 799344 PAINT
786032 786032 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
786020 786020 PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP3196076 WP3196076 PAN-BROILR
9762586 9762586 PANEL, CONTROL (BLACK)
9762588 9762588 PANEL, CONTROL (STAINLESS STEEL)
8053832 8053832 PANEL, SIDE (2) (BLACK-TEXTURED)
8272608 8272608 PANEL-DRWR
W10010860 W10010860 PANEL-DRWR
W10010920 W10010920 PANEL-DRWR
W10010900 W10010900 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
9762585 9762585 PANL-CNTRL
WP8523854 WP8523854 PANL-MNFLD
8523855 8523855 PANL-MNFLD
9762230 9762230 PIPE, MANIFOLD
8272403 8272403 PLATE-COVR
WP9757891 WP9757891 POWER CORD
WP8274022 WP8274022 RACK-OVEN
WP8274021 WP8274021 RACK-OVEN
WPW10256908 WPW10256908 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
WPW10331686 WPW10331686 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
9762589 9762589 REFLECTOR
W11539580 W11539580 RETAINER
9761448 9761448 RETAINER
9761449 9761449 RETAINER
WP3196813 WP3196813 RIVET
WP3196814 WP3196814 RIVET
W10078370 W10078370 ROD, PUSH (DOOR LATCH)
9757239 9757239 ROD-DOOR
9762761 9762761 SAFER COOKING TIPS
W11244557 W11244557 SCREW
WP3196175 WP3196175 SCREW
WP179051 WP179051 SCREW
WP3196164 WP3196164 SCREW
WP3400882 WP3400882 SCREW
3196166 3196166 SCREW
W10491985 W10491985 SCREW
WP7101P246-60 WP7101P246-60 SCREW
WP98008545 WP98008545 SCREW
WP3196152 WP3196152 SCREW
W10777162 W10777162 SCREW
WP4449743 WP4449743 SCREW
W11169708 W11169708 SCREW
WP3400016 WP3400016 SCREW
W11684507 W11684507 SCREW
3196265 3196265 SCREW
WP8273062 WP8273062 SCREW
WP8273096 WP8273096 SCREW
WPW10031790 WPW10031790 SCREW
WP3196174 WP3196174 SCREW
WP3196170 WP3196170 SCREW
W11233072 W11233072 SCREW
WP3400832 WP3400832 SCREW
WPY706189 WPY706189 SCREW
WP3196557 WP3196557 SCREW
WP8272893 WP8272893 SCREW
W10033260 W10033260 SCREW
3400964 3400964 SCREW, GROUND
WP3368921 WP3368921 SCREW-TORX
W10008830 W10008830 SEAL-OVEN
WPW10181986 WPW10181986 SENSOR
WPW10131827 WPW10131827 SENSOR
9757482 9757482 SHIELD
8053505 8053505 SHIELD
WP8273414 WP8273414 SHIELD, DRAWER
WP8053910 WP8053910 SHIELD, HEAT
WP8272747 WP8272747 SHIELD-HT
WP9761930 WP9761930 SLIDE-DRWR
9761929 9761929 SLIDE-DRWR
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
W10137062 W10137062 SPREADER, FLAME (BROILER)
WP8053970 WP8053970 SPREADER, FLAME (OVEN)
W10854965 W10854965 SPUD-ORFCE
9757490 9757490 SUPPORT
9756911 9756911 SUPPRESSOR
WP9757262 WP9757262 SWTCH-LITE
9762221 9762221 SWTCH-OVEN
9762984 9762984 TECH SHEET
9757142 9757142 TEMPLATE-ANTI TIP
3195927 3195927 TIE,WIRE
W10022210 W10022210 TRIM - BOTTOM DRWR
9761975 9761975 TRIM-DOOR
9761977 9761977 TRIM-DOOR
WP8272222 WP8272222 TUBING (BROILER FITTING TO VALVE)
WP8273697 WP8273697 TUBING, BURNER W/ORIFICE (RIGHT REAR)
WP8273694 WP8273694 TUBING-GAS
WP8273692 WP8273692 TUBING-GAS
8272470 8272470 TUBING-GAS
8523433 8523433 TUBING-GAS
9760178 9760178 TUBING-GAS
WP8273004 WP8273004 VALVE (RIGHT REAR)
WP9757218 WP9757218 VALVE-BRNR
W11035583 W11035583 VALVE-SOLN
W10078470 W10078470 WASHER
242828 242828 WIRE (12 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
WPW10295998 WPW10295998 WIRE HARNESS
W10045060 W10045060 WIRE-GROND
8274150 8274150 WRAPPER
