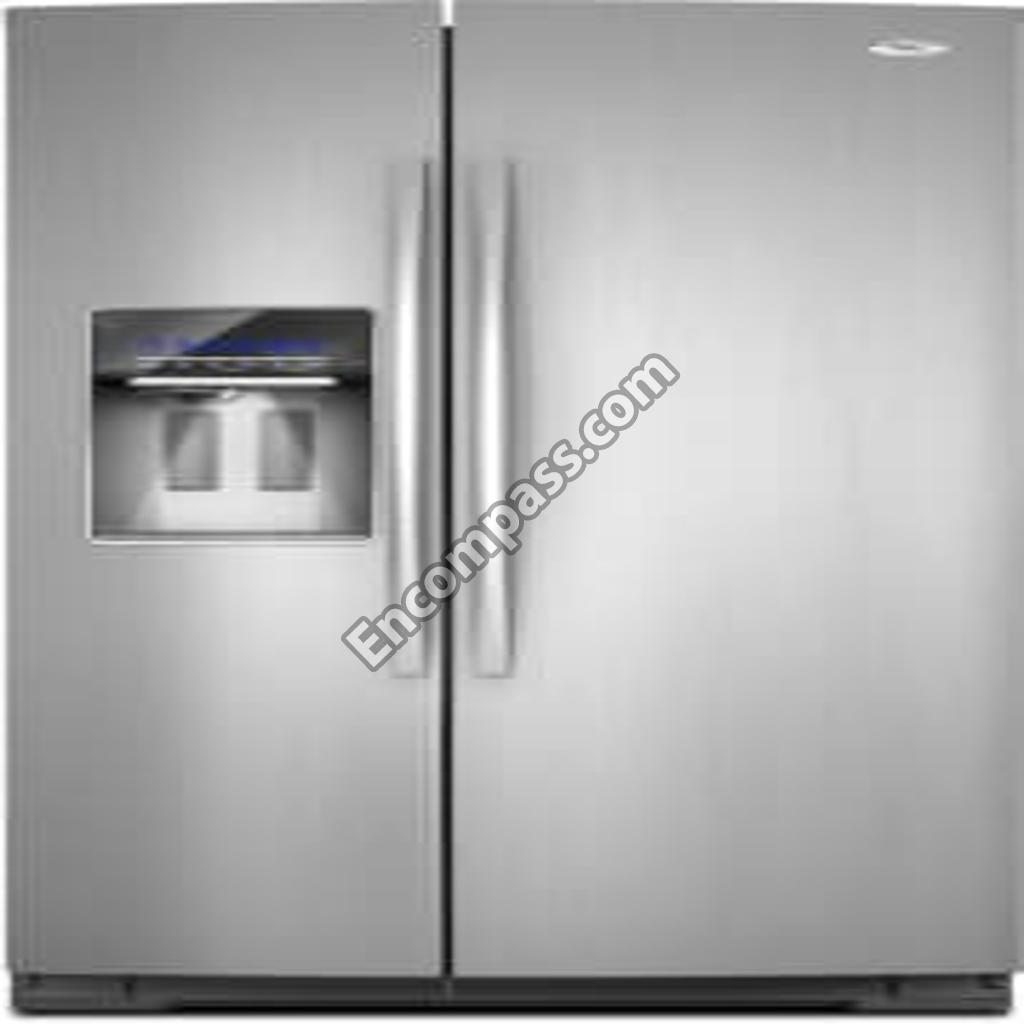

Model Image
Manufacturer

Whirlpool

Model Number

GSS26C4XXA00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10311524 W10311524 ANTIBACTERIAL FILTER
W10318644 W10318644 ARM-EJECTR
W10521477 W10521477 AUGER, CRUSHER
WPW10257246 WPW10257246 AXLE
67006434 67006434 AXLE, ROLLER (2)
WPW10251467 WPW10251467 BAFFLE-AIR
WP2321258 WP2321258 BIMETL-DEF
WPW10225581 WPW10225581 BIMETL-DEF
WPW10335220 WPW10335220 BIN CONTROL LEVER
WPW10335222 WPW10335222 BIN CONTROL LEVER
WPW10324760 WPW10324760 BIN CONTROL LEVER
WPW10335218 WPW10335218 BIN-CNTLVR
WPW10256827 WPW10256827 BIN-FREEZR
W10846447 W10846447 BIN-FREEZR
W10360071 W10360071 BIN-ICE
W10278732 W10278732 BLADE
W10278733 W10278733 BLADE
W10278731 W10278731 BLADE
W10156818 W10156818 BLADE, FAN
2257020 2257020 BLADE, FIXED
W10341942 W10341942 BLADE, ROTARY A
W10341943 W10341943 BLADE, ROTARY B
W10341944 W10341944 BLADE, ROTARY C
WP2169142 WP2169142 BLADE-FAN
W10178238 W10178238 BLOCK-BLAD
W10847867 W10847867 BRACKET
W11293380 W11293380 BRACKET
W11037957 W11037957 BRACKET
W11266052 W11266052 BRACKET
W10251080 W10251080 BRACKET
W11678273 W11678273 BRACKET
W10747726 W10747726 BRACKET, MOUNTING
N_P N_P CABINET (NOT A SERVICEABLE PART)
WPW10257206 WPW10257206 CAM-DOOR
W11607100 W11607100 CAM-DOOR
WPW10248015 WPW10248015 CAM-DOOR
WPW10257203 WPW10257203 CAM-DOOR
WPW10257201 WPW10257201 CAM-DOOR
WPW10248011 WPW10248011 CAM-DOOR
W10876191 W10876191 CAM-DOOR
W10876198 W10876198 CAM-DOOR
W11311687 W11311687 CAM-DOOR
W11311686 W11311686 CAM-DOOR
W11311685 W11311685 CAM-DOOR
WPW10350564 WPW10350564 CAPACITOR
W11573761 W11573761 CHUTE
549193 549193 CLAMP, POWER CORD
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
W11623163 W11623163 CLIP
WP2161324 WP2161324 CLIP
W10683556 W10683556 CLIP
W11232019 W11232019 CLIP
W11545866 W11545866 CLIP
W10296661 W10296661 CLIP
W10331728 W10331728 CLIP, AIR DUCT
2155547 2155547 CLIP, HEAT SHIELD
W10770895 W10770895 CLOSER, DOOR (FREEZER) (BLACK)
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
W11673437 W11673437 CONDENSER
WPW10271543 WPW10271543 CONNECTOR
WPW10372210 WPW10372210 CONTROL BOARD
W10898445 W10898445 CONTROL BOARD
W10870822 W10870822 CONTROL BOARD
WPW10235488 WPW10235488 CONTROL BOARD
WPW10356039 WPW10356039 CONTROL BOARD
WP2220458 WP2220458 COUPLING
WP2220457 WP2220457 COUPLING
WPW10269181 WPW10269181 COVER
WPW10282541 WPW10282541 COVER
WPW10290493 WPW10290493 COVER
WPW10425252 WPW10425252 COVER
WPW10260409 WPW10260409 COVER
W11226688 W11226688 COVER
W10260407 W10260407 COVER
W10258510 W10258510 COVER
W10258502 W10258502 COVER
W10178232 W10178232 COVER
W10260413 W10260413 COVER
W10340015 W10340015 COVER, AIR FILTER
67003485 67003485 COVER, CORNER (BLK)
W10632060 W10632060 COVER, DOOR STOP (BLACK)
W10632059 W10632059 COVER, DOOR STOP (WHITE)
WPW10254266 WPW10254266 COVER, FRONT (SILVER)
WPW10388268 WPW10388268 COVER-EVAP
W10239739 W10239739 COVER-EVAP
WPW10260405 WPW10260405 COVER-FILT
W10861728 W10861728 COVER-FRNT
WPW10333887 WPW10333887 COVER-UNIT
W10278140 W10278140 COVER-UNIT
WPW10632062 WPW10632062 COVER-WIRE
W11661847 W11661847 COVER-WIRE
W10257216 W10257216 COVER-WIRE
W10789144 W10789144 COVER-WIRE
WPW10256801 WPW10256801 CRISPER PAN
W11177624 W11177624 DIFFUSER
LW10168070 LW10168070 DOOR ASSEMBLY BL
LW10334483 LW10334483 DOOR ASSEMBLY BL
LW10410899 LW10410899 DOOR ASSEMBLY MS
LW10287399 LW10287399 DOOR ASSEMBLY MS
LW10281912 LW10281912 DOOR ASSEMBLY ST
LW10281909 LW10281909 DOOR ASSEMBLY ST
LW10261120 LW10261120 DOOR ASSEMBLY WH
LW10261114 LW10261114 DOOR ASSEMBLY WH
W11292872 W11292872 DOOR HINGE
W11311416 W11311416 DOOR HINGE
W11320488 W11320488 DOOR HINGE
W11293374 W11293374 DOOR HINGE
W11293373 W11293373 DOOR HINGE
W11409290 W11409290 DOOR HINGE
W11573587 W11573587 DOOR HINGE
W11590581 W11590581 DOOR HINGE
W11652042 W11652042 DOOR LATCH-BIN
WPW10256784 WPW10256784 DOOR, COMPARTMENT
W10838126 W10838126 DOOR-ICE
WPW10143759 WPW10143759 DRIER-UV
W10260378 W10260378 DUCT-AIR
W10515038 W10515038 DUCT-AIR
W10542828 W10542828 ENERGY GUIDE
W10276231 W10276231 ESCUTCHEON
W10260988 W10260988 ESCUTCHEON
WP2188822 WP2188822 EVAPORATOR
WP2315549 WP2315549 EVAPORATOR MOTOR
W10251462 W10251462 FAN-SCROLL
WP12587703AP WP12587703AP FILLER
12587703W 12587703W FILLER, WRAPPER (WHITE)
WPW10347034 WPW10347034 FITTING
WPW10277958 WPW10277958 FITTING
WP2300868 WP2300868 FITTING
W10247979 W10247979 FITTING
W10370680 W10370680 FITTING, DRAIN
WPW10258520 WPW10258520 FLIPPER
WPW10287594 WPW10287594 FRONT COVER
W10240370 W10240370 GASKET
W10166854 W10166854 GASKET
WPW10355585 WPW10355585 GASKET ASSEMBLY
WPW10249913 WPW10249913 GASKET ASSEMBLY
WPW10247885 WPW10247885 GASKET ASSEMBLY
W10355582 W10355582 GASKET ASSEMBLY
WPW10249912 WPW10249912 GASKET ASSEMBLY
WPW10247884 WPW10247884 GASKET ASSEMBLY
W11094295 W11094295 GLASS SHELF
WPW10269184 WPW10269184 GLASS SHELF
WPW10508807 WPW10508807 GLASS SHELF
WP542638 WP542638 GREASE
WPW10276209 WPW10276209 GRILLE
WPW10713153 WPW10713153 GRILLE
WPW10713158 WPW10713158 GRILLE
WPW10713160 WPW10713160 GRILLE
WPW10169124 WPW10169124 GROMMET
WP2176759 WP2176759 GROMMET
WPW10435760 WPW10435760 GUIDE-ICE
WPW10670421 WPW10670421 HANDLE
WPW10268057 WPW10268057 HANDLE
WPW10268056 WPW10268056 HANDLE
W10411699 W10411699 HARNESS, EMITTER AND RECEIVER
W10242384 W10242384 HARNESS, WIRING
W10242369 W10242369 HARNS-WIRE
WPW10495967 WPW10495967 HEATER
W11568758 W11568758 HINGE-DOOR
W10901052 W10901052 HINGE-DOOR
W10249941 W10249941 HINGE-DOOR
W10901051 W10901051 HINGE-DOOR
WPW10238123 WPW10238123 HOUSING
W10342986 W10342986 HOUSING, AIR FILTER
WP2195914 WP2195914 HOUSING-IM
W11347840 W11347840 ICE-CONTNR
WPW10251076 WPW10251076 ICEMAKER
WPW10341320 WPW10341320 INLET VALVE
WPW10238100 WPW10238100 INLET VALVE
876370 876370 INSULATION
876029 876029 INSULATION
W11038857 W11038857 INVRTR-BOX
WPW10141622 WPW10141622 LEVELER
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11683241 W11683241 MODULE
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
W10251081 W10251081 MOLD-ICE
W11202789 W11202789 MOTOR
WP2188874 WP2188874 MOTOR-COND
WPW10511972 WPW10511972 NAMEPLATE
WPW10511975 WPW10511975 NAMEPLATE
WPW10370594 WPW10370594 PAD
WPW10370592 WPW10370592 PAD
WPW10370593 WPW10370593 PAD
799344 799344 PAINT
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10531079 WPW10531079 PAN-MEAT
WPW10497908 WPW10497908 PAN-SNACK
WP2198634 WP2198634 PIN-DOOR
W10166878 W10166878 PIN-ROLL
WPW10242407 WPW10242407 POWER CORD
W11613294 W11613294 RESERVOIR
W10204187 W10204187 RETAINER
W11671527 W11671527 RETAINER
W11208384 W11208384 RIVET
W11164152 W11164152 ROLLER
WP67005149 WP67005149 ROLLER
WPW10475495 WPW10475495 ROLLER-CAB
489136 489136 SCREW
W10001280 W10001280 SCREW
WPW10141625 WPW10141625 SCREW
W10001240 W10001240 SCREW
WPW10171469 WPW10171469 SCREW
W10142255 W10142255 SCREW
WP489478 WP489478 SCREW
WPW10010150 WPW10010150 SCREW
W11366418 W11366418 SCREW
WPW10296804 WPW10296804 SCREW
WPW10661886 WPW10661886 SCREW
WPW10296816 WPW10296816 SCREW
WP3400065 WP3400065 SCREW
WP8281164 WP8281164 SCREW
WP489464 WP489464 SCREW
WP489483 WP489483 SCREW
WPW10141645 WPW10141645 SCREW
WPW10308489 WPW10308489 SCREW
WPW10142283 WPW10142283 SCREW
WPW10308751 WPW10308751 SCREW
WPW10308750 WPW10308750 SCREW
WPW10297485 WPW10297485 SCREW
WP98008545 WP98008545 SCREW
WP693995 WP693995 SCREW
8533917 8533917 SCREW
WP681249 WP681249 SCREW
WPW10291905 WPW10291905 SEAL
WP2198628 WP2198628 SEAL
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
W10373994 W10373994 SERVICE & WIRING SHEET
WPW10258544 WPW10258544 SHAFT
W10274575 W10274575 SHIELD
W11661094 W11661094 SLEEVE
W10258540 W10258540 SLIDE
W10260989 W10260989 SLIDE
W11032812 W11032812 SPACER
W11032808 W11032808 SPACER
W10341946 W10341946 SPACER, FLAT
W10341948 W10341948 SPACER, STEP
WP2198635 WP2198635 SPRING
W10852956 W10852956 SPRING
WPW10197428 WPW10197428 START-DEV
W10747731 W10747731 STRIPPER, ICE
W10277704 W10277704 SUPPORT
W10251520 W10251520 SUPPORT
W11457217 W11457217 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
W11724692 W11724692 THERMISTOR
WP2182181 WP2182181 THIMBLE
WP2205813 WP2205813 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W10703218 W10703218 TRAY, EVAPORATOR
W10276225 W10276225 TRAY-DRIP
W10254259 W10254259 TRAY-DRIP
W10254258 W10254258 TRAY-DRIP
W10448931 W10448931 TRIM RING (CHROMIUM FROST)
W10276265 W10276265 TRIM-DISPR
W10858105 W10858105 TUBE
W11311688 W11311688 TUBE
W10379525 W10379525 TUBE, DRAIN
W10281961 W10281961 USE & CARE
W10632882 W10632882 USE AND CARE GUIDE
WP978025 WP978025 VALVE
978030 978030 VALVE
978029 978029 VALVE
978027 978027 VALVE
978026 978026 VALVE
876764 876764 VALVE
978028 978028 VALVE, ACCESS
WP2212370 WP2212370 WASHER
WP2198661 WP2198661 WASHER
WP489235 WP489235 WASHER
W10856867 W10856867 WASHER
EDR1RXD1 EDR1RXD1 WATER FILTER
WPW10238092 WPW10238092 WATER TUBE
WPW10279884 WPW10279884 WATER TUBE
WPW10279882 WPW10279882 WATER TUBE
W11676780 W11676780 WIRE HARNESS
W11566475 W11566475 WIRE HARNESS
