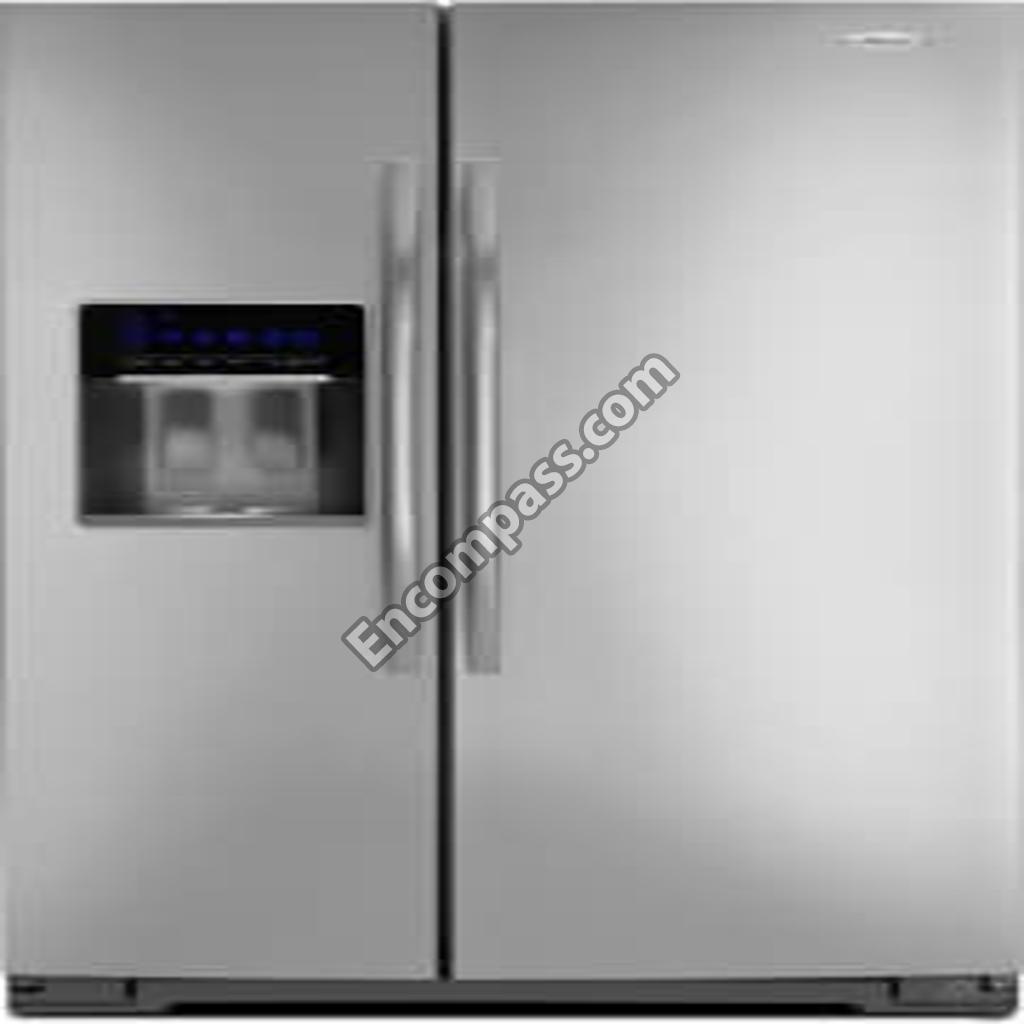

Model Image
Manufacturer

Whirlpool

Model Number

GSS30C6EYY01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10311524 W10311524 ANTIBACTERIAL FILTER
W10318644 W10318644 ARM-EJECTR
WPW10257246 WPW10257246 AXLE
67006434 67006434 AXLE, ROLLER (2)
WPW10251467 WPW10251467 BAFFLE-AIR
WPW10225581 WPW10225581 BIMETL-DEF
WP2321258 WP2321258 BIMETL-DEF
WPW10335220 WPW10335220 BIN CONTROL LEVER
WPW10336573 WPW10336573 BIN CONTROL LEVER
WPW10335218 WPW10335218 BIN-CNTLVR
WPW10322649 WPW10322649 BIN-FREEZR
WPW10322653 WPW10322653 BIN-FREEZR
W10360071 W10360071 BIN-ICE
W10156818 W10156818 BLADE, FAN
WP2169142 WP2169142 BLADE-FAN
W10257332 W10257332 BODY-CNTRL
W10847867 W10847867 BRACKET
W11293380 W11293380 BRACKET
W11037957 W11037957 BRACKET
W11266052 W11266052 BRACKET
W10251080 W10251080 BRACKET
W10174827 W10174827 BRACKET
W11678273 W11678273 BRACKET
N_P N_P CABINET (NOT A SERVICEABLE PART)
WPW10257206 WPW10257206 CAM-DOOR
WPW10257203 WPW10257203 CAM-DOOR
W10876191 W10876191 CAM-DOOR
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11573761 W11573761 CHUTE
549193 549193 CLAMP, SERVICE CORD
W11232019 W11232019 CLIP
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
WP2161324 WP2161324 CLIP
W10683556 W10683556 CLIP
W10331728 W10331728 CLIP
W10296661 W10296661 CLIP
W10139462 W10139462 COMPRESSOR (INCLUDES ITEMS 11, 12, 20, & 31)
W11673437 W11673437 CONDENSER
WPW10271543 WPW10271543 CONNECTOR
WPW10404394 WPW10404394 CONTROL BOARD
W10898445 W10898445 CONTROL BOARD
W10870822 W10870822 CONTROL BOARD
WPW10356039 WPW10356039 CONTROL BOARD
WPW10235414 WPW10235414 CONTROL BOARD
WP2220458 WP2220458 COUPLING
WPW10282541 WPW10282541 COVER
WPW10290493 WPW10290493 COVER
WPW10425252 WPW10425252 COVER
WPW10260409 WPW10260409 COVER
W11226688 W11226688 COVER
W10425253 W10425253 COVER
W10340015 W10340015 COVER
W10342986 W10342986 COVER
W10258510 W10258510 COVER
W10258502 W10258502 COVER
WPW10290894 WPW10290894 COVER ASSEMBLY
WPW10388269 WPW10388269 COVER-EVAP
WPW10260405 WPW10260405 COVER-FILT
W10861728 W10861728 COVER-FRNT
WPW10333887 WPW10333887 COVER-UNIT
W10278140 W10278140 COVER-UNIT
WPW10632062 WPW10632062 COVER-WIRE
W11661847 W11661847 COVER-WIRE
WPW10256801 WPW10256801 CRISPER PAN
W10814173 W10814173 DIFFUSER
LW10397057 LW10397057 DOOR ASSEMBLY MS
LW10395378 LW10395378 DOOR ASSEMBLY MS
W10500004 W10500004 DOOR HINGE
W11293374 W11293374 DOOR HINGE
W11409290 W11409290 DOOR HINGE
W11590581 W11590581 DOOR HINGE
W11652042 W11652042 DOOR LATCH-BIN
WPW10336570 WPW10336570 DOOR-COMP
WPW10316883 WPW10316883 DOOR-COMP
W10838126 W10838126 DOOR-ICE
WPW10143759 WPW10143759 DRIER-UV
W11040868 W11040868 DUCT, UPPER AIR
W11746091 W11746091 DUCT-AIR
W10260384 W10260384 DUCT-AIR
W10337128 W10337128 ENERGY LABEL
W10260988 W10260988 ESCUTCHEON
WPW10239732 WPW10239732 EVAPORATOR
WP2315549 WP2315549 EVAPORATOR MOTOR
W10379525 W10379525 EXTENSION
W10251462 W10251462 FAN-SCROLL
WP12587703AP WP12587703AP FILLER
W10816480 W10816480 FITTING
WPW10277958 WPW10277958 FITTING
WP2300868 WP2300868 FITTING
WPW10258520 WPW10258520 FLIPPER
WPW10287594 WPW10287594 FRONT COVER
W10240370 W10240370 GASKET
W10166854 W10166854 GASKET
WPW10355585 WPW10355585 GASKET ASSEMBLY
W10355582 W10355582 GASKET ASSEMBLY
WP542638 WP542638 GREASE
WPW10276209 WPW10276209 GRILLE
WPW10713153 WPW10713153 GRILLE
WP2176759 WP2176759 GROMMET
WP4387558 WP4387558 GROMMET
WPW10169124 WPW10169124 GROMMET
WPW10435760 WPW10435760 GUIDE-ICE
WPW10670421 WPW10670421 HANDLE
WPW10300794 WPW10300794 HARDWR PAK
W10242384 W10242384 HARNESS, WIRING
W10242369 W10242369 HARNS-WIRE
W10837692 W10837692 HEATER
WPW10238123 WPW10238123 HOUSING
WP2195914 WP2195914 HOUSING-IM
W11347840 W11347840 ICE-CONTNR
WPW10251076 WPW10251076 ICEMAKER
WPW10341320 WPW10341320 INLET VALVE
WPW10238100 WPW10238100 INLET VALVE
W11038857 W11038857 INVRTR-BOX
WPW10141622 WPW10141622 LEVELER
W10329864 W10329864 LIT SERVIC
W11683241 W11683241 MODULE
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
W10251081 W10251081 MOLD-ICE
WPW10205978 WPW10205978 MOTOR
WP2323603 WP2323603 MOTOR
WP2188874 WP2188874 MOTOR-COND
WP2220214 WP2220214 NAMEPLATE
W11624941 W11624941 PAD
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT)
8171358 8171358 PAINT, BULK (1 QT.) (GRAPHITE`)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ.) (GRAPHITE)
WPW10531079 WPW10531079 PAN-MEAT
WPW10497908 WPW10497908 PAN-SNACK
WP2198634 WP2198634 PIN-DOOR
WPW10242407 WPW10242407 POWER CORD
W11613294 W11613294 RESERVOIR
W11671527 W11671527 RETAINER
W10204187 W10204187 RETAINER
WPW10285005 WPW10285005 RIVET
W11164152 W11164152 ROLLER
WP67005149 WP67005149 ROLLER
WPW10475495 WPW10475495 ROLLER-CAB
WP488488 WP488488 SCREW
489136 489136 SCREW
WPW10141625 WPW10141625 SCREW
WP489478 WP489478 SCREW
W11544659 W11544659 SCREW
WPW10171469 WPW10171469 SCREW
WP4449745 WP4449745 SCREW
W11366418 W11366418 SCREW
WPW10296804 WPW10296804 SCREW
WPW10170540 WPW10170540 SCREW
WPW10296816 WPW10296816 SCREW
WP489464 WP489464 SCREW
WP489483 WP489483 SCREW
WPW10141645 WPW10141645 SCREW
WPW10142283 WPW10142283 SCREW
WPW10308750 WPW10308750 SCREW
WPW10297485 WPW10297485 SCREW
WP693995 WP693995 SCREW
W10142255 W10142255 SCREW
8533917 8533917 SCREW
WPW10291905 WPW10291905 SEAL
WP2198628 WP2198628 SEAL
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER, GUM (4 FEET)
WPW10258544 WPW10258544 SHAFT
WPW10322804 WPW10322804 SHELF, GLASS (LOWER)
WPW10322802 WPW10322802 SHELF, GLASS (UPPER)
WPW10508808 WPW10508808 SHELF-GLAS
W10260424 W10260424 SHIELD
W11661094 W11661094 SLEEVE
W10258540 W10258540 SLIDE
W10257334 W10257334 SLIDE
W10260989 W10260989 SLIDE
WP2305235 WP2305235 SPIGOT
8171357 8171357 SPRAY
WP2198635 WP2198635 SPRING
W10852956 W10852956 SPRING
WPW10189190 WPW10189190 START-DEV
WP2304884 WP2304884 START-DEV
W10747731 W10747731 STRIPPER, ICE
WPW10346124 WPW10346124 SUPPORT
W10277704 W10277704 SUPPORT
W11123943 W11123943 SWITCH
W11457217 W11457217 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
W11724692 W11724692 THERMISTOR
WP2182181 WP2182181 THIMBLE
WP2205813 WP2205813 TIE-WIRE
WP1117510 WP1117510 TORX KEY
W10703218 W10703218 TRAY, EVAPORATOR
W10276225 W10276225 TRAY-DRIP
W10448931 W10448931 TRIM RING (CHROMIUM FROST)
W10858105 W10858105 TUBE
W11311688 W11311688 TUBE
W10407369 W10407369 USE CARE
WP978025 WP978025 VALVE
978030 978030 VALVE
978029 978029 VALVE
978027 978027 VALVE
978026 978026 VALVE
876764 876764 VALVE
978028 978028 VALVE, ACCESS (1/2``)
WP2212370 WP2212370 WASHER
EDR1RXD1 EDR1RXD1 WATER FILTER
WPW10238092 WPW10238092 WATER TUBE
WPW10279884 WPW10279884 WATER TUBE
WPW10279882 WPW10279882 WATER TUBE
W11566475 W11566475 WIRE HARNESS
W11676780 W11676780 WIRE HARNESS
