Model Image
Manufacturer

Whirlpool

Model Number

GT22DKMXGN00

Description

Top-mount Refrigerator

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 APPLIANCE LIGHT BULB, 40-WATT
WP486692 WP486692 APPLIANCE NUT
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT, 1-QT (WHITE)
WP488729 WP488729 APPLIANCE SCREW
WP542638 WP542638 APPLIANCE SILICONE LUBRICANT
350956 350956 APPLIANCE SPRAY PAINT (ALMOND)
285006 285006 APPLIANCE SPRAY PAINT (BLACK)
350942 350942 APPLIANCE SPRAY PAINT (WHITE PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
WP72107 WP72107 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (ALMOND)
72032 72032 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BLACK)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
511873 511873 APPLIANCE TOUCH-UP PAINT, 2-OZ (WHITE)
WP3196256 WP3196256 CLAMP
2166156 2166156 CORNER FILTER
1105055 1105055 COVER
799833 799833 EPOXY
799832 799832 EPOXY
WP4389142 WP4389142 EVAPORATOR MOTOR
2300638 2300638 EXTENSION
2201015 2201015 FILLER AL
876029 876029 FOAM SLAB
L2200621 L2200621 FREEZER DOOR ASSEMBLY (BLACK)
L2183862 L2183862 FREEZER DOOR ASSEMBLY (WHITE)
2163762 2163762 FREEZER SHELF SUPPORT
WP488366 WP488366 FREEZER WATER INLET TUBING CLAMP
WP531933 WP531933 GROMMET
2193353N 2193353N HANDLE TRIM
2193491 2193491 INSULATION
2172684 2172684 PAN GASKET
2183995 2183995 RACK TRAY
WP2189452 WP2189452 REFRIGERATOR AIR DAMPER
4387121 4387121 REFRIGERATOR AIR DAMPER CONTROL ASSEMBLY
WP2176281 WP2176281 REFRIGERATOR AIR DAMPER COVER
WP2182340 WP2182340 REFRIGERATOR AIR DUCT
4388450 4388450 REFRIGERATOR AIR DUCT INSULATION
WP4317852 WP4317852 REFRIGERATOR ALUMILASTIC ADHESIVE
2163810 2163810 REFRIGERATOR BRACKET
WP2210509 WP2210509 REFRIGERATOR BREATHER VALVE
WP2151652 WP2151652 REFRIGERATOR CABINET HOLE PLUG
WP487996 WP487996 REFRIGERATOR CAP
WP487240 WP487240 REFRIGERATOR CAPACITOR SCREW
WP2172890 WP2172890 REFRIGERATOR CAPACITOR WIRE HARNESS
W10309988 W10309988 REFRIGERATOR COMPRESSOR
WP2198740 WP2198740 REFRIGERATOR COMPRESSOR ACCESS PANEL
876811 876811 REFRIGERATOR COMPRESSOR GROMMET
4388295 4388295 REFRIGERATOR COMPRESSOR GROMMET

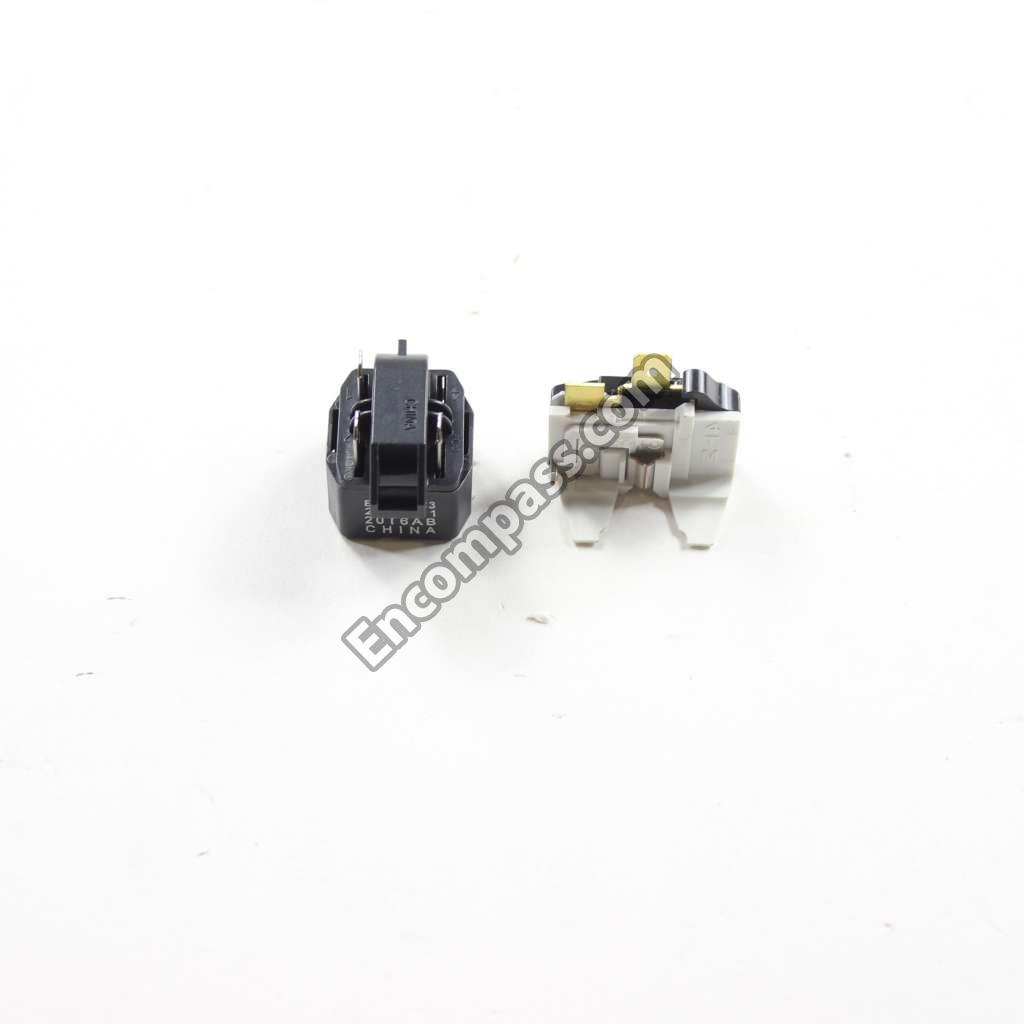

4387913 4387913 REFRIGERATOR COMPRESSOR OVERLOAD AND PTC START ...
833938 833938 REFRIGERATOR COMPRESSOR WIRE TERMINAL KIT
WP2190685 WP2190685 REFRIGERATOR CONDENSER FAN

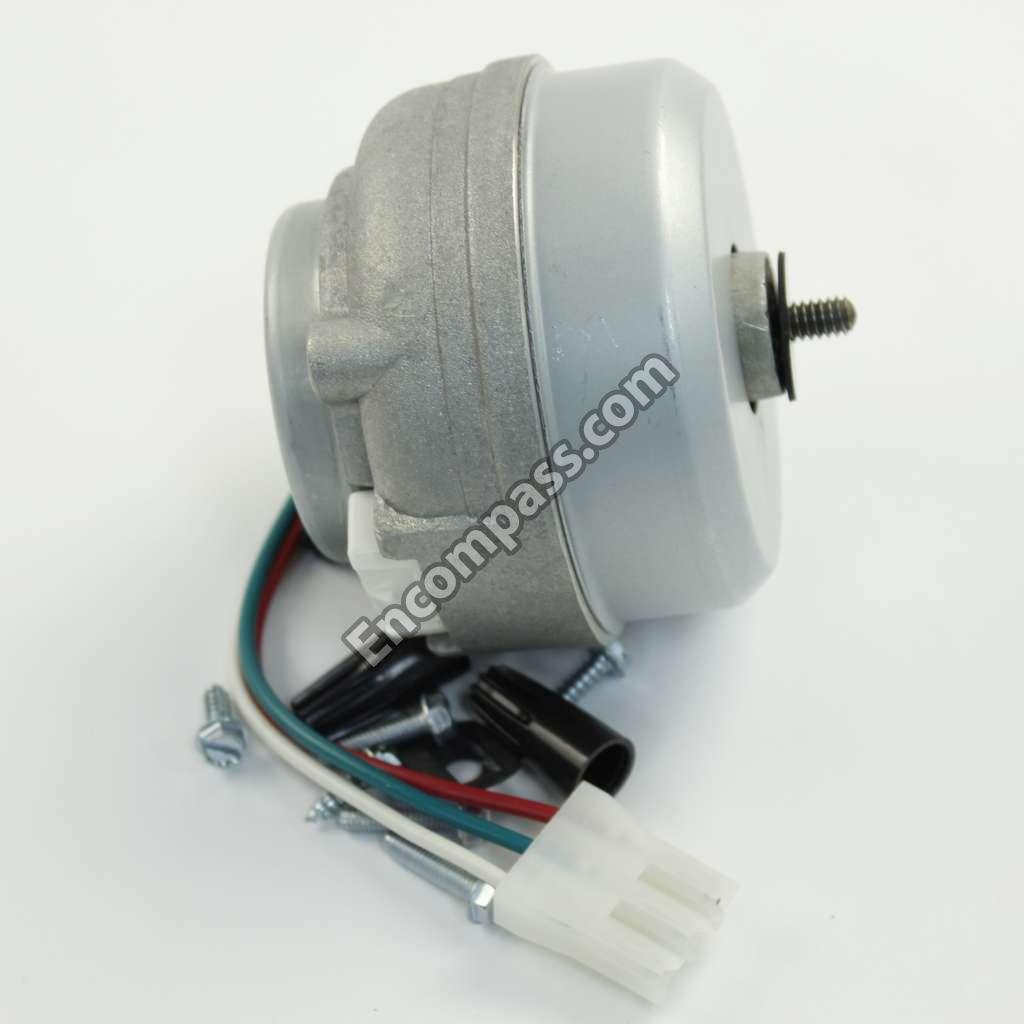

W10822259 W10822259 REFRIGERATOR CONDENSER FAN MOTOR
WP2198921 WP2198921 REFRIGERATOR CONDENSER FAN MOTOR HOUSING
2179790 2179790 REFRIGERATOR CONTROL BOX
WPW10283959 WPW10283959 REFRIGERATOR CORNER TRIM
W11252732 W11252732 REFRIGERATOR CORNER TRIM (BLACK)
WP2302358 WP2302358 REFRIGERATOR COVER UNIT
W10854037 W10854037 REFRIGERATOR CRISPER DRAWER
WP2174447 WP2174447 REFRIGERATOR CRISPER DRAWER COVER FRAME
WP2172748 WP2172748 REFRIGERATOR CRISPER DRAWER COVER SUPPORT POST
WP2195341 WP2195341 REFRIGERATOR CRISPER DRAWER COVER TRIM
WP2212446 WP2212446 REFRIGERATOR CRISPER DRAWER HUMIDITY CONTROL BODY
WP2176222 WP2176222 REFRIGERATOR CRISPER DRAWER HUMIDITY CONTROL SLIDE
WP2210566 WP2210566 REFRIGERATOR DAIRY BIN
WP2218109 WP2218109 REFRIGERATOR DAIRY BIN COVER
WP4387503 WP4387503 REFRIGERATOR DEFROST BI-METAL THERMOSTAT
WP2315530 WP2315530 REFRIGERATOR DEFROST HEATER
2182338 2182338 REFRIGERATOR DEFROST HEATER BRACKET
2176301 2176301 REFRIGERATOR DEFROST HEATER BRACKET
W10822278 W10822278 REFRIGERATOR DEFROST TIMER
2176341 2176341 REFRIGERATOR DEFROST TIMER CLIP
WP2218132K WP2218132K REFRIGERATOR DELI DRAWER
2200793 2200793 REFRIGERATOR DIFFUSER
1123293 1123293 REFRIGERATOR DIVIDER
L2200615 L2200615 REFRIGERATOR DOOR ASSEMBLY (BLACK)
L2183868 L2183868 REFRIGERATOR DOOR ASSEMBLY (WHITE)
606755 606755 REFRIGERATOR DOOR BAG INSULATION
WP2204813 WP2204813 REFRIGERATOR DOOR BIN (WHITE)
2159061 2159061 REFRIGERATOR DOOR GASKET
2177311 2177311 REFRIGERATOR DOOR GASKET (BLACK)

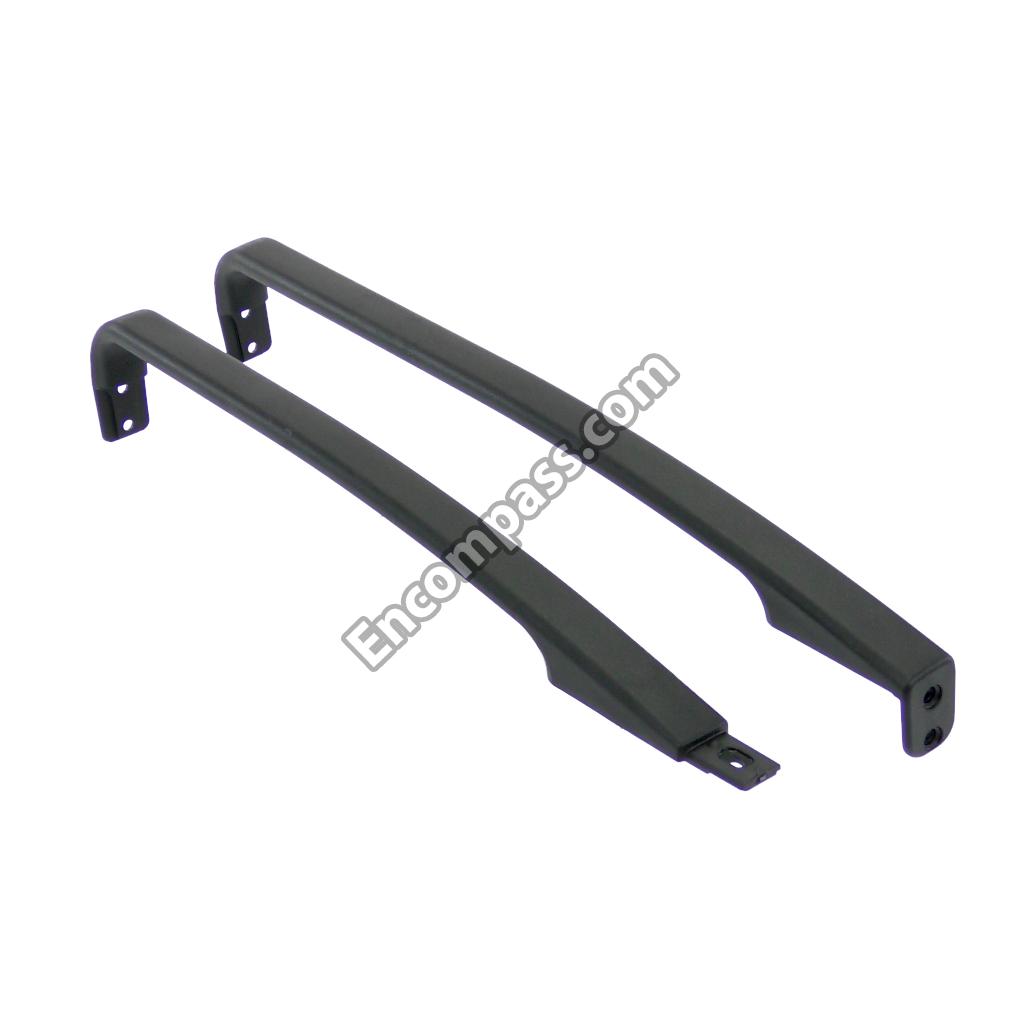

2193351N 2193351N REFRIGERATOR DOOR HANDLE
4388950 4388950 REFRIGERATOR DOOR HANDLE
4388947 4388947 REFRIGERATOR DOOR HANDLE (WHITE)
WP2193353W WP2193353W REFRIGERATOR DOOR HANDLE TRIM CAP
WP2254473 WP2254473 REFRIGERATOR DOOR HINGE
WP2261963 WP2261963 REFRIGERATOR DOOR HINGE
WP2183854 WP2183854 REFRIGERATOR DOOR HINGE SPACER, CENTER
WP2254618 WP2254618 REFRIGERATOR DOOR HINGE, CENTER
WP2189000 WP2189000 REFRIGERATOR DOOR HOLE PLUG
WP2183003 WP2183003 REFRIGERATOR DOOR HOLE PLUG
WP2212651 WP2212651 REFRIGERATOR DOOR HOLE PLUG
WP2212648 WP2212648 REFRIGERATOR DOOR HOLE PLUG
WP2183998 WP2183998 REFRIGERATOR DOOR HOLE PLUG
876370 876370 REFRIGERATOR DOOR INSULATION, 2-PIECE
2176379 2176379 REFRIGERATOR DOOR REVERSAL INSTRUCTIONS
WP2195916K WP2195916K REFRIGERATOR DOOR SHELF RAIL
WP2156006 WP2156006 REFRIGERATOR DOOR SHELF RAIL
WPW10421486 WPW10421486 REFRIGERATOR DOOR SHELF RAIL
WP2159306 WP2159306 REFRIGERATOR DOOR SHELF TRIM
WP2183805 WP2183805 REFRIGERATOR DOOR STOP
WP488921 WP488921 REFRIGERATOR DOOR STOP SCREW
W11384469 W11384469 REFRIGERATOR DOOR SWITCH
2159302 2159302 REFRIGERATOR DOOR TRAY
4388948 4388948 REFRIGERATOR DOOR TRIM
WP2177340 WP2177340 REFRIGERATOR DOOR TRIM CLIP
WP2314549 WP2314549 REFRIGERATOR DRAWER COVER
W10136387A W10136387A REFRIGERATOR EGG BIN
WP2195390 WP2195390 REFRIGERATOR EVAPORATOR
WP941839 WP941839 REFRIGERATOR EVAPORATOR COVER HOLE PLUG
WP2254360 WP2254360 REFRIGERATOR EVAPORATOR COVER SEAL
WP2163777 WP2163777 REFRIGERATOR EVAPORATOR FAN BLADE
2198768 2198768 REFRIGERATOR FENCE
2166204 2166204 REFRIGERATOR FILLER
W10843121 W10843121 REFRIGERATOR FILTER DRYER
2159060 2159060 REFRIGERATOR FREEZER DOOR GASKET
2177310 2177310 REFRIGERATOR FREEZER DOOR GASKET (BLACK)
WP2213363 WP2213363 REFRIGERATOR FREEZER DOOR HINGE COVER
WP2213360 WP2213360 REFRIGERATOR FREEZER DOOR HINGE COVER
WP2195947 WP2195947 REFRIGERATOR FREEZER DOOR SHELF RAIL
2166284 2166284 REFRIGERATOR FREEZER DOOR SWITCH HOUSING SEAL, ...
2190589 2190589 REFRIGERATOR FREEZER FLOOR
2198892 2198892 REFRIGERATOR FREEZER LIGHT WIRE HARNESS
2184667 2184667 REFRIGERATOR GLASS SHELF
WP999520 WP999520 REFRIGERATOR GLASS SHELF
WP2176225 WP2176225 REFRIGERATOR GLASS SHELF
2189156 2189156 REFRIGERATOR GRILLE
WP2189009 WP2189009 REFRIGERATOR HANDLE PLUG
WP2189008 WP2189008 REFRIGERATOR HANDLE PLUG
2160404 2160404 REFRIGERATOR HINGE COVER (ALMOND)
2169608 2169608 REFRIGERATOR HOOK
2300418 2300418 REFRIGERATOR HOUSING
WP841180A WP841180A REFRIGERATOR ICE CUBE TRAY
1129316 1129316 REFRIGERATOR ICE MAKER
WP2217784 WP2217784 REFRIGERATOR ICE MAKER FILL TUBE COVER
WP1117510 WP1117510 REFRIGERATOR ICE MAKER TORX KEY WRENCH
2302536 2302536 REFRIGERATOR KNOB DAMPER
2300520 2300520 REFRIGERATOR LADDER
WP2210522 WP2210522 REFRIGERATOR LADDER
4396822 4396822 REFRIGERATOR LIGHT BULB
4387478 4387478 REFRIGERATOR LIGHT SOCKET
WP505587 WP505587 REFRIGERATOR MASTIC SEALER
2320188 2320188 REFRIGERATOR MOUNTING PLATE
2152334 2152334 REFRIGERATOR NAMEPLATE
2183409 2183409 REFRIGERATOR OVERLOAD PROTECTOR
677969 677969 REFRIGERATOR OWNER'S MANUAL
2176357 2176357 REFRIGERATOR PAN TRIM
WP503695 WP503695 REFRIGERATOR PERMAGUM SEALER
212643 212643 REFRIGERATOR PERMAGUM SEALER
989196 989196 REFRIGERATOR PLUG (ALMOND)
2154109 2154109 REFRIGERATOR REFRIGERANT PROCESS TUBE
4388239 4388239 REFRIGERATOR ROLLER
2176246 2176246 REFRIGERATOR ROLLER
WP2166108 WP2166108 REFRIGERATOR ROLLER ASSEMBLY
WP2179826 WP2179826 REFRIGERATOR ROLLER WHEEL AXLE PIN
WP4387764 WP4387764 REFRIGERATOR RUN CAPACITOR
WP8281196 WP8281196 REFRIGERATOR SCREW
WP489357 WP489357 REFRIGERATOR SCREW
WP8281206 WP8281206 REFRIGERATOR SCREW
489419 489419 REFRIGERATOR SCREW
W10651374 W10651374 REFRIGERATOR SCREW
489412 489412 REFRIGERATOR SCREW
WP489478 WP489478 REFRIGERATOR SCREW
WP489464 WP489464 REFRIGERATOR SCREW
WP489497 WP489497 REFRIGERATOR SCREW
978029 978029 REFRIGERATOR SERVICE VALVE
978028 978028 REFRIGERATOR SERVICE VALVE
978027 978027 REFRIGERATOR SERVICE VALVE
978026 978026 REFRIGERATOR SERVICE VALVE
WP978025 WP978025 REFRIGERATOR SERVICE VALVE
876764 876764 REFRIGERATOR SERVICE VALVE
978030 978030 REFRIGERATOR SERVICE VALVE, 3/4-IN
WP2205162 WP2205162 REFRIGERATOR SHELF FRAME
2172620 2172620 REFRIGERATOR SHIELD
2189314 2189314 REFRIGERATOR SUPPORT
2179714 2179714 REFRIGERATOR SUPPORT
2179713 2179713 REFRIGERATOR SUPPORT
2201185 2201185 REFRIGERATOR SUPPORT EVAPORATOR
4387562 4387562 REFRIGERATOR TEMPERATURE CONTROL THERMOSTAT
WP2205079 WP2205079 REFRIGERATOR THERMAL WEIGHT SENSOR SEAL
WP2193455 WP2193455 REFRIGERATOR THERMOSTAT KNOB
WP2196003 WP2196003 REFRIGERATOR THERMOSTAT SENSOR BARRIER
WP2254315 WP2254315 REFRIGERATOR TOE GRILLE
2176241 2176241 REFRIGERATOR TRACK
WP2193353B WP2193353B REFRIGERATOR TRIM
2189992 2189992 REFRIGERATOR TRIM
2174670 2174670 REFRIGERATOR TUBE
2189173 2189173 REFRIGERATOR TUBE
W11238399 W11238399 REFRIGERATOR VINYL TAPE
WP487576 WP487576 REFRIGERATOR WASHER
WP489467 WP489467 REFRIGERATOR WASHER
2166251 2166251 REFRIGERATOR WATER INLET VALVE COVER
2189997 2189997 REFRIGERATOR WIRE HARNESS
2195656 2195656 REFRIGERATOR WIRE HARNESS
2172743 2172743 SHIM
482278 482278 START KIT
943322 943322 STRAP
2163802 2163802 THERMAL WEIGHT
978883 978883 TOUCH-UP PAINT (ALMOND)
WPW10339879 WPW10339879 WASHER CABLE TIE
