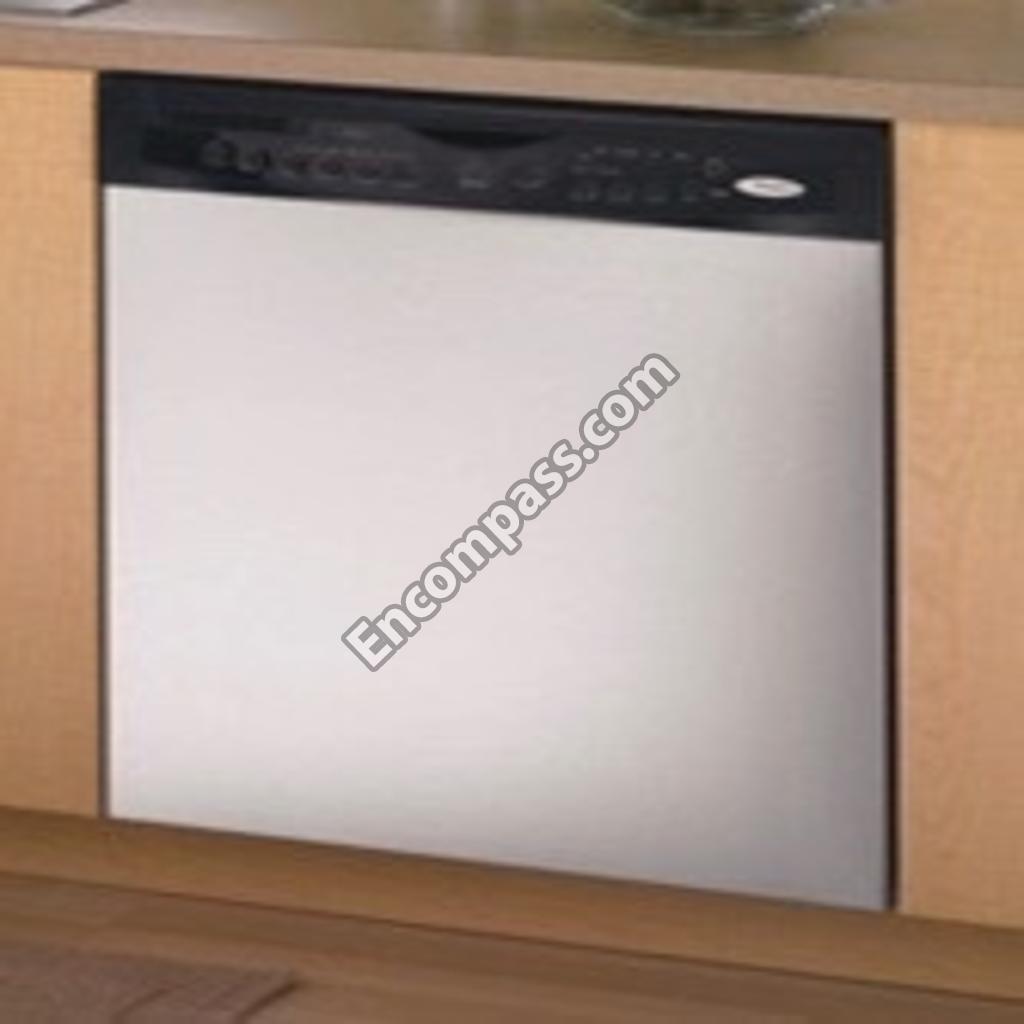

Model Image
Manufacturer

Whirlpool

Model Number

GU1500XTLB0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
8193918 8193918 ACCUMULATR
WP8268750 WP8268750 ACTUATOR, ADJUSTER (ALSO ORDER ITEM 15) (LEFT HAND)
WP8268751 WP8268751 ACTUATOR, ADJUSTER (ALSO ORDER ITEM 15) (RIGHT HAND)
WP8524471 WP8524471 ACTUATOR, LATCH
8193740 8193740 ADJUSTER
W10728849 W10728849 ADJUSTER ASSEMBLY (ALSO ORDER ITEM 15)
350956 350956 ALMOND
WP72107 WP72107 ALMOND
W11613573 W11613573 ARM, HINGE (LEFT)
W11613572 W11613572 ARM, HINGE (RIGHT)
WP8268703 WP8268703 AXEL, ADJUSTER
3385111 3385111 BASKET, 3RD LEVEL
WP8269243 WP8269243 BEZEL-INLT
72032 72032 BLACK
8193882 8193882 BOLT-DOOR LATCH
W11027055 W11027055 BRACKET, HEATER SUPPORT
WP8269145 WP8269145 BRACKET, UNDERCOUNTER
WPW10462232 WPW10462232 BRCKT-DISP
WP8268990 WP8268990 BUSHING, DOOR SPRING
W10864081 W10864081 CABINET SEAL KIT (SEAL, KI)
WP8533380 WP8533380 CAP
WP8268317 WP8268317 CAP, INTERNAL REAR FEED
WPW10334457 WPW10334457 CAPACITOR

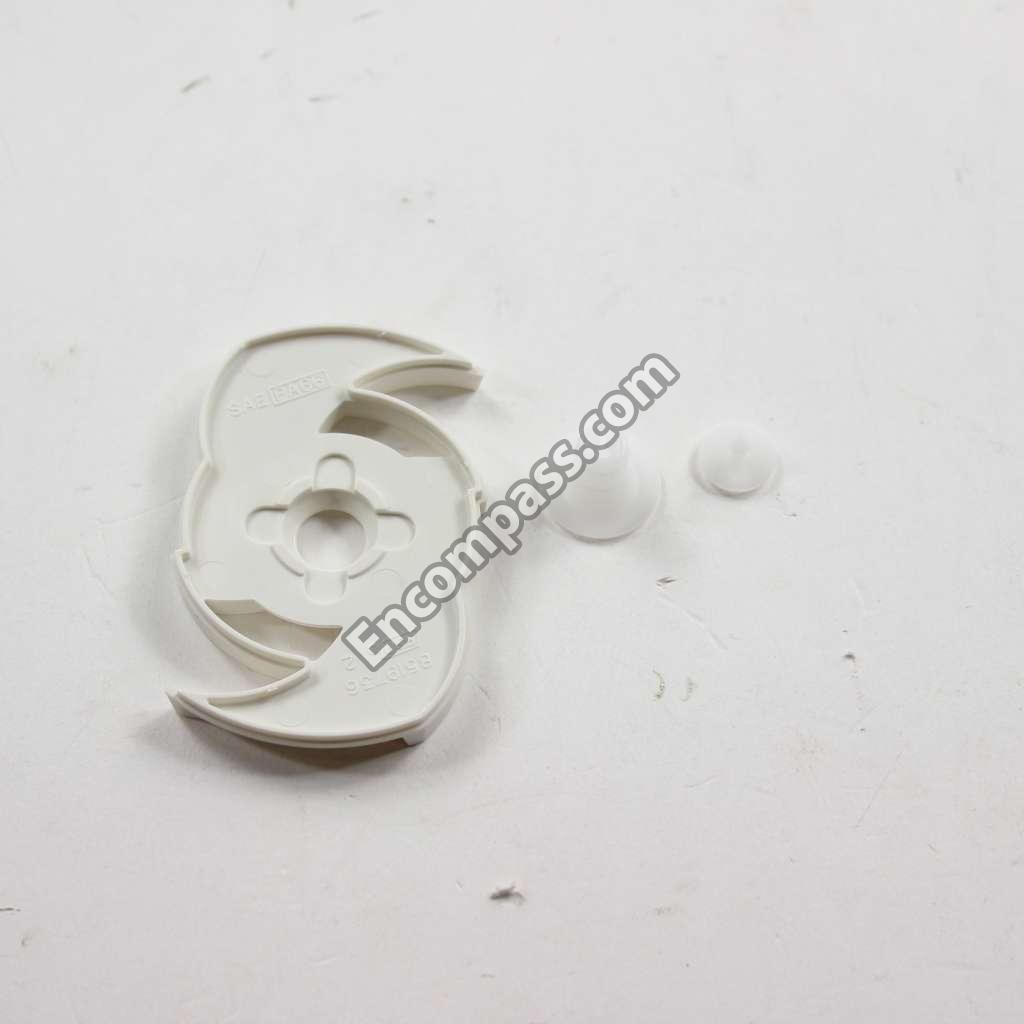

W10083957 W10083957 CHOPPER
W10083957V W10083957V CHOPPER ASSEMBLY
WP596669 WP596669 CLAMP
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
8193634 8193634 CLIP
WP8274978 WP8274978 CLIP
8269740 8269740 CLIP
8269308 8269308 CLIP, SILVERWARE BASKET
W10539489 W10539489 CLIP, THERMOSTAT

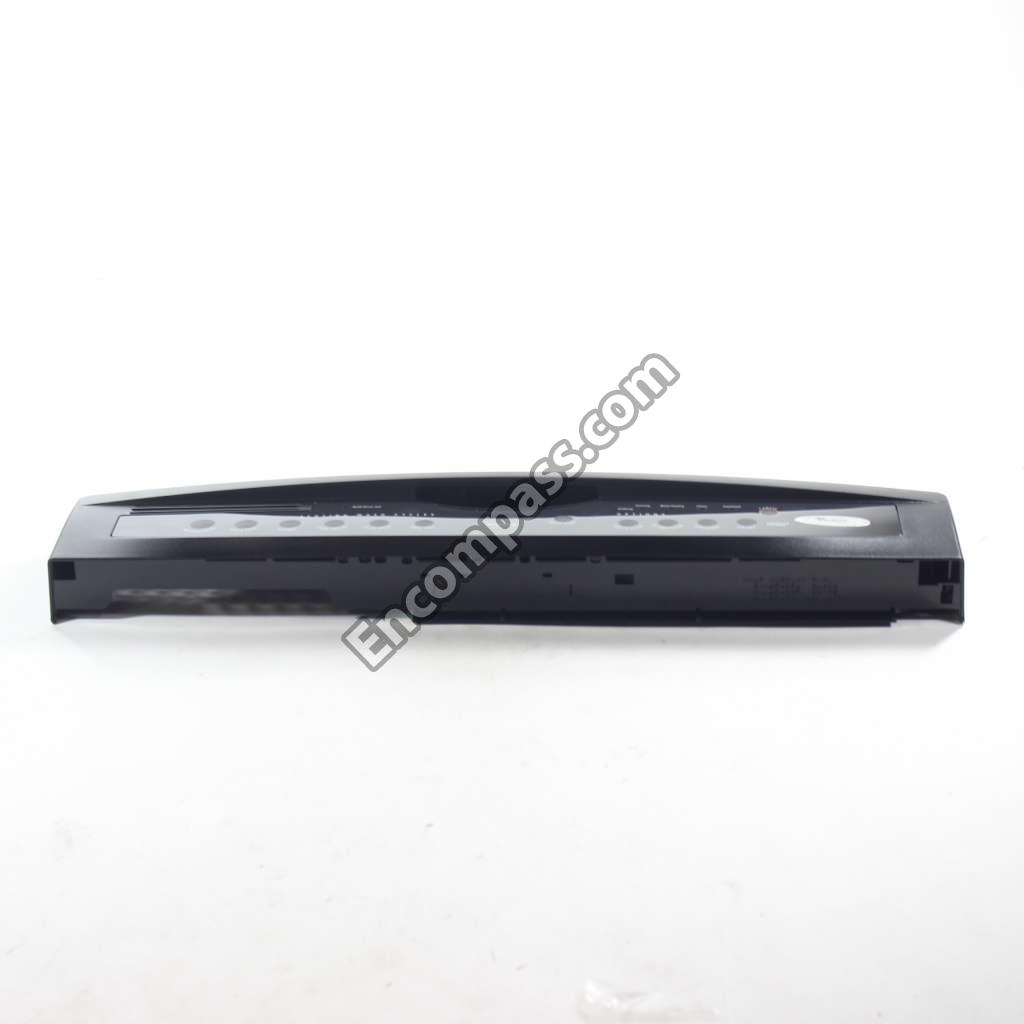

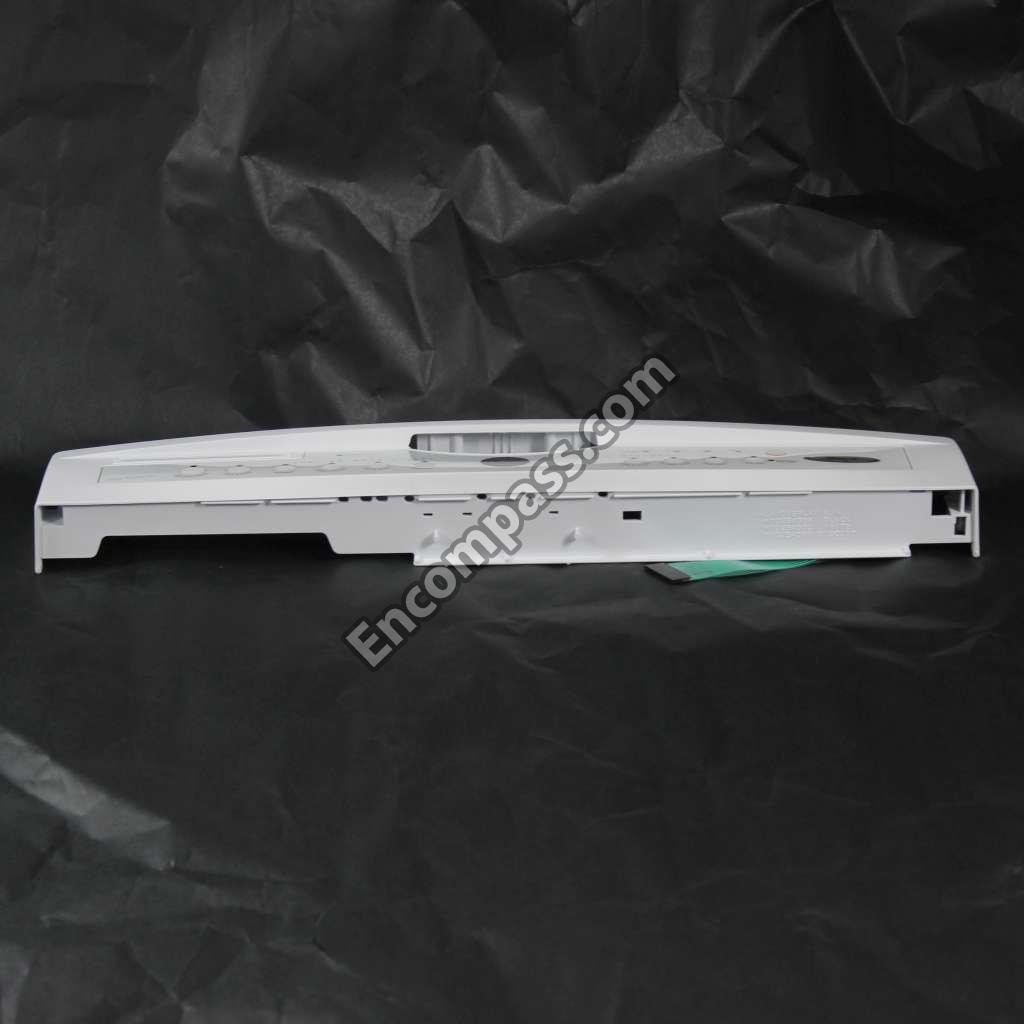

WP8534840 WP8534840 CONTROL PANEL
WP8534841 WP8534841 CONTROL PANEL
WP8534839 WP8534839 CONTROL PANEL
8528874 8528874 CONTROL, ELECTRONIC
WPW10158350 WPW10158350 COVER CONTROL SHIELD ASSEMBLY
8269303 8269303 COVER, SMALL ITEMS
WP8268991 WP8268991 COVER, TERMINAL BOX
WP8269329 WP8269329 CUPSHELF
4396201 4396201 CUSTOM PANEL KITS (BISCUIT)
4396200 4396200 CUSTOM PANEL KITS (WHITE)
WP8558991 WP8558991 DEFLECTOR
W10311986 W10311986 DISHRACK
WPW10350382 WPW10350382 DISHRACK
WP8558129 WP8558129 DISPENSER
WP8269206 WP8269206 DISPLAY, DUAL DIGIT
W10542314 W10542314 DOOR SEAL
8269304 8269304 DOOR, SILVERWARE BASKET
WPW10358302 WPW10358302 DRAIN LOOP WITH CHECK VALVE
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
WP3400919 WP3400919 FASTENER, PUSH-IN
WP8268913 WP8268913 FLOAT & RETAINER ASSEMBLY
4396194 4396194 FLOOR MOUNT KIT
8193762 8193762 FUSE
WP8269241 WP8269241 GASKET
WP8269259 WP8269259 GASKET, VENT
WP8269323 WP8269323 HANDLE, LATCH
4317824 4317824 HARD START KIT (INCLUDES POWER CORD & MISC. HARDWARE)
8269190 8269190 HARNS-WIRE
W10518394 W10518394 HEATER
WP8268325 WP8268325 HOLDER, FEED TUBE
8269144A 8269144A HOSE, DRAIN

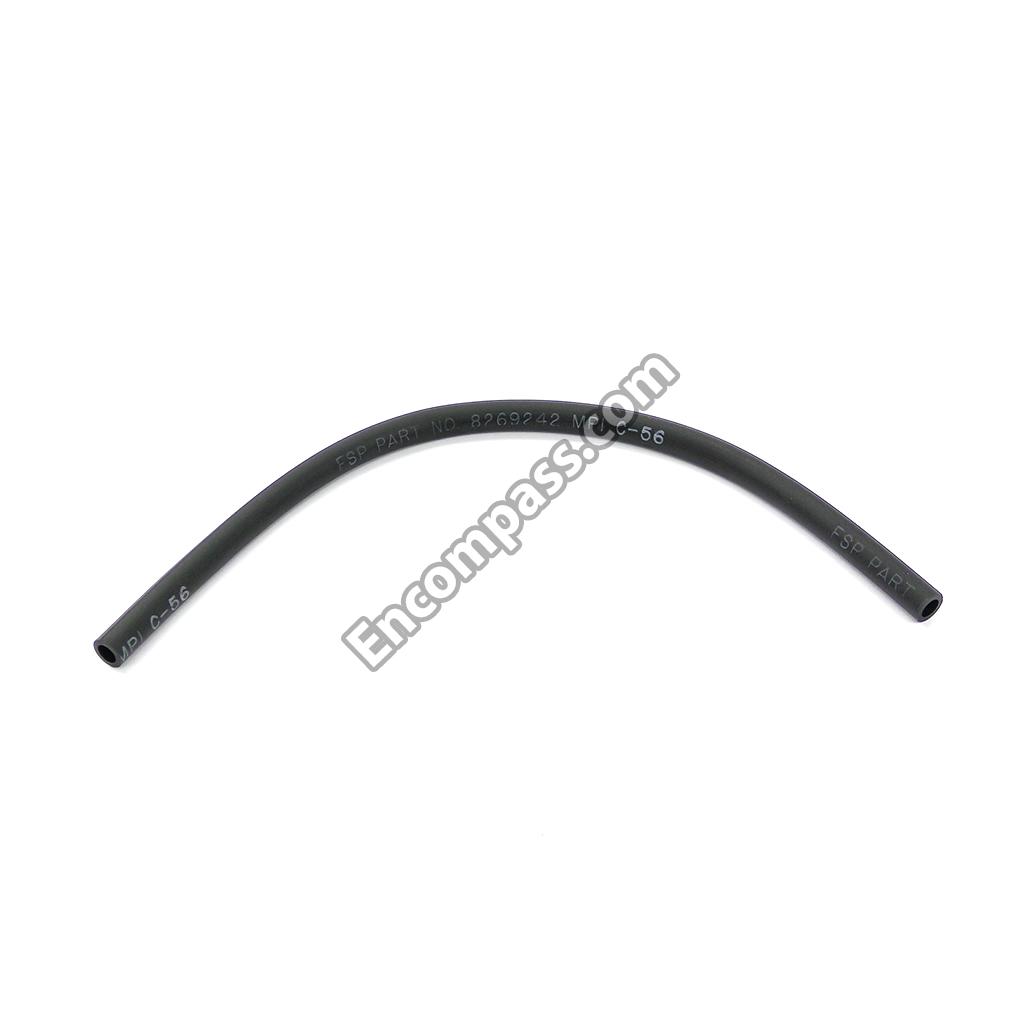

WP8269242 WP8269242 HOSE, INLET
WP8268316 WP8268316 HUB, LOWER SPRAYARM (ALSO ORDER ITEM 3)
8193951A 8193951A IMPELLER
8193508 8193508 INLET-WATR
WP8269311 WP8269311 INNER DOOR (ALSO ORDER ITEM 6)
LIT8269550 LIT8269550 INSTRUCTIONS, INSTALLATION
WPW10073520 WPW10073520 INSULATION, DOOR (FOR MODEL KUDS01DJSS1)
8269305 8269305 LATCH ASSEMBLY
WP8268892 WP8268892 LEVER, OVERFLOW SWITCH
8193716 8193716 LEVLER-LEG
8269302 8269302 LID
LIT8275384 LIT8275384 LITERATURE PARTS (ENERGY GUIDE)
LIT8533399 LIT8533399 LITERATURE PARTS (ENGLISH/FRENCH)
LIT3381187 LIT3381187 LITERATURE PARTS (GUIDE, USE & CARE TECH SHEET)
WPW10258150 WPW10258150 MANIFOLD
WPW10292170 WPW10292170 MISCELLANOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS)
WPW10757217 WPW10757217 MOTOR-PUMP
WP8268321 WP8268321 MOUNT
100000 100000 NOTE: IF HEATER ELEMENT IS REMOVED, IT MUST BE REPLACED.
3400921 3400921 NUT
WPW10477552 WPW10477552 NUT (2) (HEATER TERMINAL)
WP8268961 WP8268961 PAD, FRICTION
799344 799344 PAINT
978883 978883 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
W10909066 W10909066 PANEL
W10909064 W10909064 PANEL
W10871198 W10871198 PANEL
W10301571 W10301571 PANEL
4396199 4396199 PANEL
W10384707 W10384707 PANEL FRONT (BISCUIT)
W10301577 W10301577 PANEL FRONT (STAINLESS)
WPW10274970 WPW10274970 PANEL FRONT (WHITE)
8171656 8171656 PANL
8171657 8171657 PANL
8171658 8171658 PANL
8171659 8171659 PANL
3385110 3385110 PIVOT, SUPPORT LOWER
WP3385109 WP3385109 PIVOT, SUPPORT TOP
WP8519651 WP8519651 PIVOT-TINE
WP8268667 WP8268667 POSITIONER
WP8268704 WP8268704 POSITIONER, ARM
WPW10082831 WPW10082831 PROBE
WP8531857 WP8531857 PROTECTOR, INLET
W10782773 W10782773 PUMP & MOTOR
WP661658 WP661658 PUMP, DRAIN
WP8562006 WP8562006 RACK-PLATE
WP9741232 WP9741232 RETAINER
WP8268522 WP8268522 RETAINER

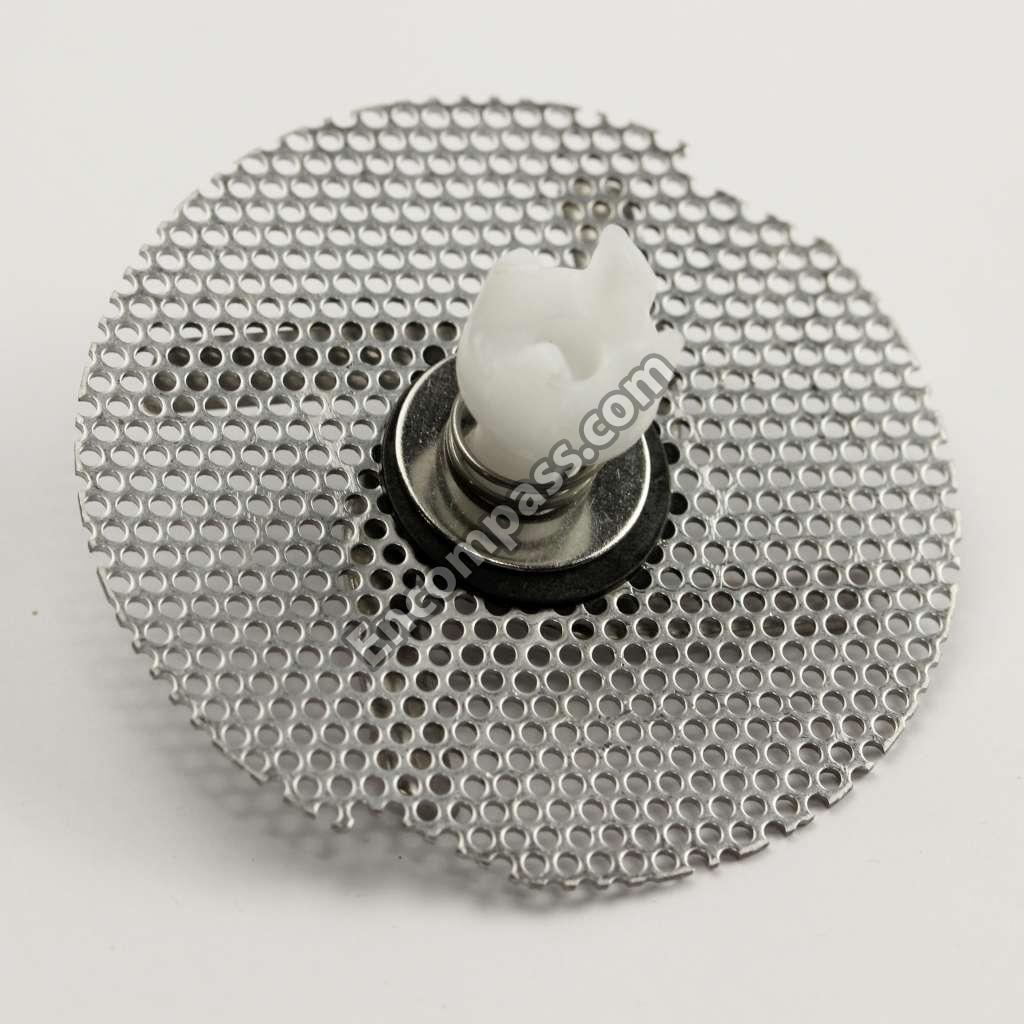

8268391 8268391 SCREEN, SEPARATION
WP8281156 WP8281156 SCREW
3400217 3400217 SCREW
WP3400014 WP3400014 SCREW
WP3400892 WP3400892 SCREW
W10817436 W10817436 SCREW
WP304231 WP304231 SCREW
WP3400412 WP3400412 SCREW
3369181 3369181 SCREW
WP489069 WP489069 SCREW
WP3400836 WP3400836 SCREW
WP489443 WP489443 SCREW
WPW10177098 WPW10177098 SCREW
3400069 3400069 SCREW
WPW10348409 WPW10348409 SCREW
WPW10349488 WPW10349488 SCREW
WPW10503550 WPW10503550 SCREW (BISCUIT)
WPW10503549 WPW10503549 SCREW (WHITE)
WP302868 WP302868 SCREW, 8-18 X 1/2 (2)
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)

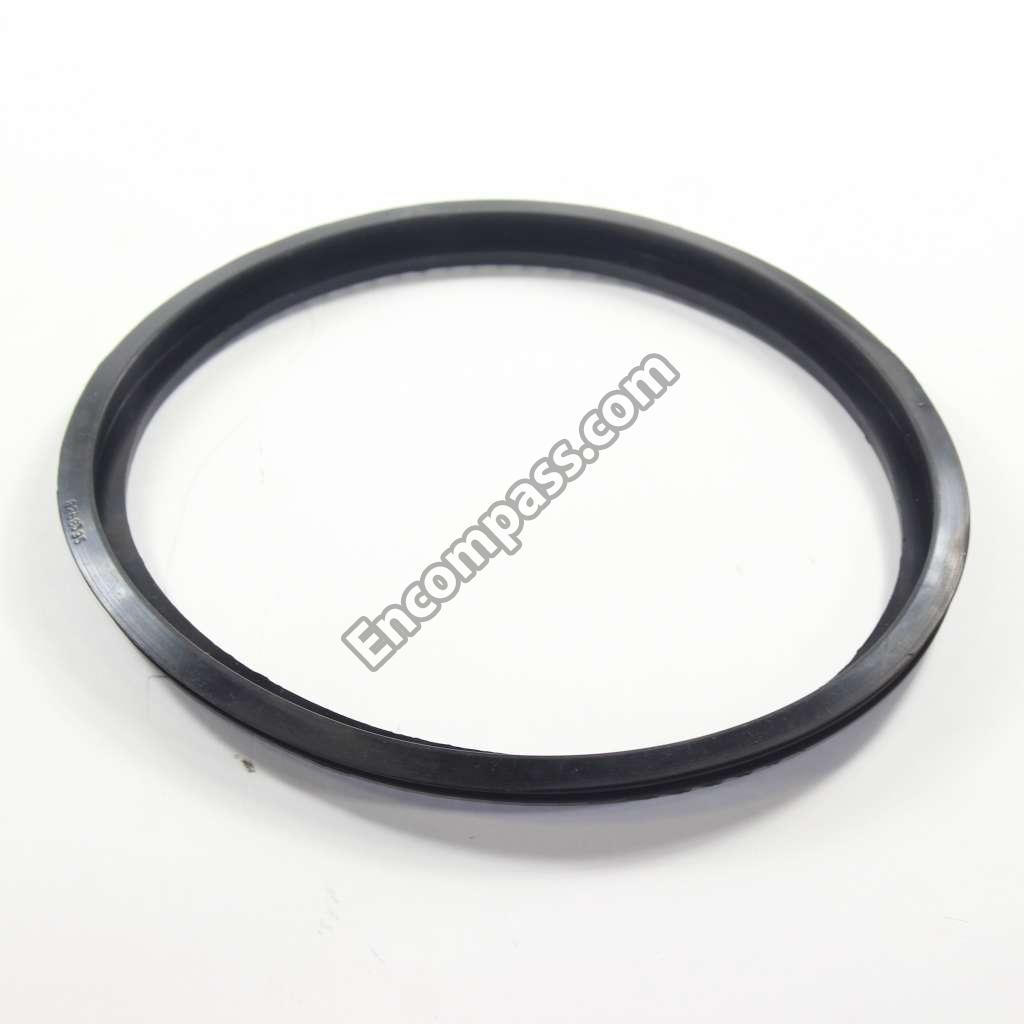

WP8269296 WP8269296 SEAL
WP8269258 WP8269258 SEAL, FRONT
WP8268340 WP8268340 SEAL, SPRAYARM
WP8268433 WP8268433 SEAL, SPRAYARM
WP8268395 WP8268395 SEAL, SUMP
W11622922 W11622922 SEAL, VOLUTE
WP8533381 WP8533381 SENSOR, RINSE AID
W10877094 W10877094 SHIELD
W10831329 W10831329 SHIELD
8269427 8269427 SHIELD
8268541 8268541 SHIELD
8269449 8269449 SHIELD
8269501 8269501 SHIELD
8534946 8534946 SHIELD
WP8269307 WP8269307 SILVERWARE BASKET ASSEMBLY
8193768 8193768 SPINNER
350930 350930 SPRAY (13 OZ.) (WHITE)
WP8269024 WP8269024 SPRAYARM
WPW10337934 WPW10337934 SPRING, DOOR BALANCE
WPW10175383 WPW10175383 STANDPIPE
WP8268983 WP8268983 STIFFENER, DOOR
WP8565925 WP8565925 STOP
WP8580309 WP8580309 STRIKE
WP8534882 WP8534882 SUMP
3385108 3385108 SUPPORT, 3RD LEVEL
WP8269209 WP8269209 SWITCH, DOOR
WP8268909 WP8268909 SWITCH, OVERFILL CONTROL
8268477 8268477 SWITCH, PRESSURE
WPW10300599 WPW10300599 TAB, SUMP
WP8269208 WP8269208 THERMISTER
WP661566 WP661566 THERMOSTAT
W10727426 W10727426 TINE ROW
W10586592 W10586592 TOE PANEL (BISCUIT)
W10871196 W10871196 TOE PANEL (INCLUDES ITEM 11) (BLACK)
WPW10586591 WPW10586591 TOE PANEL (INCLUDES ITEM 11) (WHITE)
WP3385089 WP3385089 TRACK
W10413848 W10413848 TUB-DISHWR
WPW10077863 WPW10077863 TUBE
WP8268375 WP8268375 VALVE-CHEK
WP8531669 WP8531669 VALVE-INLT

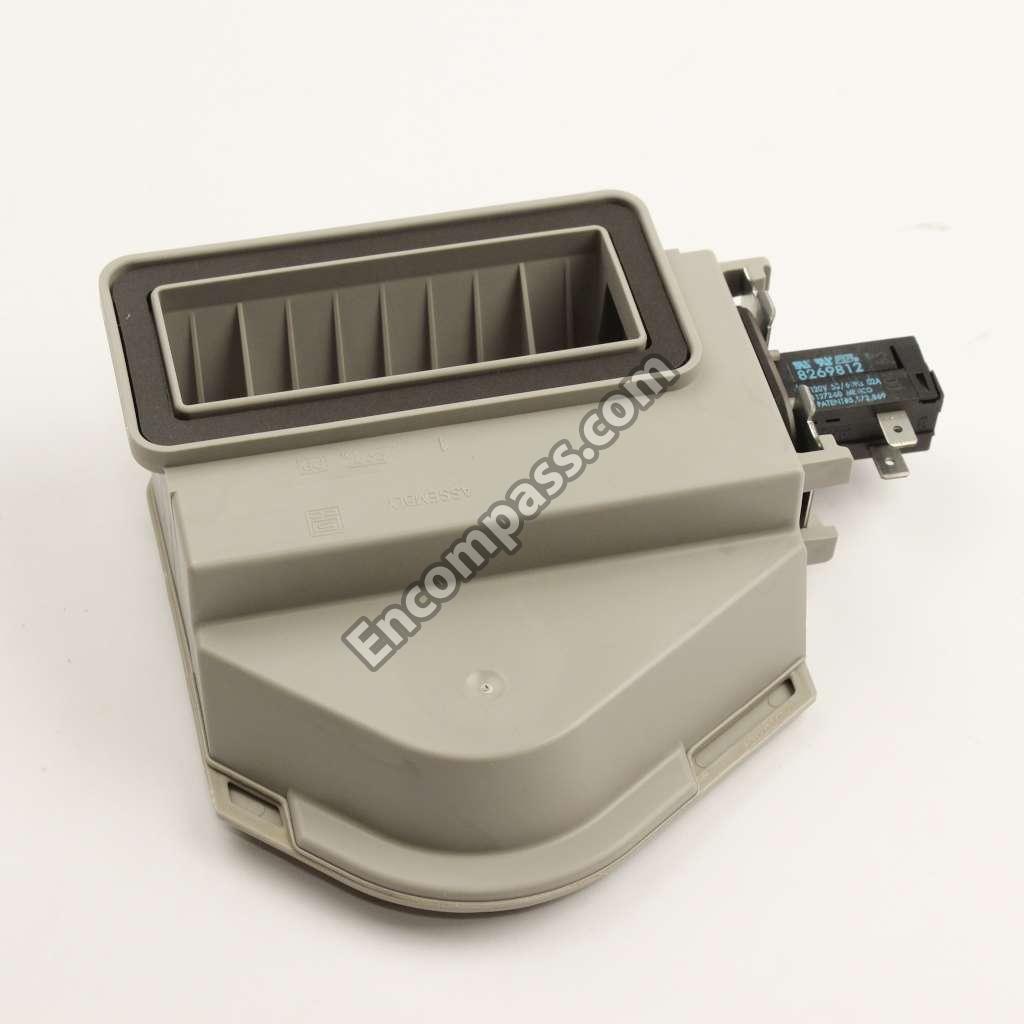

WP8545533 WP8545533 VENT
WP8268332 WP8268332 WASH ARM ASSEMBLY
WP3378128 WP3378128 WASHER
WP717273 WP717273 WASHER, RUBBER
WP3385088 WP3385088 WHEEL
WP8270016 WP8270016 WHEEL & MOUNT ASSEMBLY
WP8268645 WP8268645 WHEEL & TRANSPORT ASSEMBLY (4)
WP8269831 WP8269831 WHEEL LEG
WP8534931 WP8534931 WIRING HARNESS & PROTECTOR
