Model Image
Manufacturer

Whirlpool

Model Number

GU2400XTPS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10871198 W10871198 ACCESS PANEL (INCLUDES ITEM 7) (BISCUIT)
W10909066 W10909066 ACCESS PANEL (INCULDES ITEM 14) (WHITE)
4396201 4396201 ACCESSORIES SIDE PANEL KITS (BISCUIT CABINET SEAL KIT)
4396200 4396200 ACCESSORIES SIDE PANEL KITS (WHITE)
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
8193918 8193918 ACCUMULATR
WP8524471 WP8524471 ACTUATOR, LATCH
W11613573 W11613573 ARM, HINGE (LEFT)
W11613572 W11613572 ARM, HINGE (RIGHT)
WP8268332 WP8268332 ARM-SPRAY
72032 72032 BLACK
8193882 8193882 BOLT-DOOR LATCH
W11027055 W11027055 BRACKET, HEATER SUPPORT
WP8269145 WP8269145 BRACKET, UNDERCOUNTER
WPW10462232 WPW10462232 BRCKT-DISP
WP8268990 WP8268990 BUSHING, DOOR SPRING
W10864081 W10864081 CABINET SEAL KIT (SEAL, KI)
WP8268317 WP8268317 CAP, INTERNAL REAR FEED
WPW10334457 WPW10334457 CAPACITOR
W10083957 W10083957 CHOPPER
W10083957V W10083957V CHOPPER ASSEMBLY
WP596669 WP596669 CLAMP
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
8193634 8193634 CLIP
8269740 8269740 CLIP
8269736 8269736 CLIP
WP8269016 WP8269016 CLIP, GROUND
WP8539189 WP8539189 CLIP, PIVOT
8269308 8269308 CLIP, SILVERWARE BASKET
W10539489 W10539489 CLIP, THERMOSTAT
WP8564547 WP8564547 CONTROL BOARD

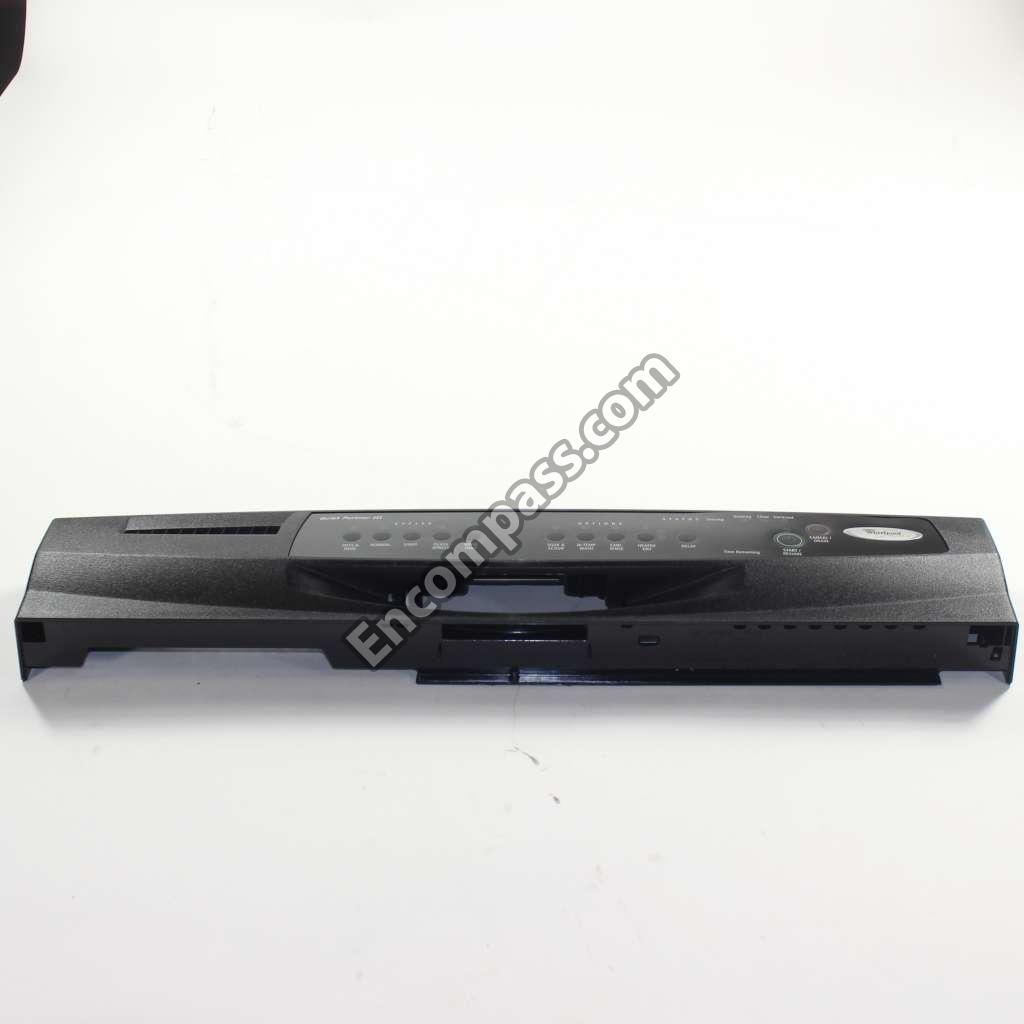

WP3385741 WP3385741 CONTROL PANEL
WP3385743 WP3385743 CONTROL PANEL
WP3385742 WP3385742 CONTROL PANEL
WPW10158350 WPW10158350 COVER CONTROL SHIELD ASSEMBLY
WP8268991 WP8268991 COVER, TERMINAL BOX
W10082809 W10082809 CUPSHELF
WP8558991 WP8558991 DEFLECTOR
W10727422 W10727422 DISHRACK
WP8558129 WP8558129 DISPENSER
WP8269206 WP8269206 DISPLAY
W10542314 W10542314 DOOR SEAL
8535077 8535077 DOOR, SILVERWARE BASKET
WPW10358302 WPW10358302 DRAIN LOOP WITH CHECK VALVE
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
8535400 8535400 ENERGY GUIDE
WP3400919 WP3400919 FASTENER, PUSH-IN
WPW10077863 WPW10077863 FEED TUBE ASSEMBLY (ALSO INCLUDES ITEM 3)
WP8268913 WP8268913 FLOAT & RETAINER ASSEMBLY
4396194 4396194 FLOOR MOUNT KIT
8193762 8193762 FUSE
WP8531323 WP8531323 GASKET
WP8269259 WP8269259 GASKET, VENT
8535541 8535541 GUIDE, USE & CARE TECH SHEET
8534986 8534986 HANDLE
WP8534985 WP8534985 HANDLE, LATCH
WP8534984 WP8534984 HANDLE, LATCH (BLACK)
4317824 4317824 HARD START KIT (INCLUDES POWER CORD & MISC. HARDWARE)
W10518394 W10518394 HEATER
WP8268325 WP8268325 HOLDER, FEED TUBE
WP8562006 WP8562006 HOLDER, PLATE
8269144A 8269144A HOSE, DRAIN
W10878507 W10878507 HOSE, INLET
WP8268342 WP8268342 HUB, LOWER SPRAYARM
8193951A 8193951A IMPELLER
8539154 8539154 INDICATOR
WP8269311 WP8269311 INNER DOOR (ALSO ORDER ITEM 6)
8535437 8535437 INSTRUCTIONS, INSTALLATION
WPW10073520 WPW10073520 INSULATION, DOOR (FOR MODEL KUDS01DJSS1)
8212488RC 8212488RC KIT, INSTALLATION (INCLUDES POWER CORD, 6 FT. FILL HOSE AND NECESSARY HARDWARE FOR INSTALLATION)
WP8558307 WP8558307 KNOB, DISPENSER
WP8539118 WP8539118 LATCH ASSEMBLY
WP8268892 WP8268892 LEVER, OVERFLOW SWITCH
8193716 8193716 LEVLER-LEG
8535078 8535078 LID
W10311986 W10311986 LOWER RACK ASSEMBLY (INCLUDES ITEM 3)
WPW10258150 WPW10258150 MANIFOLD
WPW10292170 WPW10292170 MISCELLANOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS)
WPW10757217 WPW10757217 MOTOR ASSEMBLY
WP8268321 WP8268321 MOUNT
W11157083 W11157083 MOUNT, WHEEL
100000 100000 NOTE: IF HEATER ELEMENT IS REMOVED, IT MUST BE REPLACED.
8533949 8533949 NUT
WPW10477552 WPW10477552 NUT (2) (HEATER TERMINAL)
WPW10508676 WPW10508676 NUT-TUBE
WP8268961 WP8268961 PAD, FRICTION
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
W10301571 W10301571 PANEL
W10909064 W10909064 PANEL
4396199 4396199 PANEL
W10384707 W10384707 PANEL FRONT (BISCUIT)
W10301577 W10301577 PANEL FRONT (STAINLESS)
WPW10274970 WPW10274970 PANEL FRONT (WHITE)
8171656 8171656 PANL
8171657 8171657 PANL
8171658 8171658 PANL
8171659 8171659 PANL
WP8539119 WP8539119 POSITIONER
WPW10082831 WPW10082831 PROBE
WP8531857 WP8531857 PROTECTOR
WP661658 WP661658 PUMP, DRAIN
WP9741232 WP9741232 RETAINER
8268391 8268391 SCREEN, SEPARATION
3400217 3400217 SCREW
WP3400014 WP3400014 SCREW
WP3400892 WP3400892 SCREW
W10817436 W10817436 SCREW
WP304231 WP304231 SCREW
WP489069 WP489069 SCREW
WP3400412 WP3400412 SCREW
3369181 3369181 SCREW
WP681414 WP681414 SCREW
WP3400836 WP3400836 SCREW
WPW10177098 WPW10177098 SCREW
WPW10348409 WPW10348409 SCREW
WPW10349488 WPW10349488 SCREW
WP489443 WP489443 SCREW
3400069 3400069 SCREW
WPW10503550 WPW10503550 SCREW (BISCUIT)
WPW10503549 WPW10503549 SCREW (WHITE)
WP302868 WP302868 SCREW, 8-18 X 1/2 (2)
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP8269296 WP8269296 SEAL
WP8269258 WP8269258 SEAL, FRONT
WP8268433 WP8268433 SEAL, SPRAYARM
WP8268340 WP8268340 SEAL, SPRAYARM
W11622922 W11622922 SEAL, VOLUTE
W10877094 W10877094 SHIELD
WP8531865 WP8531865 SHIELD
W10831329 W10831329 SHIELD
8283527 8283527 SHIELD
8534946 8534946 SHIELD
W11158802 W11158802 SILVERWARE, BASKET ASSEMBLY
8193983 8193983 SPINNER
350930 350930 SPRAY (13 OZ.) (WHITE)
WP8269024 WP8269024 SPRAYARM
WPW10337934 WPW10337934 SPRING, DOOR BALANCE
WPW10175383 WPW10175383 STANDPIPE, OVERFILL
WP8268983 WP8268983 STIFFENER, DOOR
WP8565925 WP8565925 STOP
WP8580309 WP8580309 STRIKE
W10782773 W10782773 SUMP & MOTOR ASSEMBLY (INCLUDES ITEM 15)
WP8534882 WP8534882 SUMP, WITH SEAL
WP8269209 WP8269209 SWITCH, DOOR
WP8268909 WP8268909 SWITCH, OVERFILL CONTROL
8542575 8542575 SWITCH, PRESSURE
WPW10300599 WPW10300599 TAB, SUMP
8535451 8535451 TECH SHEET
WP8269208 WP8269208 THERMISTER
WP661566 WP661566 THERMOSTAT
W10727426 W10727426 TINE-ROW
W10586592 W10586592 TOE PANEL (BISCUIT)
W10871196 W10871196 TOE PANEL (INCLUDES ITEM 11) (BLACK)
WPW10586591 WPW10586591 TOE PANEL (INCLUDES ITEM 11) (WHITE)
WP3385089 WP3385089 TRACK
W10413848 W10413848 TUB-DISHWR
WP8268375 WP8268375 VALVE-CHEK
WP8531669 WP8531669 VALVE-INLT
WP8545533 WP8545533 VENT ASSEMBLY (ALSO ORDER ITEM 6)
WP3378128 WP3378128 WASHER
WP8531018 WP8531018 WASHER
WP717273 WP717273 WASHER, RUBBER
WPW10195536 WPW10195536 WATER INLET ASSEMBLY (ALSO ORDER ITEM 4)
WP8270016 WP8270016 WHEEL & MOUNT ASSEMBLY
WP8268645 WP8268645 WHEEL & TRANSPORT ASSEMBLY (4)
WP8269831 WP8269831 WHEEL LEG
WP8534931 WP8534931 WIRING HARNESS & PROTECTOR
