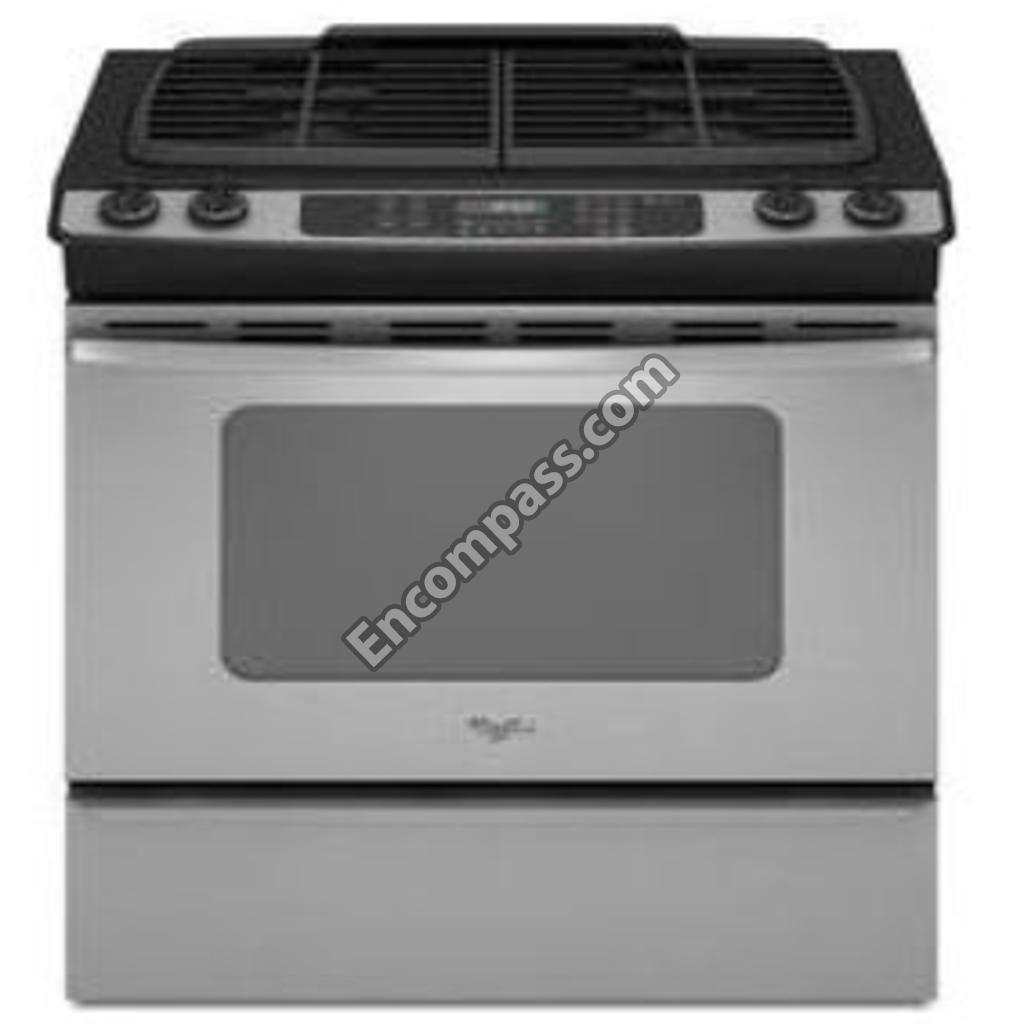

Model Image
Manufacturer

Whirlpool

Model Number

GW397LXUS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3804F294-51 3804F294-51 BACK-MAIN
W10179632 W10179632 BAFFLBRNR
3601F373-51 3601F373-51 BAFFLE
3601F307-45 3601F307-45 BAFFLE, BROIL
74001219 74001219 BAFFLE, OVEN FRONT
W10179527 W10179527 BAFFLEVNT
WP2205F054-19 WP2205F054-19 BOTTM-OVEN
WP3801F656-51 WP3801F656-51 BRACKET
3801F887-51 3801F887-51 BRACKET, DRAWER
3801F832-45 3801F832-45 BRACKET, HANDLE (LEFT)
3801F831-45 3801F831-45 BRACKET, HANDLE (RIGHT)
3801F886-51 3801F886-51 BRKT-MNTG
W10160655 W10160655 BRKT-MNTG
3801F951-51 3801F951-51 BRKT-SUPPT
7505P293-60 7505P293-60 BURNER, BROIL
74003960 74003960 BURNER- BA
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406797 WPW10406797 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD
7504P295-60 7504P295-60 CAP, BURNER WETSTONE (LEFT FRONT & CENTER REAR)
7504P294-60 7504P294-60 CAP, BURNER WETSTONE (LEFT REAR)
7504P296-60 7504P296-60 CAP, BURNER WETSTONE (RIGHT REAR & CENTER FRONT)
WP7504P300-60 WP7504P300-60 CAP-BURNER
WP7504P298-60 WP7504P298-60 CAP-BURNER
WP7504P299-60 WP7504P299-60 CAP-BURNER
4011F528-51 4011F528-51 CHASSIS
7112P034-60 7112P034-60 CLIP, GLASS
W10168551 W10168551 CNVRSN-KIT
WPW10177195 WPW10177195 CONTROL BOARD
WP7720P531-60 WP7720P531-60 CONTROL PANEL
2001M231-88 2001M231-88 COOKTOP
2001M231-09 2001M231-09 COOKTOP (BLACK)
2001M231-81 2001M231-81 COOKTOP (WHITE)
74004438 74004438 CORD- POWE
74005465 74005465 COVER VAL
4005F421-45 4005F421-45 COVER, IGNITOR WIRE
4005F750-51 4005F750-51 COVER- DOO
4005F810-51 4005F810-51 COVR-ACESS
W10177264 W10177264 DEFLCTR-VT
W10177265 W10177265 DEFLCTR-VT
WPW10144883 WPW10144883 DOOR HANDLE
WPW10118430 WPW10118430 DOOR HANDLE
WP3608F117-70 WP3608F117-70 DOOR TRIM
WP3608F116-70 WP3608F116-70 DOOR TRIM
74008333 74008333 DRAWER, SERVICE
3826F066-51 3826F066-51 EXTENSION-
WPW10586440 WPW10586440 FAN-BLWR
WP74010901 WP74010901 FITTING- B
8026P095-60 8026P095-60 FLUE-OVEN
241430 241430 FOIL, ALUMINIUM OVEN (18`` X 25``)
W10168886 W10168886 FOIL-DOOR
WPW10162384 WPW10162384 GASKT-DOOR
WPW10170230 WPW10170230 GLASS, INCLUDES GLASS, TAPE & LOGO (BISCUIT)
WPW10176723 WPW10176723 GLASS, INCLUDES GLASS, TAPE & LOGO (BLACK)
74003645 74003645 GLASS-DOOR
74004857 74004857 GLASS-DOOR
WPW10176724 WPW10176724 GLASS-DOOR
WPW10177379 WPW10177379 GRATE-BRNR
W10177293 W10177293 GRATE-BRNR
261582 261582 GREASE
74010849 74010849 HARNESS S
W11246369 W11246369 HARNS-WIRE
W10173467 W10173467 HARNS-WIRE
W10160394 W10160394 HARNS-WIRE
W10160396 W10160396 HARNS-WIRE
74011142 74011142 HINGE- OVE
W10118431 W10118431 HNDLE-DOOR
W10118432 W10118432 HNDLE-DOOR
WPW10407681 WPW10407681 HOLDER-ORF
WPW10407680 WPW10407680 HOLDER-ORF
WPW10407679 WPW10407679 HOLDER-ORF
WP7432P136-60 WP7432P136-60 IGNTR-OVEN
74007498 74007498 IGNTR-OVEN
WP74009958 WP74009958 IGNTR-SURF
W10198662 W10198662 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
WP74010043 WP74010043 INSULATION
100000 100000 INSULATION
7002P443-60 7002P443-60 INSULATION
74010987 74010987 INSULATION
7002P246-60 7002P246-60 INSULATION
74011048 74011048 INSULATION
W10165725 W10165725 INSULATION
7002P078-60 7002P078-60 INSULATION, DRAWER
799832 799832 KIT, PORCELAIN REPAIR (WHITE)

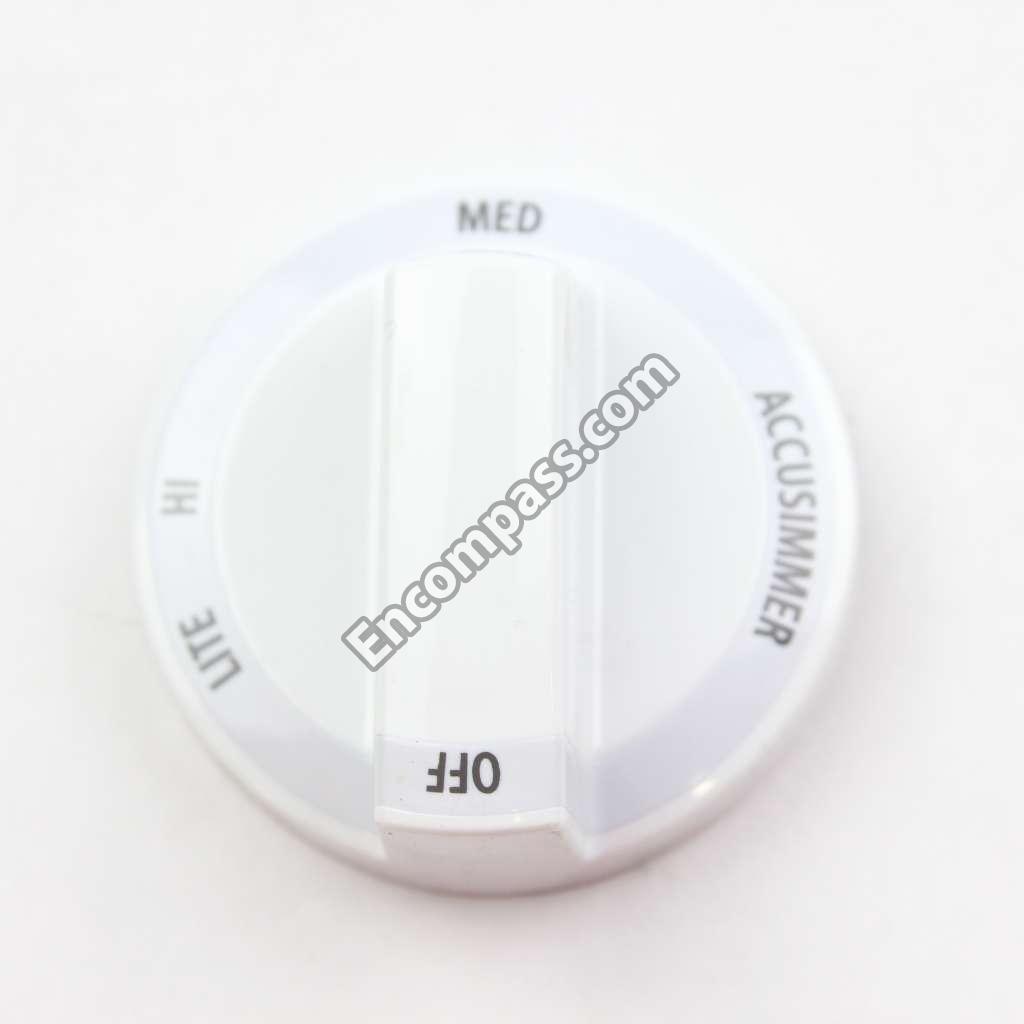

W10177197 W10177197 KNOB
W10177198 W10177198 KNOB
WP7733P526-60 WP7733P526-60 KNOB
W10177201 W10177201 KNOB
W10177202 W10177202 KNOB
W10177203 W10177203 KNOB
WP7407P182-60 WP7407P182-60 LAMP-ASM
74010819 74010819 LATCH ASY
8009 8009 LIGHT BULB
WP2402W312-19 WP2402W312-19 LINER-DOOR
2404F030-51 2404F030-51 LINING, DRAWER
W10177097 W10177097 MANIFOLD
WPW10207928 WPW10207928 MEMBRANE SWITCH
WPW10207930 WPW10207930 MEMBRANE SWITCH
WPW10207932 WPW10207932 MEMBRANE SWITCH
W10175320 W10175320 NAMEPLATE
WP488130 WP488130 NUT
74005230 74005230 NUT
7103P030-60 7103P030-60 NUT, WING
WP74001574 WP74001574 NUT- SNAP
W10156137 W10156137 ORIFICE
W10156136 W10156136 ORIFICE, BURNER (LEFT FRONT)
W10156836 W10156836 ORIFICE, BURNER (RIGHT FRONT)
WP4020F036-80 WP4020F036-80 OVEN, FRONT LOWER
W10198664 W10198664 OWNERS MANUAL
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
511873 511873 PAINT, TOUCH-UP (1/2OZ.) (WHITE PROCELAIN (2 OZ.))
74004465 74004465 PAN, BURNER
2618F206-51 2618F206-51 PANEL
W10185606 W10185606 PANEL, CNTL (LWR) (BLACK)
WPW10177209 WPW10177209 PANEL, CNTL SHIELD (BISCUIT)
W10279070 W10279070 PANEL, CNTL SHIELD (S.STEEL)
WPW10177205 WPW10177205 PANEL, CNTL SHIELD (WHITE)
W10279069 W10279069 PANEL, CONTROL SHIELD (STAINLESS)
2416F059-78 2416F059-78 PANEL, DRAWER FRONT (BISCUIT)
2416F059-70 2416F059-70 PANEL, DRAWER FRONT (BLACK)
WPW10253205 WPW10253205 PANEL,DRAWER FRONT (S.STEEL)
2618F201-51 2618F201-51 PANEL- SHI
2416F059-71 2416F059-71 PANEL-DRWR
W10185607 W10185607 PANL-CNTRL
W10177222 W10177222 PANL-CNTRL
WP7760P242-60 WP7760P242-60 PNL, OVEN DR(SST)
WP7801P173-60 WP7801P173-60 RACK-OVEN
WP7431P064-60 WP7431P064-60 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
WP74006035 WP74006035 REGULATOR
3804F245-51 3804F245-51 RETAINER
3804F293-45 3804F293-45 RETAINER
W10160530 W10160530 RETAINER
WP74004078 WP74004078 ROLLER- DR
W10182835 W10182835 RUNNER, DRAWER (2)
W10828565 W10828565 SCREW
WP74009541 WP74009541 SCREW
WP98008544 WP98008544 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP3387230 WP3387230 SCREW
WP8273062 WP8273062 SCREW
WP4159193 WP4159193 SCREW
WP74010805 WP74010805 SCREW
W11233072 W11233072 SCREW
74003640 74003640 SCREW
74003975 74003975 SCREW
74009538 74009538 SCREW
12001655 12001655 SENSOR
WP74005231 WP74005231 SHAFT, ROLLER
74010905 74010905 SHIELD
3604F418-51 3604F418-51 SHIELD- DO
W10166279 W10166279 SHIELD-HT
W10177095 W10177095 SHIELDHT
WP74005546 WP74005546 SPACER- RU
WP3807F708-78 WP3807F708-78 SUPPORT
WP3807F708-71 WP3807F708-71 SUPPORT
WP3807F708-70 WP3807F708-70 SUPPORT
W10177006 W10177006 SUPPORT, BAKE BNR
3807F752-45 3807F752-45 SUPPORT, SPARK MOD
74007129 74007129 SUPPORT- V
7450P030-60 7450P030-60 SWTCH-LMIT
WP74004224 WP74004224 TAPE
74003664 74003664 TAPE, FOIL
WP3608F138-70 WP3608F138-70 TRIM- SIDE
3608F138-78 3608F138-78 TRIM- SIDE
WP3608F116-71 WP3608F116-71 TRIM-DOOR
WP3608F117-71 WP3608F117-71 TRIM-DOOR
WP3608F116-78 WP3608F116-78 TRIM-DOOR
WP3608F117-78 WP3608F117-78 TRIM-DOOR
WP3608F141-71 WP3608F141-71 TRIM-DOOR
3608F141-70 3608F141-70 TRIM-DOOR
WP3608F138-71 WP3608F138-71 TRIM-SIDE
W10177497 W10177497 TRIMDOOR
W10177107 W10177107 TUBE-BRNR
W10177105 W10177105 TUBE-BRNR
W10177103 W10177103 TUBE-BRNR
W10177104 W10177104 TUBE-BRNR
7506P535-60 7506P535-60 TUBING-GAS
W10177238 W10177238 TUBING-GAS
W10836481 W10836481 VALVE-BRNR
WPW10290838 WPW10290838 VALVE-BRNR
WP7501P232-60 WP7501P232-60 VALVE-OVEN
