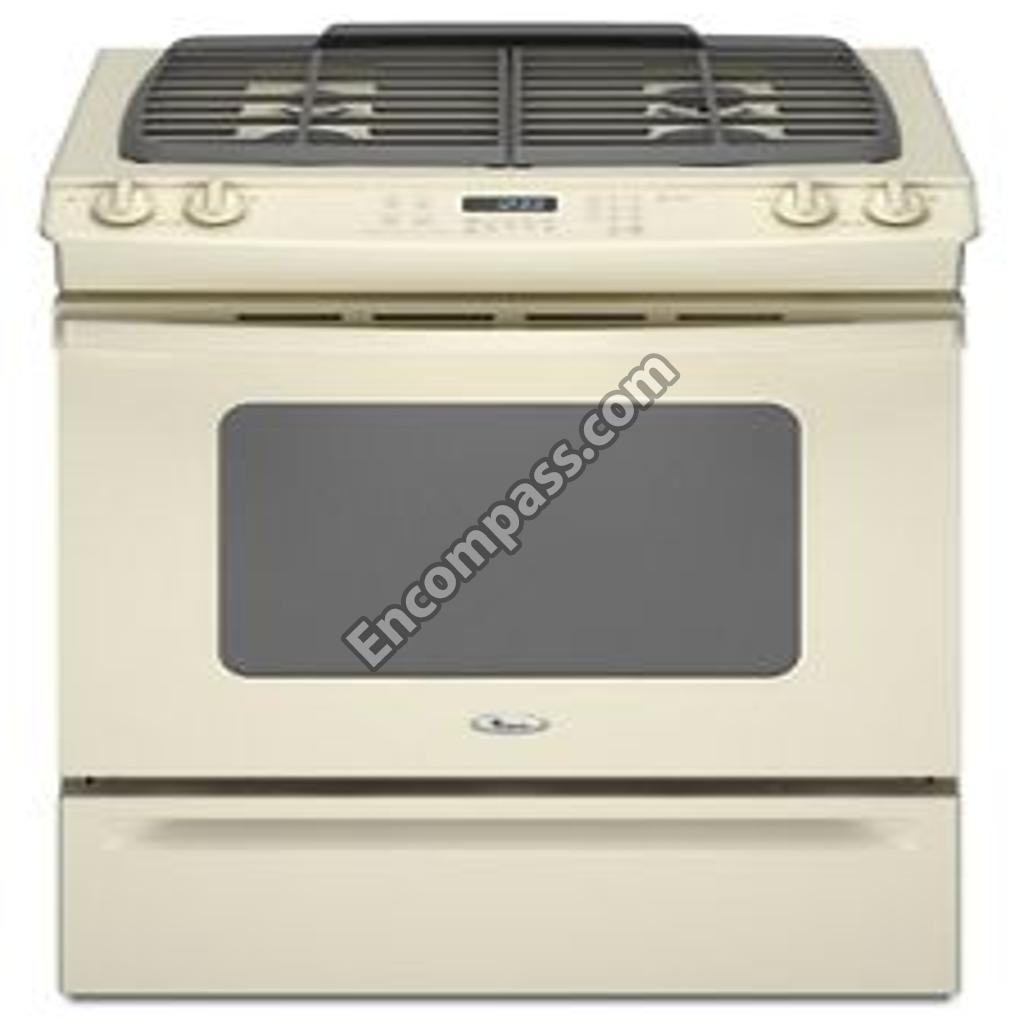

Model Image
Manufacturer

Whirlpool

Model Number

GW397LXUT06

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10355051 W10355051 AFFRESH COOKTOP CLEANER
W11042467 W11042467 AFFRESH STAINLESS STEEL CLEANE
W10355049 W10355049 AFFRESH STAINLESS STEEL CLEANE
3804F294-51 3804F294-51 BACK, MAIN GAS
3601F239-45 3601F239-45 BAFFLE (BAKE)
3601F307-45 3601F307-45 BAFFLE (BROIL)
3601F251-45 3601F251-45 BAFFLE, OVEN FRONT
3601F373-51 3601F373-51 BAFFLE, RETAINER
3601F221-45 3601F221-45 BAFFLE, VENT COVER
WP2205F054-19 WP2205F054-19 BOTTM-OVEN
4011F528-51 4011F528-51 BOTTOM, BURNER BOX
WP3801F656-51 WP3801F656-51 BRACKET
3801F887-51 3801F887-51 BRACKET, DRAWER
3801F886-51 3801F886-51 BRACKET, GLASS
3801F832-45 3801F832-45 BRACKET, HANDLE (LEFT)
3801F831-45 3801F831-45 BRACKET, HANDLE (RIGHT)
3801F951-51 3801F951-51 BRACKET,PWR SUPPLY
W10160655 W10160655 BRKT-MNTG
4396923 4396923 BROILER PAN & GRID (PORCELAIN)
74003960 74003960 BURNER, BAKE
7505P293-60 7505P293-60 BURNR-BRLR
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD
WPW10406797 WPW10406797 BURNR-HEAD
WPW10244448 WPW10244448 CAP-BURNER
W10336909 W10336909 CLEANER
W10355010 W10355010 CLEANER
31617A 31617A CLEANER, GAS GRATE & DRIP PAN
W10168551 W10168551 CNVRSN-KIT
WPW10177195 WPW10177195 CONTROL BOARD
9762761 9762761 COOKING TIPS (ENGLISH)
W10065852 W10065852 COOKING TIPS (FRENCH)
2001M231-81 2001M231-81 COOKTOP
2001M231-88 2001M231-88 COOKTOP
74004438 74004438 CORD, POWER
4005F620-51 4005F620-51 COVER, BNR VALVE
4005F750-51 4005F750-51 COVER, DOOR LOCK
4005F421-45 4005F421-45 COVER, IGNITOR WIRE
W10177264 W10177264 COVER, VENT
4005F810-51 4005F810-51 COVER, WIRE REAR
W10275756 W10275756 DEGREASER
W10160657 W10160657 DIAGRAM, WIRING BROCHURE, SAFE
WPW10118430 WPW10118430 DOOR HANDLE
74010819 74010819 DOOR LATCH ASY
WP3608F116-71 WP3608F116-71 DOOR TRIM
WP3608F117-71 WP3608F117-71 DOOR TRIM
WP3608F141-71 WP3608F141-71 DOOR TRIM
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
3826F066-51 3826F066-51 EXTENSION, BACK
WPW10586440 WPW10586440 FAN-BLWR
WP74010901 WP74010901 FITTING- B
8026P095-60 8026P095-60 FLUE-OVEN
241430 241430 FOIL, ALUMINUM (18`` X 25 )
7201P143-60 7201P143-60 GASKET
WPW10162384 WPW10162384 GASKT-DOOR
74003645 74003645 GLASS, INNER
WPW10170230 WPW10170230 GLASS, TAPE & LOGO (BISCUIT)
WPW10176724 WPW10176724 GLASS, TAPE & LOGO (WHITE)
WPW10177379 WPW10177379 GRATE-BRNR
4396096RB 4396096RB GRIDDLE, GOURMET
5171P560-60 5171P560-60 HARNESS,SENSOR
W10173467 W10173467 HARNS-WIRE
W10160394 W10160394 HARNS-WIRE
W10160396 W10160396 HARNS-WIRE
74011142 74011142 HINGE, OVEN DOOR
W10118432 W10118432 HNDLE-DOOR
WPW10407680 WPW10407680 HOLDER-ORF
WPW10407681 WPW10407681 HOLDER-ORF
WPW10407679 WPW10407679 HOLDER-ORF
74007498 74007498 IGNITER, OVEN
WPW10407676 WPW10407676 IGNTR-SURF
8113P681-60 8113P681-60 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
W10165725 W10165725 INSULATION, BACK
7002P078-60 7002P078-60 INSULATION, BOTTOM PLATE
7002P246-60 7002P246-60 INSULATION, DOOR
7002P443-60 7002P443-60 INSULATION, LOWER SIDE
74010987 74010987 INSULATION, WRAP
242905 242905 KIT, CANNING ELEMENT
W10177203 W10177203 KNOB, ACCUSIMMER (BISCUIT)
W10177198 W10177198 KNOB, ACCUSIMMER (WHITE)
W10177202 W10177202 KNOB, VALVE (3) (BISCUIT)
W10177197 W10177197 KNOB, VALVE (3) (WHITE)
WP7407P182-60 WP7407P182-60 LAMP-ASM
8009 8009 LIGHT BULB
WP2402W312-19 WP2402W312-19 LINER-DOOR
2404F030-51 2404F030-51 LINING, DRAWER
WPW10207930 WPW10207930 MEMBRANE SWITCH
WPW10207932 WPW10207932 MEMBRANE SWITCH
W10175320 W10175320 NAMEPLATE
WP488130 WP488130 NUT
74005230 74005230 NUT, LOCK (8-32)
7103P030-60 7103P030-60 NUT, WING
WP74001574 WP74001574 NUT- SNAP
W10156136 W10156136 ORIFICE, BURNER (LEFT FRONT)
W10156137 W10156137 ORIFICE, BURNER (LEFT REAR)
W10156836 W10156836 ORIFICE, BURNER (RIGHT FRONT)
8113P679-60 8113P679-60 OWNERS MANUAL
799344 799344 PAINT
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
3401F044-45 3401F044-45 PAN, BURNER
W10123240 W10123240 PAN-BROILR
4005F612-51 4005F612-51 PANEL, ACCESS
WPW10177209 WPW10177209 PANEL, CNTL SHIELD (BISCUIT)
WP7720P532-60 WP7720P532-60 PANEL, CNTL SHIELD (WHITE)
2618F201-51 2618F201-51 PANEL, SHIELD (LEFT)
2618F206-51 2618F206-51 PANEL, SHIELD (RIGHT)
2416F059-78 2416F059-78 PANEL,DRAWER FRONT (BISCUIT)
2416F059-71 2416F059-71 PANEL,DRAWER FRONT (WHITE)
W10185607 W10185607 PANL-CNTRL
W10185609 W10185609 PANLCNTRL
4020W035-80 4020W035-80 PEDESTAL, BOTTOM
WP4020F036-80 WP4020F036-80 PEDESTAL, FRONT
W10177097 W10177097 PIPE, MANIFOLD
3605F269-45 3605F269-45 PLATE, FITTING BROIL
31463 31463 PROTECTANT,COOKTOP
4396927 4396927 RACK, SPLIT OVEN
WP7801P173-60 WP7801P173-60 RACK-OVEN
WP7431P064-60 WP7431P064-60 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
WP74006035 WP74006035 REGULATOR
W10160530 W10160530 RETAINER
3804F245-51 3804F245-51 RETAINER, BOTTOM
WP74004078 WP74004078 ROLLER- DR
W10182835 W10182835 RUNNR-DRWR
WA906B WA906B SCRAPER, COOKTOP
W11347848 W11347848 SCREW
WP98008544 WP98008544 SCREW
WP74009541 WP74009541 SCREW
W11111008 W11111008 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP8273062 WP8273062 SCREW
WP4159193 WP4159193 SCREW
WPY706189 WPY706189 SCREW
WP74010805 WP74010805 SCREW
WP90767 WP90767 SCREW
W11233072 W11233072 SCREW
W11396735 W11396735 SCREW
74003640 74003640 SCREW, SHOULDER
12001655 12001655 SENSOR
WP74005231 WP74005231 SHAFT, ROLLER
3604F326-45 3604F326-45 SHIELD, DRAWER
3604F327-51 3604F327-51 SHIELD, HEAT POUCH
3604F416-51 3604F416-51 SHIELD, LOWER SIDE
W10166279 W10166279 SHIELD-HT
74010267 74010267 SPACER, RUBBER (1/8 X 1/2 X 1/2)
WP74005546 WP74005546 SPACER- RU
WP3807F708-71 WP3807F708-71 SUPPORT
WP3807F708-78 WP3807F708-78 SUPPORT
3807F480-45 3807F480-45 SUPPORT, BAKE BNR
WP3807F769-51 WP3807F769-51 SUPPORT, CNTRL PNL
3807F727-45 3807F727-45 SUPPORT, OVEN BOTTOM
3807F752-45 3807F752-45 SUPPORT, SPARK MOD
3807F640-51 3807F640-51 SUPPORT, VALVE/REG
WP7450P108-60 WP7450P108-60 SWTCH-LITE
7450P030-60 7450P030-60 SWTCH-LMIT
WP3608F117-78 WP3608F117-78 TRIM, DOOR SIDE (LEFT (BISCUIT))
WP3608F116-78 WP3608F116-78 TRIM, DOOR SIDE (RIGHT (BISCUIT))
3608F141-78 3608F141-78 TRIM, DOOR TOP (BISCUIT)
3608F138-78 3608F138-78 TRIM, SIDE (BISCUIT)
WP3608F138-71 WP3608F138-71 TRIM-SIDE
W10177238 W10177238 TUBE, BROIL
W10177105 W10177105 TUBE, BURNER (LF)
W10177107 W10177107 TUBE, BURNER (LR)
W10177103 W10177103 TUBE, BURNER (RF)
W10177104 W10177104 TUBE, BURNER (RR)
7506P535-60 7506P535-60 TUBING-GAS
W10836481 W10836481 VALVE-BRNR
WPW10290838 WPW10290838 VALVE-BRNR
WP7501P232-60 WP7501P232-60 VALVE-OVEN
W11246369 W11246369 WIRE HARNESS
