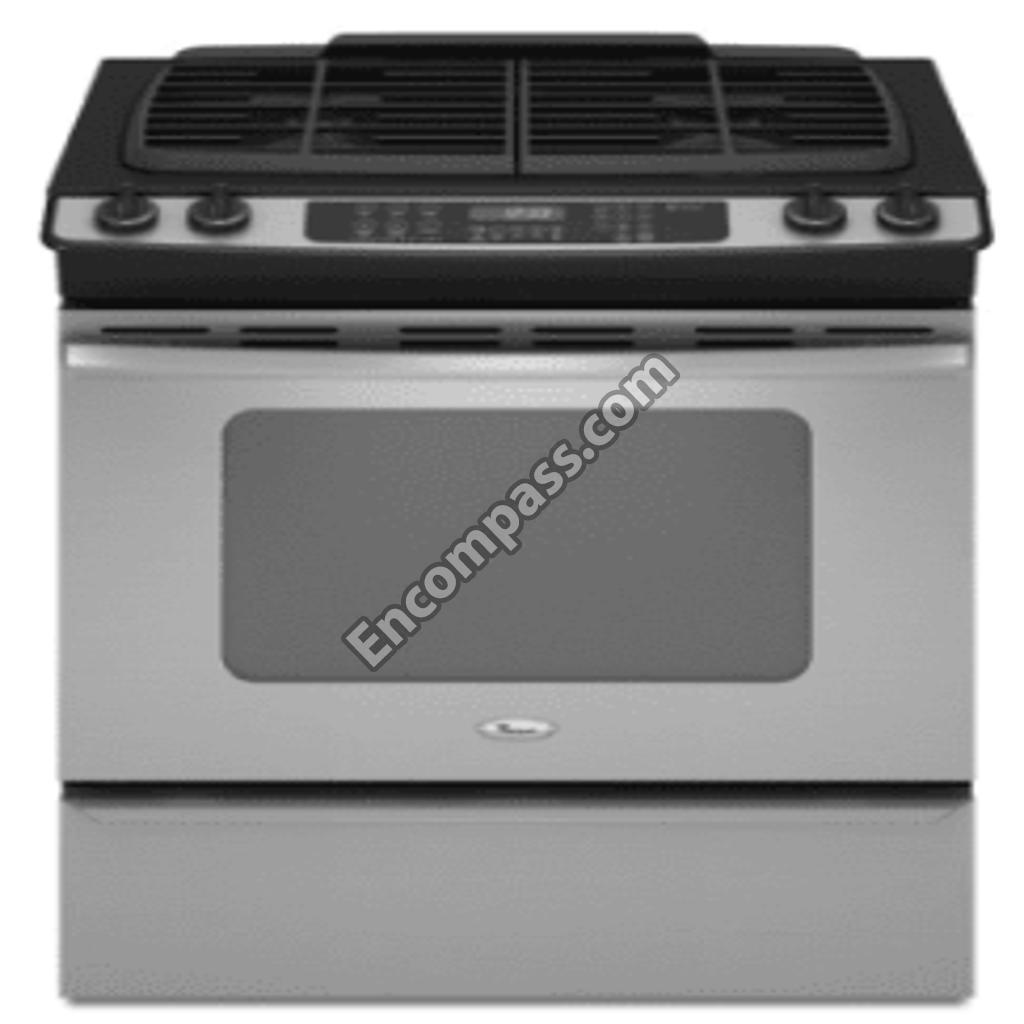

Model Image
Manufacturer

Whirlpool

Model Number

GW399LXUS05

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241430 241430 ACCESSORY PARTS, ALUMINUM FOIL
3804F294-51 3804F294-51 BACK, MAIN
3601F239-45 3601F239-45 BAFFLE, BAKE BURNER
3601F307-45 3601F307-45 BAFFLE, BROIL BURNER
3601F373-51 3601F373-51 BAFFLE, OVEN DOOR WINDOW
3601F251-45 3601F251-45 BAFFLE, OVEN FRONT
3601F221-45 3601F221-45 BAFFLE, VENT COVER
8255P412-60 8255P412-60 BLOCK
WP2205F054-19 WP2205F054-19 BOTTM-OVEN
4011F528-51 4011F528-51 BOTTOM, BURNER BOX
WP3801F656-51 WP3801F656-51 BRACKET
3801F887-51 3801F887-51 BRACKET, DRAWER
3801F886-51 3801F886-51 BRACKET, GLASS
3801F951-51 3801F951-51 BRACKET, POWER SUPPLY
W10160655 W10160655 BRKT-MNTG
74003960 74003960 BURNER, BAKE
7505P293-60 7505P293-60 BURNR-BRLR
WPW10406797 WPW10406797 BURNR-HEAD
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD

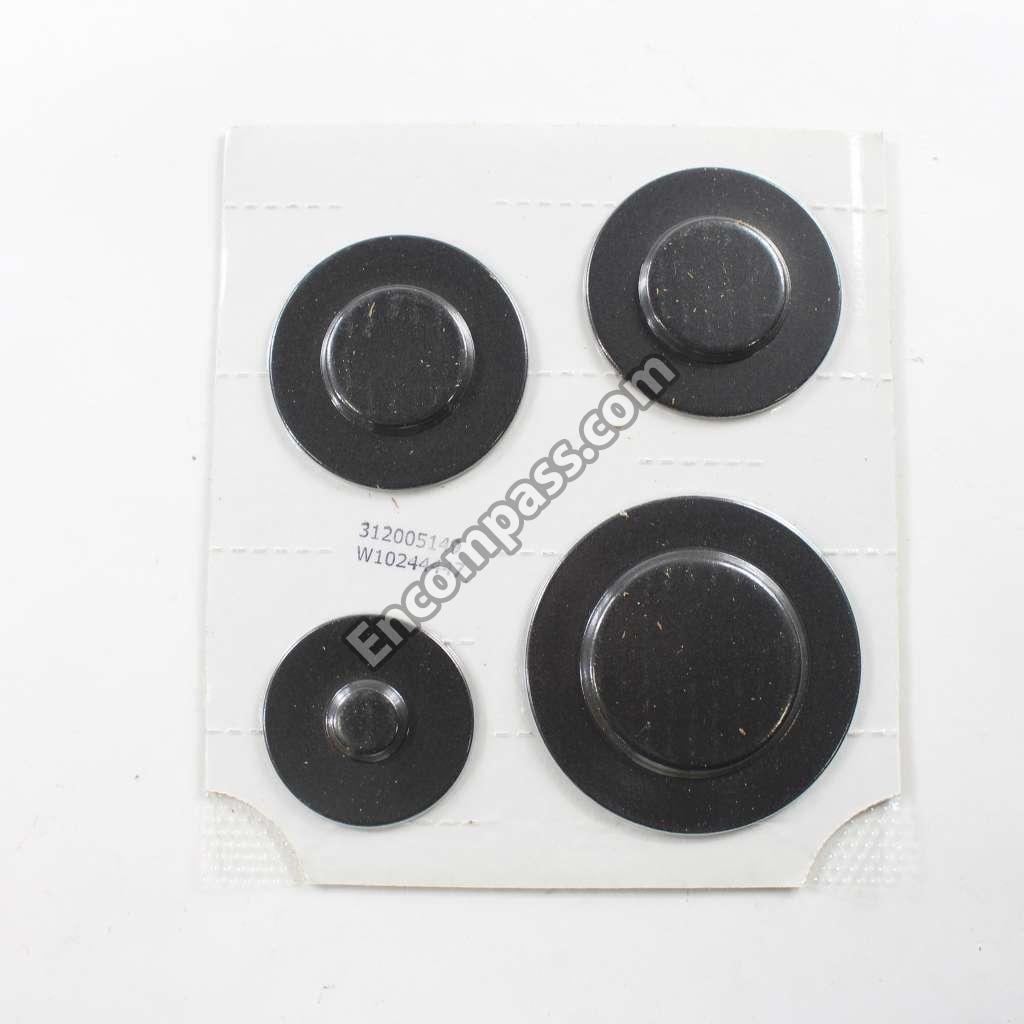

WPW10244447 WPW10244447 CAP-BURNER
7112P034-60 7112P034-60 CLIP, DOOR GLASS
W10168551 W10168551 CNVRSN-KIT

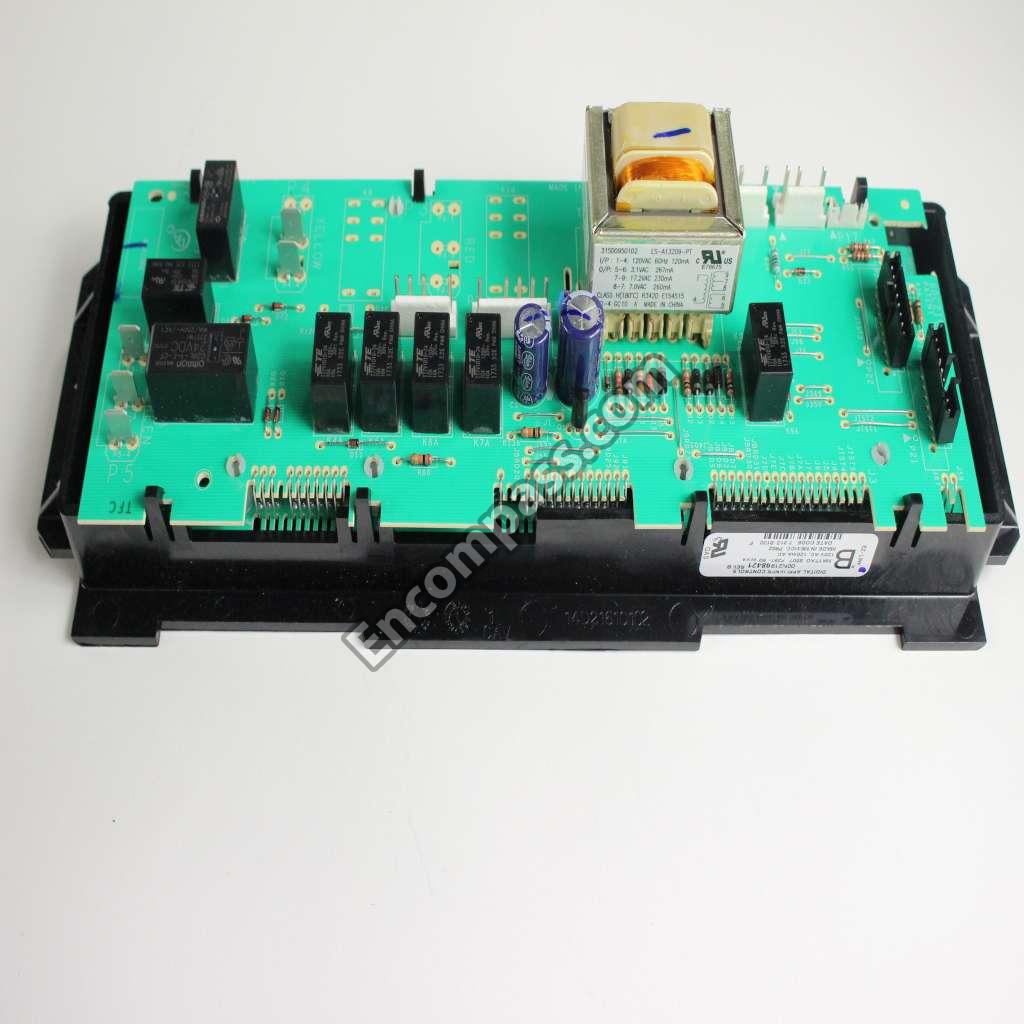

WP8507P391-60 WP8507P391-60 CONTROL BOARD
2001M231-09 2001M231-09 COOKTOP (BLACK)
74004438 74004438 CORD, POWER
WPW10346154 WPW10346154 COVER
4005F810-51 4005F810-51 COVER, BOTTOM WIRE
4005F750-51 4005F750-51 COVER, DOOR LOCK
4005F421-45 4005F421-45 COVER, IGNITOR WIRE
W10177265 W10177265 COVER, VENT
W10271712 W10271712 COVR-ACESS
WPW10144883 WPW10144883 DOOR HANDLE
74010819 74010819 DOOR LATCH ASY
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
3826F066-51 3826F066-51 EXTENSION, MAIN BACK
WPW10206590 WPW10206590 FAN-CONVCT
WP74010901 WP74010901 FITTING- B
8026P095-60 8026P095-60 FLUE-OVEN
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
7201P143-60 7201P143-60 GASKET, TOP
WP74009029 WP74009029 GASKET- DO
WPW10162384 WPW10162384 GASKT-DOOR
74003645 74003645 GLASS, INNER
74004857 74004857 GLASS, INNER CLEAR
W10177293 W10177293 GRATE, BURNER (2) (BLACK)
8113P679-60 8113P679-60 GUIDE, USE & CARE
WPW10180296 WPW10180296 HANDLE, DRAWER (STAINLESS)
W10173467 W10173467 HARNS-WIRE
W10160396 W10160396 HARNS-WIRE
W10160395 W10160395 HARNS-WIRE
W10348629 W10348629 HARNS-WIRE
74011142 74011142 HINGE, OVEN DOOR
74010961 74010961 HOLDER, ORIFICE (12K)
WPW10407679 WPW10407679 HOLDER-ORF
WPW10407678 WPW10407678 HOLDER-ORF
WPW10407680 WPW10407680 HOLDER-ORF
74007498 74007498 IGNITER, OVEN
WPW10110378 WPW10110378 IGNTR-SURF
8113P681-60 8113P681-60 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
WP74010043 WP74010043 INSULATION
WP7002P451-60 WP7002P451-60 INSULATION
W10165725 W10165725 INSULATION, BACK
7002P078-60 7002P078-60 INSULATION, DRAWER/SHIELD
74011048 74011048 INSULATION, FOIL
7002P443-60 7002P443-60 INSULATION, OVEN BOTTOM
7002P246-60 7002P246-60 INSULATION, OVEN DOOR
74010987 74010987 INSULATION, OVEN WRAP
WP7733P526-60 WP7733P526-60 KNOB
W10177201 W10177201 KNOB, ACCUSIMMER (BLACK)
WP7407P182-60 WP7407P182-60 LAMP-ASM
8009 8009 LIGHT BULB
WP2402W312-19 WP2402W312-19 LINER-DOOR
2404F030-51 2404F030-51 LINING, DOOR

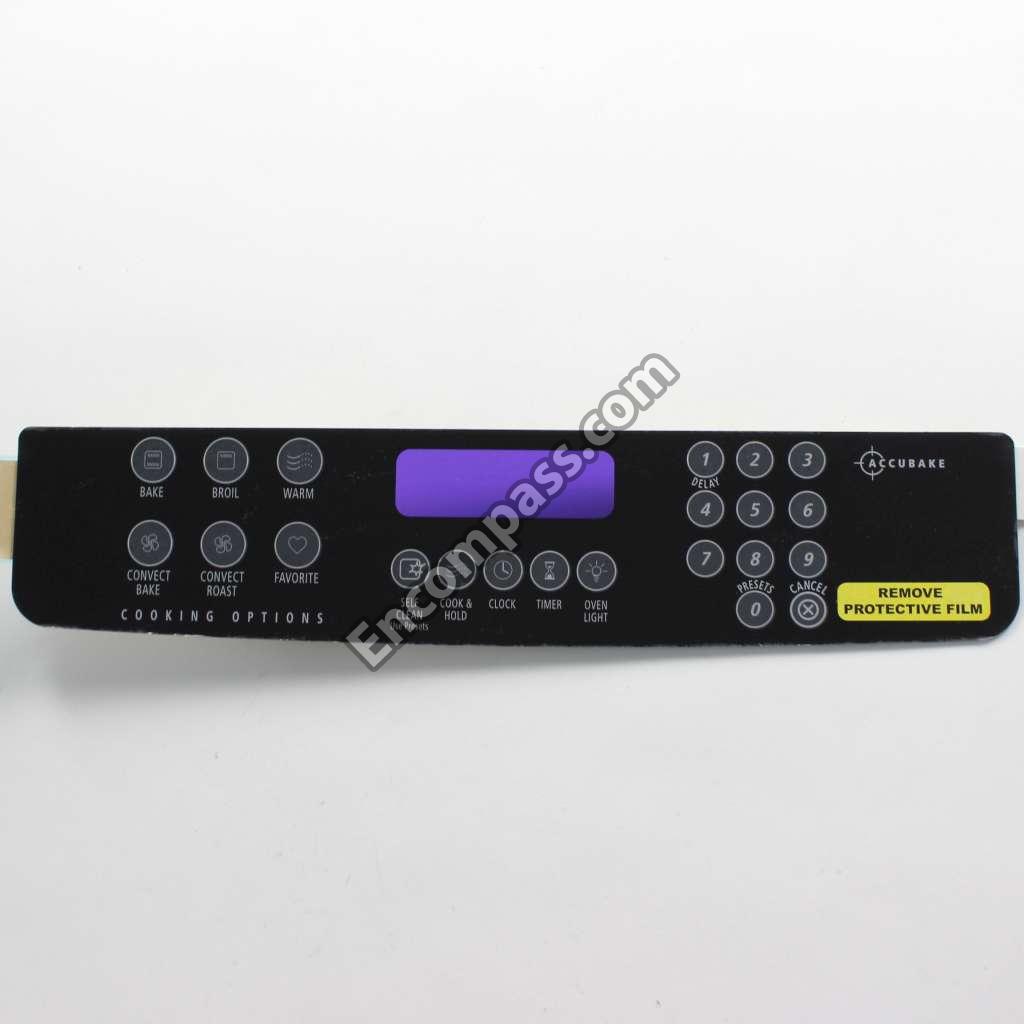

WPW10207933 WPW10207933 MEMBRANE SWITCH
W10175320 W10175320 NAMEPLATE
WP488130 WP488130 NUT
WP74001574 WP74001574 NUT- SNAP
799344 799344 PAINT
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
3401F044-45 3401F044-45 PAN, BURNER
4005F612-51 4005F612-51 PANEL, ACCESS
WPW10253205 WPW10253205 PANEL, DRAWER FRONT (STAINLESS)
2618F201-51 2618F201-51 PANEL, SHIELD (LEFT)
2618F206-51 2618F206-51 PANEL, SHIELD (RIGHT)
W10279069 W10279069 PANL-CNTRL
W10185606 W10185606 PANL-CNTRL
W10177097 W10177097 PIPE, MANIFOLD
WPW10273862 WPW10273862 RACK-OVEN
WP7801P173-60 WP7801P173-60 RACK-OVEN
W10275560 W10275560 RACK-OVEN
WP7431P064-60 WP7431P064-60 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
WP74006035 WP74006035 REGULATOR
W10160530 W10160530 RETAINER
3804F293-45 3804F293-45 RETAINER, GLASS
3804F317-80 3804F317-80 RETAINER, GLASS
3804F308-51 3804F308-51 RETAINER, GLASS (LEFT)
3804F307-51 3804F307-51 RETAINER, GLASS (RIGHT)
3804F300-51 3804F300-51 RETAINER, INSULATION
3804F245-51 3804F245-51 RETAINER, INSULATION
WPW10272883 WPW10272883 ROLLER
W10182835 W10182835 RUNNR-DRWR
W11233072 W11233072 SCREW
WP4159193 WP4159193 SCREW
WP8273062 WP8273062 SCREW
WP90767 WP90767 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74010805 WP74010805 SCREW
W11347848 W11347848 SCREW
WP59002061 WP59002061 SCREW
74003975 74003975 SCREW (8ABX3/8-BLK)
74003640 74003640 SCREW, SHOULDER
12001655 12001655 SENSOR
WP74005231 WP74005231 SHAFT, ROLLER
3604F418-51 3604F418-51 SHIELD
3604F416-51 3604F416-51 SHIELD, LOWER
3604F326-45 3604F326-45 SHIELD, WARMING DRAWER
W10166279 W10166279 SHIELD-HT
WP74005546 WP74005546 SPACER- RU
WP7760P242-60 WP7760P242-60 STAINLESS
3807F480-45 3807F480-45 SUPPORT, BAKE BURNER
WP3807F769-51 WP3807F769-51 SUPPORT, CONTROL PANEL
3807F640-51 3807F640-51 SUPPORT, REGULATOR VALVE
3807F752-45 3807F752-45 SUPPORT, SPARK MODULE
WP7450P108-60 WP7450P108-60 SWTCH-LITE
7450P030-60 7450P030-60 SWTCH-LMIT
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)
WP3608F138-70 WP3608F138-70 TRIM-SIDE
W10177238 W10177238 TUBE, BROIL
W10177105 W10177105 TUBE, BURNER (LEFT FRONT)
W10177107 W10177107 TUBE, BURNER (LEFT REAR)
W10177103 W10177103 TUBE, BURNER (RF)
W10177104 W10177104 TUBE, BURNER (RIGHT REAR)
7506P535-60 7506P535-60 TUBING-GAS
W10836481 W10836481 VALVE-BRNR
WPW10290838 WPW10290838 VALVE-BRNR
WP7501P232-60 WP7501P232-60 VALVE-OVEN
7103P030-60 7103P030-60 WING NUT
W11246369 W11246369 WIRE HARNESS
W10160657 W10160657 WIRING DIAGRAM (ENGLISH)
W10170430 W10170430 WIRING DIAGRAM (FRENCH)
