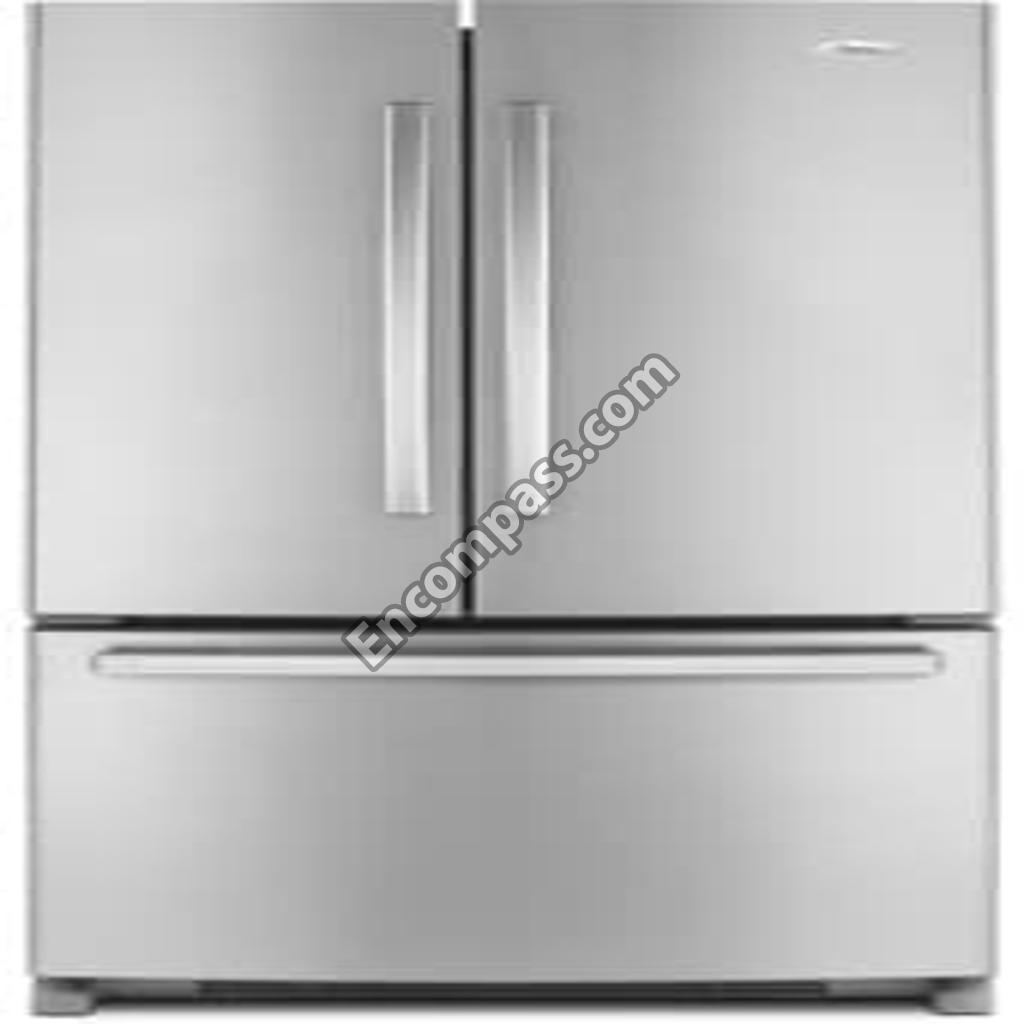

Model Image
Manufacturer

Whirlpool

Model Number

GX2FHDXVY08

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10318914 W10318914 ARM-EJECTR
WPW10378255 WPW10378255 ARM-SHUT
WPW10122563 WPW10122563 ARM-STRIPR
67006434 67006434 AXLE, ROLLER (2)
WPW10348238 WPW10348238 BASKET, FREEZER (UPPER)
WP627985 WP627985 BIMETL-DEF
WPW10351081 WPW10351081 BIN CONTROL LEVER
WP12918704 WP12918704 BIN CONTROL LEVER
WPW10371194 WPW10371194 BIN CONTROL LEVER
WP12825803 WP12825803 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
WP12227303WD WP12227303WD BRACE- CRI
WP2256087 WP2256087 BRACKET
WPW10284684 WPW10284684 BRACKET
WPW10284685 WPW10284685 BRACKET
WPW10280608 WPW10280608 BRACKET
WPW10280613 WPW10280613 BRACKET
WPW10330995 WPW10330995 BRACKET
WPW10330994 WPW10330994 BRACKET
W10348259 W10348259 BRACKET
W10348260 W10348260 BRACKET
N_P N_P CABINET (NOT A SERVICABLE PART)
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11456069 W11456069 CLAMP
W10281329 W10281329 CLAMP
10526701 10526701 CLAMP, WIRE
W10485986 W10485986 CLAMP-TUBE
31462A 31462A CLEANER, 10 OZ. STAINLESS STEEL
WP628379 WP628379 CLIP
W11673433 W11673433 CLIP
W11092534 W11092534 CLIP
13058002 13058002 CLIP, EVAP. MOTOR
10623002 10623002 CLIP, EVAPORATOR
WPM0114003 WPM0114003 CLIP- SPEE
WP12028505AP WP12028505AP CLOSER
W10233960 W10233960 COMPRESSOR
WPW10346420 WPW10346420 CONDENSER
WPW10196393 WPW10196393 CONTROL
WPW10503278 WPW10503278 CONTROL BOARD
W11284721 W11284721 COVER
WPW10191117 WPW10191117 COVER
WPW10337648 WPW10337648 COVER
12726003 12726003 COVER, WATER LINE
WP67003924 WP67003924 COVER- FZ
WPW10210979 WPW10210979 COVER-BACK
WP12806701 WP12806701 COVER-BOX
W10308415 W10308415 COVER-EVAP
W10377174 W10377174 COVER-FRNT
W10208592 W10208592 COVER-VALV
WP67002633 WP67002633 CRISPER PAN
W10410073 W10410073 CUP-FILL
12225602 12225602 DAM (LEFT SIDE)
12225702 12225702 DAM (RIGHT SIDE)
W10157765 W10157765 DEFLECTOR
W10847995 W10847995 DIVIDER
W10241046 W10241046 DIVIDER
W10311695 W10311695 DIVIDER
WP67001923 WP67001923 DIVIDER- P
13107856SQ 13107856SQ DOOR ASSEMBLY SS
13107861SQ 13107861SQ DOOR ASSEMBLY SS
12977869SQ 12977869SQ DOOR ASSEMBLY SS
W11592374 W11592374 DOOR HINGE
W10917988 W10917988 DOOR HINGE
W11592375 W11592375 DOOR HINGE
WP67003637 WP67003637 DOOR-COMP
WP12722803AP WP12722803AP DRAWER SLIDE RAIL
WPW10328326 WPW10328326 DRAWER, PANTRY
WPW10143759 WPW10143759 DRIER-UV
W10260546 W10260546 ENERGY GUIDE
W11459354 W11459354 EVAPORATOR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
WP12587703AP WP12587703AP FILLER
WPW10568041 WPW10568041 FRAME
W10815413 W10815413 FUNNEL
W10856123 W10856123 GASKET
W11250029 W11250029 GASKET
W10830162 W10830162 GASKET, DOOR (GREY)
W10443316 W10443316 GASKET, DOOR (GREY)
WPB8381501 WPB8381501 GASKET- DR
W11451451 W11451451 GASKET- FO
W10830283 W10830283 GASKET-FIP
WPW10474716 WPW10474716 GEAR
WPW10474715 WPW10474715 GEAR
12002497 12002497 GEAR,(L & R)
W11402523 W11402523 GLASS SHELF
WP67006878 WP67006878 GLASS- CRI
WP67001054 WP67001054 GLIDE LT
WP67001053 WP67001053 GLIDE RT
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534160 WPW10534160 GRILLE-FRT
W10852725 W10852725 GROMMET
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W10121318 W10121318 GROMMET
W11448709 W11448709 GUIDE, FILL TUBE
W11351147 W11351147 HANDLE
WPW10189642K WPW10189642K HANDLE
WP12729128 WP12729128 HEATER
W11245157 W11245157 HING-BUSHG
W10853652 W10853652 HING-BUSHG
WP13009903 WP13009903 HOLDER-BEV
WP67001716 WP67001716 HOOK- LADD
WPW10277025 WPW10277025 HOUSING
W10443023 W10443023 HOUSING
W11478401 W11478401 HOUSING
W10464766 W10464766 HOUSING
W10884390 W10884390 ICEMAKER
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT- PL
WP13012402 WP13012402 INSULATION
W11706807 W11706807 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
W10251969 W10251969 LADDER
W10273463 W10273463 LADDER
WPW10141622 WPW10141622 LEVELER
W10149389 W10149389 LIFT, BAIL ARM
W11679940 W11679940 LIGHT BULB
WPW10300025 WPW10300025 MOLD-ICE
W11613295 W11613295 MOTOR-COND
WPW10281342 WPW10281342 MOTOR-MODL
WPW10393265 WPW10393265 NAMEPLATE
W10316011 W10316011 OVERLAY
799344 799344 PAINT
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
WP67001314 WP67001314 PAN- DELI
WPW10655367 WPW10655367 PAN-DRIP
WPW10171529 WPW10171529 PAN-ICE
W10480110 W10480110 PLATE
M0310343 M0310343 PLUG-HOLE
W11489994 W11489994 RAIL
W11489993 W11489993 RAIL
WPW10671238 WPW10671238 RAIL-CENTR
WP67005149 WP67005149 ROLLER
WPW10515763 WPW10515763 ROLLER-CAB
WPW10515762 WPW10515762 ROLLER-CAB
WP489464 WP489464 SCREW
W11233072 W11233072 SCREW
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
12992301 12992301 SCREW
W11311945 W11311945 SCREW
WP400021-1 WP400021-1 SCREW
WPW10288153 WPW10288153 SCREW
WP489474 WP489474 SCREW
W10854958 W10854958 SCREW
WP98165 WP98165 SCREW
WP489349 WP489349 SCREW
WP8281196 WP8281196 SCREW
8533917 8533917 SCREW
W10829281 W10829281 SCREW
W10215666 W10215666 SCREW
W10001240 W10001240 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER, GUM (4 FEET)
W11715937 W11715937 SHAFT
W10802339 W10802339 SHAFT, RACK
W11469652 W11469652 SHIELD
12999501 12999501 SHIM, HINGE (LEFT)
12999502 12999502 SHIM, HINGE (RIGHT)
W11556315 W11556315 SHROUD
WPW10167023 WPW10167023 SHROUD
WP67005864 WP67005864 SLIDE
W11658402 W11658402 SLIDE
W11447232 W11447232 SOCKET
WP2320150 WP2320150 START-DEV
W11703060 W11703060 STOP-DOOR
W10236396 W10236396 STRAP
WP67001721 WP67001721 SUPPORT- L
WP67001722 WP67001722 SUPPORT- R
W11291138 W11291138 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
W10475386 W10475386 TECH SHEET
833938 833938 TERMINAL
WP1117510 WP1117510 TORX KEY
WP67001719 WP67001719 TRACK
WP67001279 WP67001279 TRAY- DAIR
WPW10292802 WPW10292802 TRAY-DRIP
WPW10231482 WPW10231482 TRIM-SHELF
W10656986 W10656986 TRIM-SHELF
WPW10233570 WPW10233570 TUBE
W10619951 W10619951 TUBE-DRAIN
W10366204 W10366204 USE & CARE GUIDE
WPW10498976 WPW10498976 VALVE
WP978025 WP978025 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
W11176463 W11176463 WATER TUBE
W11120581 W11120581 WATER TUBE
WPW10458985 WPW10458985 WIRE HARNESS
WPW10234024 WPW10234024 WIRE HARNESS
W11260592 W11260592 WIRE HARNESS
