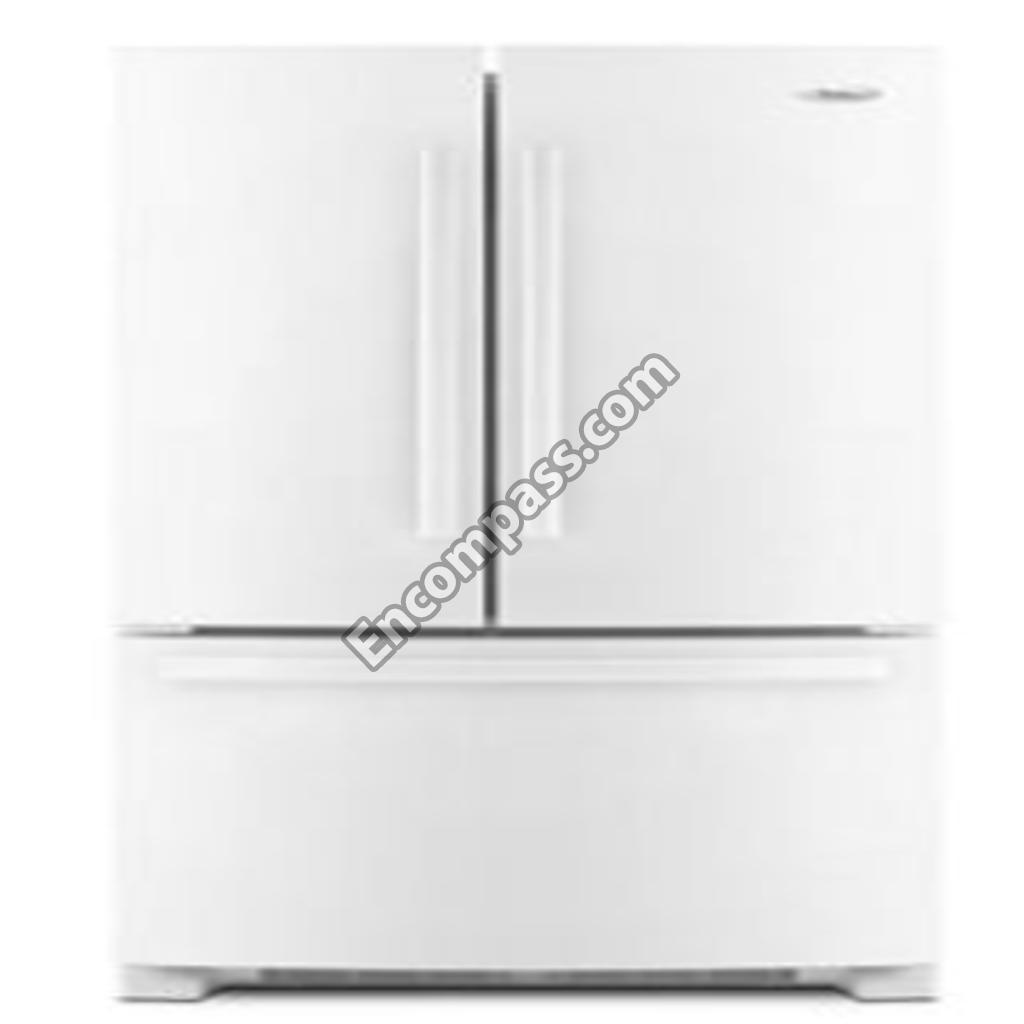

Model Image
Manufacturer

Whirlpool

Model Number

GX2SHBXVQ00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
67006434 67006434 AXLE, ROLLER (2)
W10480110 W10480110 BASEPAN
WPW10348238 WPW10348238 BASKET, UPPER
WPW10503183 WPW10503183 BASKET-FZR
WPW10165425 WPW10165425 BIMETL-DEF
WPW10371194 WPW10371194 BIN CONTROL LEVER
WPW10351081 WPW10351081 BIN CONTROL LEVER
WP12825803 WP12825803 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
WP12227303WD WP12227303WD BRACE- CRI
WPW10284684 WPW10284684 BRACKET
WPW10284685 WPW10284685 BRACKET
WPW10280613 WPW10280613 BRACKET
WPW10280608 WPW10280608 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
12906303WD 12906303WD BRACKET, FOOT (2)
WPW10169347 WPW10169347 BUCKET, CAN DISPENSER
N_P N_P CABINET (NOT A SERVICABLE PART)
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W10833902 W10833902 CLAMP
31462A 31462A CLEANER, 10 OZ. STAINLESS STEEL
W11673433 W11673433 CLIP
10547003 10547003 CLIP, DRIER
13058002 13058002 CLIP, EVAP. MOTOR
10623002 10623002 CLIP, EVAPORATOR
WP12028505AP WP12028505AP CLOSER
WP67003639 WP67003639 CLOSER
WP67003638 WP67003638 CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WPW10346420 WPW10346420 CONDENSER
WPW10196393 WPW10196393 CONTROL
WPW10503278 WPW10503278 CONTROL BOARD
W11284721 W11284721 COVER
WP67005956 WP67005956 COVER
WPW10191117 WPW10191117 COVER
WPW10337648 WPW10337648 COVER
WPW10337634 WPW10337634 COVER
67003485 67003485 COVER, CORNER (BLK)
12587703W 12587703W COVER, CORNER (WHITE)
W10308415 W10308415 COVER, EVAPORATOR
67003905 67003905 COVER, FZ LIGHT
67005958 67005958 COVER, RIGHT HINGE (WHITE)
W10337647 W10337647 COVER, TOP HINGE (LEFT) (BLACK)
WP67003924 WP67003924 COVER- FZ
WPW10210979 WPW10210979 COVER-BACK
WP12806701 WP12806701 COVER-BOX
W11684617 W11684617 COVER-VALV
WP67002633 WP67002633 CRISPER PAN
12225602 12225602 DAM (LEFT SIDE)
12225702 12225702 DAM (RIGHT SIDE)
W10311695 W10311695 DIVIDER
W10241046 W10241046 DIVIDER
W10205416 W10205416 DIVIDER
12977869WQ 12977869WQ DOOR ASSEMBLY WH
W10443315 W10443315 DOOR GASKET, MAGNETIC (WHITE)
W11592374 W11592374 DOOR HINGE
W10918113 W10918113 DOOR HINGE
W10917988 W10917988 DOOR HINGE
W10918164 W10918164 DOOR HINGE
W11592375 W11592375 DOOR HINGE
12977821BQ 12977821BQ DOOR, FREEZER (BLACK)
12977822SQ 12977822SQ DOOR, FREEZER (STAINLESS)
12978044BQ 12978044BQ DOOR, LEFT (BLACK)
12978046SQ 12978046SQ DOOR, LEFT (STAINLESS)
12978044WQ 12978044WQ DOOR, LEFT (WHITE)
12978043BQ 12978043BQ DOOR, RIGHT (BLACK)
12978045SQ 12978045SQ DOOR, RIGHT (STAINLESS)
12978043WQ 12978043WQ DOR-FIP WH
WP12722803W WP12722803W DRAWER SLIDE RAIL
WP12722803B WP12722803B DRAWER SLIDE RAIL
WP12722803AP WP12722803AP DRAWER SLIDE RAIL
WPW10328326 WPW10328326 DRAWER, PANTRY
WPW10143759 WPW10143759 DRIER-UV
W10183275 W10183275 ENERGY GUIDE
12001919 12001919 EVAPORATOR KIT (INC. EVAPORATOR NO.12726402, HEAT SHIELD & INSTRUCT. SHEET)
WPW10128551 WPW10128551 EVAPORATOR MOTOR
W11177593 W11177593 FEET-LVLNG
W11459724 W11459724 FIELD INSTALLABLE ICE MAKER, ICEMAKER ADD-ON KIT (INCLUDES VALVE & ICE BIN)
WP12587703AP WP12587703AP FILLER
WPW10568041 WPW10568041 FRAME
W10815413 W10815413 FUNNEL
W10856123 W10856123 GASKET
W11159742 W11159742 GASKET
W11368721 W11368721 GASKET ASSEMBLY
WPW10436250 WPW10436250 GASKET ASSEMBLY
W10830283 W10830283 GASKET, DOOR (GREY (LEFT HAND))
W10830162 W10830162 GASKET, DOOR (GREY)
W10443316 W10443316 GASKET, DOOR (GREY)
W10830189 W10830189 GASKET, DOOR (WHITE)
W10830289 W10830289 GASKET, DOOR LEFT HAND (BLACK)
W10830287 W10830287 GASKET, DOOR LEFT HAND (WHITE)
WPB8381501 WPB8381501 GASKET- DR
WPW10474716 WPW10474716 GEAR
WPW10474715 WPW10474715 GEAR
W11402523 W11402523 GLASS SHELF
WP67006878 WP67006878 GLASS- CRI
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534160 WPW10534160 GRILLE-FRT
WPW10534162 WPW10534162 GRILLE-FRT
WPW10534161 WPW10534161 GRILLE-FRT
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W10121318 W10121318 GROMMET
W11448709 W11448709 GUIDE, FILL TUBE
W11351146 W11351146 HANDLE
W11351147 W11351147 HANDLE
WPW10222984K WPW10222984K HANDLE
WPW10189642K WPW10189642K HANDLE
W10149389 W10149389 HANDLE
WPW10189640K WPW10189640K HANDLE, DOOR (BLACK)
WPW10189639 WPW10189639 HANDLE, DOOR (WHITE)
67006095 67006095 HARNESS, LIGHTS (FREEZER)
W10224241 W10224241 HARNS-WIRE
WP12729128 WP12729128 HEATER
13000002WD 13000002WD HINGE, CENTER (RT) (WHITE)
W11478401 W11478401 HOUSING
WP12806407 WP12806407 HOUSING
W11702858 W11702858 HOUSING
12806601 12806601 HOUSING, LIGHT
67003900 67003900 INSERT, DAMPER COVER
WP13012402 WP13012402 INSULATION
W11706807 W11706807 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
67001073 67001073 LADDER, CENTER
67001317 67001317 LADDER, SIDE
W11679940 W11679940 LIGHT BULB
W10200283 W10200283 MANUAL OWNERS
67003906 67003906 MODULE, FZ CONTROL
W10203323 W10203323 MODULE, LIGHT
W11613295 W11613295 MOTOR-COND
W10348259 W10348259 MOUNT-GEAR (LEFT HAND)
W10348260 W10348260 MOUNT-GEAR (RIGHT HAND)
WP2220214 WP2220214 NAMEPLATE
WPW10180451 WPW10180451 OVERLAY
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10655367 WPW10655367 PAN-DRIP
W11489994 W11489994 RAIL
W11489993 W11489993 RAIL
WPW10671238 WPW10671238 RAIL-CENTR
W10204187 W10204187 RETAINER
WP67005149 WP67005149 ROLLER
WP12580304 WP12580304 ROLLER ASSEMBLY. (2)
W10709795 W10709795 SCREW
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
12992301 12992301 SCREW
W11311945 W11311945 SCREW
WP400021-1 WP400021-1 SCREW
WP12992902 WP12992902 SCREW
WP489474 WP489474 SCREW
WP98165 WP98165 SCREW
WP90767 WP90767 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP489349 WP489349 SCREW
WP8281196 WP8281196 SCREW
71003131 71003131 SCREW
W10829281 W10829281 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPM0500703 WPM0500703 SEAL- O RI
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER, GUM (4 FEET)
W10802339 W10802339 SHAFT, RACK
12999501 12999501 SHIM, TOP HINGE (LEFT)
12999502 12999502 SHIM, TOP HINGE (RIGHT)
W11556315 W11556315 SHROUD
WPW10167023 WPW10167023 SHROUD
WP13005401SP WP13005401SP SLEEVE
WP67005864 WP67005864 SLIDE
W11658402 W11658402 SLIDE
W11447232 W11447232 SOCKET
WPW10194431 WPW10194431 START-DEV
12968202W 12968202W STOP, DOOR (WHITE)
W11703060 W11703060 STOP-DOOR
W11708403 W11708403 STOP-DOOR
WP67001721 WP67001721 SUPPORT- L
WP67001722 WP67001722 SUPPORT- R
W11291138 W11291138 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
W10238844 W10238844 TECH SHEET
833938 833938 TERMINAL
12002355 12002355 THERMISTOR
WP1117510 WP1117510 TORX KEY
WP67001719 WP67001719 TRACK
WPW10292802 WPW10292802 TRAY-DRIP
WPW10231482 WPW10231482 TRIM-SHELF
W10656986 W10656986 TRIM-SHELF
W10306059 W10306059 TUBE
W10619951 W10619951 TUBE-DRAIN
WP978025 WP978025 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
WPW10234024 WPW10234024 WIRE HARNESS
