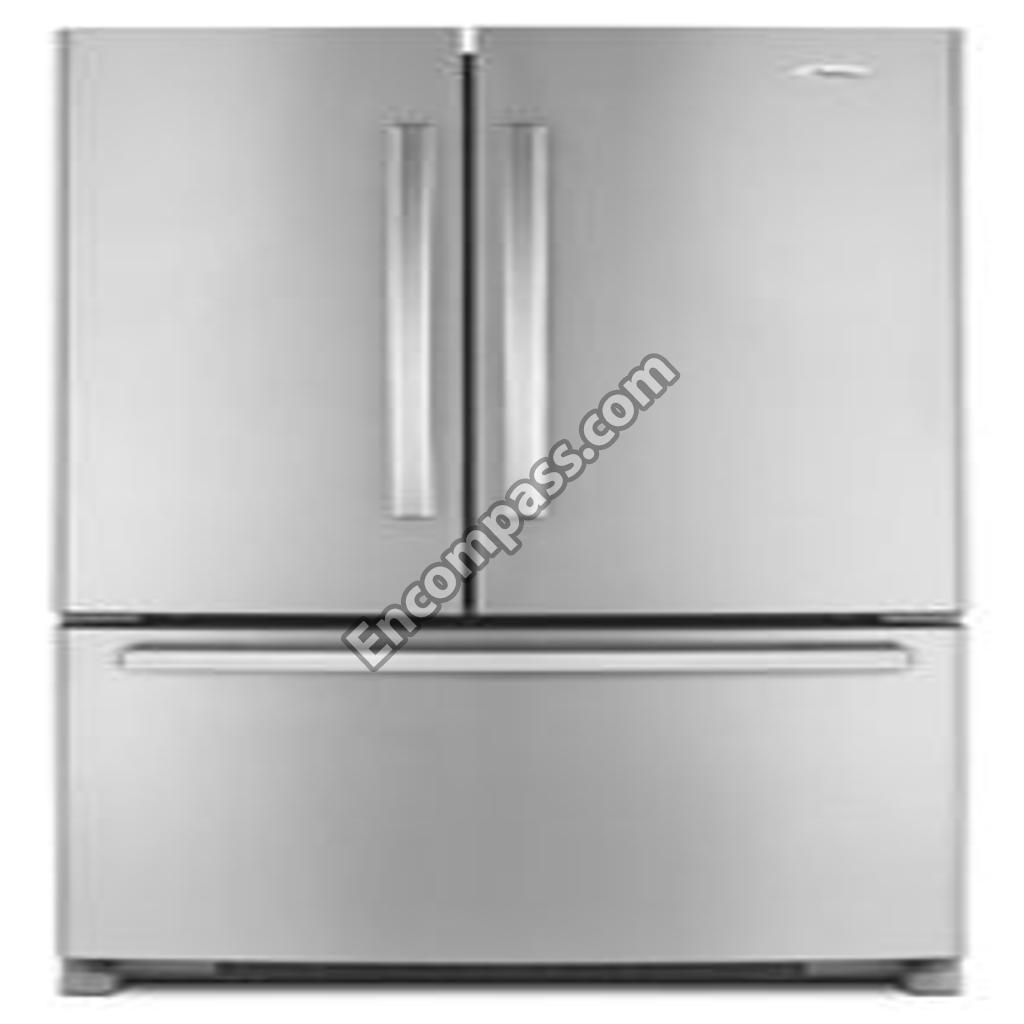

Model Image
Manufacturer

Whirlpool

Model Number

GX2SHBXVY07

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
67006434 67006434 Whirlpool AXLE, ROLLER (2)
WPW10348238 WPW10348238 Whirlpool BASKET, FREEZER (UPPER)
WPW10503183 WPW10503183 Whirlpool BASKET-FZR
WP12918704 WP12918704 Whirlpool BIN CONTROL LEVER
WPW10351081 WPW10351081 Whirlpool BIN CONTROL LEVER
WPW10371194 WPW10371194 Whirlpool BIN CONTROL LEVER
WP12825803 WP12825803 Whirlpool BLADE-FAN
WP2169142 WP2169142 Whirlpool BLADE-FAN
WP67003405 WP67003405 Whirlpool BLOCK- PIV
WP12227303WD WP12227303WD Whirlpool BRACE- CRI
WPW10284685 WPW10284685 Whirlpool BRACKET
WPW10284684 WPW10284684 Whirlpool BRACKET
WPW10280613 WPW10280613 Whirlpool BRACKET
WPW10280608 WPW10280608 Whirlpool BRACKET
WPW10330994 WPW10330994 Whirlpool BRACKET
WPW10330995 WPW10330995 Whirlpool BRACKET
W10348259 W10348259 Whirlpool BRACKET
W10348260 W10348260 Whirlpool BRACKET
WPW10169347 WPW10169347 Whirlpool BUCKET, CAN DISPENSER
N_P N_P Whirlpool CABINET (NOT A SERVICABLE PART)
WPW10662129 WPW10662129 Whirlpool CAPACITOR
WP4317852 WP4317852 Whirlpool CEMENT, ALUMILASTIC (1 1/4 OZ.)
W10833902 W10833902 Whirlpool CLAMP
W10281329 W10281329 Whirlpool CLAMP
31462A 31462A Whirlpool CLEANER, 10 OZ. STAINLESS STEEL
W11673433 W11673433 Whirlpool CLIP
W11092534 W11092534 Whirlpool CLIP
13058002 13058002 Whirlpool CLIP, EVAP. MOTOR
10623002 10623002 Whirlpool CLIP, EVAPORATOR
WP12028505AP WP12028505AP Whirlpool CLOSER
W10233960 W10233960 Whirlpool COMPRESSOR
WPW10346420 WPW10346420 Whirlpool CONDENSER
WPW10196393 WPW10196393 Whirlpool CONTROL
WPW10503278 WPW10503278 Whirlpool CONTROL BOARD
W11284721 W11284721 Whirlpool COVER
WPW10191117 WPW10191117 Whirlpool COVER
WPW10337648 WPW10337648 Whirlpool COVER
WP67003924 WP67003924 Whirlpool COVER- FZ
WPW10210979 WPW10210979 Whirlpool COVER-BACK
WP12806701 WP12806701 Whirlpool COVER-BOX
W10308415 W10308415 Whirlpool COVER-EVAP
WP67001098 WP67001098 Whirlpool COVER-TUBE
W11684617 W11684617 Whirlpool COVER-VALV
WP67002633 WP67002633 Whirlpool CRISPER PAN
12225602 12225602 Whirlpool DAM (LEFT SIDE)
12225702 12225702 Whirlpool DAM (RIGHT SIDE)
W10847995 W10847995 Whirlpool DIVIDER
W10241046 W10241046 Whirlpool DIVIDER
W10311695 W10311695 Whirlpool DIVIDER
13107856SQ 13107856SQ Whirlpool DOOR ASSEMBLY SS
13107861SQ 13107861SQ Whirlpool DOOR ASSEMBLY SS
12977869SQ 12977869SQ Whirlpool DOOR ASSEMBLY SS
W11592374 W11592374 Whirlpool DOOR HINGE
W10917988 W10917988 Whirlpool DOOR HINGE
W11592375 W11592375 Whirlpool DOOR HINGE
WP12722803AP WP12722803AP Whirlpool DRAWER SLIDE RAIL
WPW10328326 WPW10328326 Whirlpool DRAWER, PANTRY
WPW10143759 WPW10143759 Whirlpool DRIER-UV
W10260548 W10260548 Whirlpool ENERGY GUIDE
W11459354 W11459354 Whirlpool EVAPORATOR
WPW10128551 WPW10128551 Whirlpool EVAPORATOR MOTOR
W11459724 W11459724 Whirlpool FIELD INSTALLABLE ICE MAKER, ICEMAKER ADD-ON KIT (INCLUDES VALVE & ICE BIN)
WP12587703AP WP12587703AP Whirlpool FILLER
WPW10568041 WPW10568041 Whirlpool FRAME
W10815413 W10815413 Whirlpool FUNNEL
W10856123 W10856123 Whirlpool GASKET
W11250029 W11250029 Whirlpool GASKET
W11159742 W11159742 Whirlpool GASKET
W10830162 W10830162 Whirlpool GASKET, DOOR (GREY)
W10443316 W10443316 Whirlpool GASKET, DOOR (GREY)
WPB8381501 WPB8381501 Whirlpool GASKET- DR
W10830283 W10830283 Whirlpool GASKET-FIP
WPW10474716 WPW10474716 Whirlpool GEAR
WPW10474715 WPW10474715 Whirlpool GEAR
12002497 12002497 Whirlpool GEAR,(L & R)
W11402523 W11402523 Whirlpool GLASS SHELF
WP67006878 WP67006878 Whirlpool GLASS- CRI
WP67001054 WP67001054 Whirlpool GLIDE LT
WP67001053 WP67001053 Whirlpool GLIDE RT
WP542638 WP542638 Whirlpool GREASE
WPW10175909 WPW10175909 Whirlpool GRILLE
WPW10534160 WPW10534160 Whirlpool GRILLE-FRT
W10852725 W10852725 Whirlpool GROMMET
WPW10169124 WPW10169124 Whirlpool GROMMET
WPW10137529 WPW10137529 Whirlpool GROMMET
W10121318 W10121318 Whirlpool GROMMET
W11448709 W11448709 Whirlpool GUIDE, FILL TUBE
W11351147 W11351147 Whirlpool HANDLE
WPW10189642K WPW10189642K Whirlpool HANDLE
WP12729128 WP12729128 Whirlpool HEATER
WP67001716 WP67001716 Whirlpool HOOK- LADD
W11478401 W11478401 Whirlpool HOUSING
WP12806407 WP12806407 Whirlpool HOUSING
WPW10277025 WPW10277025 Whirlpool HOUSING
W10443023 W10443023 Whirlpool HOUSING
67003900 67003900 Whirlpool INSERT, DAMPER COVER
WP13012402 WP13012402 Whirlpool INSULATION
W11706807 W11706807 Whirlpool INSULATION
799833 799833 Whirlpool KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
W11685757 W11685757 Whirlpool LABEL
W10251969 W10251969 Whirlpool LADDER
W10273463 W10273463 Whirlpool LADDER
WPW10141622 WPW10141622 Whirlpool LEVELER
W10149389 W10149389 Whirlpool LIFT, BAIL ARM
W11679940 W11679940 Whirlpool LIGHT BULB
W10203323 W10203323 Whirlpool MODULE, LIGHT
W11613295 W11613295 Whirlpool MOTOR-COND
WPW10393265 WPW10393265 Whirlpool NAMEPLATE
W10316011 W10316011 Whirlpool OVERLAY
799344 799344 Whirlpool PAINT
4392900 4392900 Whirlpool PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350930 350930 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 Whirlpool PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
12827102 12827102 Whirlpool PAN-DELI
WPW10655367 WPW10655367 Whirlpool PAN-DRIP
W10480110 W10480110 Whirlpool PLATE
M0310343 M0310343 Whirlpool PLUG-HOLE
W11489994 W11489994 Whirlpool RAIL
W11489993 W11489993 Whirlpool RAIL
WPW10671238 WPW10671238 Whirlpool RAIL-CENTR
WP67005149 WP67005149 Whirlpool ROLLER
WPW10515763 WPW10515763 Whirlpool ROLLER-CAB
WPW10515762 WPW10515762 Whirlpool ROLLER-CAB
W11233072 W11233072 Whirlpool SCREW
WP33001882 WP33001882 Whirlpool SCREW
W10709798 W10709798 Whirlpool SCREW
12992301 12992301 Whirlpool SCREW
W11311945 W11311945 Whirlpool SCREW
WP400021-1 WP400021-1 Whirlpool SCREW
WPW10288153 WPW10288153 Whirlpool SCREW
WP489474 WP489474 Whirlpool SCREW
WP98165 WP98165 Whirlpool SCREW
W10854958 W10854958 Whirlpool SCREW
WP489349 WP489349 Whirlpool SCREW
WP8281196 WP8281196 Whirlpool SCREW
W10829281 W10829281 Whirlpool SCREW
W10215666 W10215666 Whirlpool SCREW
67006425 67006425 Whirlpool SCREW (3)
67006564 67006564 Whirlpool SCREW (8)
WPM0500703 WPM0500703 Whirlpool SEAL- O RI
WP505587 WP505587 Whirlpool SEALER
WP503695 WP503695 Whirlpool SEALER
212643 212643 Whirlpool SEALER, GUM (4 FEET)
W11715937 W11715937 Whirlpool SHAFT
W10802339 W10802339 Whirlpool SHAFT, RACK
W11469652 W11469652 Whirlpool SHIELD
12999501 12999501 Whirlpool SHIM, TOP HINGE (LEFT)
12999502 12999502 Whirlpool SHIM, TOP HINGE (RIGHT)
W11556315 W11556315 Whirlpool SHROUD
WPW10167023 WPW10167023 Whirlpool SHROUD
WP13005401SP WP13005401SP Whirlpool SLEEVE
WP67005864 WP67005864 Whirlpool SLIDE
W11658402 W11658402 Whirlpool SLIDE
W11447232 W11447232 Whirlpool SOCKET
WP2320150 WP2320150 Whirlpool START-DEV
W11703060 W11703060 Whirlpool STOP-DOOR
WP67001721 WP67001721 Whirlpool SUPPORT- L
WP67001722 WP67001722 Whirlpool SUPPORT- R
W11291138 W11291138 Whirlpool SWITCH
W11396033 W11396033 Whirlpool SWITCH
W11238399 W11238399 Whirlpool TAPE
W10476805N W10476805N Whirlpool TECH SHEET
833938 833938 Whirlpool TERMINAL
WP1117510 WP1117510 Whirlpool TORX KEY
WP67001719 WP67001719 Whirlpool TRACK
WPW10292802 WPW10292802 Whirlpool TRAY-DRIP
WPW10231482 WPW10231482 Whirlpool TRIM-SHELF
W10656986 W10656986 Whirlpool TRIM-SHELF
WPW10233570 WPW10233570 Whirlpool TUBE
W10619951 W10619951 Whirlpool TUBE-DRAIN
W10366204 W10366204 Whirlpool USE & CARE GUIDE
WP978025 WP978025 Whirlpool VALVE
876764 876764 Whirlpool VALVE
978026 978026 Whirlpool VALVE
978027 978027 Whirlpool VALVE
978029 978029 Whirlpool VALVE
978030 978030 Whirlpool VALVE
978028 978028 Whirlpool VALVE, ACCESS (1/2``)
WPW10234024 WPW10234024 Whirlpool WIRE HARNESS
W11260592 W11260592 Whirlpool WIRE HARNESS
