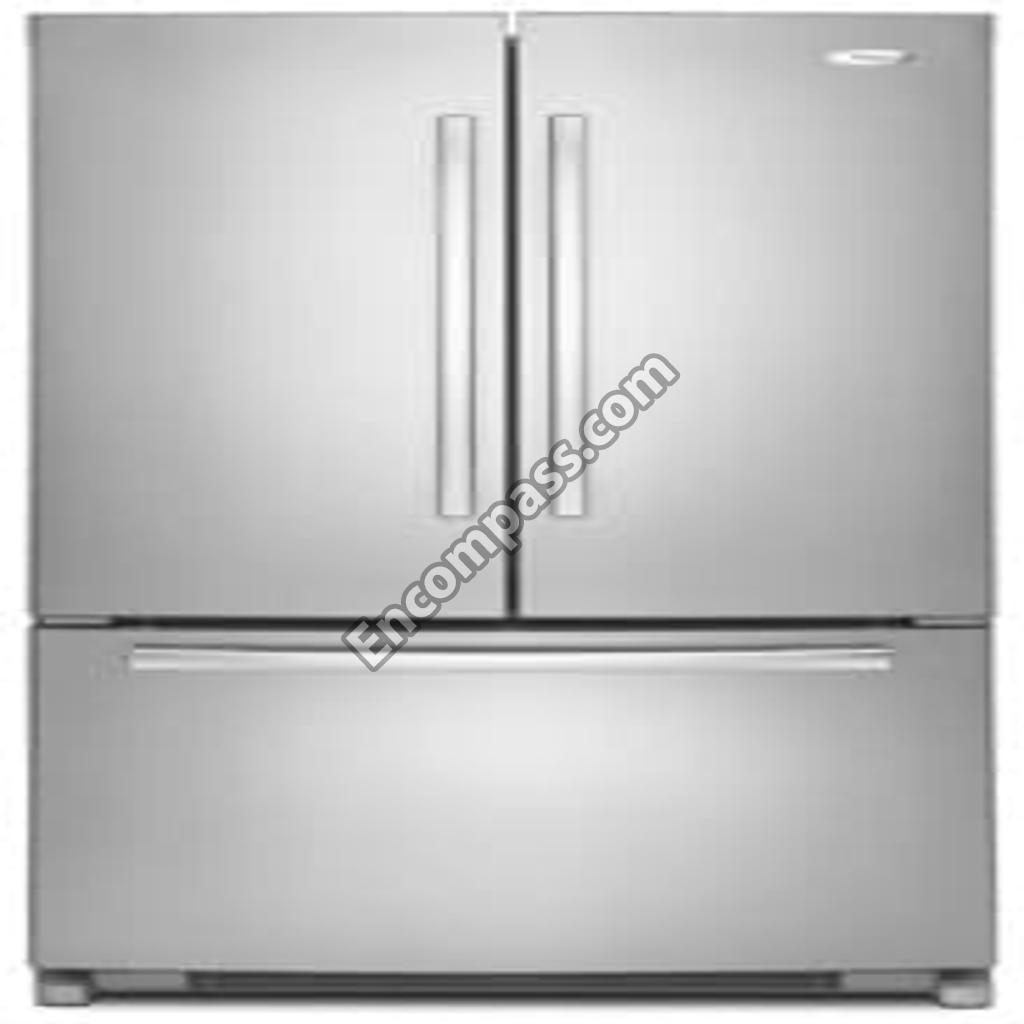

Model Image
Manufacturer

Whirlpool

Model Number

GX5FHTXVY00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP627843 WP627843 ARM-EJECTR
WP67004028 WP67004028 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
WP12580304 WP12580304 ASSEMBLY, ROLLER BRACKET
67006434 67006434 AXLE, ROLLER
2255199 2255199 BALE STRAP
12531402 12531402 BAR, PANTRY
12457108 12457108 BASEPAN
WPW10348246 WPW10348246 BASKET-FZR
W10150039 W10150039 BASKET-FZR
WP627985 WP627985 BIMETL-DEF
WPW10165425 WPW10165425 BIMETL-DEF
WPW10289497 WPW10289497 BIN CONTROL LEVER
WPW10371194 WPW10371194 BIN CONTROL LEVER
W10156818 W10156818 BLADE, FAN
WP2169142 WP2169142 BLADE-FAN
67005491 67005491 BLOCK, CONDENSER
WP12777701 WP12777701 BLOCK- FIL
WP67003405 WP67003405 BLOCK- PIV
WP12642303WD WP12642303WD BRACE- CRI
WP2256087 WP2256087 BRACKET
WP67004953 WP67004953 BRACKET
WPW10284684 WPW10284684 BRACKET
WPW10284685 WPW10284685 BRACKET
WPW10280613 WPW10280613 BRACKET
WPW10280608 WPW10280608 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
W10348259 W10348259 BRACKET
W10348260 W10348260 BRACKET
12906303WD 12906303WD BRACKET, FOOT
N_P N_P CABINET (NOT A SERVICABLE PART)
W11395888 W11395888 CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
67003932 67003932 CLAMP
W10833902 W10833902 CLAMP
WP2315522 WP2315522 CLIP
W11673433 W11673433 CLIP
W10157973 W10157973 CLIP
10547003 10547003 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
13058002 13058002 CLIP, EVAPORATOR MOTOR
13067102SP 13067102SP CLIP, HANDLE
WPM0114003 WPM0114003 CLIP- SPEE
WP67003638 WP67003638 CLOSER
WP67003639 WP67003639 CLOSER
WP12028505AP WP12028505AP CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006131 WP67006131 CONDENSER
WPW10196393 WPW10196393 CONTROL
WPW10503278 WPW10503278 CONTROL BOARD
W11284721 W11284721 COVER
WP67005956 WP67005956 COVER
WPW10191117 WPW10191117 COVER
WPW10337634 WPW10337634 COVER
WPW10337648 WPW10337648 COVER
67003485 67003485 COVER, CORNER (BLACK)
67003484 67003484 COVER, CORNER (WHITE)
67003905 67003905 COVER, LIGHT
12575101WD 12575101WD COVER, MACHINE COMPARTMENT
67005958 67005958 COVER, RIGHT HINGE (WHITE)
W10337647 W10337647 COVER, TOP HINGE (LEFT) (BLACK)
12726003 12726003 COVER, WATER LINE
67004098 67004098 COVER, WATER VALVE
WP12568001 WP12568001 COVER- FIL
WP67003924 WP67003924 COVER- FZ
WP12806701 WP12806701 COVER-BOX
W11727809 W11727809 COVER-EVAP
W10122561 W10122561 CUP, WATER FILL
12225601 12225601 DAM (LEFT HAND)
67001084 67001084 DAM (RIGHT HAND)
W10157765 W10157765 DEFLECTOR
W10847995 W10847995 DIVIDER
W10171558 W10171558 DIVIDER
W10171557 W10171557 DIVIDER
67004556 67004556 DIVIDER, PANTRY
W10918164 W10918164 DOOR HINGE
W11592374 W11592374 DOOR HINGE
W10918113 W10918113 DOOR HINGE
W11592375 W11592375 DOOR HINGE
12977864LQ 12977864LQ DOOR, FREEZER (SATINA)
12977818SQ 12977818SQ DOOR, FREEZER (STAINLESS)
12978035SQ 12978035SQ DOOR, LEFT (STAINLESS)
12978034LQ 12978034LQ DOOR, RIGHT (SATINA)
12978034SQ 12978034SQ DOOR, RIGHT (STAINLESS)
WP67003637 WP67003637 DOOR-COMP
W10199891 W10199891 DOR-FIP BL
W10199872 W10199872 DOR-FIP BL
W10200711 W10200711 DOR-FIP BL
12978035LQ 12978035LQ DOR-FIP SA
12977864WQ 12977864WQ DOR-FIP WH
W10199092 W10199092 DOR-FIP WH
13107852WQ 13107852WQ DOR-FIP WH
WP12722803W WP12722803W DRAWER SLIDE RAIL
WP12722803B WP12722803B DRAWER SLIDE RAIL
WP12722803AP WP12722803AP DRAWER SLIDE RAIL
WPW10328322 WPW10328322 DRAWER, PANTRY
WPW10143759 WPW10143759 DRIER-UV
W10172586 W10172586 ENDCAP-HDL
W10157435 W10157435 ENDCAP-HDL
W10157436 W10157436 ENDCAP-HDL
W10172585 W10172585 ENDCAP-HDL
W10157431 W10157431 ENDCAP-HDL
W10157432 W10157432 ENDCAP-HDL
W10157434 W10157434 ENDCAPHDL
W10187810 W10187810 ENERGY GUIDE
12002041 12002041 EVAPORATOR KIT
WPW10128551 WPW10128551 EVAPORATOR MOTOR
W11177593 W11177593 FEET-LVLNG
67003796 67003796 FIBER, ACOUSTIC
WP12587703AP WP12587703AP FILLER
WP2300868 WP2300868 FITTING
WP67003854 WP67003854 FRAME- CRI
WPW10289690 WPW10289690 FRONT COVER
W10815413 W10815413 FUNNEL
12918001 12918001 FUNNEL, FILL TUBE
W11159728 W11159728 GASKET
W10856123 W10856123 GASKET
W11368721 W11368721 GASKET ASSEMBLY
B5759649 B5759649 GASKET MC
W10443320 W10443320 GASKET, DOOR (APOLLO GREY)
W10436252 W10436252 GASKET, DOOR (BLACK)
W10830162 W10830162 GASKET, DOOR (GREY)
W10830189 W10830189 GASKET, DOOR (WHITE)
W10443319 W10443319 GASKET, DOOR (WHITE)
W10368789 W10368789 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
WPW10474716 WPW10474716 GEAR
WPW10474715 WPW10474715 GEAR
12002497 12002497 GEAR (INCLDS. BOTH)
WP67006704 WP67006704 GLASS- CRI
WP67001054 WP67001054 GLIDE LT
WP67001053 WP67001053 GLIDE RT
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534155 WPW10534155 GRILLE
WPW10534153 WPW10534153 GRILLE-FRT
WPW10534154 WPW10534154 GRILLE-FRT
WPW10137529 WPW10137529 GROMMET
WPW10169124 WPW10169124 GROMMET
W10121318 W10121318 GROMMET
67005680 67005680 GROMMET, CONDENSER
WP61004743 WP61004743 GROMMET- B
W11448709 W11448709 GUIDE, FILL TUBE
WPW10222984K WPW10222984K HANDLE
W11351147 W11351147 HANDLE
WPW10223022K WPW10223022K HANDLE
WPW10223025K WPW10223025K HANDLE
W10149389 W10149389 HANDLE
WPW10157428 WPW10157428 HANDLE, DOOR (BLACK)
WPW10159709 WPW10159709 HANDLE, DOOR (BLACK)
67006095 67006095 HARNESS, LIGHTS (FREEZER)
W10188474 W10188474 HARNS-WIRE
W10119856 W10119856 HARNS-WIRE
WPD7813010 WPD7813010 HARNS-WIRE
WP67002493 WP67002493 HEATER- DE
67006442 67006442 HINGE, CENTER (LT) (BLACK)
67006379 67006379 HINGE, CENTER (RT) (WHITE)
W10917988 W10917988 HINGE-DOOR
WPW10169346 WPW10169346 HOLDER-BEV
WP67006524 WP67006524 HOUSING
W11478401 W11478401 HOUSING
WP12806407 WP12806407 HOUSING
W11702858 W11702858 HOUSING
12806601 12806601 HOUSING, LIGHT
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICEMAKER
WP67006531 WP67006531 INLET VALVE
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT- PL
WP13012402 WP13012402 INSULATION
876029 876029 INSULATION
876370 876370 INSULATION
12002023 12002023 KIT, WATER TANK
67001073 67001073 LADDER, CENTER
67001317 67001317 LADDER, SIDE
W11679940 W11679940 LIGHT BULB
W10200283 W10200283 MANUAL OWNERS
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
67003906 67003906 MODULE, FREEZER CONTROL
67004078 67004078 MODULE, LIGHT
WPW10190929 WPW10190929 MOLD-ICE
W11613295 W11613295 MOTOR-COND
W10190935 W10190935 MOTOR-MODL
WP2220214 WP2220214 NAMEPLATE
WPW10180451 WPW10180451 OVERLAY
799344 799344 PAINT
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP67004515 WP67004515 PAN- CRISP
WP12579803 WP12579803 PAN- DRAIN
WPW10171529 WPW10171529 PAN-ICE
WP67001668 WP67001668 PLATE- FIL
W11489994 W11489994 RAIL
W11489993 W11489993 RAIL
WPW10326469 WPW10326469 RAIL-CENTR
WP67005149 WP67005149 ROLLER
489136 489136 SCREW
WP489464 WP489464 SCREW
W11233072 W11233072 SCREW
W10709795 W10709795 SCREW
WP67004954 WP67004954 SCREW
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
12992301 12992301 SCREW
W11311945 W11311945 SCREW
WP400021-1 WP400021-1 SCREW
WP12992902 WP12992902 SCREW
WP489474 WP489474 SCREW
W10709797 W10709797 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP98165 WP98165 SCREW
67006425 67006425 SCREW
67006564 67006564 SCREW
WP489349 WP489349 SCREW
WP8281196 WP8281196 SCREW
71003131 71003131 SCREW
WP681249 WP681249 SCREW
8533917 8533917 SCREW
W10267047 W10267047 SCREW
12846902 12846902 SCREW (2)
WPM0500703 WPM0500703 SEAL- O RI
WP854334 WP854334 SEAL-STRIP
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
W11028221 W11028221 SHAFT
W11173556 W11173556 SHAFT
12812904WD 12812904WD SHAFT, RACK
WPW10208663 WPW10208663 SHELF, GLIDE OUT
12999501 12999501 SHIM, TOP HINGE (LEFT HAND)
12999502 12999502 SHIM, TOP HINGE (RIGHT HAND)
WPW10167023 WPW10167023 SHROUD
12575309 12575309 SHROUD, CONDENSER
WP13005401SP WP13005401SP SLEEVE
WP67005864 WP67005864 SLIDE
W11658402 W11658402 SLIDE
67002002 67002002 SLIDE, PANTRY
W11447232 W11447232 SOCKET
WPW10197428 WPW10197428 START-DEV
12968202W 12968202W STOP, DOOR (WHITE)
W11703060 W11703060 STOP-DOOR
W11708403 W11708403 STOP-DOOR
WP12603701 WP12603701 SUPPORT- C
12831101 12831101 SWEEP-WATER VALVE
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH
WP12575501 WP12575501 SWITCH- LI
W11238399 W11238399 TAPE
12827967 12827967 TECH SHEET
833938 833938 TERMINAL
12002355 12002355 THERMISTOR
WP1117510 WP1117510 TORX SCREW WRENCH TORX KEY
WP67001719 WP67001719 TRACK
WP67001279 WP67001279 TRAY- DAIR
W11547653 W11547653 TRAY-DRIP
W10231508 W10231508 TRIM, CRISPER
W10656987 W10656987 TRIM-SHELF
WPB5705307 WPB5705307 TUBE
WPW10134293 WPW10134293 TUBE
W10164397 W10164397 TUBE-DRAIN
WP12531601 WP12531601 TUNNEL- PA
WP978025 WP978025 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
876764 876764 VALVE
978028 978028 VALVE, ACCESS
W11176463 W11176463 WATER TUBE
WP12868601 WP12868601 WIRE HARNESS
