Model Image
Manufacturer

Whirlpool

Model Number

GY399LXUB02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3601F373-51 3601F373-51 BAFFEL, RETAINER
WP2205F060-19 WP2205F060-19 BOTTM-OVEN
WP3801F656-51 WP3801F656-51 BRACKET
3801F887-51 3801F887-51 BRACKET, DRAWER
3801F886-51 3801F886-51 BRACKET, GLASS (2)
3801F832-45 3801F832-45 BRACKET, HANDLE (LEFT)
3801F831-45 3801F831-45 BRACKET, HANDLE (RIGHT)
W10190166 W10190166 BRKT-SRVCE
WP22001948 WP22001948 CAMERA LENS- INDI
W10355051 W10355051 CLEANER, COOKTOP
8019P013-60 8019P013-60 CLIP, WIRE
5171P557-60 5171P557-60 COIL,HARNESS (LT)

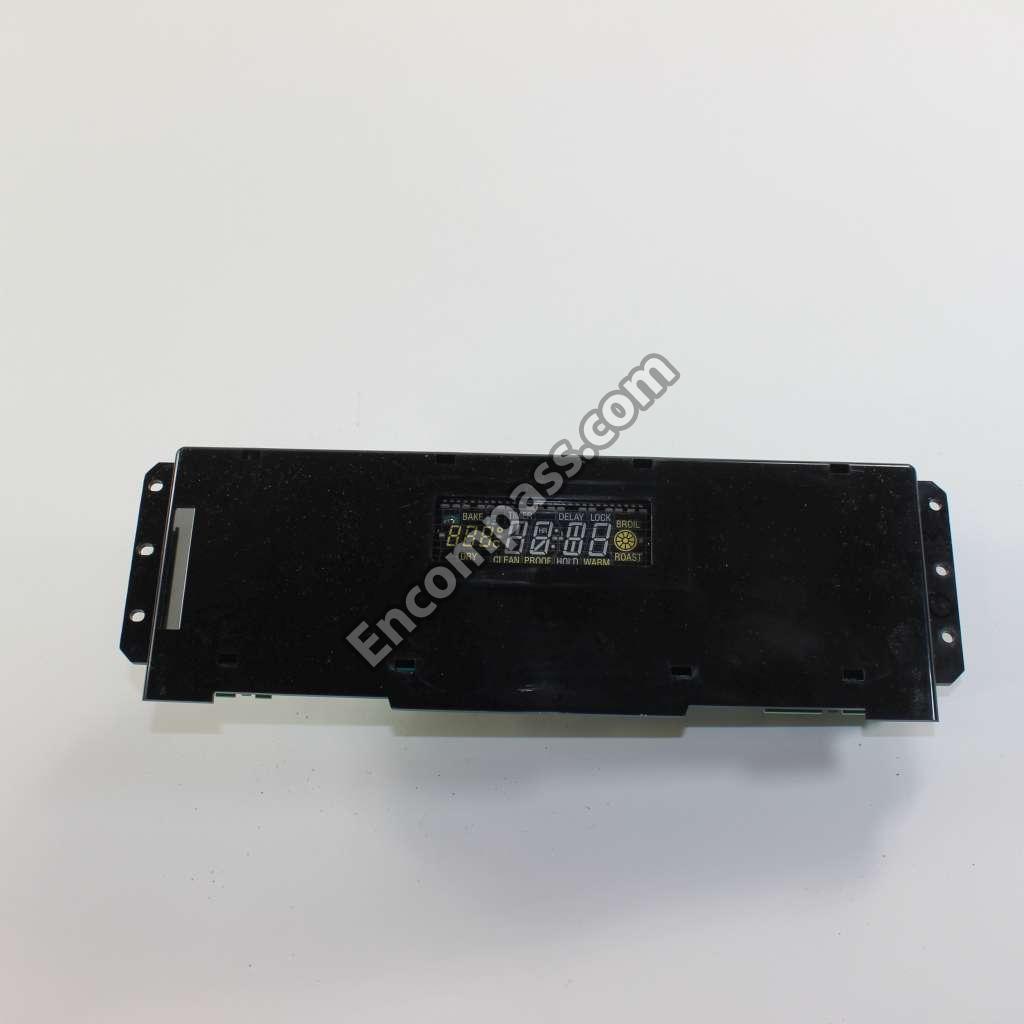

WP8507P392-60 WP8507P392-60 CONTROL BOARD
WP7720P535-60 WP7720P535-60 CONTROL PANEL
W10170220 W10170220 COOKTOP
WPW10346154 WPW10346154 COVER
4005F750-51 4005F750-51 COVER, DOOR DOOR LATCH
4005F749-45 4005F749-45 COVER, FRONT
4005F810-51 4005F810-51 COVER, MAIN WIRE
4005F612-51 4005F612-51 COVER, TERMINAL
WPW10144883 WPW10144883 DOOR HANDLE
74010819 74010819 DOOR LATCH ASY
WP3608F116-70 WP3608F116-70 DOOR TRIM
WP3608F117-70 WP3608F117-70 DOOR TRIM
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
WP7406P411-60 WP7406P411-60 ELMNT-BAKE
WP7406P218-60 WP7406P218-60 ELMNT-BROL
3826F066-51 3826F066-51 EXTENSION, BACK
3826F064-51 3826F064-51 EXTENTION, SHIELD
W10183566 W10183566 EXTRUSION
WPW10586440 WPW10586440 FAN-BLWR
WPW10210594 WPW10210594 FAN-CONVCT
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
WPW10162384 WPW10162384 GASKT-DOOR
74003645 74003645 GLASS, INNER
WPW10180296 WPW10180296 HANDLE, DRAWER STAINLESS MODEL
5171P977-60 5171P977-60 HARNESS, MAIN
W10204629 W10204629 HARNESS, TOP
5171P560-60 5171P560-60 HARNESS,SENSOR
74011142 74011142 HINGE, OVEN DOOR
W10118431 W10118431 HNDLE-DOOR
3605F345-51 3605F345-51 HOLDER, VENT TUBE
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
8101P750-60 8101P750-60 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
W10165725 W10165725 INSULATION, BACK
7002P246-60 7002P246-60 INSULATION, DOOR
7002P443-60 7002P443-60 INSULATION, OVEN BOTTOM
74010987 74010987 INSULATION, WRAP
7003P101-60 7003P101-60 INSULATOR, CORD
WP7737P417-60 WP7737P417-60 KNOB
WP7737P414-60 WP7737P414-60 KNOB
WP7407P182-60 WP7407P182-60 LAMP-ASM
8009 8009 LIGHT BULB
7407P193-60 7407P193-60 LIGHT, INDICATOR
WP74004153 WP74004153 LIGHT- IND
WP2402W312-19 WP2402W312-19 LINER-DOOR
2404F030-51 2404F030-51 LINING, DRAWER
3804F294-51 3804F294-51 MAIN BACK
WPW10207933 WPW10207933 MEMBRANE SWITCH
W10175320 W10175320 NAMEPLATE
WP488130 WP488130 NUT
74005230 74005230 NUT, LOCK (8-32)
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
3401F092-45 3401F092-45 PAN, HIDDEN BAKE
2416F059-70 2416F059-70 PANEL, DRAWER (BLACK)
WPW10253205 WPW10253205 PANEL, DRAWER (S.STEEL)
WPW10176723 WPW10176723 PANEL, OUTER DOOR (BLACK)
WP7760P242-60 WP7760P242-60 PANEL, OUTER DOOR (S.STEEL (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
2618F201-51 2618F201-51 PANEL, SHIELD (LEFT)
2618F206-51 2618F206-51 PANEL, SHIELD (RIGHT)
W10185606 W10185606 PANL-CNTRL
W10279070 W10279070 PANL-CNTRL
4020W035-80 4020W035-80 PEDESTAL, BOTTOM
3605F354-45 3605F354-45 PLATE, SMOKE ELM.
WPW10273862 WPW10273862 RACK-OVEN
WP7801P173-60 WP7801P173-60 RACK-OVEN
W10275560 W10275560 RACK-OVEN
WP74007474 WP74007474 RCPTCL-ELM
261582 261582 REFINISHING MATERIAL (GREASE)
799832 799832 REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
3804F231-51 3804F231-51 RETAINER, BOTTOM
3804F300-51 3804F300-51 RETAINER, INSUL.
WP74004078 WP74004078 ROLLER- DR
W10182835 W10182835 RUNNR-DRWR
WP7101P072-60 WP7101P072-60 SCREW
W10828565 W10828565 SCREW
W11233072 W11233072 SCREW
WP74010805 WP74010805 SCREW
WP4159193 WP4159193 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP7101P309-60 WP7101P309-60 SCREW
WP90767 WP90767 SCREW
W10179558 W10179558 SCREW
W11396735 W11396735 SCREW
WP74005231 WP74005231 SHAFT, ROLLER (2)
3604F326-45 3604F326-45 SHIELD, WARMER
8034P008-60 8034P008-60 SMOKE ELIMINATOR
74010267 74010267 SPACER, RUBBER
WP74005546 WP74005546 SPACER- RU
WP3807F708-70 WP3807F708-70 SUPPORT
3807F640-51 3807F640-51 SUPPORT
W10271711 W10271711 SUPPORT
WP3807F769-51 WP3807F769-51 SUPPORT, CONTROL PANEL
3807F494-45 3807F494-45 SUPPORT, ELEMENT
8004P093-60 8004P093-60 SUPPORT,ELEMENT
3807F727-45 3807F727-45 SUPPORT,OVEN BTM
W10823713 W10823713 SURFACE ELEMENT
W10823711 W10823711 SURFACE ELEMENT
W10823692 W10823692 SURFACE ELEMENT
WP74010824 WP74010824 SWITCH- EL
WP7450P108-60 WP7450P108-60 SWTCH-LITE
WP7450P034-60 WP7450P034-60 SWTCH-LMIT
WP74004224 WP74004224 TAPE
8270P133-60 8270P133-60 TAPE, FOIL
WP74009025 WP74009025 TAPE- DBL
3608F141-70 3608F141-70 TRIM, DOOR TOP (BLACK)
WPW10159823 WPW10159823 TRIM, FRONT
WP3608F138-70 WP3608F138-70 TRIM-SIDE
W10165722 W10165722 TUBE, VENT LOWER
8026P084-60 8026P084-60 TUBE, VENT UPPER
W10233479 W10233479 TUBE-VENT
5171P550-60 5171P550-60 U3, HARNESS (RT)
8113P680-60 8113P680-60 USE & CARE GUIDE
