Model Image
Manufacturer

Whirlpool

Model Number

GY399LXUQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3601F373-51 3601F373-51 BAFFLE, RETAINER
WP3801F656-51 WP3801F656-51 BRACKET
3801F887-51 3801F887-51 BRACKET, DRAWER
3801F886-51 3801F886-51 BRACKET, GLASS
3801F832-45 3801F832-45 BRACKET, HANDLE (LEFT)
3801F831-45 3801F831-45 BRACKET, HANDLE (RIGHT)
W10190166 W10190166 BRACKET, POWER SUPPLY
WP22001948 WP22001948 CAMERA LENS- INDI
W10355051 W10355051 CLEANER, COOKTOP
8019P013-60 8019P013-60 CLIP, NYLON

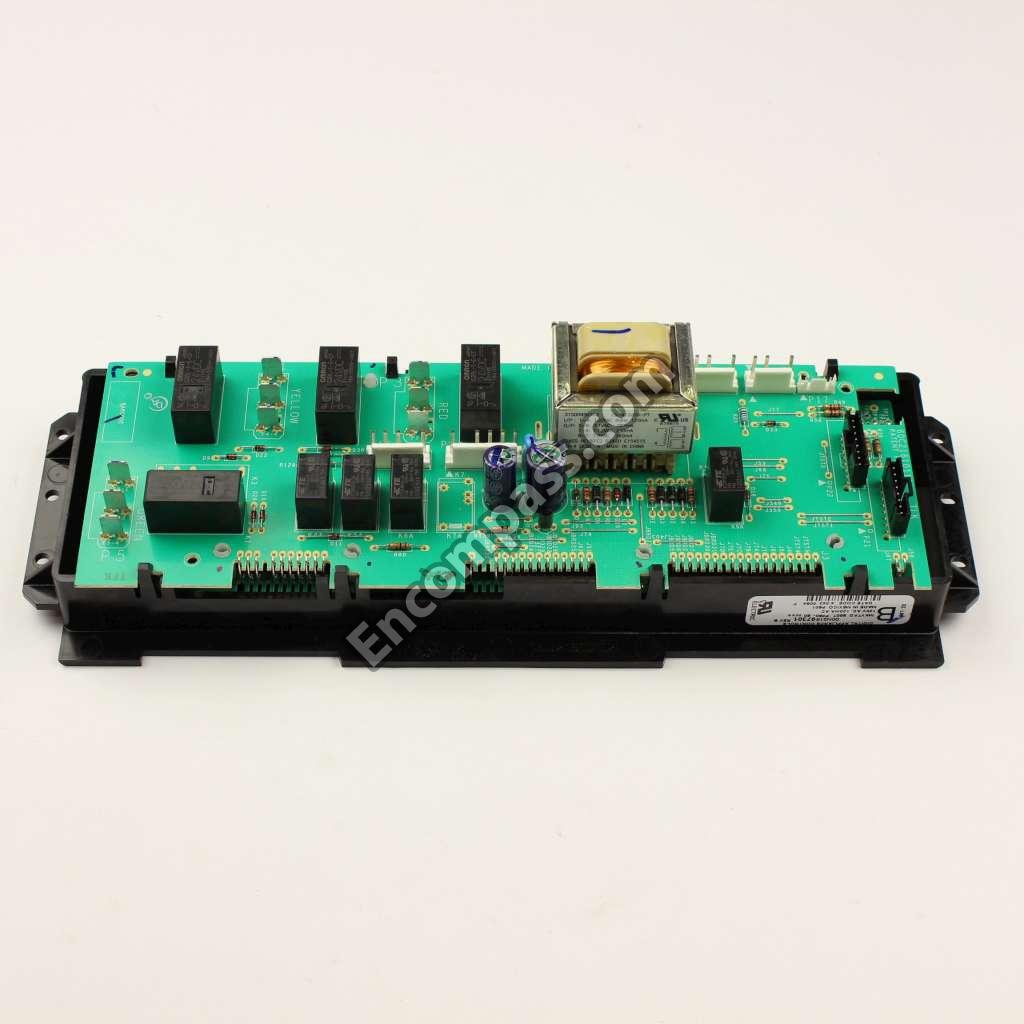

WP8507P390-60 WP8507P390-60 CONTROL BOARD
WP7720P535-60 WP7720P535-60 CONTROL PANEL
WP7720P536-60 WP7720P536-60 CONTROL PANEL
W10170209 W10170209 COOKTOP
W10170211 W10170211 COOKTOP
W10170220 W10170220 COOKTOP
4005F749-45 4005F749-45 COVER, FRONT
74008315 74008315 COVER,CONV.FAN
4005F810-51 4005F810-51 COVR-ACESS
WPW10118430 WPW10118430 DOOR HANDLE
WPW10144883 WPW10144883 DOOR HANDLE
74010819 74010819 DOOR LATCH ASSEMBLY
WP3608F116-71 WP3608F116-71 DOOR TRIM
WP3608F117-71 WP3608F117-71 DOOR TRIM
WP3608F116-70 WP3608F116-70 DOOR TRIM
WP3608F117-70 WP3608F117-70 DOOR TRIM
74008333 74008333 DRAWER, STORAGE
WP7406P411-60 WP7406P411-60 ELMNT-BAKE
WP7406P218-60 WP7406P218-60 ELMNT-BROL
3826F066-51 3826F066-51 EXTENSION, BACK
3826F064-51 3826F064-51 EXTENTION, SHIELD
WPW10586440 WPW10586440 FAN-BLWR
WPW10210594 WPW10210594 FAN-CONVCT
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
WPW10162384 WPW10162384 GASKT-DOOR
WPW10170230 WPW10170230 GLASS, DOOR (BISCUIT)
74003645 74003645 GLASS, INNER (2)
WPW10176723 WPW10176723 GLASS-DOOR
WPW10176724 WPW10176724 GLASS-DOOR
5171P976-60 5171P976-60 HARNESS, MAIN
74010849 74010849 HARNESS, SENSOR
5171P557-60 5171P557-60 HARNESS,SWITCH(LT)
5171P550-60 5171P550-60 HARNESS,SWITCH(RT)
W10204629 W10204629 HARNS-WIRE
74011142 74011142 HINGE (2)
W10118431 W10118431 HNDLE-DOOR
W10118432 W10118432 HNDLE-DOOR
3605F345-51 3605F345-51 HOLDER, VENT TUBE
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
W10203740 W10203740 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
W10165725 W10165725 INSULATION
7002P246-60 7002P246-60 INSULATION, DOOR
7002P443-60 7002P443-60 INSULATION, OVEN BOTTOM
74010987 74010987 INSULATION, WRAP
7003P101-60 7003P101-60 INSULATOR, CORD
12001676 12001676 KIT, HARDWARE
WP7737P417-60 WP7737P417-60 KNOB
WP7737P414-60 WP7737P414-60 KNOB
7737P416-60 7737P416-60 KNOB (LF,RR) (BISCUIT)
7737P415-60 7737P415-60 KNOB (LF,RR) (WHITE)
7737P419-60 7737P419-60 KNOB (RF,LR) (BISCUIT)
7737P418-60 7737P418-60 KNOB (RF,LR) (WHITE)
WP7407P182-60 WP7407P182-60 LAMP-ASM
8009 8009 LIGHT BULB
7407P193-60 7407P193-60 LIGHT, INDICATOR
WP74004153 WP74004153 LIGHT- IND
WP2402W312-19 WP2402W312-19 LINER-DOOR
2404F030-51 2404F030-51 LINING, DRAWER
3804F294-51 3804F294-51 MAIN BACK
WPW10207933 WPW10207933 MEMBRANE SWITCH
WPW10207932 WPW10207932 MEMBRANE SWITCH
W10175320 W10175320 NAMEPLATE
WP488130 WP488130 NUT
74005230 74005230 NUT, LOCK (2)
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
7720P537-60 7720P537-60 PANEL, CONTROL (BISCUIT)
2416F059-78 2416F059-78 PANEL, DRAWER (BISCUIT)
2416F059-70 2416F059-70 PANEL, DRAWER (BLACK)
WPW10253205 WPW10253205 PANEL, DRAWER (S.STEEL)
2416F059-71 2416F059-71 PANEL, DRAWER (WHITE)
2618F201-51 2618F201-51 PANEL, SHIELD (LEFT)
2618F206-51 2618F206-51 PANEL, SHIELD (RIGHT)
W10168887 W10168887 PANEL-DOOR

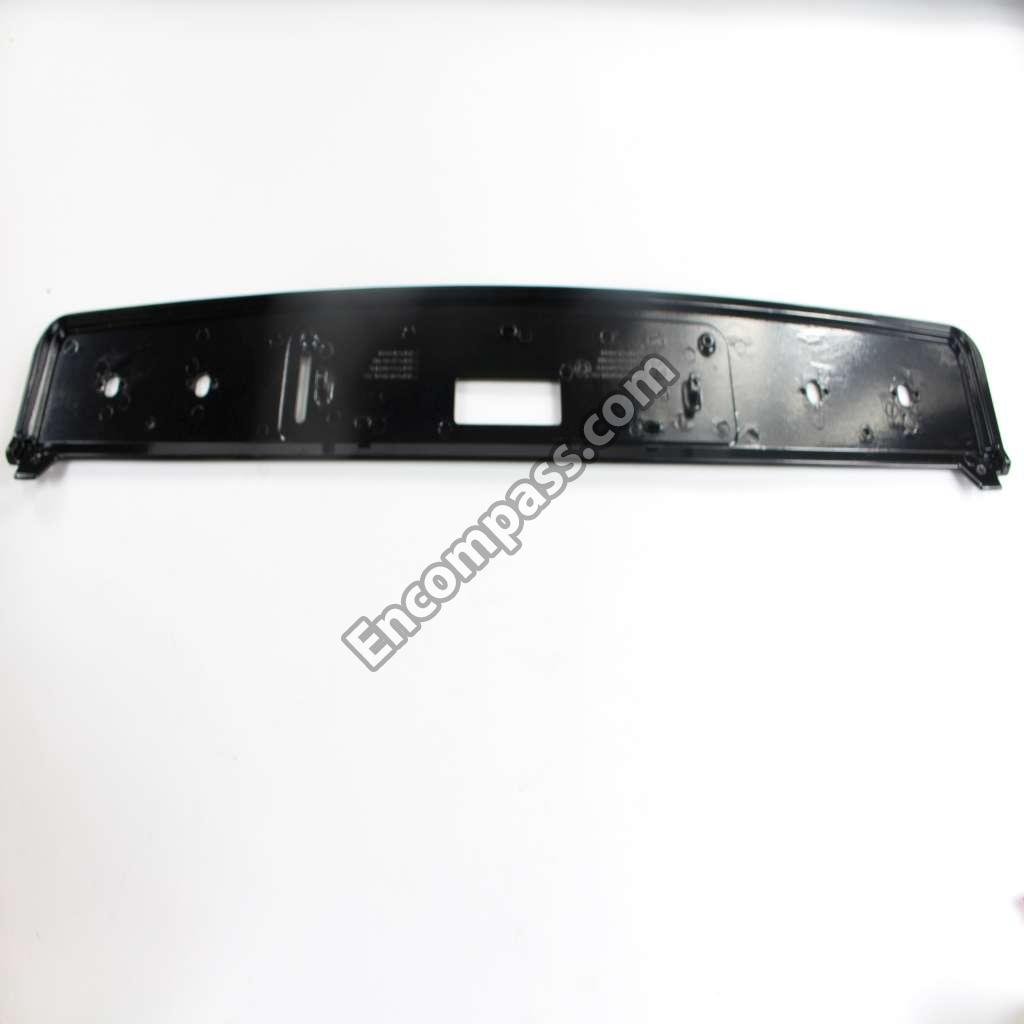

W10185606 W10185606 PANL-CNTRL
W10185607 W10185607 PANL-CNTRL
W10279070 W10279070 PANL-CNTRL
W10185609 W10185609 PANLCNTRL
4020W035-80 4020W035-80 PEDESTAL, BOTTOM
WP4020F036-80 WP4020F036-80 PEDESTAL, FRONT
3605F354-45 3605F354-45 PLATE, SMOKE ELM.
WP74009587 WP74009587 RACK-OVEN
WPW10273862 WPW10273862 RACK-OVEN
WP7801P173-60 WP7801P173-60 RACK-OVEN
261582 261582 REFINISHING MATERIAL (GREASE)
799832 799832 REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
3804F231-51 3804F231-51 RETAINER, BOTTOM
3804F300-51 3804F300-51 RETAINER, INSUL.
WP74004078 WP74004078 ROLLER- DR
W10182835 W10182835 RUNNER, DRAWER (2)
WP7101P072-60 WP7101P072-60 SCREW
WP98008544 WP98008544 SCREW
W10828565 W10828565 SCREW
WP74009541 WP74009541 SCREW
W11233072 W11233072 SCREW
WP74010805 WP74010805 SCREW
WP4159193 WP4159193 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74003976 WP74003976 SCREW
WP7101P309-60 WP7101P309-60 SCREW
WP90767 WP90767 SCREW
W11396735 W11396735 SCREW
74009538 74009538 SCREW, PANEL (S.STEEL)
WP74005231 WP74005231 SHAFT, ROLLER (2)
W10177095 W10177095 SHIELDHT
8034P008-60 8034P008-60 SMOKE ELIMINATOR
74010267 74010267 SPACER, RUBBER
WP74005546 WP74005546 SPACER- RU
242828 242828 SPLICING WIRES--25FT. LENGTH (WIRE, BLACK 12 GA. 150 C)
242821 242821 SPLICING WIRES--25FT. LENGTH (WIRE, BLUE 14 GA. 150 C)
242822 242822 SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 GA. 150 C)
8316784 8316784 SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 GA. 200 C)
242823 242823 SPLICING WIRES--25FT. LENGTH (WIRE, GREEN 14 GA. 150 C)
242824 242824 SPLICING WIRES--25FT. LENGTH (WIRE, ORANGE 14 GA. 150 C)
242825 242825 SPLICING WIRES--25FT. LENGTH (WIRE, RED 14 GA. 150 C)
242831 242831 SPLICING WIRES--25FT. LENGTH (WIRE, RED 14 GA. 200 C)
242827 242827 SPLICING WIRES--25FT. LENGTH (WIRE, YELLOW 14 GA. 150 C)
WP3807F708-71 WP3807F708-71 SUPPORT
WP3807F708-78 WP3807F708-78 SUPPORT
WP3807F708-70 WP3807F708-70 SUPPORT
74007129 74007129 SUPPORT
WP3807F769-51 WP3807F769-51 SUPPORT, CONTROL PANEL
74003386 74003386 SUPPORT, ELEMENT
8004P093-60 8004P093-60 SUPPORT, ELEMENT
3807F732-51 3807F732-51 SUPPORT, OVEN REAR
3807F727-45 3807F727-45 SUPPORT,OVEN BTM
W10823713 W10823713 SURFACE ELEMENT
W10823711 W10823711 SURFACE ELEMENT
W10823692 W10823692 SURFACE ELEMENT
7450P118-60 7450P118-60 SWITCH, MEMBRANE (WHITE)
WP74010824 WP74010824 SWITCH- EL
WP7450P108-60 WP7450P108-60 SWTCH-LITE
WP7450P034-60 WP7450P034-60 SWTCH-LMIT
WP74004224 WP74004224 TAPE
74003664 74003664 TAPE, FOIL
WP74009025 WP74009025 TAPE- DBL
WP74009014 WP74009014 TAPE- DBL
WP3608F117-78 WP3608F117-78 TRIM, DOOR SIDE (BISCUIT, LEFT)
WP3608F116-78 WP3608F116-78 TRIM, DOOR SIDE (BISCUIT, RIGHT)
WPW10159823 WPW10159823 TRIM, FRONT
WP3608F141-71 WP3608F141-71 TRIM-DOOR
3608F141-70 3608F141-70 TRIM-DOOR
WP3608F138-71 WP3608F138-71 TRIM-SIDE
WP3608F138-70 WP3608F138-70 TRIM-SIDE
W10177497 W10177497 TRIMDOOR
74010816 74010816 TUBE, VENT UPPER
74005759 74005759 TUBE, VENT UPPER
W10165722 W10165722 TUBE-VENT
W10203741 W10203741 USE & CARE GUIDE
