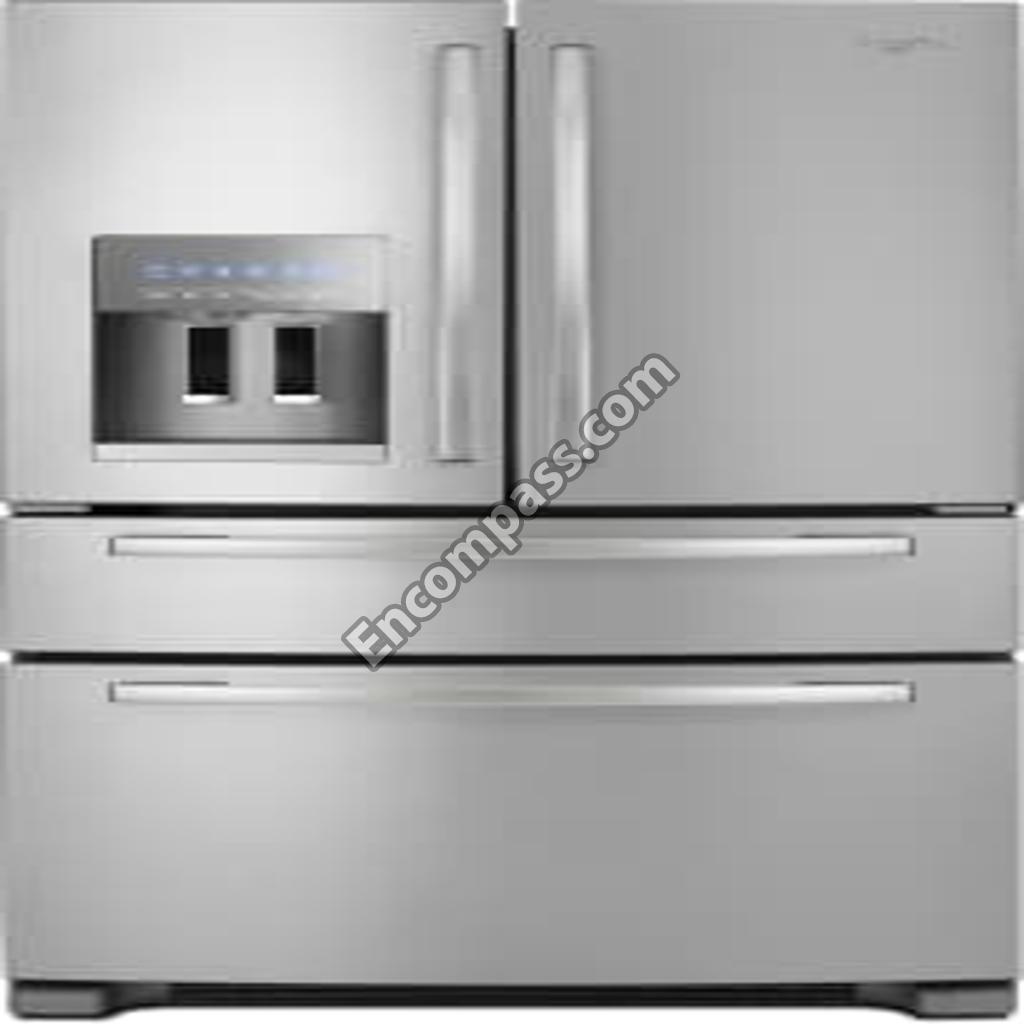

Model Image
Manufacturer

Whirlpool

Model Number

GZ25FSRXYY7

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11093713 W11093713 ADAPTER, PANTRY (LEFT HAND)
W11093714 W11093714 ADAPTER, PANTRY (RIGHT HAND)
WPW10312691 WPW10312691 AIR-BAFFLE
WPW10378254 WPW10378254 ARM-SHUT
WPW10122563 WPW10122563 ARM-STRIPR
W10555984 W10555984 ASSEMBLY, AIR GRILLE
W10882923 W10882923 ASSEMBLY, MODULE
W10525773 W10525773 ASSEMBLY, SECONDARY MULLION (GREY)
67006434 67006434 AXLE, ROLLER (2)
W11218042 W11218042 BASKET-FZR
WP627985 WP627985 BIMETL-DEF
WPW10224961 WPW10224961 BIN CONTROL LEVER
WPW10212139 WPW10212139 BIN CONTROL LEVER
WPW10323808 WPW10323808 BIN CONTROL LEVER
WPW10293682 WPW10293682 BIN-FREEZR
WPW10324088 WPW10324088 BIN-ICE
WP67006337 WP67006337 BLADE- FAN
WP12825803 WP12825803 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
W10492234 W10492234 BRACE, MULLION
12227305 12227305 BRACE-PANTRY
WPW10284683 WPW10284683 BRACKET
WPW10284682 WPW10284682 BRACKET
WPW10330991 WPW10330991 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10334463 WPW10334463 BRACKET
67006325 67006325 BRACKET, FILTER BASE
W10174827 W10174827 BRACKET, ICE DOOR
W10346971 W10346971 BRACKET, SOLENOID
N_P N_P CABINET (NOT A SERVICABLE PART)
W10237349 W10237349 CAMERA LENS, ICEBOX COVER LED
W10311756 W10311756 CAMERA LENS-RC-LED
W11395888 W11395888 CAP-FILTER
WPW10350564 WPW10350564 CAPACITOR
W11456069 W11456069 CLAMP
W11673433 W11673433 CLIP
W11661170 W11661170 CLIP
W11712696 W11712696 CLIP
WP628379 WP628379 CLIP
W10174818 W10174818 CLIP MOTOR COUPLING
12996601 12996601 CLIP, BUSHING
W10281329 W10281329 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
W10165970 W10165970 CLIP, FAN MOTOR
WP12028505AP WP12028505AP CLOSER
WPW10277361 WPW10277361 COLLAR
WPW10507886 WPW10507886 COMPRESSOR
WPW10346415 WPW10346415 CONDENSER
WPW10334458 WPW10334458 CONNECTOR
WPW10196393 WPW10196393 CONTROL
WPW10521642 WPW10521642 CONTROL BOARD
W11125428 W11125428 CONTROL BOARD
W11035835 W11035835 CONTROL BOARD
WPW10226427 WPW10226427 CONTROL BOARD
WPW10309869 WPW10309869 COVER
WPW10337648 WPW10337648 COVER
WPW10191117 WPW10191117 COVER
W10254277 W10254277 COVER, BOARD
12961602 12961602 COVER, CONTROL BOX
W10308421 W10308421 COVER, EVAPORATOR
W10191141 W10191141 COVER, FILL TUBE (APOLLO GREY)
W10460383 W10460383 COVER, FRONT
W10284709 W10284709 COVER, GEAR (LEFT HAND)
W10294414 W10294414 COVER, GEAR (RIGHT HANDD)
W10311725 W10311725 COVER, PANTRY RAIL (LEFT HAND)
W10211854 W10211854 COVER, UNIT
12960101 12960101 COVER, UPPER WATER TANK
W10208592 W10208592 COVER, VALVE
67006329 67006329 COVER, WATER TANK (LOWER)
WP67003924 WP67003924 COVER- FZ
WP67006331 WP67006331 COVER-FILT
W10377998 W10377998 CUP, FILL
12963002SP 12963002SP DAM, RETURN (LEFT HAND)
12963102SP 12963102SP DAM, RETURN (RIGHT HAND)
WPW10309864 WPW10309864 DIVIDER
WPW10285573 WPW10285573 DIVIDER
W10146439 W10146439 DIVIDER, UPPER BASKET
13107111SQ 13107111SQ DOOR ASSEMBLY SS
13107319SQ 13107319SQ DOOR ASSEMBLY SS
13107318SQ 13107318SQ DOOR ASSEMBLY SS
13107112SQ 13107112SQ DOOR ASSEMBLY SS
W11592375 W11592375 DOOR HINGE
W10917988 W10917988 DOOR HINGE
W11592374 W11592374 DOOR HINGE
WPW10311757 WPW10311757 DRAWER SLIDE RAIL
WPW10143759 WPW10143759 DRIER-UV
W10318914 W10318914 EJECTOR, ARM
W10118193 W10118193 ENCLOSURE, WATER VALVE CONNECTOR
W11536253 W11536253 EVAPORATOR
W11334745 W11334745 EVAPORATOR MOTOR
W11529245 W11529245 EVAPORATOR MOTOR
WPW10351019 WPW10351019 EXTENSION
WP12587703AP WP12587703AP FILLER
W10815413 W10815413 FUNNEL
W11159728 W11159728 GASKET
W11451451 W11451451 GASKET
WP67006341 WP67006341 GASKET
W11250029 W11250029 GASKET
WPW10714545 WPW10714545 GASKET ASSEMBLY
WPW10443326 WPW10443326 GASKET ASSEMBLY
W10830274 W10830274 GASKET, DOOR (GREY)
67006429 67006429 GASKET, HV CONTROL BOX
WPB8381501 WPB8381501 GASKET- DR
WPW10474715 WPW10474715 GEAR
WPW10474716 WPW10474716 GEAR
12002497 12002497 GEAR
W10277360 W10277360 GEAR, SPUR
WPW10296571 WPW10296571 GLASS SHELF
W11402525 W11402525 GLASS SHELF
WP12883508SP WP12883508SP GLASS SHELF
WPW10194032 WPW10194032 GLIDE
WPW10194031 WPW10194031 GLIDE
WP542638 WP542638 GREASE
W11176847 W11176847 GRILLE
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W10852725 W10852725 GROMMET
W10151687 W10151687 GROMMET, FAN MOTOR
W11676465 W11676465 GROMMET- F
W10438984 W10438984 GUIDE, ENERGY
W10485986 W10485986 GUIDE, WATERLINE
WPW10435760 WPW10435760 GUIDE-ICE
WPW10223019K WPW10223019K HANDLE
WPW10223025K WPW10223025K HANDLE
W10335721 W10335721 HARNESS-RC-LED
WP12729123 WP12729123 HEATER
W11434460 W11434460 HOUSING
W11684721 W11684721 HOUSING
W10311719 W10311719 HOUSING-MODULE
W11185686 W11185686 ICE-CONTNR
WP63052-2 WP63052-2 IMPELLER
WPW10498990 WPW10498990 INLET VALVE
W10121282 W10121282 INLET, BLOWER
W11676504 W11676504 INSERT
W11697528 W11697528 INSULATION
W11706807 W11706807 INSULATION
876029 876029 INSULATION, FOAM
W10273464 W10273464 LADDER, CENTER
W10251968 W10251968 LADDER, SIDE (LEFT HAND)
W10251965 W10251965 LADDER, SIDE (RIGHT HAND)
WPW10141622 WPW10141622 LEVELER
W10118194 W10118194 LID, ENCLOSURE
W10296541 W10296541 LID, HV CONTROL BOX
W11290115 W11290115 LIGHT
4396822 4396822 LIGHT BULB
606755 606755 MISCELLANEOUS, ADHESIVE
833938 833938 MISCELLANEOUS, BAG
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS
WP4317852 WP4317852 MISCELLANEOUS, GREASE
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
212643 212643 MISCELLANEOUS, SEALER, GUM
W10679370 W10679370 MODULE
WPW10300025 WPW10300025 MOLD-ICE
WPW10205979 WPW10205979 MOTOR
W11671282 W11671282 MOTOR
W11613295 W11613295 MOTOR-COND
W10348259 W10348259 MOUNT, GEAR (LEFT HAND)
W10348260 W10348260 MOUNT, GEAR (RIGHT HAND)
W10311721 W10311721 MULLION, SECONDARY
WPW10393265 WPW10393265 NAMEPLATE
WPW10353848 WPW10353848 PAD
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
WPW10655368 WPW10655368 PAN-DRIP
WPW10319333 WPW10319333 PAN-SNACK
WPW10530656 WPW10530656 PAN-UTILTY
W11727651 W11727651 PLATE
WPA3076901 WPA3076901 PLUG, BUTTON
W11489993 W11489993 RAIL
W11489994 W11489994 RAIL
W11715934 W11715934 RAIL
W10311723 W10311723 RAIL, PANTRY (LEFT HAND)
W10311727 W10311727 RAIL-REAR PANTRY
W11346622 W11346622 RESERVOIR
WP67005149 WP67005149 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
12992301 12992301 SCREW
WP489474 WP489474 SCREW
WPW10068250 WPW10068250 SCREW
WPW10288153 WPW10288153 SCREW
WP98165 WP98165 SCREW
WP67006415 WP67006415 SCREW
WPW10272364 WPW10272364 SCREW
W11233072 W11233072 SCREW
WP3400065 WP3400065 SCREW
W10854958 W10854958 SCREW
W11686675 W11686675 SCREW
WP489349 WP489349 SCREW
WPW10109200 WPW10109200 SCREW
WP8281196 WP8281196 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
W10309863 W10309863 SCROLL, BLOWER
WPW10287601 WPW10287601 SEAL
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
W10278987 W10278987 SEPARATOR
WPW10353552 WPW10353552 SEPARATOR
W11173556 W11173556 SHAFT
12812903WDSHAFT_ 12812903WDSHAFT_ SHAFT, RACK
W10298176 W10298176 SHAFT-RACK
W11197490 W11197490 SHELF-CANT
W11469652 W11469652 SHIELD
12999501 12999501 SHIM, TOP HINGE (LEFT HAND)
12999502 12999502 SHIM, TOP HINGE (RIGHT HAND)
W11556315 W11556315 SHROUD
W11700329 W11700329 SHROUD- EV
W11658402 W11658402 SLIDE
W11447232 W11447232 SOCKET
WPW10309866 WPW10309866 SOLENOID
W11378860 W11378860 SPACER
W11227371 W11227371 SPIGOT
WPW10448874 WPW10448874 START-DEV
W11703060 W11703060 STOP-DOOR
W10236396 W10236396 STRAP, COMPRESSOR
WPW10346124 WPW10346124 SUPPORT
W11445850 W11445850 SWITCH
W11291138 W11291138 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
W10525816 W10525816 TECH SHEET
WP1117510 WP1117510 TORX SCREW WRENCH TORX KEY
W11547653 W11547653 TRAY-DRIP
WPW10267863 WPW10267863 TRAY-DRIP
W11192301 W11192301 TRAY-DRIP
WPW10233569 WPW10233569 TUBE
W10619951 W10619951 TUBE-DRAIN
W10422734 W10422734 USE & CARE GUIDE
WP978025 WP978025 VALVE
WPW10349187 WPW10349187 VALVE
978029 978029 VALVE, ACCESS
978028 978028 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978026 978026 VALVE, ACCESS
876764 876764 VALVE, ACCESS
978030 978030 VALVE, ACCESS
W11045978 W11045978 WALL, DISPENSER FALSE (NICKEL)
EDR4RXD1 EDR4RXD1 WATER FILTER
WPW10511930 WPW10511930 WATER TUBE
WPW10444033 WPW10444033 WATER TUBE
W11415785 W11415785 WATER TUBE
W10316401 W10316401 WEDGE, SPACER LEFT HAND & RIGHT HAND
WPW10123444K WPW10123444K WHEEL
W10860749 W10860749 WIRE HARNESS
W11029433 W11029433 WIRE HARNESS
