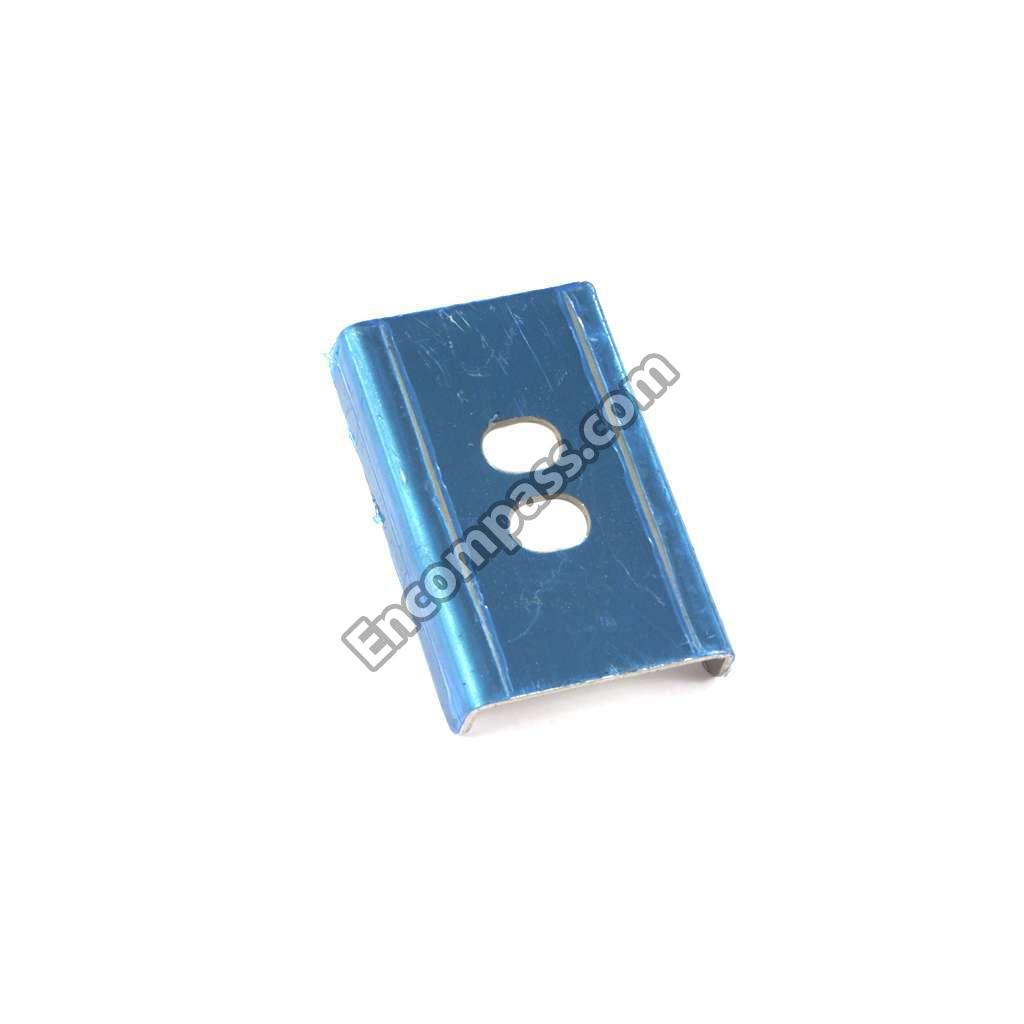

Model Image
Manufacturer

Whirlpool

Model Number

IBD550PRS02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
8304252 8304252 ASSY, DOOR GLASS (S.STEEL (LOWER))
8304251 8304251 ASSY, DOOR GLASS (S.STEEL (UPPER))
4452234 4452234 BACK, CHASSIS
8303100 8303100 BACK, CONTROL
9759713 9759713 BASE, CHASSIS
WP8203546 WP8203546 BLOCK-TERM
WPW10016550 WPW10016550 BLOWER
W10810687 W10810687 BLOWER
8302390 8302390 BRACKET, CONTROL AIR STOP
8303528 8303528 BRACKET, DISPLAY
W10159515 W10159515 BRACKET, HANDLE
4452152 4452152 BRACKET, MOUNTING
8302774 8302774 BRACKET, UI
WP4455352 WP4455352 BRKT-MNTG
WP9759230 WP9759230 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
W10105790 W10105790 BUMPER, DOOR
4448520 4448520 BUMPER, DOOR (3)
4451605 4451605 CAP, SPACER
4448664 4448664 CLAMP
WP98997 WP98997 CLIP
16515 16515 CLIP, HARNESS
WP8303093 WP8303093 CNTRL-OVEN
4450953 4450953 CONDUIT
WP8304382 WP8304382 CONTROL BOARD
WP8304383 WP8304383 CONTROL BOARD
W10166931 W10166931 CONTROL PANEL ASSEMBLY. (S.STEEL)
8303096 8303096 COVER, DISPLAY
8285593 8285593 COVER, WIRE
WPW10160821 WPW10160821 COVER-FAN
WP4451747 WP4451747 COVER-REAR
WP4452367 WP4452367 COVER-TOP
9760677 9760677 DEFLECTOR, VENT
WP4452999 WP4452999 DISPLAY
8302349 8302349 DIVIDER, VENT
WP9760889 WP9760889 DOOR DOOR LATCH
8303589 8303589 DOOR HANDLE (S.STEEL)
WP9760579 WP9760579 DOOR HINGE
WP9760574 WP9760574 DOOR HINGE
4455177 4455177 ELBOW, VENT BOTTOM
4455178 4455178 ELBOW, VENT TOP
WPW10207397 WPW10207397 ELEMENT
WP9760771 WP9760771 ELMNT-BROL
WP4452226 WP4452226 FAN-CONVCT
WPW10115831 WPW10115831 FRAME-FRNT
W11675844 W11675844 GASKET-OVN
WP9759225 WP9759225 GLASS DOOR
WP4449259 WP4449259 GLASS DOOR
WP3195996 WP3195996 GRID-PAN
WP4448444 WP4448444 GROMMET
4452400 4452400 GROUND LEAD
8303868 8303868 HARNESS (DOUBLE)
8301909 8301909 HARNESS, LOWER DOOR LATCH
8303865 8303865 HARNESS, WIRE (DOOR LATCH)
WP4455605 WP4455605 HINGE-RECV
WP4455606 WP4455606 HINGE-RECV
W10075750 W10075750 INSTALLATION INSTRUCTIONS
8303102 8303102 INSTRUCT, INSTALL
8303076 8303076 INSULATION
WP4451722 WP4451722 INSULATION
W11684730 W11684730 INSULATION
WPW10110696 WPW10110696 INSULATION BOTTOM VENT
WP4450365 WP4450365 INSULATION, BACK
9758755 9758755 KNOB (BLACK)
W10067870 W10067870 LENS-LIGHT
WP4173175 WP4173175 LIGHT BULB
WPW10734065 WPW10734065 LIGHT-OVEN
100000 100000 LINER, OVEN (NOT SERVICEABLE)
WP9759413 WP9759413 LINER-DOOR
WP4451583 WP4451583 MOTOR-FAN
8302775 8302775 MOUNTING PLATE
WP112432 WP112432 NUT
WP4452227 WP4452227 NUT
WP4450118 WP4450118 NUT
8304379 8304379 OWNERS MANUAL (SGL/DBL OVEN)
WP261869 WP261869 PAINT CW
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10123240 W10123240 PAN, BROILER
W10737569 W10737569 PAN-BROILR
4455191 4455191 PLATE, BLOWER
WPW10179152 WPW10179152 RACK-OVEN
814374 814374 RAIL-MTG
814373 814373 RAIL-MTG
WP9759242 WP9759242 RANGE THERMOSTAT
WP9759243 WP9759243 RANGE THERMOSTAT
WPW10158497 WPW10158497 RETAINER
WP4457132 WP4457132 RETAINER
WP4448933 WP4448933 RETAINER
WP4448950 WP4448950 SCREW
W11684512 W11684512 SCREW
WPW10132940 WPW10132940 SCREW
WP694091 WP694091 SCREW
WP4450038 WP4450038 SCREW
WP4449040 WP4449040 SCREW
W11233072 W11233072 SCREW
WP3400832 WP3400832 SCREW
WP4449154 WP4449154 SCREW
WP4449809 WP4449809 SCREW
WP4449743 WP4449743 SCREW
4450800 4450800 SCREW, GROUND
9759116 9759116 SEAL, DOOR TOP
W10491987 W10491987 SEAL-FOAM
WPW10131825 WPW10131825 SENSOR
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
W10782197 W10782197 SIDE, CHASSIS
W10790240 W10790240 SIDE, CONTROL TOP (LEFT)
W10755214 W10755214 SIDE, CONTROL TOP (RIGHT)
4452490 4452490 SPACER, FOAM
4449845 4449845 SUPPORT, BRACKET
4451478 4451478 SUPPORT, INSULATION
4451761 4451761 SUPPORT, WIRING
WP4451985 WP4451985 SUPPRESSOR
8303091 8303091 SWITCH, CANCEL (BLACK)
8303089 8303089 SWITCH, ENTER (BLACK)
8303104 8303104 TECH SHEET (OVEN)
WPW10339879 WPW10339879 TIE-WIRE
8303099 8303099 TOP CHASSIS
WP4450551 WP4450551 TOP-CABNT
WP9760587 WP9760587 TRANSFORMR
WP4455147 WP4455147 TRIM, BOTTOM (S.STEEL)
4452082 4452082 TRIM, SIDE (S.STEEL (L.HAND))
4452081 4452081 TRIM, SIDE (S.STEEL (R.HAND))
W10861715 W10861715 TUBE-VENT
8303098 8303098 VENT, (CONTROL PANEL)
4452267 4452267 VENT, CENTER
4451759 4451759 VENT, EXHAUST
242828 242828 WIRE (12 GA. 150 C BLACK)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
