Model Image
Manufacturer

Whirlpool

Model Number

IBS300DS03

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10904156 W10904156 "CHASSIS, COVER TOP BACK 30"""
W10318192 W10318192 "CHASSIS, COVER TOP FRONT 30"""
WP482338 WP482338 ADHESIVE
W10904160 W10904160 BACK, CHASSIS
W11238787 W11238787 BASE, CHASSIS
W10616809 W10616809 BASE, VENT EXHAUST
W11245567 W11245567 BLOWER
W10655463 W10655463 BRACKET, BLOWER (LEFT)
W10655462 W10655462 BRACKET, BLOWER (RIGHT)
W10655464 W10655464 BRACKET, HARNESS
W10863234 W10863234 BRACKET, SIDE COVER (LEFT)
W10863233 W10863233 BRACKET, SIDE COVER (RIGHT)
W10853628 W10853628 BRKT-GLASS
W11025615 W11025615 BRKT-GLASS
W10812024 W10812024 BRKT-GLASS
WPW10351278 WPW10351278 BUMPER
WPW10412722 WPW10412722 CAMERA LENS-LIGHT
W10655465 W10655465 CHASSIS, BACK DIVIDER
4448664 4448664 CLAMP, CONDUIT
W10487999 W10487999 CLIP, HARNESS
W11293804 W11293804 CONSOLE
W10850498 W10850498 CONTROL BOARD
W10803991 W10803991 CONTROL BOARD
8285593 8285593 COVER, CONNECTOR
W10616810 W10616810 COVER, VENT EXHAUST
WPW10283008 WPW10283008 COVR-ACESS
W10282957 W10282957 CROSSBAR, HIDDEN BAKE TRAY
W10904163 W10904163 DEFLECTOR, BLOWER
W10827059 W10827059 DOOR
W10883049 W10883049 DOOR DOOR LATCH
W10825778 W10825778 DOOR HINGE
W10318196 W10318196 DUCT, CHASSIS BACK
W11545804 W11545804 ELMNT-BAKE
WPW10260252 WPW10260252 ELMNT-BROL
W10821321 W10821321 FOOT-LEVEL
WPW10709147 WPW10709147 FRAME-GLAS
WPW10545255 WPW10545255 FUSE-THRML
W11623080 W11623080 GASKET-OVN
W10792610 W10792610 GLASS DOOR
WPW10347596 WPW10347596 GLASS DOOR
W10759525 W10759525 GROMMET
W10796005 W10796005 GUIDE, USE & CARE
W10675924 W10675924 HANDLE, DOOR (STAINLESS)
W10760039 W10760039 HARDWARE
W11132989 W11132989 HARNESS, DOOR DOOR LATCH
W11157775 W11157775 HARNESS, EOL (MRC)
W11136114 W11136114 HARNESS, MAIN
W11613828 W11613828 HINGE-RECV
W10351242 W10351242 INSTRUCTIONS, INSTALLATION
W10811360 W10811360 INSTRUCTIONS, INSTALLATION (IKEA)
W10351318 W10351318 INSTRUCTIONS, UNDERCOUNTER INSTALL
W11688731 W11688731 INSULATION
W11684789 W11684789 INSULATION
WPW10412711 WPW10412711 LIGHT BULB
WPW10734063 WPW10734063 LIGHT-IND
N_P N_P LINER, OVEN (NOT SERVICEABLE)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350956 350956 PAINT, SPRAY (ALMOND)
4392901 4392901 PAINT, SPRAY (BISCUIT/BISQUE)
285006 285006 PAINT, SPRAY (BLACK)
350938 350938 PAINT, SPRAY (GRAY PRIMER)
350942 350942 PAINT, SPRAY (WHITE PRIMER)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)

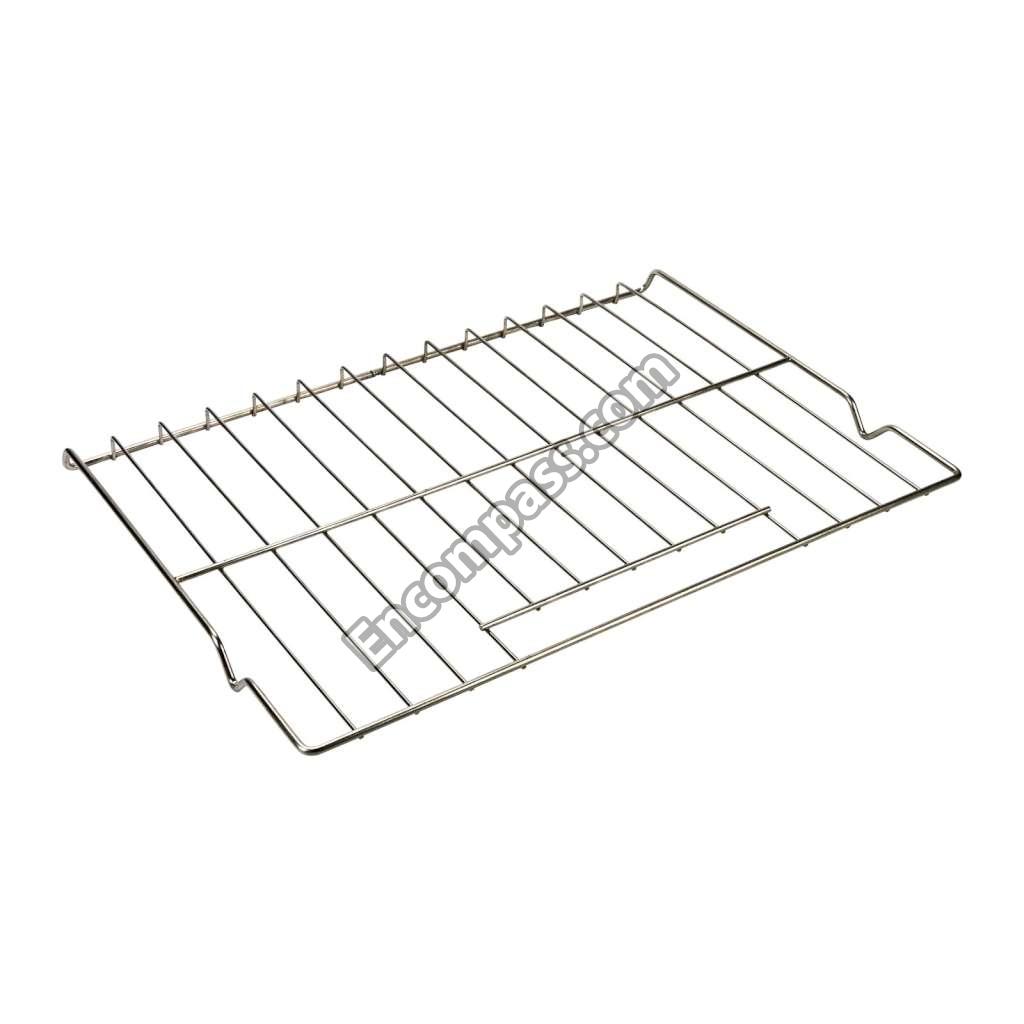

W11218798 W11218798 RACK-OVEN
WP4449751 WP4449751 RANGE THERMOSTAT
WP12990527 WP12990527 SCREW
WP7101P434-60 WP7101P434-60 SCREW
W10828565 W10828565 SCREW
W11690596 W11690596 SCREW
W10831019 W10831019 SCREW
WP3196183 WP3196183 SCREW
WPY706189 WPY706189 SCREW
WPW10254050 WPW10254050 SCREW
WP90767 WP90767 SCREW
4450800 4450800 SCREW, GROUNDING
W11226314 W11226314 SEAL-FOAM
W10491987 W10491987 SEAL-FOAM
W10859573 W10859573 SENSOR
W10796080 W10796080 SHEET, TECH
W10318190 W10318190 SIDE, CHASSIS
W11240831 W11240831 SPACER
W10351308 W10351308 SPACER, CHASSIS BOTTOM DUCT
W10347649 W10347649 SPACERS, FRONT
W11132988 W11132988 STRAP, LEAD GROUND
W10213759 W10213759 SUPPORT, AIR CHANNEL
W10904158 W10904158 TOP, CHASSIS
W10347650 W10347650 TRAY, ELECTRONIC
W10318198 W10318198 TRAY, HIDDEN BAKE
WPW10327377 WPW10327377 TRIM
WPW10283036 WPW10283036 TRIM-VENT
W11240525 W11240525 TUBE-VENT
WPW10351279 WPW10351279 VENT-OVEN
