Model Image
Manufacturer

Whirlpool

Model Number

IBS550PWS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3)
8303100 8303100 BACK, CONTROL
9759713 9759713 BASE, CHASSIS (NOT SERVICEABLE)
WPW10245259 WPW10245259 BLOCK-TERM
W10810687 W10810687 BLOWER
4452152 4452152 BRACKET, BOTTOM VENT
8303528 8303528 BRACKET, DISPLAY
WP9759230 WP9759230 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
WP4455352 WP4455352 BRKT-MNTG
W10158967 W10158967 BRKT-MNTG
W10159515 W10159515 BRKT-MNTG
W10105790 W10105790 BUMPER
4448520 4448520 BUMPER, DOOR
8303099 8303099 CHASSIS, TOP
WP98997 WP98997 CLIP
WPW10158965 WPW10158965 CNTRL-OVEN
WP4450952 WP4450952 CONDUIT

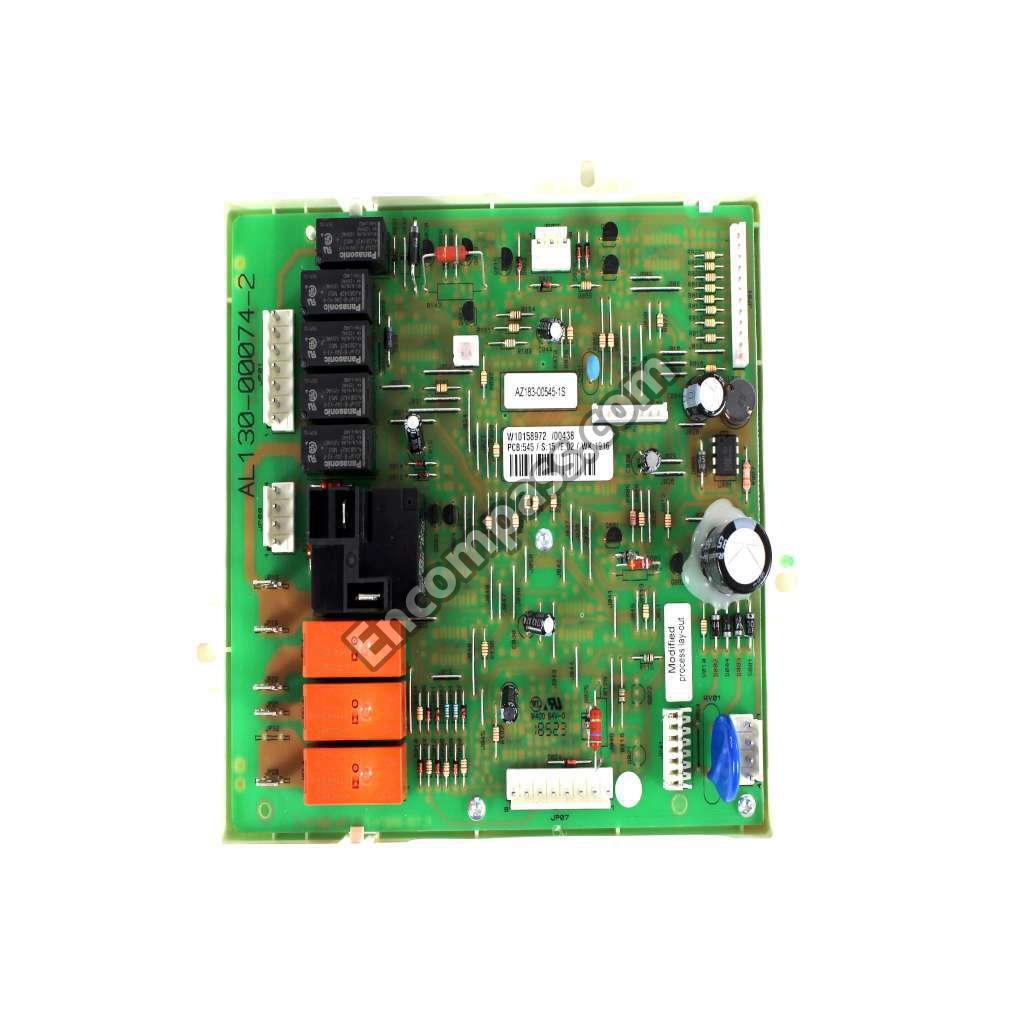

WPW10158972 WPW10158972 CONTROL BOARD
W10890277 W10890277 CONTROL PANEL (STAINLESS)
W10401257 W10401257 CONTROL PANEL (WHITE)
W10137043 W10137043 COVER
W10137044 W10137044 COVER
8285593 8285593 COVER, CONNECTOR
WPW10160821 WPW10160821 COVER-FAN
WP4451747 WP4451747 COVER-REAR
W10161110 W10161110 COVER-REAR
WP4452367 WP4452367 COVER-TOP
W10194089 W10194089 COVR-ACESS
9760677 9760677 DEFLECTOR, VENT
WPW10158964 WPW10158964 DISPLAY
WPW10195934 WPW10195934 DOOR DOOR LATCH
WPW10163961 WPW10163961 DOOR GLASS (STAINLESS)
WP9760578 WP9760578 DOOR HINGE
WP9760577 WP9760577 DOOR HINGE
4455178 4455178 ELBOW, TOP VENT
4455177 4455177 ELBOW, VENT BOTTOM
WPW10207397 WPW10207397 ELEMENT
WP9760771 WP9760771 ELMNT-BROL
W10758272 W10758272 FAN-CONVCT
WPW10115831 WPW10115831 FRAME-FRNT
W11675844 W11675844 GASKET-OVN
WP9759228 WP9759228 GLASS DOOR
WP9759225 WP9759225 GLASS DOOR
WP4449259 WP4449259 GLASS DOOR
W10163962 W10163962 GLASS-DOOR
WP4448444 WP4448444 GROMMET
W10247685 W10247685 HARNS-WIRE
WP4455605 WP4455605 HINGE-RECV
WP4455606 WP4455606 HINGE-RECV
W10158977 W10158977 HNDLE-DOOR
W10075750 W10075750 INSTALLATION INSTRUCTIONS (BI-LINGUAL)
8304572 8304572 INSTALLATION INSTRUCTIONS, UNDERCOUNTER
W10210919 W10210919 INSTRUCTIONS, INSTALLATION
WP4451722 WP4451722 INSULATION
8303076 8303076 INSULATION
W11684730 W11684730 INSULATION
WP4450365 WP4450365 INSULATION, BACK
W10158969 W10158969 KNOB
W10178792 W10178792 KNOB
W10067870 W10067870 LENS-LIGHT
WP4173175 WP4173175 LIGHT BULB
WPW10734065 WPW10734065 LIGHT-OVEN
N_P N_P LINER, OVEN (NOT SERVICEABLE)
WP9759413 WP9759413 LINER-DOOR
W10794022 W10794022 MOTOR-FAN
8302775 8302775 MOUNTING PLATE
WP7103P027-60 WP7103P027-60 NUT
WPW10116349 WPW10116349 NUT
WP4450118 WP4450118 NUT
W10270566 W10270566 OWNERS MANUAL
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350956 350956 PAINT, SPRAY (ALMOND)
4392901 4392901 PAINT, SPRAY (BISCUIT/BISQUE)
285006 285006 PAINT, SPRAY (BLACK)
350938 350938 PAINT, SPRAY (GRAY PRIMER)
350942 350942 PAINT, SPRAY (WHITE PRIMER)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10171759 W10171759 PROBE-MEAT
WPW10179152 WPW10179152 RACK-OVEN
W10158955 W10158955 RAIL-MTG
WP9759243 WP9759243 RANGE THERMOSTAT
WP4457132 WP4457132 RETAINER
WP4448933 WP4448933 RETAINER
W10158978 W10158978 RETAINER
WP3400832 WP3400832 SCREW
WP4449743 WP4449743 SCREW
WP4450038 WP4450038 SCREW
W11684512 W11684512 SCREW
WP3400805 WP3400805 SCREW
WP4449040 WP4449040 SCREW
WP4449154 WP4449154 SCREW
W11233072 W11233072 SCREW
WP4449809 WP4449809 SCREW
W10169394 W10169394 SCREW
W10491987 W10491987 SEAL-FOAM
WPW10131825 WPW10131825 SENSOR
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
W10782197 W10782197 SIDE, CHASSIS
W10790240 W10790240 SIDE, CONTROL TOP (LEFT)
W10755214 W10755214 SIDE, CONTROL TOP (RIGHT)
4449845 4449845 SUPPORT, BRACKET
4451478 4451478 SUPPORT, INSULATION
WP4451985 WP4451985 SUPPRESSOR
WPW10158961 WPW10158961 SWITCH-PB
8303092 8303092 SWITCH-PB
W10158966 W10158966 SWTCH-OVEN
W10201489 W10201489 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
WP4450551 WP4450551 TOP-CABNT
WP9760587 WP9760587 TRANSFORMR
W10163965 W10163965 TRIM
W10256640 W10256640 TRIM-DOOR
W10861715 W10861715 TUBE-VENT
4451759 4451759 VENT, EXHAUST
8303497 8303497 VENT,CONTROL PANEL
4448664 4448664 WIRING HARNESS PARTS, CLAMP. CONDUIT
8303865 8303865 WIRING HARNESS PARTS, HARNESS, DOOR LATCH
4452400 4452400 WIRING HARNESS PARTS, LEAD, GROUND STRAP
4450800 4450800 WIRING HARNESS PARTS, SCREW, GROUNDING
