Model Image
Manufacturer

Whirlpool

Model Number

ITH500VW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP627843 WP627843 ARM-EJECTR
WP67004028 WP67004028 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
R0156897 R0156897 ASSY DRAIN BLOCK
10698556Q 10698556Q ASSY, CRISPER FRAME
R0161072 R0161072 ASSY, DAMPER CONTROL
R0161082 R0161082 ASSY, FZ CONTROL
10482010W 10482010W ASSY, FZ DR FM (WHITE)
10480425Q 10480425Q ASSY, GLASS SHELF
10480424Q 10480424Q ASSY, GLASS SHELF
12041854 12041854 ASSY, MC BACK
12452601Q 12452601Q ASSY, ROLLER BRACKET
WP10253509Q WP10253509Q ASSY, W FRZ HNDL
10481224 10481224 ASSY,COND/PAN-E CT
R0170058 R0170058 ASSY,LOW SIDE(TSI18A3)
R0000231 R0000231 ASSY- TOP
10481909W 10481909W ASS`Y, REF DOOR (WHITE)
10450901 10450901 AXLE, ROLLER
12039807 12039807 BACK, MACH COMP
10467802 10467802 BAND, CRISPER CONTROL (18-19)
B5742604 B5742604 BLADE, FAN
W10116797 W10116797 BLADE-FAN
10428301 10428301 BLOCK, EVAP. L.
10428202 10428202 BLOCK, EVAP. R
10995003 10995003 BOTTOM, FRZ
10582501 10582501 BRACKET, COND. MOTOR
B8391802 B8391802 BRACKET, I/M
WP10492701 WP10492701 BRAKT-MTR
10907501 10907501 BRKT, LIGHT
WP10492801 WP10492801 BRKT, UP EVAP. FAN
10502911 10502911 BUCKET, REF DOOR (PLAIN)
M0051601 M0051601 BUMPER-PAD
12028601 12028601 BUSHING, DOOR (WHT)
WP67004975 WP67004975 BUSHING, DOOR (WHT)
WP67001130 WP67001130 BUTTON- PL
10427110 10427110 CABINET BRACE-PNT
10993701 10993701 CAP-AIR
10752201 10752201 CAP-SWITCH

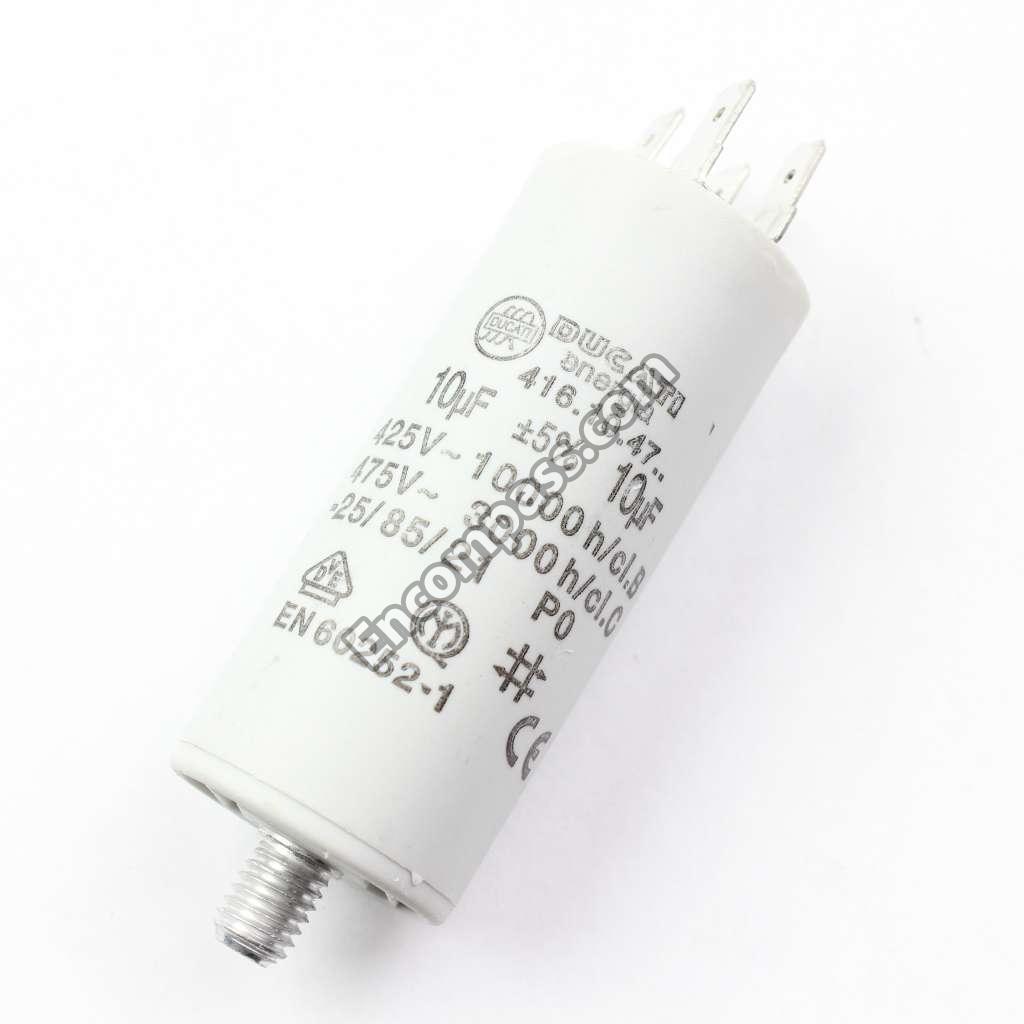

WP8183098 WP8183098 CAPACITOR
10433361WD 10433361WD CENTER MULLION-(WHITE)E CT
M0102325 M0102325 CLAMP
W10833902 W10833902 CLAMP
B8372901 B8372901 CLAMP
M0288213 M0288213 CLIP
WP628379 WP628379 CLIP
B5720302 B5720302 CLIP
WP2315522 WP2315522 CLIP
W11673433 W11673433 CLIP
B5720303 B5720303 CLIP
WPM0104106 WPM0104106 CLIP
10547001 10547001 CLIP, DRIER
10442301 10442301 CLIP, EVAPORATOR
10586601 10586601 CLIP, HT TRANSFER
10202001 10202001 CLIP, RETAINER
10547101 10547101 CLIP, TUBE
WPM0114003 WPM0114003 CLIP- SPEE
WP10551502 WP10551502 CLIP- TOE
M0110510 M0110510 CLIP-WIRE
12028501 12028501 CLOSURE, DOOR (WHT)
W10309997 W10309997 COMPRESSOR
10426911 10426911 COND FAN SHRD-E CT
WP10423131 WP10423131 CONTAINER
12425101 12425101 CORD, POWER
10244905 10244905 COUPLING
10440713 10440713 COVER, EVAPORATOR
10432402 10432402 COVER, EVAPORATOR
10442205 10442205 COVER, HT EXCH
10584802 10584802 COVER, LOWER HINGE (WHITE)
10877103 10877103 COVER, SWITCH
D7874403 D7874403 COVER-FL TB/PLUG
10201801 10201801 COVER-HANDLE SCREW W
10201802 10201802 COVER-HANDLE SCREW W
4344043 4344043 COVER-TERM
10444708 10444708 COVER-W HINGE
WP628356 WP628356 CUP-FILL
10423420 10423420 DOOR,DAIRY
WPB2150504 WPB2150504 DRIER
10440405 10440405 DUCT, FRZ AIR
10163201 10163201 ELBOW DRAIN TUBE
WP10449503 WP10449503 EVAPORATOR MOTOR
10946010 10946010 EXTR, REAR SHELF
10946009 10946009 EXTR, REAR SHELF
10459922 10459922 EXTR-FRONT SHELF
10459923 10459923 EXTR-FRONT SHELF
10688059 10688059 EXTR-L CRISP FRONT PERIWINKLE
10688060 10688060 EXTR-R CRISP FRONT
10252903 10252903 FILTER, BUSHING
10460104 10460104 FRAME, GLASS SHELF (FULL)
10435513 10435513 FRAME, REF TOP BRK
WPW10289690 WPW10289690 FRONT COVER
B5759644 B5759644 GASKET
A3030354 A3030354 GASKET
A3030356 A3030356 GASKET
B8386613 B8386613 GASKET
A3132301 A3132301 GASKET
10442702 10442702 GASKET, COND. FAN
A3189358 A3189358 GASKET, FOAM
B5759626 B5759626 GASKET, SEALING
10685507 10685507 GASKET, SEALING

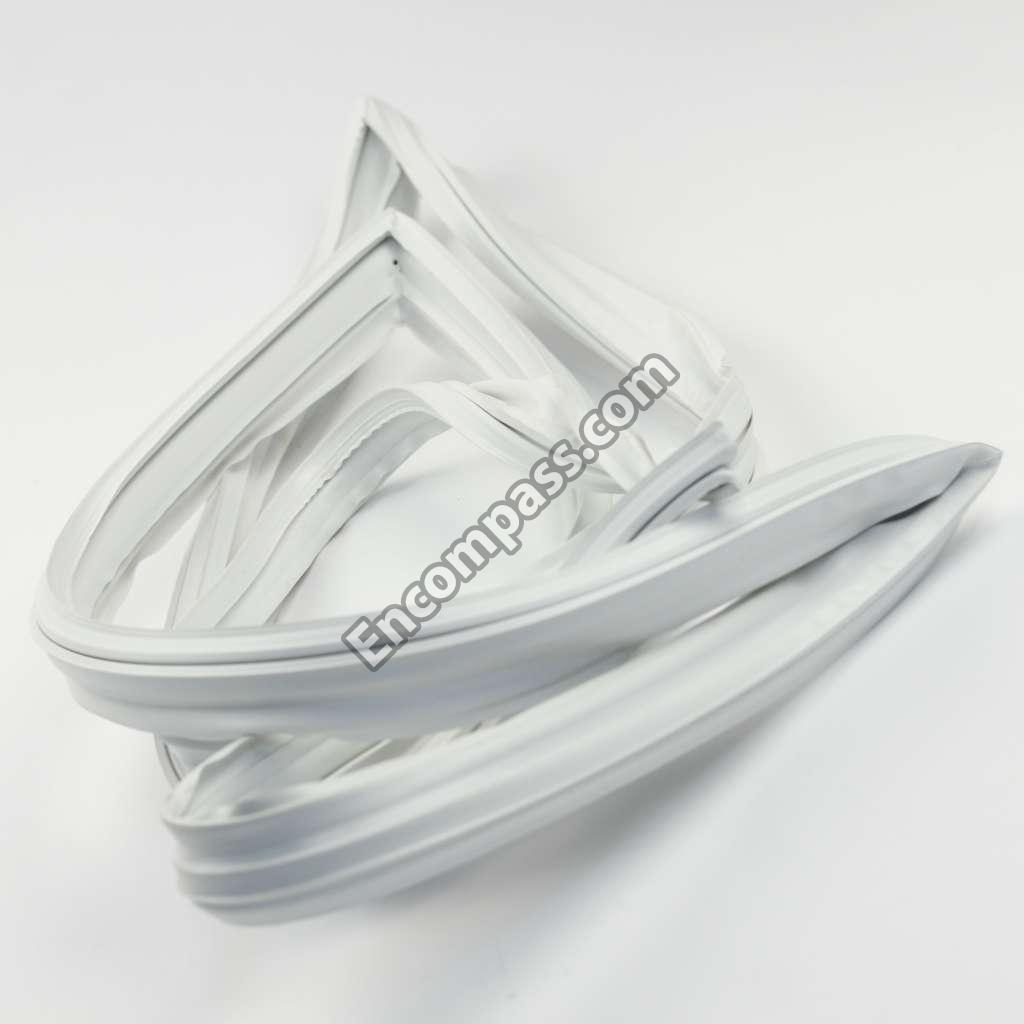

WP12550110Q WP12550110Q GASKET- FR
WP12550109Q WP12550109Q GASKET- RE
10370098 10370098 GLASS, FULL SHELF
10370016 10370016 GLASS, SHELF (18)
10370097 10370097 GLASS, SPLIT SHELF
12027101 12027101 GLIDE, L DELI
12027201 12027201 GLIDE, R DELI
10474902 10474902 GRILLE, TOE (WHITE) (19)
WP2264462 WP2264462 GROMMET
10699301 10699301 GROMMET
67003493 67003493 GROMMET, COMPRESSOR
M0580007 M0580007 GROMMET, SCREW
WP10253510Q WP10253510Q HANDLE
10179201 10179201 HARNESS IM GG
12172409 12172409 HARNESS, CABINET
10785802 10785802 HARNESS, CONTROL
10968601 10968601 HARNESS, MACH COMP
10525901 10525901 HARNESS, WATER VALVE
10781107 10781107 HARNESS-DR
10785904 10785904 HEATER, EVAP
10543611 10543611 HEATER, MULLION
10775302 10775302 HEATER, REF TOP
10585508 10585508 HINGE,(W)BTM-E CT
12446503 12446503 HINGE,CTR-E CT(WHITE)
12035107 12035107 HOUSING, CONTROL
WP2195914 WP2195914 HOUSING-IM
D7861803 D7861803 HOUSING-LIGHT
WPW10190972 WPW10190972 ICEMAKER
10476402 10476402 INSERT, DRAIN BLOCK
10442801 10442801 INSERT,DAMPER
WPA3223101 WPA3223101 INSERT- PL
10995201 10995201 INSERT-MK AIR SUPPLY
10527051 10527051 INSTR,INSTALL(IC55)
12403602 12403602 INSUL, SOUND
10779601 10779601 INSUL. AIR DUCT
10772301 10772301 INSULATION
B0523584 B0523584 INSULATION PER FT.
B0523593 B0523593 INSULATION, BATT FRZ. DR.
10673603 10673603 INSULATION, CAP
10442901 10442901 INSULATION, DAMPER
R0168028 R0168028 KIT- DEFRO
10565401 10565401 KNOB, CONTROL
A3036901 A3036901 LABEL WARRANTY
12435801 12435801 LADDER, CENTER
12435701 12435701 LADDER, SIDE (L/R)
10436404 10436404 LID, UTILITY
59002071 59002071 LIGHT BULB
10461001Q 10461001Q LINER, FRZ DOOR (18)
10461705 10461705 LINER,REF DOOR
10450850 10450850 MEMBRANE-BREAKER SL1
10670403 10670403 MOTOR, CONDENSER
10184401 10184401 NAMEPLATE, HANDLE
WP627018 WP627018 NUT
10377019 10377019 OVERLOAD- 4TM
10184501 10184501 PAD NAMEPLATE
10427404 10427404 PAN, DRAIN
10417119 10417119 PAN,MEATKEEPER
10430216 10430216 PAN-CRISPER
WP67001255 WP67001255 PAN-ICE
67007018 67007018 PIN HINGE BOTTOM
10351002 10351002 PIN, HINGE (CTR)
10442601 10442601 PINION, CONTROL
10433610 10433610 PLATE, CENTER TOP
12047201 12047201 PLATE-WATER VALVE
M0311301 M0311301 PLUG BUTTON
10686401 10686401 PLUG BUTTON
12470501 12470501 PLUG BUTTON (WH)
WPA3076901 WPA3076901 PLUG, BUTTON
M0311605 M0311605 PLUG, BUTTON (WHT)
M0310308 M0310308 PLUG, BUTTON (WHT)
M0310330 M0310330 PLUG, BUTTON WHITE
10428001 10428001 PLUG, HT EXCH V
10544301 10544301 PLUG, IM TUNNEL
10184301 10184301 PLUG-NAMEPLATE W
A4539626 A4539626 POP RIVET
10461901 10461901 POST, CRISPER SUPPORT
10439601 10439601 RACK, CONTROL
10435605 10435605 RAIL, CRISPER BACK
10433805 10433805 RAIL, CRISPER BACK
10687701 10687701 RAIL, CRISPER FR0NT(R)
10687702 10687702 RAIL, CRISPER FRONT(L)
10432806 10432806 RAIL, CTR. CRISPER
10432805 10432805 RAIL, CTR. CRISPER
10432704 10432704 RAIL, SIDE CRISPER
10432703 10432703 RAIL, SIDE CRISPER
12035214 12035214 REF TOP-E CT
WP10097206 WP10097206 RELAY
WP10419107 WP10419107 RETAINER, REF DOOR
10419207 10419207 RETAINER, REF DOOR
10450701 10450701 ROLLER, REAR
W11233072 W11233072 SCREW
67006692 67006692 SCREW
12992301 12992301 SCREW
WPM0223816 WPM0223816 SCREW
W11573574 W11573574 SCREW
WP67006715 WP67006715 SCREW
M0253916 M0253916 SCREW
WP489128 WP489128 SCREW
R0186040 R0186040 SCREW
R0186041 R0186041 SCREW
WP489399 WP489399 SCREW
WP98165 WP98165 SCREW
WP489349 WP489349 SCREW
W10856125 W10856125 SCREW
WP67006380 WP67006380 SCREW
WP90767 WP90767 SCREW
WPM0219730 WPM0219730 SCREW
WPW10348409 WPW10348409 SCREW
WP489069 WP489069 SCREW
WP489464 WP489464 SCREW
67006425 67006425 SCREW (3)
M0211520 M0211520 SCREW - SM
M0204336 M0204336 SCREW, ADJ ROLLER
M0221523 M0221523 SCREW, SHLDR
M0227217 M0227217 SCREW, SM
M0260242 M0260242 SCREW, TF
M0238636 M0238636 SCREW-SM
10460106 10460106 SHELF, GLASS FRAME
10419707 10419707 SHELF, REF DOOR
Y10440001 Y10440001 SHELF, WIRE FRZ. (18)
10900801 10900801 SHIELD, CONT HSG.
10427710 10427710 SHIELD, EVAP.
10678401 10678401 SHIELD, FRZ LIGHT
D7846203 D7846203 SHIELD, ICE MAKER
10508701 10508701 SHIELD, REFRIG. LIGHT
10565101 10565101 SHIELD, WIRE
10447904 10447904 SHIM HINGE
10447903 10447903 SHIM, BTM HINGE
10562203 10562203 SHIM, CENTER HINGE
10562202 10562202 SHIM, CENTER HINGE
10562201 10562201 SHIM, CENTER HINGE
10448503 10448503 SHIM, TOP HINGE
10448502 10448502 SHIM, TOP HINGE
10448501 10448501 SHIM, TOP HINGE
WPM0274058 WPM0274058 SHIM- NON
WPM0274057 WPM0274057 SHIM- NON
10422304 10422304 SHROUD, EVAP. FAN
10797501 10797501 SLIDE, CRISPER
D7845103 D7845103 SOCKET, LIGHT
12465701 12465701 SPACER, CRISPER
WPA1055105 WPA1055105 SPRING
12968202W 12968202W STOP, DOOR (WHITE)
W11384469 W11384469 SWITCH
10279202 10279202 SWITCH, HEATER
M0320905 M0320905 TERMINAL GROUND A
10789103 10789103 THERMOSTAT
12028301 12028301 THERMOSTAT, DEFROST
WPW10339879 WPW10339879 TIE-WIRE
WP841180A WP841180A TRAY
67004412A 67004412A TRAY, BUTTER
10435911 10435911 TRAY, DRIP
10436506 10436506 TRAY, EGG
WPB5705307 WPB5705307 TUBE
10908101 10908101 TUBE, DRAIN
A3012543 A3012543 TUBE-PLASTIC
A3012542 A3012542 TUBE-PLASTIC
12490802 12490802 VALVE, WATER
W11176463 W11176463 WATER TUBE
B5667304 B5667304 WIRE CLIP
