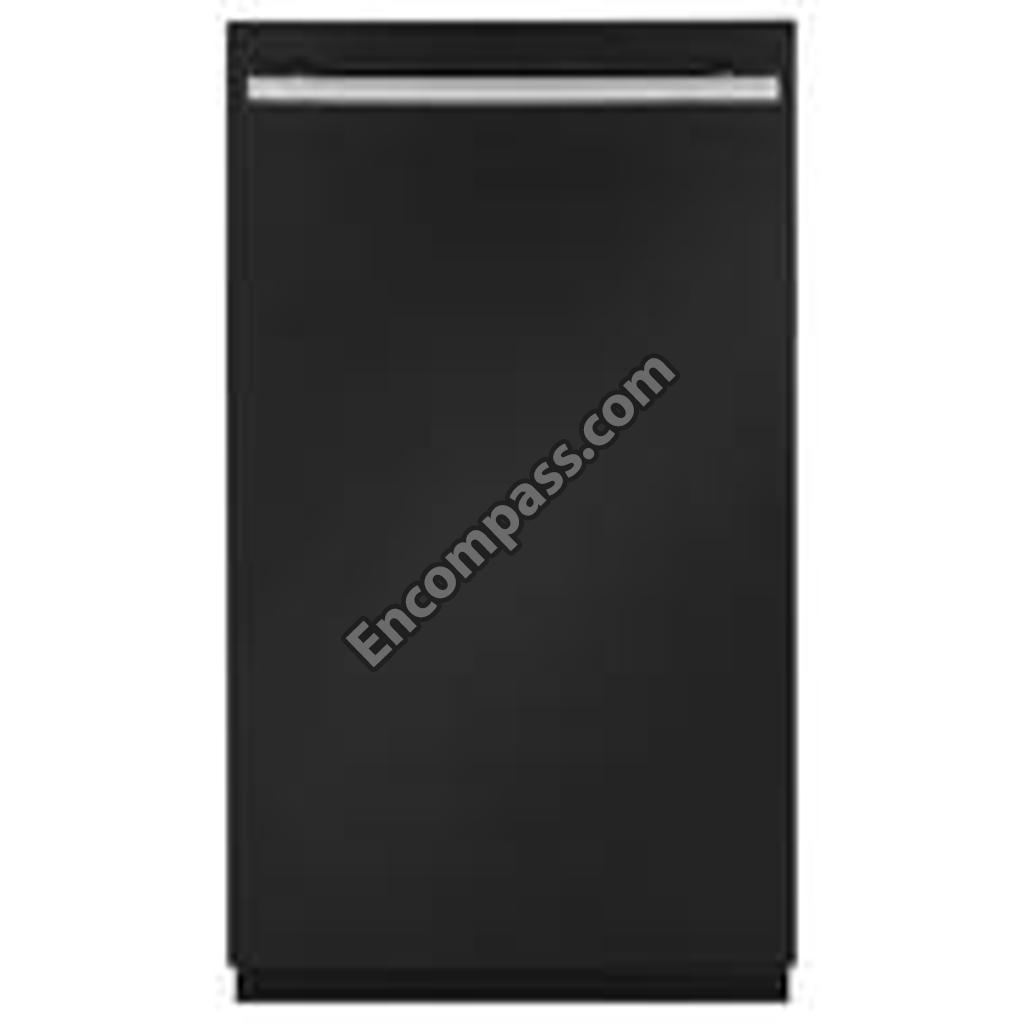

Model Image
Manufacturer

Whirlpool

Model Number

JDB1250AWB10

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10192799 WPW10192799 ACCUMULATR
WPW10153533 WPW10153533 ADJUSTER
WPW10153534 WPW10153534 ADJUSTER
99003095 99003095 ANCHOR- PA
WP6-918806 WP6-918806 ARM- LOWER
WP99003070 WP99003070 ARM- WASH
WP6-917644 WP6-917644 ARM-SPRAY
99003150 99003150 BACKER HI
WP6-919119 WP6-919119 BAFFLE
99003088 99003088 BAR TOWEL
4396277 4396277 BARRIER
99003048 99003048 BARRIER F
WP6-918873 WP6-918873 BASKT-WARE
W11175758 W11175758 BASKT-WARE
WP99003068 WP99003068 BEARING- B
99003046 99003046 BLOCK FOA
99003047 99003047 BLOCK FOA
WPW10218831 WPW10218831 BOARD, CONTROL
WPW10118638 WPW10118638 BRACKET
WPW10118637 WPW10118637 BRACKET
W10167660 W10167660 BRACKET
99002465 99002465 BRACKET D
WPW10173920 WPW10173920 BRACKET, CABLE
WP6-917103 WP6-917103 BRACKET, JUNCTION BOX
6-918346 6-918346 BRACKET, SPRING ADJUSTMENT
6-916979 6-916979 BRACKET, SUPPORT (LEFT)
WP6-916881 WP6-916881 BRACKET- C
WP99002643 WP99002643 BRACKET- M
W10877169 W10877169 CAGE- BALL
WP99003083 WP99003083 CAP- WASH
WP99002665 WP99002665 CAPACITOR-
6-919353 6-919353 CHOPPER
WP596669 WP596669 CLAMP
WP99003115 WP99003115 CLIP
WP99003003 WP99003003 CLIP
WP99003105 WP99003105 CLIP
99003072 99003072 CLIP
99003107 99003107 CLIP CUP
99001008 99001008 CLIP THER
99003071 99003071 CLIP- UPR
WP99002576 WP99002576 COVER
99002575 99002575 COVER
99003191 99003191 COVER
99003079 99003079 COVER SWI
99002638 99002638 COVER, JUNCTION BOX
99003111 99003111 CUP, VARILOCK
99003065 99003065 CUPSHELF
W10280784 W10280784 DISHRACK
W10120527 W10120527 DISHRACK, UPPER
WP99003317 WP99003317 DISPENSER
WP99003446 WP99003446 DOOR CABLE
WPW10275768 WPW10275768 DOOR DOOR LATCH
WP99003106 WP99003106 DOOR LATCH
WP99002689 WP99002689 DOOR LATCH- SEC
W10421247 W10421247 DRAIN PUMP
W10114314 W10114314 ENERGY GUIDE
99003096 99003096 FASTENER-
99002640 99002640 FASTENER-
W10278635RP W10278635RP FILL HOSE KIT
WPW10268755 WPW10268755 FLOAT
W10202535 W10202535 FLOAT
99003108 99003108 FRONT, VARILOCK
99002701 99002701 GAP SEAL-
99002702 99002702 GAP SEAL-
99002703 99002703 GAP SEAL-
12002361 12002361 GASKET
6-918397 6-918397 GRILL,AIR/WATER INLET
99003468 99003468 GUARD
W10166790 W10166790 GUARD, FILTER
99003063 99003063 GUARD- RAC
99003064 99003064 GUARD- RAC
W10164024 W10164024 GUIDE, USE & CARE
W10237912 W10237912 HARNESS, WIRING
W10283681 W10283681 HEATER ELEMENT ASSEMBLY W/ GASKET
99003031 99003031 HOLDER- FL
8212488RC 8212488RC HOSE
8212486 8212486 HOSE
WP99002652 WP99002652 HOSE- DRAI
WP99002852 WP99002852 HOSE- INJE
4396897RW 4396897RW HOSE-FILL
WP99002659 WP99002659 IMPELLER
W11082871 W11082871 INLET VALVE
WP99003028 WP99003028 INLET-AIR
W10120976 W10120976 INNER DOOR W/ DAMPER
W10158012 W10158012 INSTRUCTIONS, INSTALLATION
99003044 99003044 INSULATION
99002693 99002693 INSULATION, DOOR
99003060 99003060 KNOB- RINS
99003192 99003192 LEVER RAC
99003056 99003056 LEVER- MOT
WPW10143258 WPW10143258 LEVLER-LEG
100000 100000 NOTE: IF HEATER ELEMENT IS REMOVED, IT MUST BE REPLACED.
WP99003688 WP99003688 NUT
WP99003033 WP99003033 NUT, HEATER
WP99002857 WP99002857 O-RING- DR
99002651 99002651 O-RING- TU
WP6-918807 WP6-918807 OUTLET
99003093 99003093 PAD FOAM
WPW10223013 WPW10223013 PAD-INS
W10111560 W10111560 PANEL
99003090 99003090 PANEL DEC
99003139 99003139 PANEL, CONTROL
99003338 99003338 PANEL, FRONT (BISQUE)
99003091 99003091 PANEL, FRONT (STAINLESS)
99003092 99003092 PANEL, FRONT (WHITE)
99002767 99002767 PANEL, TOE (INCLUDES ITEM 16) (BISQUE)
WP6-917688 WP6-917688 PANEL-TOE
W10826937 W10826937 PANEL-TOE
6-916824 6-916824 PIVOT, WASH ARM
W10167659 W10167659 PLATE, HANDLE (BLACK)
99003057 99003057 PLUNGER- M
99003109 99003109 REAR VARI
WP99002753 WP99002753 RETAINER
WP99002608 WP99002608 ROLLER- CA
WP99002664 WP99002664 SCREW
WP99003687 WP99003687 SCREW
WP33002917 WP33002917 SCREW
WPY912620 WPY912620 SCREW
WP6-912366 WP6-912366 SCREW
99001075 99001075 SCREW
99001194 99001194 SCREW
99002601 99002601 SCREW
99002666 99002666 SCREW
99002740 99002740 SCREW
99003155 99003155 SCREW 71
99002114 99002114 SCREW BSQ
99002668 99002668 SCREW STA
99002692 99002692 SCREW TRI
99003154 99003154 SCREWTRUS
WP99002150 WP99002150 SEAL- AIR
WP99003337 WP99003337 SEAL- DOOR
WP99003045 WP99003045 SEAL- DOOR
W10833055 W10833055 SEAL- STAN
WPW10120019 WPW10120019 SENSOR
99003074 99003074 SHELF CUP
WP6-920587 WP6-920587 SHIELD
99003440 99003440 SHIELD
99002653 99002653 SHIELD, RADIANT
99002694 99002694 SOUND SEAL
99002698 99002698 SOUND SEAL
99002715 99002715 SPRING VA
WP99003118 WP99003118 SPRING- DO
99003193 99003193 STABILIZER
WP99003282 WP99003282 STOP- RAIL
WPW10119337 WPW10119337 STRIKE
99003034 99003034 STRIP TRI
99003035 99003035 STRIP TRI
99003036 99003036 STRIP TRI
99003089 99003089 STUDS- TOW
WPW10117484 WPW10117484 SUPPORT
WPW10117485 WPW10117485 SUPPORT
99002861 99002861 SUPPORT F
99003094 99003094 SUPPORT I
99003110 99003110 SUPPORT V
WP6-918113 WP6-918113 SUPPORT, FRONT (BLACK)
WP6-918114 WP6-918114 SUPPORT, FRONT (WHITE)
WP99002751 WP99002751 SWITCH- DO
WP99002633 WP99002633 THERMOSTAT, LIMITING
W10178187 W10178187 TINE, CONVERTIBLE (FRONT, LOWER)
99003103 99003103 TINE, FOLD AWAY
99003104 99003104 TINE, FOLD AWAY
W10178184 W10178184 TIP-PINES
WPW10144736 WPW10144736 TRACK
WP99003041 WP99003041 TRIM
WP99003039 WP99003039 TRIM
WP99003038 WP99003038 TRIM
99003451 99003451 TRIM STRIP
W10142298 W10142298 TUB ASSEMBLY
WP6-917647 WP6-917647 TUBE
WP99003081 WP99003081 TUBE-FEED
72032 72032 TUCHUP
72017 72017 TUCHUP
4392899 4392899 TUCHUP
99003142 99003142 WASH MANIFOLD ASSEMBLY
6-919963 6-919963 WASH MOTOR ASSEMBLY.
WP99003149 WP99003149 WHEEL
99003049 99003049 WRAP- FOAM
