Model Number

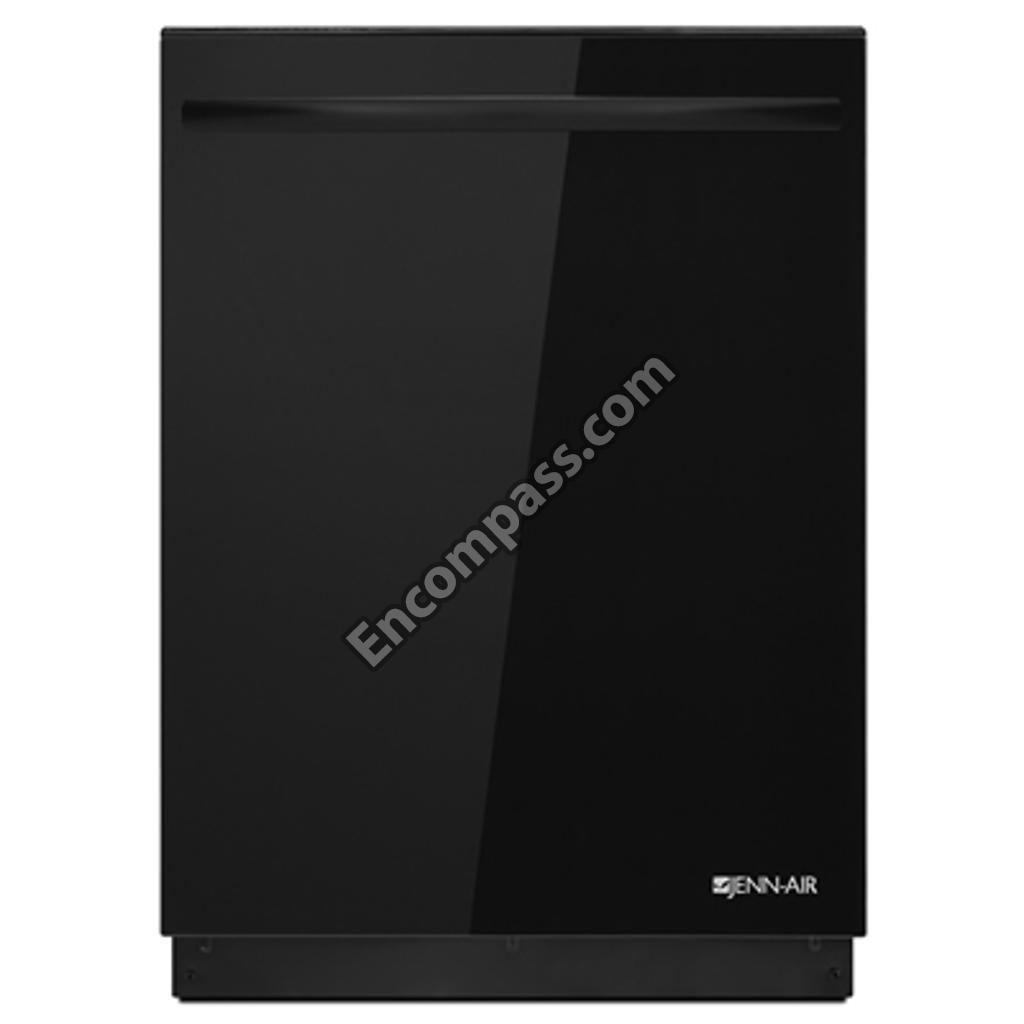

JDB3650AWY5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part 3385556
Whirlpool
3385556
ACCESSORIES, DRAIN HOSE 12 FT.
Checking…
View Product
Part W10728567
Whirlpool
W10728567
ADJUSTER
Checking…
View Product
Part W10238417
Whirlpool
W10238417
ADJUSTER
Checking…
View Product
Part W10712394
Whirlpool
W10712394
ADJUSTER
Checking…
View Product
Part W11469209
Whirlpool
W11469209
ARM-SPRAY
Checking…
View Product
Part WPW10491331
Whirlpool
WPW10491331
ARM-SPRAY
Checking…
View Product
Part WPW10320512
Whirlpool
WPW10320512
ARM-SPRAY
Checking…
View Product
Part W10324454
Whirlpool
W10324454
ARM-SPRAY
Checking…
View Product
Part WP8268703
Whirlpool
WP8268703
AXLE-RACK
Checking…
View Product
Part W10056308
Whirlpool
W10056308
BAFFLE
Checking…
View Product
Part 4396277
Whirlpool
4396277
BARRIER
Checking…
View Product
Part WPW10311153
Whirlpool
WPW10311153
BASKT-WARE
Checking…
View Product
Part W10258275
Whirlpool
W10258275
BI-METAL
Checking…
View Product
Part W10179454
Whirlpool
W10179454
BLOCK
Checking…
View Product
Part WPW10462232
Whirlpool
WPW10462232
BRCKT-DISP
Checking…
View Product
Part WP8269145
Whirlpool
WP8269145
BRCKT-MTG
Checking…
View Product
Part 8212560
Whirlpool
8212560
BRCKT-MTG
Checking…
View Product
Part 8171477
Whirlpool
8171477
BRCKT-MTG
Checking…
View Product
Part W10450559
Whirlpool
W10450559
BRCKT-STAT
Checking…
View Product
Part WPW10193605
Whirlpool
WPW10193605
CAP
Checking…
View Product
Part W10795980
Whirlpool
W10795980
CAP
Checking…
View Product
Part WP8564929
Whirlpool
WP8564929
CAP
Checking…
View Product
Part WP285655
Whirlpool
WP285655
CLAMP
Checking…
View Product
Part WP596669
Whirlpool
WP596669
CLAMP
Checking…
View Product
Part WPW10267076
Whirlpool
WPW10267076
CLIP
Checking…
View Product
Part WP8546546
Whirlpool
WP8546546
CLIP
Checking…
View Product
Part W10238406
Whirlpool
W10238406
CLIP
Checking…
View Product
Part W10238407
Whirlpool
W10238407
CLIP
Checking…
View Product
Part WPW10238404
Whirlpool
WPW10238404
CLIP-TINE
Checking…
View Product
Part W10208761
Whirlpool
W10208761
CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
Checking…
View Product
Part WPW10285178
Whirlpool
WPW10285178
CONTROL BOARD
Checking…
View Product
Part 4317824
Whirlpool
4317824
CORD-POWER
Checking…
View Product
Part WPW10482094
Whirlpool
WPW10482094
COVER
Checking…
View Product
Part 8579241
Whirlpool
8579241
COVER
Checking…
View Product
Part W10728561
Whirlpool
W10728561
COVER
Checking…
View Product
Part W10324447
Whirlpool
W10324447
COVER
Checking…
View Product
Part WP8268991
Whirlpool
WP8268991
COVR-BOX
Checking…
View Product
Part WPW10077877
Whirlpool
WPW10077877
DEFLECTOR
Checking…
View Product
Part WP8579251
Whirlpool
WP8579251
DIFFUSER
Checking…
View Product
Part W11726965
Whirlpool
W11726965
DISHRACK
Checking…
View Product
Part W11661174
Whirlpool
W11661174
DISHRACK
Checking…
View Product
Part WPW10238413
Whirlpool
WPW10238413
DISPENSER
Checking…
View Product
Part WPW10404412
Whirlpool
WPW10404412
DOOR DOOR LATCH
Checking…
View Product
Part W11612302
Whirlpool
W11612302
DOOR HINGE
Checking…
View Product
Part WP8534853
Whirlpool
WP8534853
DOOR HINGE
Checking…
View Product
Part WPW10348269
Whirlpool
WPW10348269
DRAIN PUMP
Checking…
View Product
Part W10395347
Whirlpool
W10395347
ENERGY GUIDE
Checking…
View Product
Part W10872845
Whirlpool
W10872845
FILTER
Checking…
View Product
Part WPW10077871
Whirlpool
WPW10077871
FLOAT-ASM
Checking…
View Product
Part WP9743002
Whirlpool
WP9743002
GASKET
Checking…
View Product
Part W11196317
Whirlpool
W11196317
GASKET
Checking…
View Product
Part WP8531743
Whirlpool
WP8531743
GASKET
Checking…
View Product
Part WP8531323
Whirlpool
WP8531323
GASKET
Checking…
View Product
Part WP8269259
Whirlpool
WP8269259
GASKET
Checking…
View Product
Part WPW10208770A
Whirlpool
WPW10208770A
HANDLE
Checking…
View Product
Part W10208771A
Whirlpool
W10208771A
HANDLE
Checking…
View Product
Part W10234541A
Whirlpool
W10234541A
HANDLE
Checking…
View Product
Part W10587967
Whirlpool
W10587967
HANDLE
Checking…
View Product
Part W10056298
Whirlpool
W10056298
HANDLE
Checking…
View Product
Part 8545608
Whirlpool
8545608
HARNS-WIRE
Checking…
View Product
Part W10413104
Whirlpool
W10413104
HARNS-WIRE
Checking…
View Product
Part WPW10082892
Whirlpool
WPW10082892
HEATER
Checking…
View Product
Part W10168824
Whirlpool
W10168824
HOSE, INLET (INCLUDES 3 HOSE CLAMPS)
Checking…
View Product
Part 8269144A
Whirlpool
8269144A
HOSE-DRAIN
Checking…
View Product
Part WPW10195751
Whirlpool
WPW10195751
HOSE-DRAIN
Checking…
View Product
Part W10878507
Whirlpool
W10878507
HOSE-FILL
Checking…
View Product
Part WPW10179455
Whirlpool
WPW10179455
HOUSING
Checking…
View Product
Part W10238416
Whirlpool
W10238416
HOUSING
Checking…
View Product
Part W10292870
Whirlpool
W10292870
HOUSING
Checking…
View Product
Part WPW10327249
Whirlpool
WPW10327249
INLET VALVE
Checking…
View Product
Part WPW10077883
Whirlpool
WPW10077883
INLET-AIR
Checking…
View Product
Part WPW10195536
Whirlpool
WPW10195536
INLET-WATR
Checking…
View Product
Part WPW10056250
Whirlpool
WPW10056250
INNER DOOR MASTIC ASSEMBLY (ALSO ORDER ITEM 6)
Checking…
View Product
Part W10321619
Whirlpool
W10321619
INSTRUCTIONS, INSTALLATION
Checking…
View Product
Part WP8268892
Whirlpool
WP8268892
LEVER
Checking…
View Product
Part 8193716
Whirlpool
8193716
LEVLER-LEG
Checking…
View Product
Part W10311149
Whirlpool
W10311149
LID
Checking…
View Product
Part W10311150
Whirlpool
W10311150
LID
Checking…
View Product
Part W10311151
Whirlpool
W10311151
LID
Checking…
View Product
Part 8194001
Whirlpool
8194001
LINK
Checking…
View Product
Part W10837666
Whirlpool
W10837666
MANIFOLD
Checking…
View Product
Part W10155344
Whirlpool
W10155344
MOTOR
Checking…
View Product
Part WPW10084086
Whirlpool
WPW10084086
MOUNT
Checking…
View Product
Part W11039163
Whirlpool
W11039163
MOUNT
Checking…
View Product
Part W10077876
Whirlpool
W10077876
MOUNT
Checking…
View Product
Part W10190723
Whirlpool
W10190723
NAMEPLATE
Checking…
View Product
Part W10214169
Whirlpool
W10214169
NAMEPLATE
Checking…
View Product
Part W10190724
Whirlpool
W10190724
NAMEPLATE
Checking…
View Product
Part WPW10195038
Whirlpool
WPW10195038
NUT
Checking…
View Product
Part WPW10477552
Whirlpool
WPW10477552
NUT, HEATER ELEMENT
Checking…
View Product
Part WP3400931
Whirlpool
WP3400931
NUT-TERMNL
Checking…
View Product
Part WPW10213825
Whirlpool
WPW10213825
NUT-TUBE
Checking…
View Product
Part W11747584
Whirlpool
W11747584
PAD-INS
Checking…
View Product
Part WPW10073520
Whirlpool
WPW10073520
PAD-INS
Checking…
View Product
Part W10819539
Whirlpool
W10819539
PAD-INS
Checking…
View Product
Part 4392900
Whirlpool
4392900
PAINT
Checking…
View Product
Part 799344
Whirlpool
799344
PAINT
Checking…
View Product
Part WPW10056290
Whirlpool
WPW10056290
PANEL
Checking…
View Product
Part WPW10526114
Whirlpool
WPW10526114
PANEL
Checking…
View Product
Part WPW10526115
Whirlpool
WPW10526115
PANEL
Checking…
View Product
Part 8212489
Whirlpool
8212489
PANEL
Checking…
View Product
Part W10056410
Whirlpool
W10056410
PANEL
Checking…
View Product
Part W10056411
Whirlpool
W10056411
PANEL
Checking…
View Product
Part W10208763
Whirlpool
W10208763
PANEL-CNTL
Checking…
View Product
Part W10208762
Whirlpool
W10208762
PANEL-CNTL
Checking…
View Product
Part 8171656
Whirlpool
8171656
PANL
Checking…
View Product
Part 8171657
Whirlpool
8171657
PANL
Checking…
View Product
Part 8171658
Whirlpool
8171658
PANL
Checking…
View Product
Part 8171659
Whirlpool
8171659
PANL
Checking…
View Product
Part WPW10292152
Whirlpool
WPW10292152
PARTS-MISC
Checking…
View Product
Part WPW10238412
Whirlpool
WPW10238412
PIVOT
Checking…
View Product
Part W10142904
Whirlpool
W10142904
PLATE
Checking…
View Product
Part W10238405
Whirlpool
W10238405
POSITIONER
Checking…
View Product
Part W10728566
Whirlpool
W10728566
POSITIONER
Checking…
View Product
Part WPW10234567
Whirlpool
WPW10234567
PUMP & MOTOR
Checking…
View Product
Part 4396838RC
Whirlpool
4396838RC
RAK KIT
Checking…
View Product
Part 4396840RC
Whirlpool
4396840RC
RAK KIT
Checking…
View Product
Part W10337661
Whirlpool
W10337661
RELIEF-STR
Checking…
View Product
Part WPW10238411
Whirlpool
WPW10238411
RETAINER
Checking…
View Product
Part WP304666
Whirlpool
WP304666
RETAINER
Checking…
View Product
Part WPW10503549
Whirlpool
WPW10503549
RETAINER
Checking…
View Product
Part WPW10503548
Whirlpool
WPW10503548
RETAINER
Checking…
View Product
Part 8579246
Whirlpool
8579246
RETAINER
Checking…
View Product
Part WP8579253
Whirlpool
WP8579253
SCREEN
Checking…
View Product
Part WP8281156
Whirlpool
WP8281156
SCREW
Checking…
View Product
Part WP9741232
Whirlpool
WP9741232
SCREW
Checking…
View Product
Part WP308685
Whirlpool
WP308685
SCREW
Checking…
View Product
Part WP3400014
Whirlpool
WP3400014
SCREW
Checking…
View Product
Part WP3400892
Whirlpool
WP3400892
SCREW
Checking…
View Product
Part WPW10348411
Whirlpool
WPW10348411
SCREW
Checking…
View Product
Part WP3400074
Whirlpool
WP3400074
SCREW
Checking…
View Product
Part WPW10348407
Whirlpool
WPW10348407
SCREW
Checking…
View Product
Part WPW10177098
Whirlpool
WPW10177098
SCREW
Checking…
View Product
Part WP8533965
Whirlpool
WP8533965
SCREW
Checking…
View Product
Part W11631670
Whirlpool
W11631670
SCREW
Checking…
View Product
Part WPW10348409
Whirlpool
WPW10348409
SCREW
Checking…
View Product
Part WP3400071
Whirlpool
WP3400071
SCREW
Checking…
View Product
Part WP489069
Whirlpool
WP489069
SCREW
Checking…
View Product
Part W10267047
Whirlpool
W10267047
SCREW
Checking…
View Product
Part W10276608
Whirlpool
W10276608
SCREW
Checking…
View Product
Part W10123421
Whirlpool
W10123421
SCREW
Checking…
View Product
Part W10348405
Whirlpool
W10348405
SCREW
Checking…
View Product
Part W10864081
Whirlpool
W10864081
SEAL
Checking…
View Product
Part WP8535660
Whirlpool
WP8535660
SEAL
Checking…
View Product
Part WPW10705575
Whirlpool
WPW10705575
SENSOR
Checking…
View Product
Part W11238398
Whirlpool
W11238398
SHELF
Checking…
View Product
Part WPW10343251
Whirlpool
WPW10343251
SHIELD
Checking…
View Product
Part W10877094
Whirlpool
W10877094
SHIELD
Checking…
View Product
Part WPW10275523
Whirlpool
WPW10275523
SHIELD
Checking…
View Product
Part W10831329
Whirlpool
W10831329
SHIELD
Checking…
View Product
Part 8579272
Whirlpool
8579272
SHIELD
Checking…
View Product
Part 8193983
Whirlpool
8193983
SPINNER
Checking…
View Product
Part 4392901
Whirlpool
4392901
SPRAY
Checking…
View Product
Part 350930
Whirlpool
350930
SPRAY
Checking…
View Product
Part 285006
Whirlpool
285006
SPRAY
Checking…
View Product
Part WP8270182
Whirlpool
WP8270182
SPRING
Checking…
View Product
Part WP8270020
Whirlpool
WP8270020
SPRING
Checking…
View Product
Part WP8268983
Whirlpool
WP8268983
STIFFENER
Checking…
View Product
Part WP8573954
Whirlpool
WP8573954
STOP
Checking…
View Product
Part WP8573953
Whirlpool
WP8573953
STOP
Checking…
View Product
Part WPW10317686
Whirlpool
WPW10317686
STRIKE, PLATE
Checking…
View Product
Part WP8564951
Whirlpool
WP8564951
STUD
Checking…
View Product
Part W10208695
Whirlpool
W10208695
STUD
Checking…
View Product
Part W10275187
Whirlpool
W10275187
STUD
Checking…
View Product
Part W10253599
Whirlpool
W10253599
STUD
Checking…
View Product
Part W10253600
Whirlpool
W10253600
STUD
Checking…
View Product
Part W10275186
Whirlpool
W10275186
STUD
Checking…
View Product
Part W10056380
Whirlpool
W10056380
STUD
Checking…
View Product
Part W10056381
Whirlpool
W10056381
STUD
Checking…
View Product
Part W10168822
Whirlpool
W10168822
SUMP
Checking…
View Product
Part WPW10398392
Whirlpool
WPW10398392
SUPPORT
Checking…
View Product
Part 8193506
Whirlpool
8193506
SWITCH
Checking…
View Product
Part WPW10102495
Whirlpool
WPW10102495
SWITCH
Checking…
View Product
Part 4318273
Whirlpool
4318273
SWITCH-KIT
Checking…
View Product
Part WPW10372113
Whirlpool
WPW10372113
TAB-SUMP
Checking…
View Product
Part W10142826
Whirlpool
W10142826
TECH SHEET (ENGLISH)
Checking…
View Product
Part W10158347
Whirlpool
W10158347
TECH SHEET (FRENCH)
Checking…
View Product
Part WP661566
Whirlpool
WP661566
THERMOSTAT
Checking…
View Product
Part 8539404
Whirlpool
8539404
TIE-WIRE
Checking…
View Product
Part WPW10056351
Whirlpool
WPW10056351
TINE-ROW
Checking…
View Product
Part W10194862
Whirlpool
W10194862
TINE-ROW
Checking…
View Product
Part WPW10247511
Whirlpool
WPW10247511
TRACK
Checking…
View Product
Part WPW10247512
Whirlpool
WPW10247512
TRACK
Checking…
View Product
Part W10412852
Whirlpool
W10412852
TUB-DISHWR
Checking…
View Product
Part WP8579262
Whirlpool
WP8579262
TUBE
Checking…
View Product
Part WP676455
Whirlpool
WP676455
TUCHUP
Checking…
View Product
Part WP676453
Whirlpool
WP676453
TUCHUP
Checking…
View Product
Part 72032
Whirlpool
72032
TUCHUP
Checking…
View Product
Part 72017
Whirlpool
72017
TUCHUP
Checking…
View Product
Part 4396853
Whirlpool
4396853
TUCHUP
Checking…
View Product
Part W10202939
Whirlpool
W10202939
TUCHUP
Checking…
View Product
Part 4392899
Whirlpool
4392899
TUCHUP
Checking…
View Product
Part W10300216
Whirlpool
W10300216
USE & CARE GUIDE (ENGLISH/FRENCH)
Checking…
View Product
Part W10300217
Whirlpool
W10300217
USE & CARE GUIDE (SPANISH)
Checking…
View Product
Part WP8572611
Whirlpool
WP8572611
VENT
Checking…
View Product
Part WP717273
Whirlpool
WP717273
WASHER
Checking…
View Product
Part WP3378128
Whirlpool
WP3378128
WASHER
Checking…
View Product
Part WPW10261336
Whirlpool
WPW10261336
WHEEL
Checking…
View Product
Part WP8268977
Whirlpool
WP8268977
WHEEL
Checking…
View Product
Part WP8270138
Whirlpool
WP8270138
WHEEL-UPER
Checking…
View Product
    Main Menu x
