Model Image
Manufacturer

Whirlpool

Model Number

JDR8880RDW10

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
74009675 74009675 BACK, MAIN (ELEC)
3601F380-51 3601F380-51 BAFFLE INS
WPW10245259 WPW10245259 BLOCK-TERM
WPW10211368 WPW10211368 BOTTM-OVEN
WP3801F656-51 WP3801F656-51 BRACKET
3801F945-51 3801F945-51 BRACKET, CONTROL
3801P858-45 3801P858-45 BRACKET, HANDLE (LEFT)
74009413S 74009413S BRACKET, HANDLE (RIGHT)
3801F886-51 3801F886-51 BRKT-MNTG
3801P918-51 3801P918-51 BRKT-SUPRT
3801P822-45 3801P822-45 BRKT-SUPRT
WPW10406797 WPW10406797 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD
WPW10406243 WPW10406243 BURNR-HEAD
WP74007422 WP74007422 CAP, BURNER (GRAY,(LR))
WP3191898 WP3191898 CAP-BURNER
WPW10154101 WPW10154101 CAP-BURNER
WP74007752 WP74007752 CAP-BURNER
WP74007420 WP74007420 CAP-BURNER
WP74007925 WP74007925 CAP-BURNER

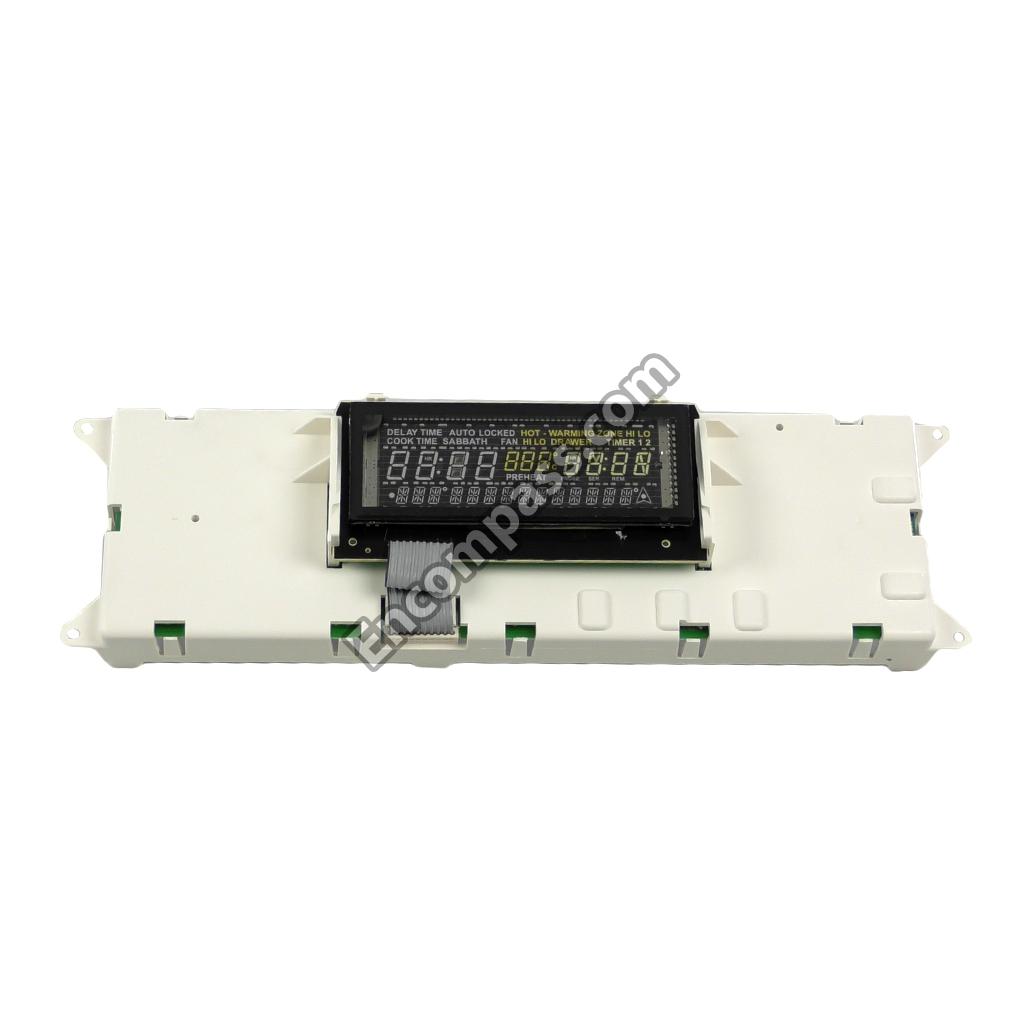

WP8507P333-60 WP8507P333-60 CONTROL BOARD
74009086 74009086 COOKTOP
W10182781 W10182781 COOKTOP
74006398 74006398 CORD, POWER
74008760 74008760 COVER WIR
47005783 47005783 COVER, CONVECTION
4005F754-51 4005F754-51 COVER, MAIN WIRE
4005F804-51 4005F804-51 COVER- REA
74008762 74008762 COVERREAR
W10792991 W10792991 DOOR DOOR LATCH
WP3608F126-71 WP3608F126-71 DOOR TRIM
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
7406P456-60 7406P456-60 ELEMENT- B
WP7406P493-60 WP7406P493-60 ELMNT-BROL
74009022 74009022 END CAP BLACK (RIGHT)
74009023 74009023 ENDCAP-PNL
WP7427P109-60 WP7427P109-60 FAN ASY
W11665456 W11665456 FOOT-LEVEL
740086960 740086960 GASKET
74008916 74008916 GASKET- WI
74008684 74008684 GLASS DOO
7902P805-60 7902P805-60 GLASS OUT
74003645 74003645 GLASS-DOOR
74008686 74008686 GLASSDOOR
WP74009143 WP74009143 GRATE, DOUBLE (BLACK)
74009145 74009145 GRATE- DOU
74008920 74008920 HANDLE DO
5171P790-60 5171P790-60 HARNESS M
WP74010753 WP74010753 HARNESS- S
W10173438 W10173438 HARNS-WIRE
5171P936-60 5171P936-60 HARNS-WIRE
74010546 74010546 HINGE, DOOR
WP74009099 WP74009099 HOLDER-ORF
7527P097-60 7527P097-60 HOLDER-ORF
WP74009958 WP74009958 IGNTR-SURF
7002P484-60 7002P484-60 INSULATION
7002P482-60 7002P482-60 INSULATION
7002P246-60 7002P246-60 INSULATION
WP74009147 WP74009147 KNOB- VALV
8009 8009 LIGHT BULB
WP74011278 WP74011278 LIGHT- OVE
WP2402W297-19 WP2402W297-19 LINER, DOOR
8113P622-60 8113P622-60 MANUAL, OWNERS
74009098 74009098 MODULE- SP
8119P367-60 8119P367-60 NLAMWIRING I
311426 311426 NUT
WP488130 WP488130 NUT
WP7103P027-60 WP7103P027-60 NUT
WP74008871 WP74008871 ORIFICE
WP7527P100-60 WP7527P100-60 ORIFICE HO
7527P101-60 7527P101-60 ORIFICE HOLDER (LF)
W10154209 W10154209 ORIFICE HOLDER/TUB ASSEMBLY (RR)
WP7760P218-60 WP7760P218-60 PANEL (STAINLESS)
4005P704-51 4005P704-51 PANEL, ACCESS
2416F104-70 2416F104-70 PANEL, DRAWER (BLACK)
74009518 74009518 PANEL, DRAWER (STAINLESS MODELS)
74008856 74008856 PANEL, DRAWER (WHITE)
74009146 74009146 PANEL, MANIFOLD (STAINLESS)
8002P087-60 8002P087-60 PANEL, SIDE (BLACK)
WP2618F172-58 WP2618F172-58 PANEL, SIDE (WHITE)
74009138 74009138 PANL-MNFLD
74009139 74009139 PANL-MNFLD
74008815 74008815 PIPE MANI
3605F146-51 3605F146-51 PLATE
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
WP74008763 WP74008763 RACK- OVEN
WP74010551 WP74010551 RECEIVER-
7510P081-60 7510P081-60 REGULATOR
74008701 74008701 RETAINER, SIDE
WP74004078 WP74004078 ROLLER- DR
WP3406P034-51 WP3406P034-51 RUNNER, DRAWER
WP4159193 WP4159193 SCREW
WP7101P072-60 WP7101P072-60 SCREW
WP74003976 WP74003976 SCREW
W11233072 W11233072 SCREW
74005401 74005401 SCREW
74008798 74008798 SCREW
12001656 12001656 SENSOR
WP74005231 WP74005231 SHAFT, DRAWER
WP3604F390-51 WP3604F390-51 SHIELD
3604F382-09 3604F382-09 SHIELD-HT
WP3604F382-81 WP3604F382-81 SHIELD-HT
WP3604F381-19 WP3604F381-19 SHIELD-VNT
W11190816 W11190816 SPACER
WP74005546 WP74005546 SPACER- RU
74008690 74008690 SPACER- SI
74008688 74008688 STOP, DRAWER
3807P680-45 3807P680-45 SUPPORT
74008715 74008715 SWITCH- LI
7450P078-60 7450P078-60 SWTCH-MEMB
WP7450P075-60 WP7450P075-60 SWTCH-MEMB
WP74004224 WP74004224 TAPE
8270P090-60 8270P090-60 TAPE, FOIL (3``)
WP74009014 WP74009014 TAPE- DBL
WP74009025 WP74009025 TAPE- DBL
74010560 74010560 TRIM SIDE
74008890 74008890 TRIM TOP
3608F092-70 3608F092-70 TRIM, BOTTOM (BLACK)
74008747 74008747 TRIM, TOP (WHITE)
WP3608F092-71 WP3608F092-71 TRIM-BOTTM
7506P519-60 7506P519-60 TUBING SU
74010751 74010751 VALVE- 16K
WP7502P499-60 WP7502P499-60 VALVE-BRNR
WP7502P500-60 WP7502P500-60 VALVE-BRNR
8026P090-60 8026P090-60 VENT OVEN
