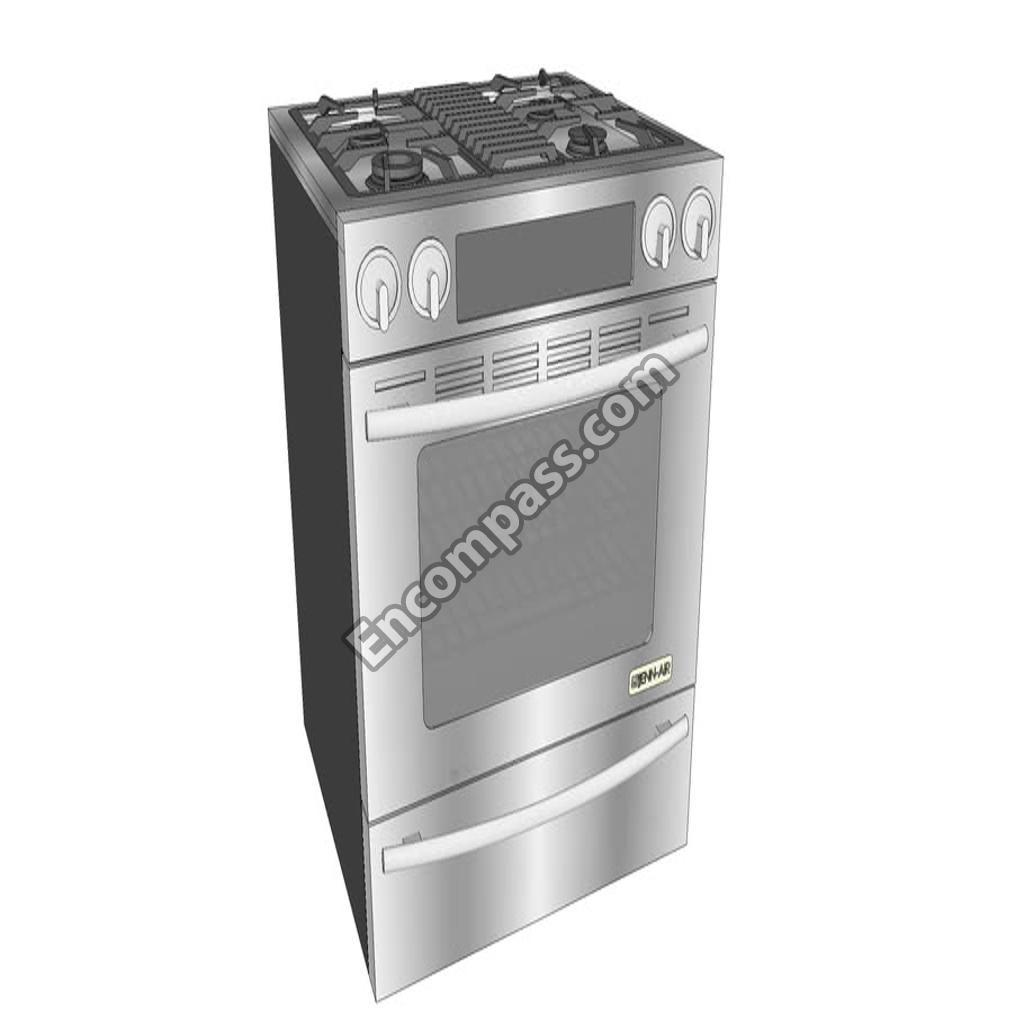

Model Image
Manufacturer

Whirlpool

Model Number

JDS8860BDP16

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3804F294-51 3804F294-51 BACK, MAIN
WPW10186795 WPW10186795 BAFFL-CONV
3601F373-51 3601F373-51 BAFFLE
74011689 74011689 BEZEL, KNOB (DUAL)
74011690 74011690 BEZEL, KNOB (SMR)
7740P167-60 7740P167-60 BEZEL- KNO
2206F087-45 2206F087-45 BODY, WARM DRAWER
WP2205F060-19 WP2205F060-19 BOTTM-OVEN
4011F496-51 4011F496-51 BOTTOM BU
4020W035-80 4020W035-80 BOTTOM-PE
3424F037-09 3424F037-09 BOWL-DRIP
WP3801F656-51 WP3801F656-51 BRACKET
3801F887-51 3801F887-51 BRACKET
3801F911-51 3801F911-51 BRACKET
3807F752-45 3807F752-45 BRKT-MNTG
3801F886-51 3801F886-51 BRKT-MNTG
W10160655 W10160655 BRKT-MNTG
9762761 9762761 BROCHURE, TIPS SAFE COOKING (ENGLISH)
W10065852 W10065852 BROCHURE, TIPS SAFE COOKING (FRENCH)
74007735 74007735 BURNER ASSEMBLY (LRG)
74007734 74007734 BURNER ASSEMBLY (SMALL)
74007736 74007736 BURNER ASSEMBLY (X-LRG)
74011652 74011652 BURNER ASY (DUAL)
3804F307-51 3804F307-51 C
WP74011650 WP74011650 CAP, BURNER (INNER, DUAL)
WP74007750 WP74007750 CAP-BURNER
WP74007749 WP74007749 CAP-BURNER
WP8284669 WP8284669 CAP-BURNER
WP74011651 WP74011651 CAP-BURNER
WP488366 WP488366 CLAMP
8019P013-60 8019P013-60 CLIP
7112P153-60 7112P153-60 CLIP WARMER ELEMENT

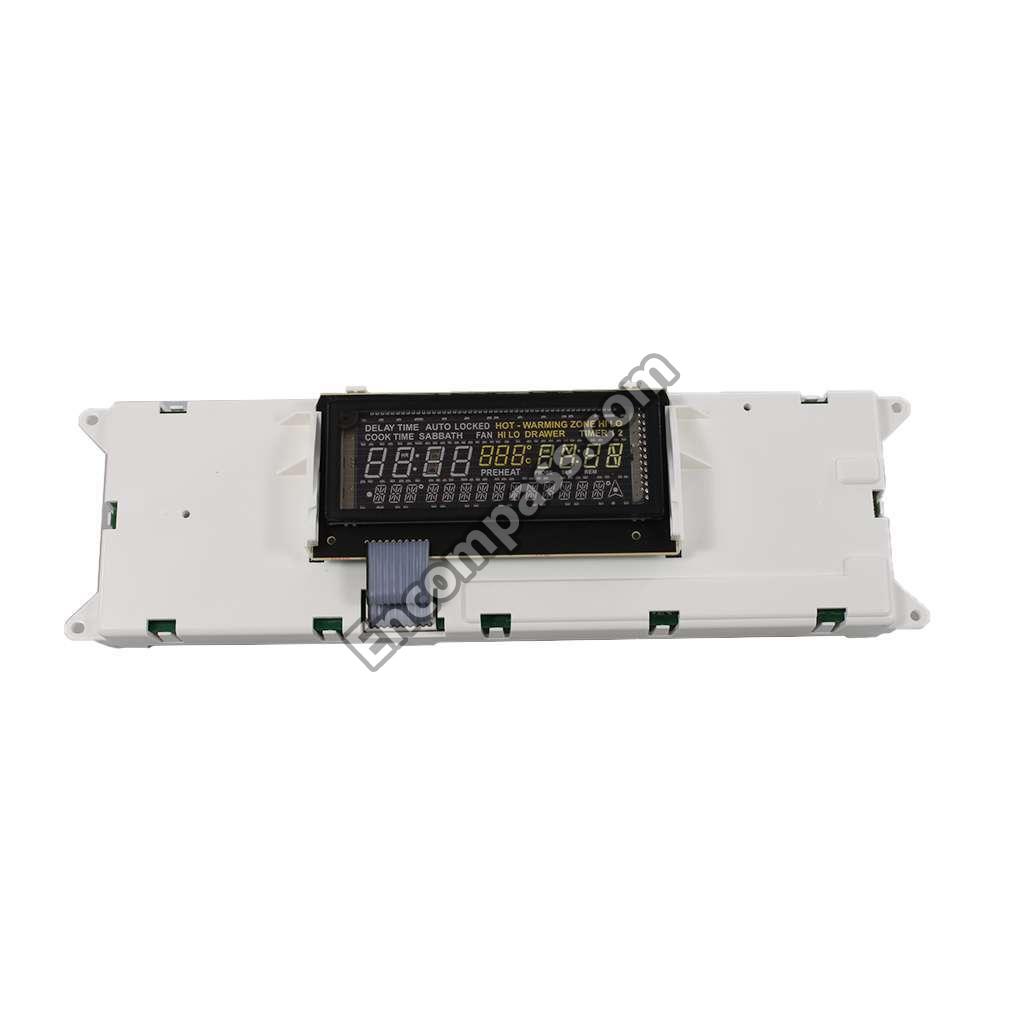

WP8507P334-60 WP8507P334-60 CONTROL BOARD

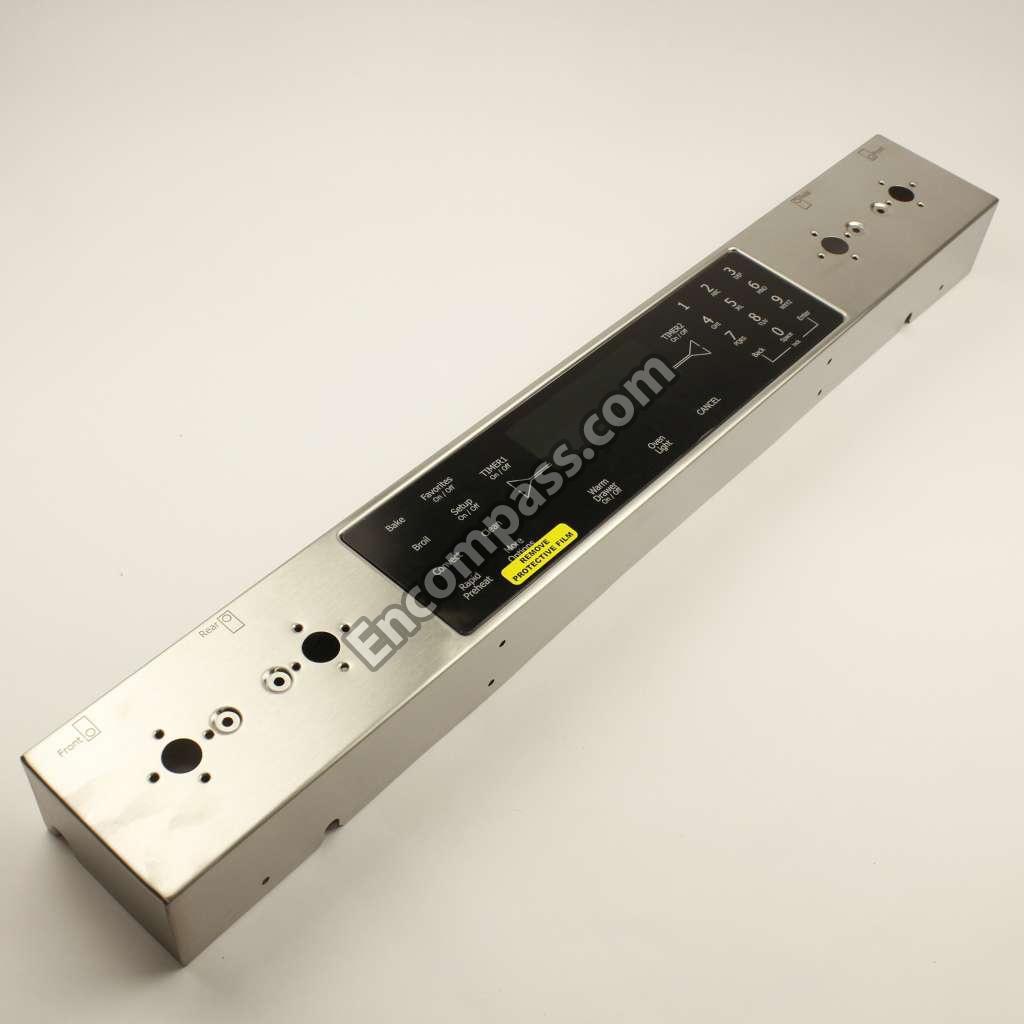

WP5760M339-60 WP5760M339-60 CONTROL PANEL
W10401553 W10401553 COOKTOP
74004438 74004438 CORD, POWER
W10221108 W10221108 CORD-POWER
4005F749-45 4005F749-45 COVER
4005F750-51 4005F750-51 COVER- DOO
4005F612-51 4005F612-51 COVER-BLCK
4005F810-51 4005F810-51 COVR-ACESS
4005F808-51 4005F808-51 COVR-PILOT
8119P175-60 8119P175-60 DIAGRAM, WIRING
WP7701P475-60 WP7701P475-60 DOOR HANDLE
74010819 74010819 DOOR LATCH ASY
3405W043-19 3405W043-19 DRAWER-WA
7406P294-60 7406P294-60 ELEMENT, WARMER
WP7406P411-60 WP7406P411-60 ELMNT-BAKE
WP7406P430-60 WP7406P430-60 ELMNT-BROL
3826F066-51 3826F066-51 EXTENSION
WPW10586440 WPW10586440 FAN-BLWR
WPW10213813 WPW10213813 FAN-CONVCT
241430 241430 FOIL-ALUM
WP7510P101-60 WP7510P101-60 GAS VALVE
WP74009029 WP74009029 GASKET- DO
WPW10162384 WPW10162384 GASKT-DOOR
74004857 74004857 GLASS, DOOR (INNER COATED)
74003645 74003645 GLASS, INNER
WP74006588 WP74006588 GLIDE- WAR
WPW10293200 WPW10293200 GLIDE-DRWR
7518P367-60 7518P367-60 GRATE- TRI
WP7518P359-60 WP7518P359-60 GRATE-BRNR
74011645 74011645 HARNESS, MAIN
5171P537-60 5171P537-60 HARNS-WIRE
W10173471 W10173471 HARNS-WIRE
74011475 74011475 HINGE, DOOR
3605F345-51 3605F345-51 HOLDER
74009553 74009553 HOLDER, ORIFICE (5K)
WP7527P004-60 WP7527P004-60 HOLDER-ORF
WP7527P002-60 WP7527P002-60 HOLDER-ORF
WP7527P061-60 WP7527P061-60 HOLDER-ORF
WP74011829 WP74011829 IGNITER D

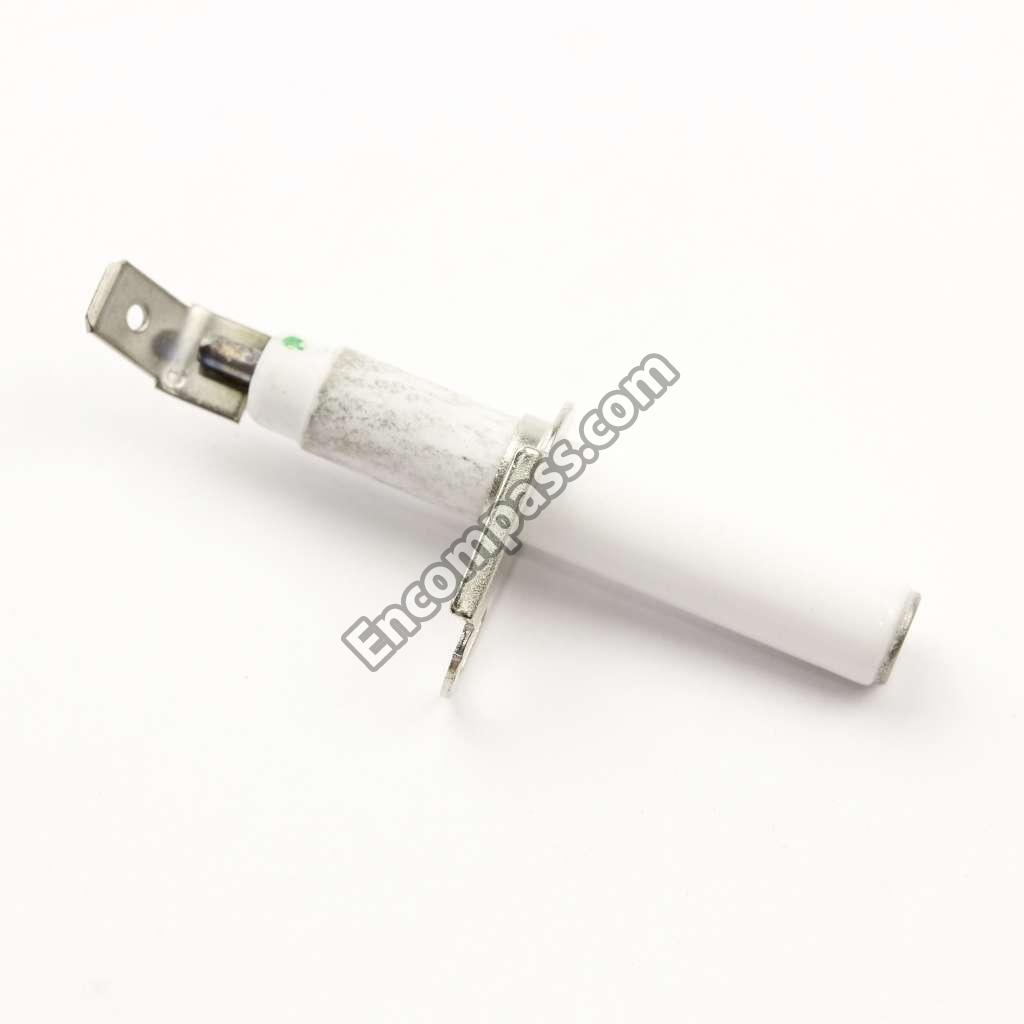

WP74009336 WP74009336 IGNTR-SURF
8101P698-60 8101P698-60 INSTALLATION, INSTRUCTIONS
7002P448-60 7002P448-60 INSULATION
7002P443-60 7002P443-60 INSULATION
7002P078-60 7002P078-60 INSULATION
7002P246-60 7002P246-60 INSULATION
WPW10208653 WPW10208653 INSULATION
W10165725 W10165725 INSULATION, BACK
74010987 74010987 INSULATION, WRAP
12002268 12002268 KIT, VALVE/SCREW 5K(MUELLER)

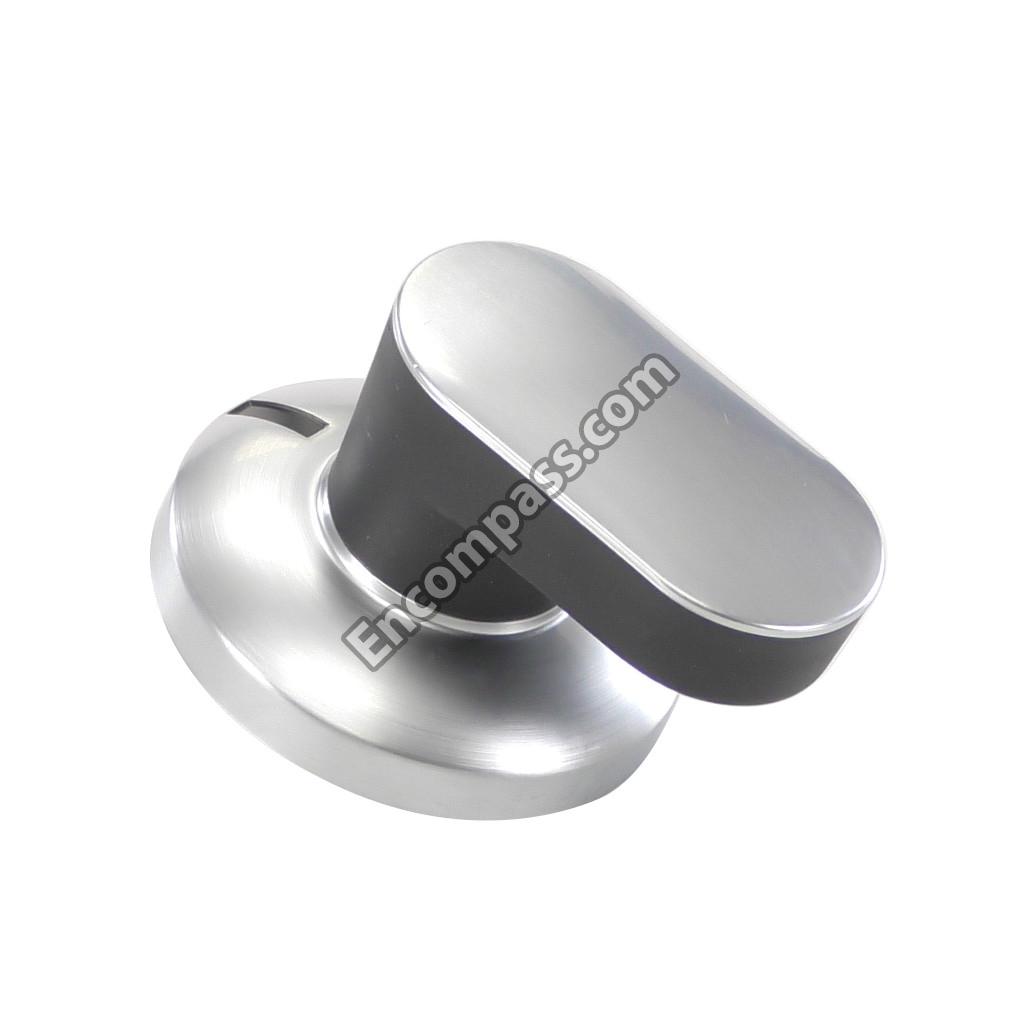

WPW10175695 WPW10175695 KNOB
WP74011220 WP74011220 LIGHT ASY-
WP2402W312-19 WP2402W312-19 LINER-DOOR
74006889 74006889 NAMEPLATE
9831122 9831122 NUT
WPW10131078 WPW10131078 NUT
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
8113P750-60 8113P750-60 OWNERS MANUAL
511873 511873 PAINT
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
3401F092-45 3401F092-45 PAN-BAKE
3424F034-09 3424F034-09 PAN-DRIP
2618F201-51 2618F201-51 PANEL
2618F206-51 2618F206-51 PANEL
7760P158-60 7760P158-60 PANEL-DOOR
W10174548 W10174548 PANEL-DRWR
W10165142 W10165142 PIPE-MNFLD
3605F354-45 3605F354-45 PLATE
W10167659 W10167659 PLATE
WP7430P038-60 WP7430P038-60 PROBE-MEAT
WP7801P173-60 WP7801P173-60 RACK-OVEN
WPW10475147 WPW10475147 RANGE SPARK MODULE
WP7408P086-60 WP7408P086-60 RECEPTACLE
261582 261582 REFINISHING MATERIAL (GREASE)
799832 799832 REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
3804F300-51 3804F300-51 RETAINER
3804F231-51 3804F231-51 RETAINER
3804F317-80 3804F317-80 RETAINER
W10160530 W10160530 RETAINER
3804F308-51 3804F308-51 RETAINER-
W11233072 W11233072 SCREW
WP74010805 WP74010805 SCREW
WP74003976 WP74003976 SCREW
WP98008545 WP98008545 SCREW
W11347848 W11347848 SCREW
WP4159193 WP4159193 SCREW
WP8273062 WP8273062 SCREW
WP59002061 WP59002061 SCREW
WP90767 WP90767 SCREW
74003975 74003975 SCREW (8ABX3/8-BLK)
7003P101-60 7003P101-60 SHEILD-HT
3604F435-51 3604F435-51 SHIELD
3604F426-51 3604F426-51 SHIELD
3604F418-51 3604F418-51 SHIELD- DO
3826F064-51 3826F064-51 SHIELD-HT
3604F326-45 3604F326-45 SHIELDHT
WP74005546 WP74005546 SPACER- RU
285006 285006 SPRAY
350930 350930 SPRAY
74011514 74011514 SPUDS, LP GAS
3807F754-45 3807F754-45 SUPPORT
3807F727-45 3807F727-45 SUPPORT
3807F738-51 3807F738-51 SUPPORT
W10271711 W10271711 SUPPORT
3807F640-51 3807F640-51 SUPPORT- V
74006587 74006587 SWITCH, HI-LIMIT (ELEC/DRAWER)
WPW10181455 WPW10181455 SWITCH, REIGNITION (RF/RR)
WPW10181456 WPW10181456 SWTCH-IGNR
WP7450P108-60 WP7450P108-60 SWTCH-LITE
7403P647-60 7403P647-60 SWTCH-LMIT
WPW10159823 WPW10159823 TRIM, FRT. FRAME
7744P464-60 7744P464-60 TRIM- VENT
WP3608F138-70 WP3608F138-70 TRIM-SIDE
W10165722 W10165722 TUBE, VENT LOWER
7506P458-60 7506P458-60 TUBE-BRNR
7506P459-60 7506P459-60 TUBE-BRNR
7506P460-60 7506P460-60 TUBE-BRNR
7506P461-60 7506P461-60 TUBE-BRNR
7506P457-60 7506P457-60 TUBE-BURNE
8026P084-60 8026P084-60 TUBE-VENT
8034P008-60 8034P008-60 TUBE-VENT
W10224720 W10224720 TUBING-GAS
72032 72032 TUCHUP
72017 72017 TUCHUP
WP74011649 WP74011649 VALVE- BUR

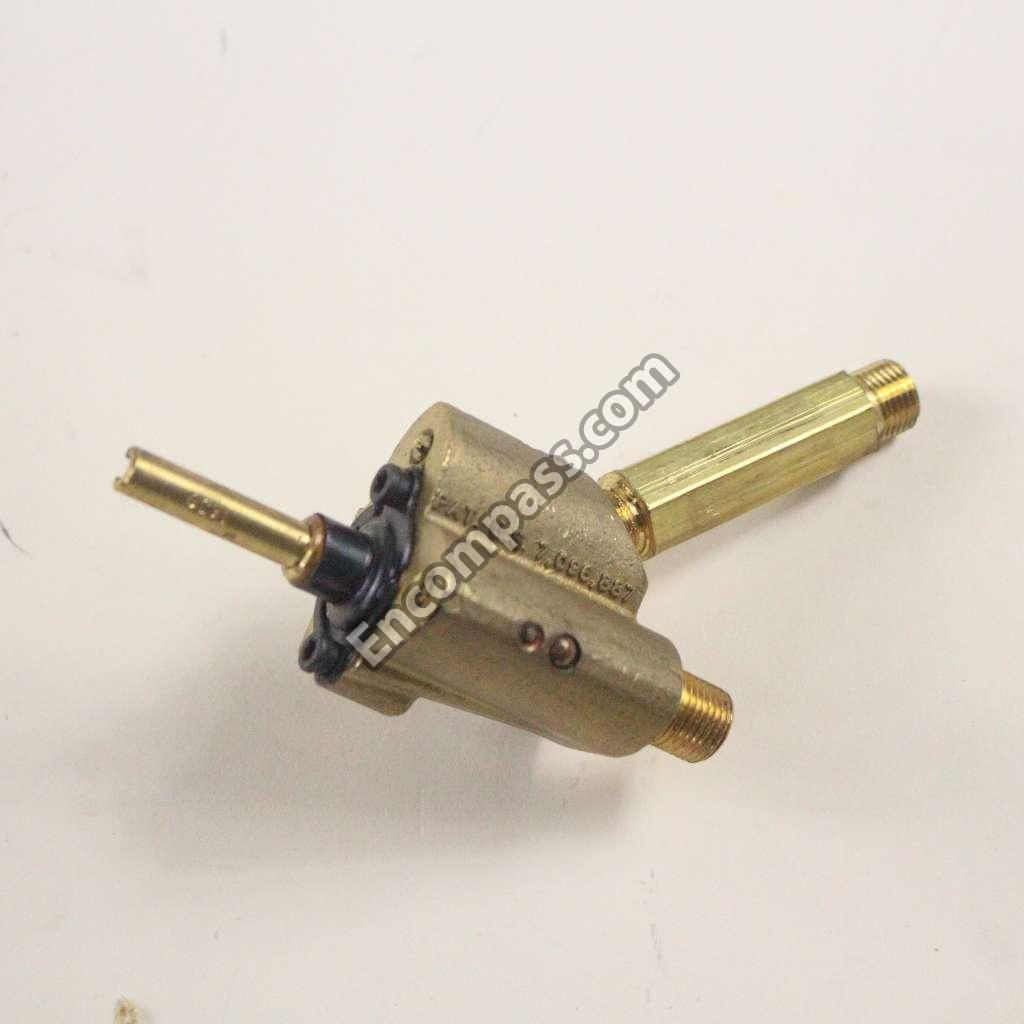

7502P561-60 7502P561-60 VALVE-BRNR
7502P562-60 7502P562-60 VALVE-BRNR
74011867 74011867 VALVE-BRNR
