Model Image
Manufacturer

Whirlpool

Model Number

JDS9860ACW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
74002303 74002303 *NLA*BLOCK, DISCONNECT
2818F001-80 2818F001-80 ADAPTER, RESTRICTOR RING
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
WP74005675 WP74005675 ASSEMBLY, DOOR DOOR LATCH
74010949 74010949 BACK, MAIN
74003648 74003648 BAFFLE, DOOR
3415F003-51 3415F003-51 BAND, MOTOR
74006092 74006092 BLOCK CER
74002301 74002301 BLOCK DIS
74006091 74006091 BLOCK, CERAMIC W/WIRES (RT)
74002230 74002230 BLOCK, DISCONNECT (MALE)
WPW10245259 WPW10245259 BLOCK-TERM
74002305 74002305 BLOCKTERM
74006082 74006082 BRACE PED
74006083 74006083 BRACE PED
WP3801F656-51 WP3801F656-51 BRACKET
74005729 74005729 BRACKET C
74005817 74005817 BRACKET G
Y04100845 Y04100845 BRACKET S
74005877 74005877 BRACKET T
74005889 74005889 BRACKET V
74005807 74005807 BRACKET, ACCESS PANEL
71003644 71003644 BRACKET, POWER SUPPLY
74001632 74001632 BRACKET, SWITCH ACTUATOR
WP3801F631-51 WP3801F631-51 BRKT-MNTG
WP74009925 WP74009925 BULB- HALO
74001631 74001631 BUMPER- RO
WP3403M075-29 WP3403M075-29 BURNER
WP7450P012-60 WP7450P012-60 BURNER-TOP
WP74004607 WP74004607 CAMERA LENS-LIGHT
Y702331 Y702331 CLAMP, HOSE
7112P150-60 7112P150-60 CLIP
7809P030-60 7809P030-60 CLIP
WP74009318 WP74009318 CLOCK W/ HARNESS

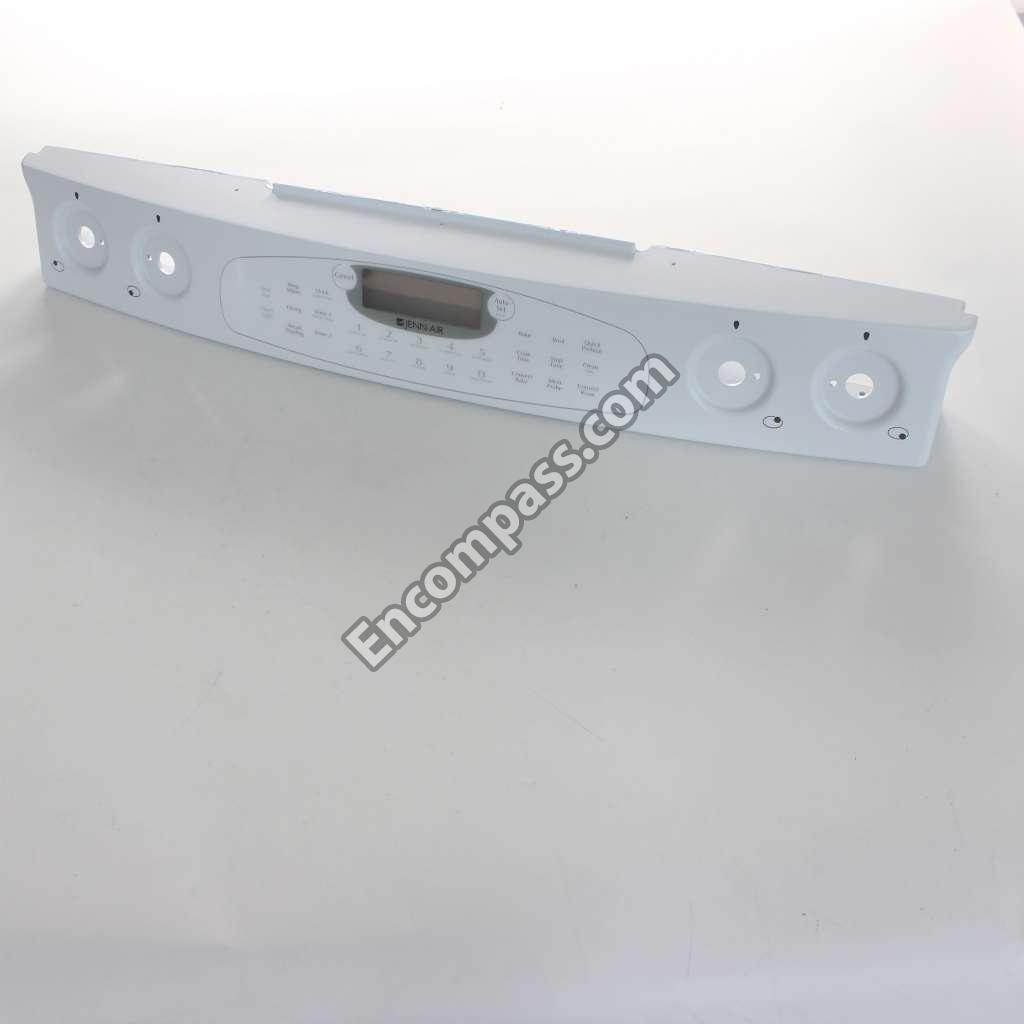

WP74005751 WP74005751 CONTROL PANEL ASSEMBLY (WHT)
16008409 16008409 COOKBOOK----NA
7402P050-60 7402P050-60 CORD, POWER
74005887 74005887 COVER CAR
W10840495 W10840495 COVER MOT
Y702475 Y702475 COVER VEN
4005F791-80 4005F791-80 COVER, CARTRIDGE
74005783 74005783 COVER, CONVECT
4005F810-51 4005F810-51 COVER, MAIN WIRE
4005F612-51 4005F612-51 COVER, TERMINAL BLOCK
8312P190-60 8312P190-60 CUP, GREASE
WP71002106 WP71002106 DOOR LATCH, BASE DOOR
WPY702326 WPY702326 DUCT, FLEXIBLE
WP74006070 WP74006070 E-BURNER-
WP74010750 WP74010750 ELEMENT
W11676350 W11676350 ELMNT-BROL
74005722 74005722 EXTENSION
74006103 74006103 EXTENSION
Y700556 Y700556 F*CLIP J
WP74004947 WP74004947 FAN MOTOR
WP74011168 WP74011168 FAN, CONVECTION
WP71002111 WP71002111 FILTER- GR
74006069 74006069 FITTING I
W11665456 W11665456 FOOT-LEVEL
74003644 74003644 FRAME, GLASS
715957K 715957K GASKET
WP74004299 WP74004299 GASKET, TUBING
WPW10162384 WPW10162384 GASKT-DOOR
74005774 74005774 GLASS, DOOR (INR)
74005717 74005717 GLASS, DOOR (WHT)
74003645 74003645 GLASS-DOOR
7518P482-60 7518P482-60 GRATE-BRNR
71003267 71003267 GRATE-GRIL
74006060 74006060 GRILL, AIR (WHT)
W10840997 W10840997 GUARD, CORNER
74007136 74007136 GUIDE, COOKING (TRILINGUAL)
74005773 74005773 HALOGEN LA
74005697 74005697 HANDLE, DOOR (WHT)
74006101 74006101 HARNESS C
74005873 74005873 HARNESS C
74010229 74010229 HARNESS M
74011568 74011568 HARNESS M
74010228 74010228 HARNESS M
74006100 74006100 HARNESS P
74006102 74006102 HARNESS S
74009612 74009612 HARNESS V
74011142 74011142 HINGE, OVEN DOOR
8312P191-60 8312P191-60 HOUSING
12001871 12001871 HOUSING, CARTRIDGE
74004053 74004053 IGNITER- T
WP74006073 WP74006073 IGNITOR- G
WP74006072 WP74006072 IGNTR-SURF
WP3413F018-19 WP3413F018-19 INSERT
74005703 74005703 INSERT, DOOR TRIM (WHT)
7002P246-60 7002P246-60 INSULATION
74005839 74005839 INSULATION
74005840 74005840 INSULATION
74005838 74005838 INSULATION, WRAP
74006095 74006095 INSULATOR
74005755 74005755 INSULATOR
74001872 74001872 INSULATOR
WP71003558 WP71003558 ISOLATOR-
74006058 74006058 KNOB VALV
WP74011220 WP74011220 LIGHT ASY-
WP2402W267-19 WP2402W267-19 LINING, DOOR
WPY707702 WPY707702 LOCKNUT
74006097 74006097 LP CONVERSION KIT
8215557 8215557 MODULE, SPARK (4+0)
WPW10201322 WPW10201322 MOTOR-BLWR
74006889 74006889 NAMEPLATE
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE
Y052721 Y052721 NUT
WP7103P027-60 WP7103P027-60 NUT
702748 702748 NUT, DRAIN TUBE
9831122 9831122 NUT, HEX 3/8``
WP74001574 WP74001574 NUT- SNAP
WP7103P114-60 WP7103P114-60 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
74005522 74005522 OWNERS MANUAL
74006089 74006089 PAN GRILL
WP3401F075-19 WP3401F075-19 PAN, BROIL
74006090 74006090 PAN, GRILL (LT)
74005691 74005691 PANEL, DRAWER (WHT)
4020F001-80 4020F001-80 PEDESTAL
74005772 74005772 PEDESTAL, SIDE
71001764 71001764 PIN- LOCAT
74006023 74006023 PIPE MANI
2801L037-80 2801L037-80 PLENUM
2801W031-80 2801W031-80 PLENUM (UPR)
WP7402P104-60 WP7402P104-60 POWER CORD
WP71001870 WP71001870 PROBE- TEM
WPW10282492 WPW10282492 RACK-OVEN
74009649 74009649 RECEPTACLE, PROBE
Y04100249 Y04100249 REGULATOR-
74005824 74005824 RETAINER
74003650 74003650 RETAINER
74004348 74004348 RETAINER
8038P003-60 8038P003-60 RETAINER
4026F008-51 4026F008-51 RING
4026F009-51 4026F009-51 RING
74003562 74003562 ROD, DOOR LIGHT SWITCH
WP59002061 WP59002061 SCREW
WP90767 WP90767 SCREW
W10491986 W10491986 SCREW
WP98008544 WP98008544 SCREW
W10828565 W10828565 SCREW
WP74004005 WP74004005 SCREW
WP98008545 WP98008545 SCREW
W11233072 W11233072 SCREW
W11693756 W11693756 SCREW
74003975 74003975 SCREW
74005401 74005401 SCREW
WP4159193 WP4159193 SCREW
7101P345-60 7101P345-60 SCREW
WP355214 WP355214 SCREW
WP71003275 WP71003275 SCREW (NO.10-32 X .625``)
7101P330-60 7101P330-60 SCREW, SWITCH
W10777874 W10777874 SCROLL, BLOWER ASSEMBLY.
WP74005893 WP74005893 SEAL BRAS
74003564 74003564 SHIELD BR
74005761 74005761 SHIELD DO
74005724 74005724 SHIELD FR
74005854 74005854 SHIELD HE
74005876 74005876 SHIELD HE
74004177 74004177 SHIELD, HEAT
74006071 74006071 SHIELD, IGNITOR BRACKET
W10857933 W10857933 SPACER
74003639 74003639 SPACER DO
WP74005546 WP74005546 SPACER- RU
74001629 74001629 SPRING- DO
74005828 74005828 STRIKE, ACCESS PANEL
74005756 74005756 SUPPORT C
74005763 74005763 SUPPORT G
74004780 74004780 SUPPORT O
74005825 74005825 SUPPORT R
74003563 74003563 SUPPORT, BROIL ELEMENT
3807F752-45 3807F752-45 SUPPORT, SPARK MODULE
74001802 74001802 SWITCH
WPY704513 WPY704513 SWTCH-IGNR
WP4330739 WP4330739 SWTCH-IGNR
74003664 74003664 TAPE, FOIL 29`` X 2``
WP74005890 WP74005890 TERMINAL B
WP71001844 WP71001844 THERMOSTAT
74005896 74005896 TOP (WHT)
74005819 74005819 TOP, MAIN (WHT)
74005416 74005416 TRANSFORMER (STEPDOWN)
74005696 74005696 TRIM DOOR
74005694 74005694 TRIM, DOOR (RT-WHT)
74005699 74005699 TRIM, DOOR (TOP-WHT)
74006086 74006086 TUBE BURN
74006085 74006085 TUBE BURN
74006088 74006088 TUBE BURN
74006087 74006087 TUBE BURN
74006063 74006063 TUBE MANI
74005720 74005720 TUBE VENT
74005808 74005808 TUBE VENT
74006064 74006064 TUBE, SUPPLY
7506P406-60 7506P406-60 TUBING
74006068 74006068 VALVE- TOP
74006067 74006067 VALVE- TOP
74006066 74006066 VALVE- TOP
74006065 74006065 VALVE- TOP
WP7538P009-60 WP7538P009-60 VENTURI
WP7538P008-60 WP7538P008-60 VENTURI
702747 702747 WASHER TE
WPY707985 WPY707985 WHEEL-FAN
15002842 15002842 WIRING INFORMATION
15002843 15002843 WIRING INFORMATION
