Manufacturer

Whirlpool

Model Number

JEC9530ADF

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
74008078 74008078 *NLA*M*OWNERS M
3601F384-51 3601F384-51 BAFFLE-BTM
4011F456-51 4011F456-51 BOX-BURNER
74007893 74007893 BRACKET, CONDUIT/HARNESS ASY.
74008307 74008307 CAPACITOR
74007892 74007892 CONDUIT 1
74007891 74007891 CONNECTOR
12001728 12001728 COOKTOP CREME W/SCRAPER, 4OZ.
74008069 74008069 COVER WIR
WP74011005 WP74011005 ELEMENT 2
WP74008228 WP74008228 ELEMENT, DUAL (3000W)
74008571 74008571 ELEMENT, WARMING
WP74008068 WP74008068 FAN, COOLING
WP71002569 WP71002569 GASKET- IN
74008253 74008253 GASKT-SWTH
WPW10293874 WPW10293874 GROMMET
74004222 74004222 GROMMET
74008073 74008073 HARNESS C
74008070 74008070 HARNESS CO
74010989 74010989 HARNESS CO
74010995 74010995 HARNESS- S
5171P418-60 5171P418-60 HARNS-WIRE
9831122 9831122 HEX NUT ON SWITCH

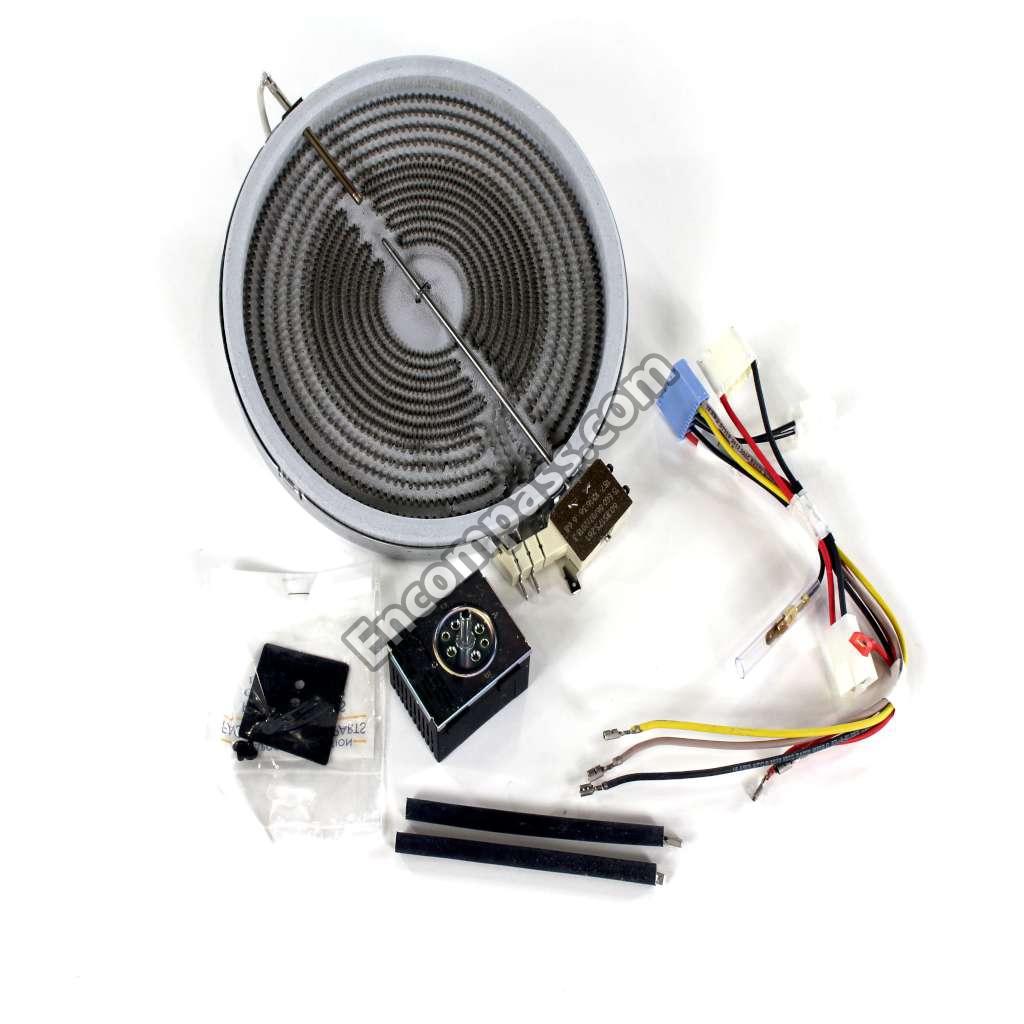

W10823734 W10823734 INFINITE CONTROL SWITCH
WP7737P245-60 WP7737P245-60 KNOB
Y706125 Y706125 LIGHT, INDICATOR
5171P764-60 5171P764-60 LIGHT-IND
74008076 74008076 PLATE SWI
WA906B WA906B SCRAPER, COOKTOP
WP71001171 WP71001171 SCREW
WP7101P309-60 WP7101P309-60 SCREW
74007845 74007845 SUPPORT E
W10823704 W10823704 SURFACE ELEMENT
W10823711 W10823711 SURFACE ELEMENT
WP8523700 WP8523700 SURFACE ELEMENT
W10823708 W10823708 SURFACE ELEMENT
WP74008252 WP74008252 SWITCH- IN
WP74007841 WP74007841 SWITCH- IN
WP74007840 WP74007840 SWITCH- IN
12002793 12002793 TAPE- FOAM
7403P227-60 7403P227-60 THERMOSTAT, SNAP ACTING
74008087 74008087 TOP ASM
74008077 74008077 WASHER
15003406 15003406 WIRING INFORMATION
15003407 15003407 WIRING INFORMATION (FRC)
