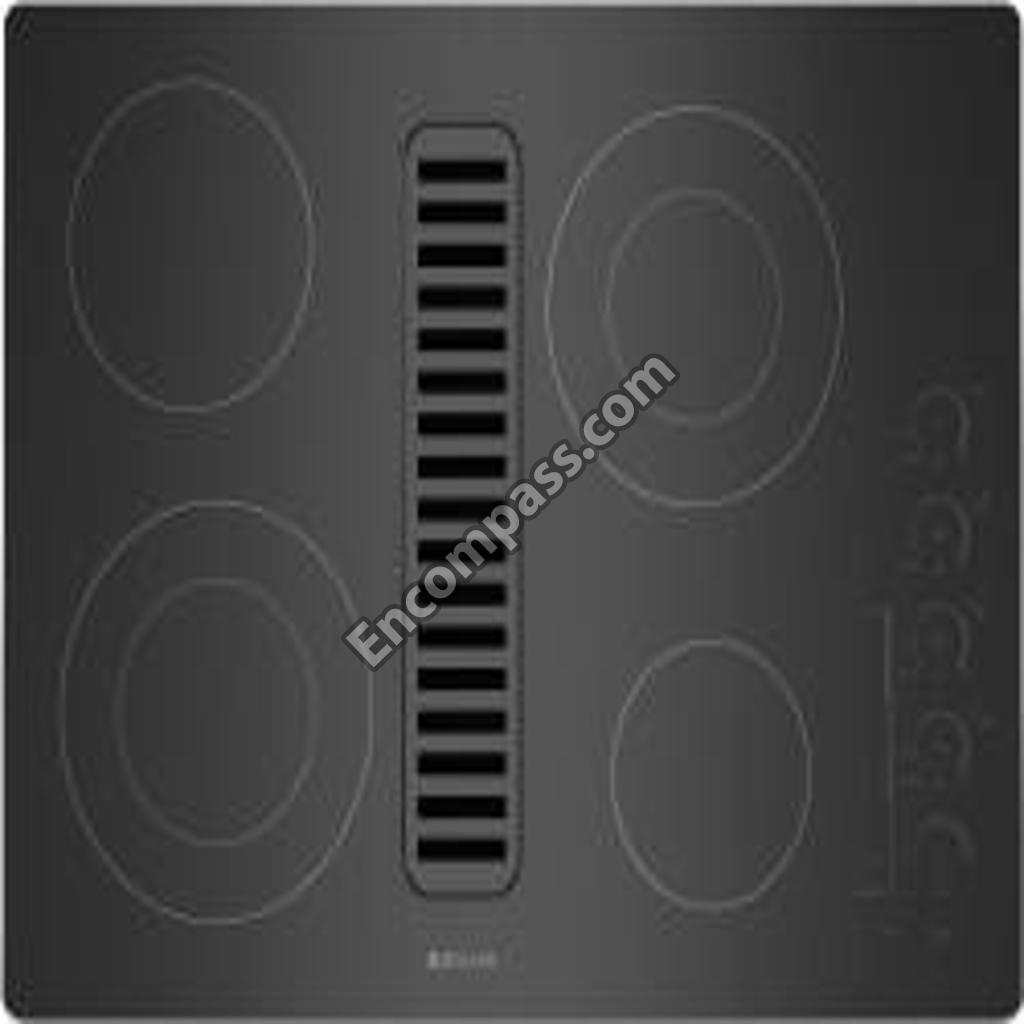

Model Image
Manufacturer

Whirlpool

Model Number

JED4430WB00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10777874 W10777874 BLOWER, SCROLL
W10267685 W10267685 BOTTOM, BURNER
W10225919 W10225919 BRKT-SWTCH
WP7718P023-60 WP7718P023-60 BUTTON-PLG
8106P068-60 8106P068-60 CARD, FLOW TESTER
31682 31682 CLEANER
31462A 31462A CLEANER(STAINLESS)
W10355051 W10355051 CLEANER, COOKTOP
WPW10190398 WPW10190398 CNTRL-TCH
WPW10190396 WPW10190396 CONTROL BOARD
W10163202 W10163202 COOKTOP
W10163204 W10163204 COOKTOP
8285593 8285593 COVR-WIRE
W10258697 W10258697 COVR-WIRE
W10177003 W10177003 FILTER
WPW10240990 WPW10240990 FILTR-GRSE
WPW10205094 WPW10205094 GRILLE
8008P068-60 8008P068-60 GROMMET
8008P004-60 8008P004-60 GROMMET, NYLON
8312P151-60 8312P151-60 GUARD, BLOWER
W10267681 W10267681 HARNS-WIRE
W10206684 W10206684 HARNS-WIRE
W10206682 W10206682 HARNS-WIRE
W10254705 W10254705 HARNS-WIRE
W10197059 W10197059 INSTALLATION INSTRUCTIONS
WPY707702 WPY707702 LOCKNUT
WPW10247585 WPW10247585 MOTOR-BLWR
W10777870 W10777870 PLENUM-AIR
W10184125 W10184125 PLENUM-AIR
31463 31463 POLISH
W10254665 W10254665 RAIL-MTG
4026F008-51 4026F008-51 RING
9762761 9762761 SAFE COOKING TIPS (ENGLISH)
W10065852 W10065852 SAFE COOKING TIPS (FRENCH)
WA906B WA906B SCRAPER
WP90767 WP90767 SCREW
WPY706189 WPY706189 SCREW
W10223167 W10223167 SHIELD
W10269705 W10269705 SHIELDHT
W10269712 W10269712 SHIELDHT
8004P093-60 8004P093-60 SUPPORT
W10225914 W10225914 SUPPORT
W11171119 W11171119 SURFACE ELEMENT
WPW10178022 WPW10178022 SURFACE ELEMENT
WPW10221529 WPW10221529 SURFACE ELEMENT
WP8273993 WP8273993 SURFACE ELEMENT
WPW10219714 WPW10219714 TRANSFORMR
W10235990 W10235990 TRAY-DRIP
WPW10168883 WPW10168883 TRIM-CKTOP
W10197057 W10197057 USE & CARE GUIDE
WP74001521 WP74001521 WASHER
WPY707985 WPY707985 WHEEL-FAN
W10254693 W10254693 WIRING DIAGRAM (ENGLISH)
W10254694 W10254694 WIRING DIAGRAM (FRENCH)
