Model Image
Manufacturer

Whirlpool

Model Number

JER8885RAS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
3601F380-51 3601F380-51 BAFFLE INS
WPW10245259 WPW10245259 BLOCK-TERM
WPW10211368 WPW10211368 BOTTM-OVEN
74008900 74008900 BOXBURNER
WP3801F656-51 WP3801F656-51 BRACKET
3801F945-51 3801F945-51 BRACKET, CONTROL
3801F886-51 3801F886-51 BRKT-MNTG
3801P918-51 3801P918-51 BRKT-SUPRT
3801P822-45 3801P822-45 BRKT-SUPRT
WP7730P011-60 WP7730P011-60 CAMERA LENS- INDI
74006592 74006592 CLIP WARM
WP8507P331-60 WP8507P331-60 CONTROL BOARD
74008760 74008760 COVER WIR
74005783 74005783 COVER, CONVECT
4005F754-51 4005F754-51 COVER, MAIN WIRE (ELE)
4005F804-51 4005F804-51 COVER- REA
74008762 74008762 COVERREAR
74011911 74011911 COVERREAR
W10792991 W10792991 DOOR DOOR LATCH
WP3405W035-19 WP3405W035-19 DRAWR-WARM
WP74008898 WP74008898 ELEMENT, WARMING
74008883 74008883 ELEMENT- W
WPW10276482 WPW10276482 ELMNT-BAKE
WP7406P493-60 WP7406P493-60 ELMNT-BROL
74009022 74009022 END CAP (RT-BLK)
74009023 74009023 ENDCAP-PNL
WP7427P109-60 WP7427P109-60 FAN, CONVECTION ASY.
W11665456 W11665456 FOOT-LEVEL
74008916 74008916 GASKET- WI
W11562931 W11562931 GASKT-DOOR
7902P805-60 7902P805-60 GLASS OUT
74003645 74003645 GLASS-DOOR
74008920 74008920 HANDLE DO
WP7701P547-60 WP7701P547-60 HANDLE, DRAWER
WP74008909 WP74008909 HANDLE, DRAWER
74011680 74011680 HARNESS B
74011978 74011978 HARNESS I
74011979 74011979 HARNESS I
74011980 74011980 HARNESS M
74010546 74010546 HINGE, DOOR

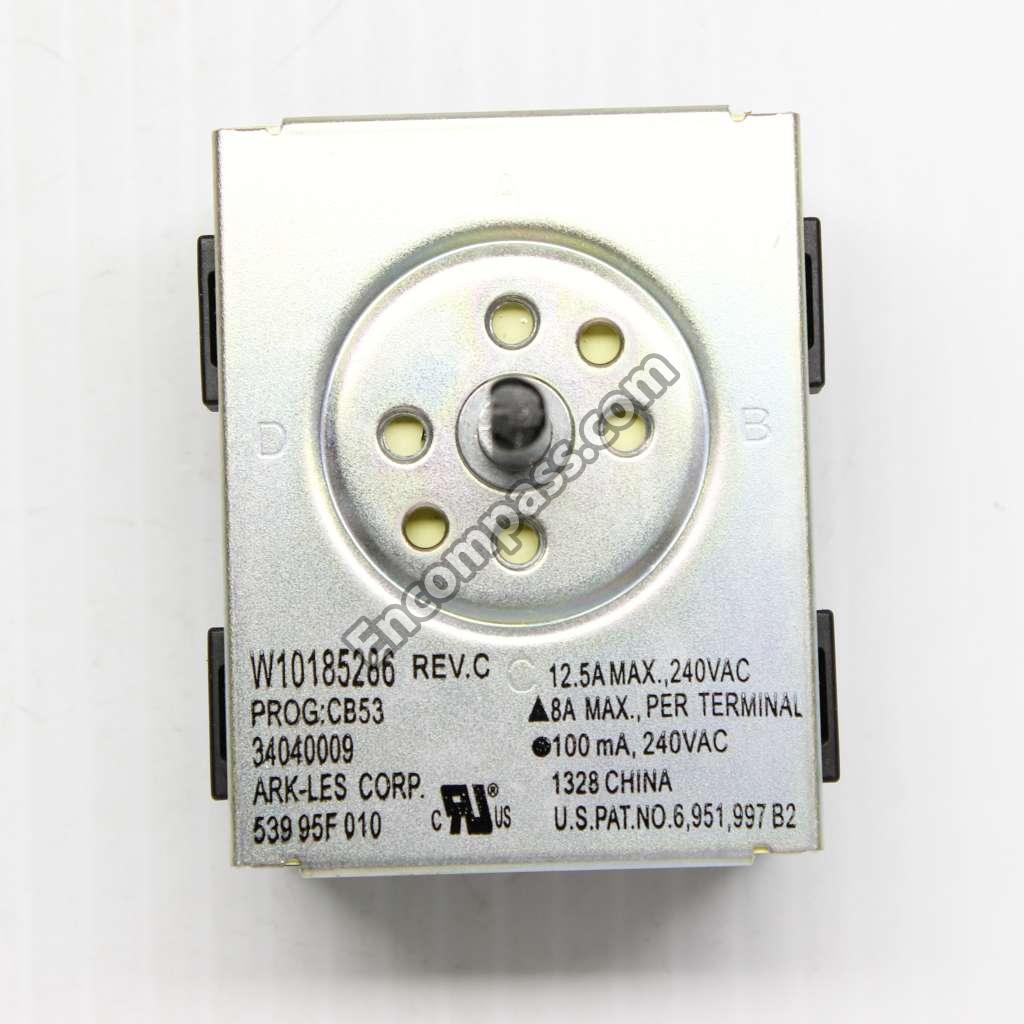

WPW10185286 WPW10185286 INFINITE CONTROL SWITCH
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
7002P482-60 7002P482-60 INSULATION
7002P494-60 7002P494-60 INSULATION
W11161816 W11161816 INSULATION
7002P246-60 7002P246-60 INSULATION
7002P492-60 7002P492-60 INSULATION, BACK
WP74008921 WP74008921 KNOB
74011299 74011299 LENS LIGH
8009 8009 LIGHT BULB
7407P100-60 7407P100-60 LIGHT, INDICATOR
WP74004153 WP74004153 LIGHT- IND
WP74011278 WP74011278 LIGHT- OVE
WP2402W297-19 WP2402W297-19 LINING, DOOR
8113P713-60 8113P713-60 MANUAL, USE & CARE
8113P619-60 8113P619-60 MANUAL, USE & CARE
7450P078-60 7450P078-60 MEMBRANE SWITCH
WPW10131078 WPW10131078 NUT
WP3400029 WP3400029 NUT
WP7103P027-60 WP7103P027-60 NUT
4005P704-51 4005P704-51 PANEL, ACCESS
WP7760P218-60 WP7760P218-60 PANEL, DOOR (STL)
WP2618F172-69 WP2618F172-69 PANEL, SIDE (BLK)
WPW10165339 WPW10165339 PANEL-DRWR
12002306 12002306 PANEL-DRWR
3605F146-51 3605F146-51 PLATE
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
WP74008763 WP74008763 RACK- OVEN
WP74010551 WP74010551 RECEIVER-
3804F316-51 3804F316-51 RETAINER
74008701 74008701 RETAINER, SIDE
3804F300-51 3804F300-51 RETAINER-
WP7101P072-60 WP7101P072-60 SCREW
WP7101P309-60 WP7101P309-60 SCREW
WP74003976 WP74003976 SCREW
74009538 74009538 SCREW
WP4159193 WP4159193 SCREW
W11233072 W11233072 SCREW
74003975 74003975 SCREW
74008798 74008798 SCREW
74005401 74005401 SCREW
12001656 12001656 SENSOR
74011024 74011024 SHEILD WA
WP3604F390-51 WP3604F390-51 SHIELD
74009595 74009595 SHIELD WA
3604F382-09 3604F382-09 SHIELD-HT
WP3604F381-19 WP3604F381-19 SHIELD-VNT
WP8016P024-60 WP8016P024-60 SLIDE-DRWR
W11190816 W11190816 SPACER
WP74005546 WP74005546 SPACER- RU
74008690 74008690 SPACER- SI
74008761 74008761 SPACER- SN
74007134 74007134 SPRING, ELEMENT SUPPORT
3807P680-45 3807P680-45 SUPPORT
W10823720 W10823720 SURFACE ELEMENT
W10823724 W10823724 SURFACE ELEMENT
W10823692 W10823692 SURFACE ELEMENT
W10823711 W10823711 SURFACE ELEMENT
WP74008718 WP74008718 SWITCH, ROCKER (BLK)
WP74010824 WP74010824 SWITCH- EL
74008715 74008715 SWITCH- LI
W10223226 W10223226 TOP ASSEMBLY (BLK)
74008691 74008691 VENT OVEN
