Model Image
Manufacturer

Whirlpool

Model Number

JES8750BAF16

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11447673 W11447673 ANCHOR-TIP
3804F294-51 3804F294-51 BACK-MAIN
3601F373-51 3601F373-51 BAFFLE
WP2205F060-19 WP2205F060-19 BOTTM-OVEN
4020W035-80 4020W035-80 BOTTOM-PE
WP3801F656-51 WP3801F656-51 BRACKET
3801F887-51 3801F887-51 BRACKET
W10190166 W10190166 BRACKET, POWER SUPPLY
3801F886-51 3801F886-51 BRKT-MNTG
3804F307-51 3804F307-51 C
WP22001948 WP22001948 CAMERA LENS- INDI
W10355051 W10355051 CLEANER, COOKTOP
8019P022-60 8019P022-60 CLIP, WIRE
WPW10281322 WPW10281322 CONNECTOR

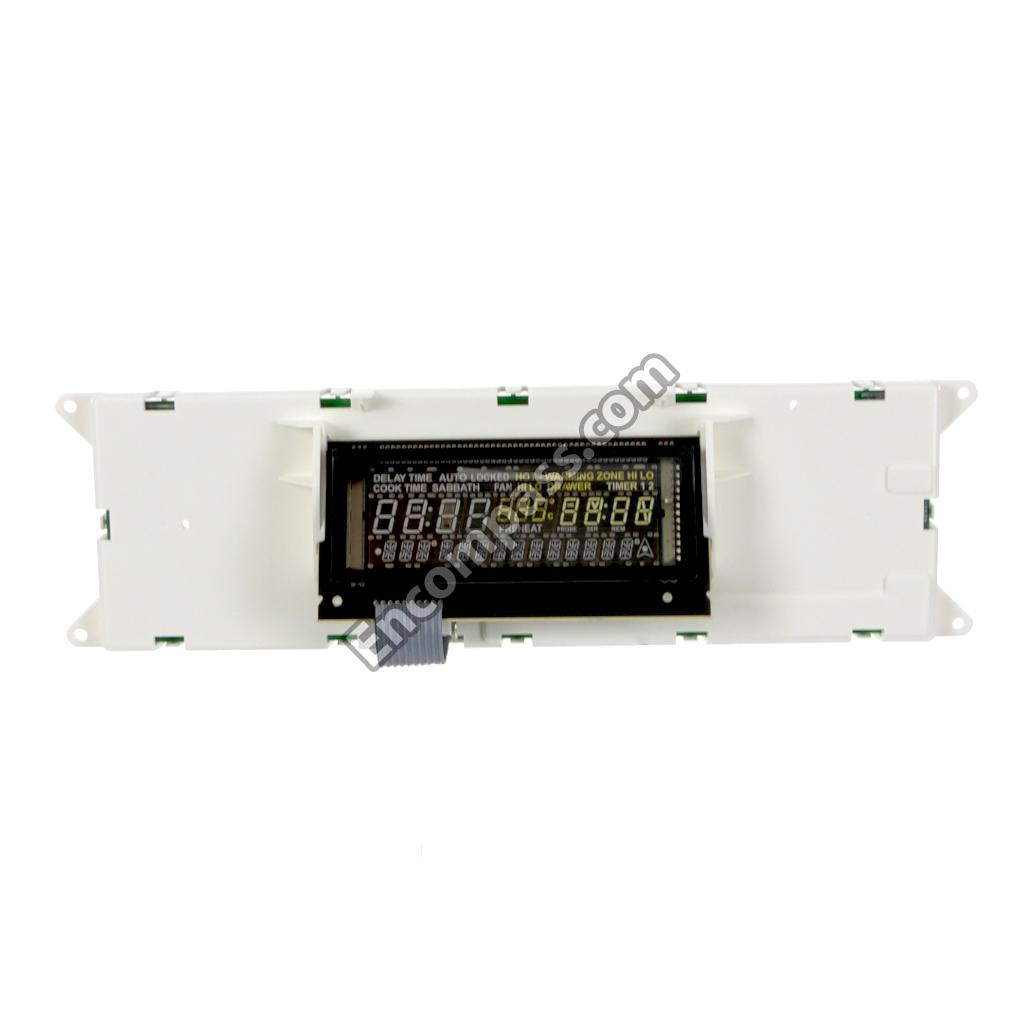

WP8507P225-60 WP8507P225-60 CONTROL BOARD
7920P221-60 7920P221-60 COOKTOP
7920P125-60 7920P125-60 COOKTOP (WHITE)
4005F749-45 4005F749-45 COVER
4005F750-51 4005F750-51 COVER- DOO
4005F612-51 4005F612-51 COVER-BLCK
4005F810-51 4005F810-51 COVR-ACESS
74010819 74010819 DOOR LATCH ASY
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
74011620 74011620 ELEMENT (WARMING ZONE)
WP7406P411-60 WP7406P411-60 ELMNT-BAKE
WP7406P430-60 WP7406P430-60 ELMNT-BROL
3826F066-51 3826F066-51 EXTENSION
WPW10586440 WPW10586440 FAN-BLWR
241430 241430 FOIL-ALUM
3603F075-70 3603F075-70 FRAME, DOOR (BLACK)
3603F075-71 3603F075-71 FRAME-DOOR
7201P076-60 7201P076-60 GASKET, VENT TRIM
WPW10162384 WPW10162384 GASKT-DOOR
74004857 74004857 GLASS, COATED
W10331044 W10331044 GLASS, DOOR (BLACK)
WP74011510 WP74011510 GLASS, DOOR (WHITE)
74011543 74011543 GLASS, DRAWER (BLACK)
WP7922P058-60 WP7922P058-60 GLASS, DRAWER (WHITE)
74003645 74003645 GLASS, INNER
WP3195996 WP3195996 GRID-PAN
WP74008625 WP74008625 HANDLE- DO
5171P477-60 5171P477-60 HARNESS, MAIN
5171P538-60 5171P538-60 HARNESS, SENSOR
5171P547-60 5171P547-60 HARNESS,SWITCH(RT)
W10298903 W10298903 HARNS-WIRE
5700P822-60 5700P822-60 HARNS-WIRE
5171P559-60 5171P559-60 HARNS-WIRE
74011475 74011475 HINGE, DOOR
3605F345-51 3605F345-51 HOLDER
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
8101P699-60 8101P699-60 INSTALLATION INSTRUCTIONS
7002P246-60 7002P246-60 INSULATION
7002P443-60 7002P443-60 INSULATION
WPW10208653 WPW10208653 INSULATION
W10165725 W10165725 INSULATION, BACK
74011509 74011509 INSULATION, FOIL
74010987 74010987 INSULATION, WRAP
7003P150-60 7003P150-60 INSULATOR
WP74011493 WP74011493 KNOB
WP74011631 WP74011631 KNOB
WP74011550 WP74011550 KNOB
4005F684-51 4005F684-51 LENS-LIGHT
WP74011220 WP74011220 LIGHT ASY-
WP74004153 WP74004153 LIGHT- IND
WP2402W312-19 WP2402W312-19 LINER-DOOR
WP3400029 WP3400029 NUT
WP488130 WP488130 NUT
WPW10131078 WPW10131078 NUT
74005230 74005230 NUT, LOCK (8-32)
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
511873 511873 PAINT
799344 799344 PAINT
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
3401F092-45 3401F092-45 PAN-BAKE
WP3196076 WP3196076 PAN-BROILR
WP2416F086-70 WP2416F086-70 PANEL
2618F201-51 2618F201-51 PANEL
2618F206-51 2618F206-51 PANEL
2416F086-71 2416F086-71 PANEL

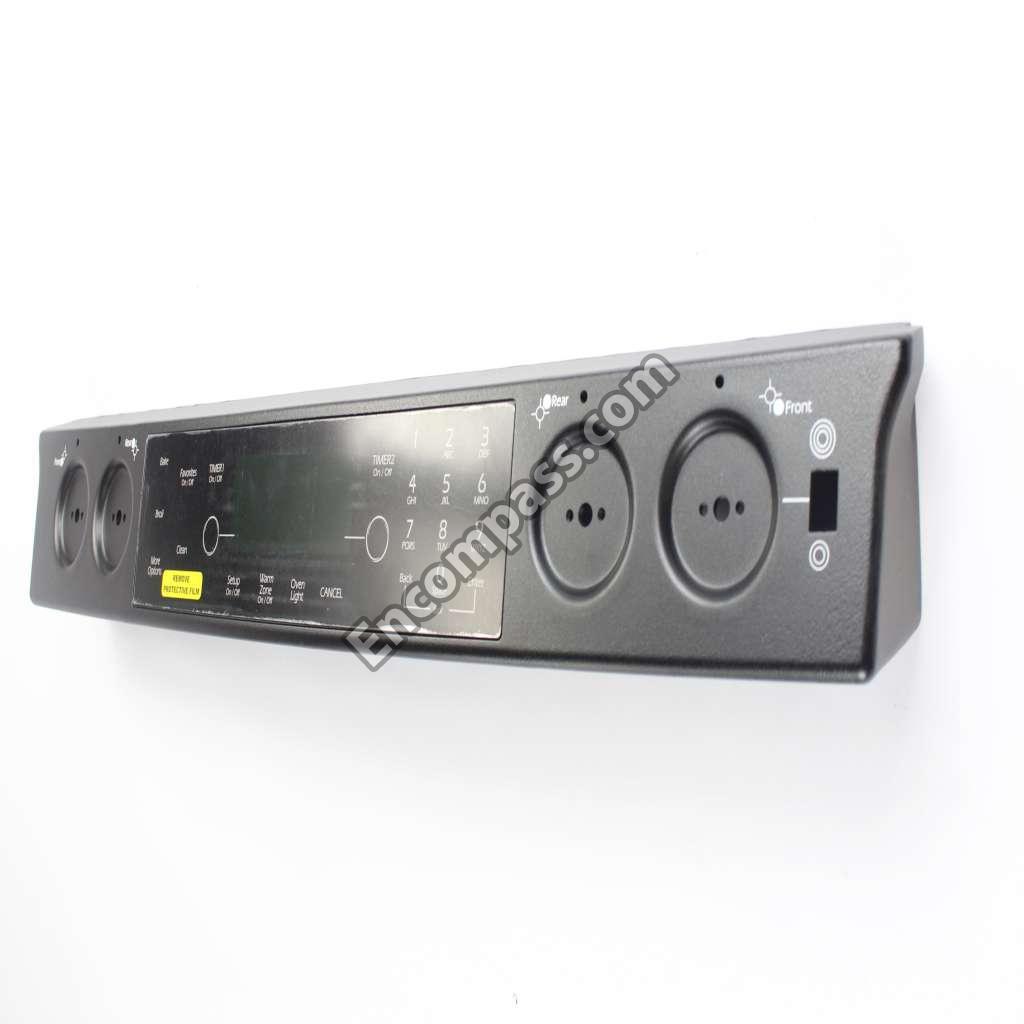

WPW10206083 WPW10206083 PANEL, CONTROL (BLACK)
WPW10206082 WPW10206082 PANEL, CONTROL (WHITE)
WP4020F036-80 WP4020F036-80 PEDESTAL, FRONT
3605F354-45 3605F354-45 PLATE
WP7801P173-60 WP7801P173-60 RACK-OVEN
261582 261582 REFINISHING MATERIAL (GREASE)
799832 799832 REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
3804F317-80 3804F317-80 RETAINER
3804F231-51 3804F231-51 RETAINER
3804F308-51 3804F308-51 RETAINER-
WP74004078 WP74004078 ROLLER- DR
W10182835 W10182835 RUNNER, DRAWER (2)
W11347848 W11347848 SCREW
W10828565 W10828565 SCREW
WP7101P072-60 WP7101P072-60 SCREW
WP74010805 WP74010805 SCREW
WP4159193 WP4159193 SCREW
WP74003976 WP74003976 SCREW
WP90767 WP90767 SCREW
WP59002061 WP59002061 SCREW
WP7101P498-60 WP7101P498-60 SCREW
7101P676-60 7101P676-60 SCREW
WP74005231 WP74005231 SHAFT, ROLLER
7003P101-60 7003P101-60 SHEILD-HT
7003P152-60 7003P152-60 SHIELD
3604F418-51 3604F418-51 SHIELD- DO
3826F064-51 3826F064-51 SHIELD-HT
3604F326-45 3604F326-45 SHIELDHT
74010267 74010267 SPACER, RUBBER
WP74005546 WP74005546 SPACER- RU
285006 285006 SPRAY
350930 350930 SPRAY
3807F754-45 3807F754-45 SUPPORT
3807F727-45 3807F727-45 SUPPORT
8004P093-60 8004P093-60 SUPPORT
3807F731-51 3807F731-51 SUPPORT- C
3807F640-51 3807F640-51 SUPPORT- V
W10823692 W10823692 SURFACE ELEMENT
W10823718 W10823718 SURFACE ELEMENT
W10823711 W10823711 SURFACE ELEMENT
WP74008718 WP74008718 SWITCH, ROCKER (BLACK)
74008717 74008717 SWITCH, ROCKER (WHT)
WP74010824 WP74010824 SWITCH- EL
WP7450P108-60 WP7450P108-60 SWTCH-LITE
WP7450P034-60 WP7450P034-60 SWTCH-LMIT
WPW10159823 WPW10159823 TRIM, FRONT FRAME
7744P467-60 7744P467-60 TRIM, VENT (WHITE)
7744P464-60 7744P464-60 TRIM- VENT
WP3608F138-71 WP3608F138-71 TRIM-SIDE
WP3608F138-70 WP3608F138-70 TRIM-SIDE
W10165722 W10165722 TUBE, VENT LOWER
8026P074-60 8026P074-60 TUBE, VENT UPPER
8026P084-60 8026P084-60 TUBE-VENT
8034P008-60 8034P008-60 TUBE-VENT
72017 72017 TUCHUP
8113P758-60 8113P758-60 USE & CARE GUIDE
74009194 74009194 WASHER, HANDLE
8119P151-60 8119P151-60 WIRING DIAGRAM
