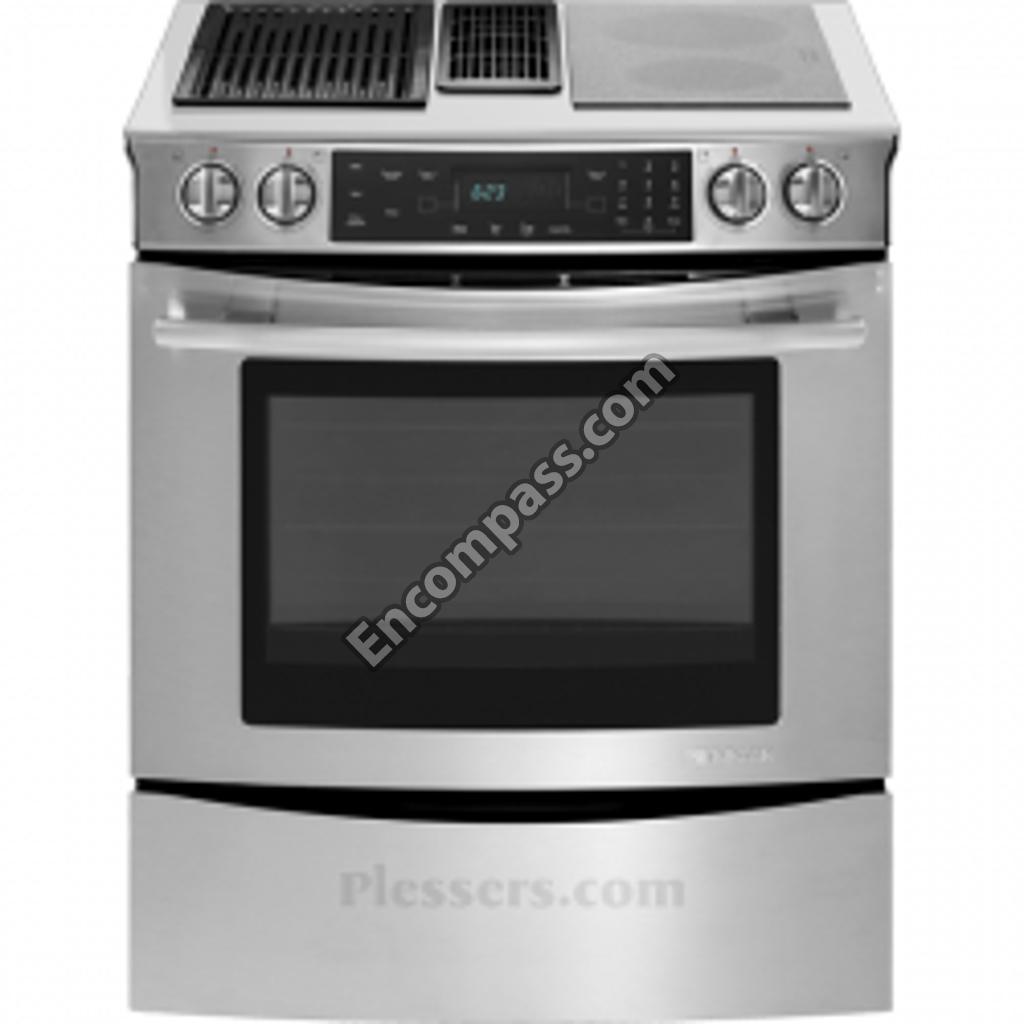

Model Image
Manufacturer

Whirlpool

Model Number

JES9750CAS02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10777874 W10777874 ASSY., SCROLL BLWR
3601F373-51 3601F373-51 BAFFLE
8255P412-60 8255P412-60 BLOCK
WPY708730 WPY708730 BLOCK- TER
4020W035-80 4020W035-80 BOTTOM-PE
WP3801F656-51 WP3801F656-51 BRACKET
WP3801F621-51 WP3801F621-51 BRACKET
3801F911-51 3801F911-51 BRACKET
WP3801F631-51 WP3801F631-51 BRKT-MNTG
3801F886-51 3801F886-51 BRKT-MNTG
3801F929-51 3801F929-51 BRKT-MNTG
8405P046-60 8405P046-60 BRKT-RELAY
8405P063-60 8405P063-60 BRKT-RELAY
9762761 9762761 BROCHURE, TIPS SAFE COOKING
3804F307-51 3804F307-51 C
WP22001948 WP22001948 CAMERA LENS- INDI
WP7111P047-60 WP7111P047-60 CLAMP, HOSE
5700D526-60 5700D526-60 CLAMP-MTR
W10355051 W10355051 CLEANER, COOKTOP
74004835 74004835 CLIP
7809P030-60 7809P030-60 CLIP
Y700450 Y700450 CLIP, SHUNT
WPW10281322 WPW10281322 CONNECTOR
WP8507P233-60 WP8507P233-60 CONTROL BOARD
2002X202-50 2002X202-50 COOKTOP
W10840495 W10840495 COVER
4005F779-80 4005F779-80 COVER
4005F612-51 4005F612-51 COVER-BLCK
4005F810-51 4005F810-51 COVR-ACESS
8312P190-60 8312P190-60 CUP-GREASE
W10394687 W10394687 DIAGRAM, WIRING
WPW10274035 WPW10274035 DOOR DOOR LATCH
WPY702326 WPY702326 DUCT, FLEXIBLE
WPW10310274 WPW10310274 ELMNT-BAKE
WP7406P430-60 WP7406P430-60 ELMNT-BROL
WPW10310263 WPW10310263 ELMNT-GRIL
W10183566 W10183566 EXTRUSION
WPW10586440 WPW10586440 FAN-BLWR
WP71002111 WP71002111 FILTER- GR
241430 241430 FOIL-ALUM
3603F075-70 3603F075-70 FRAME, DOOR (BLACK)
WPW10162384 WPW10162384 GASKT-DOOR
WPW10235390 WPW10235390 GLASS DOOR
74004857 74004857 GLASS, COATED
74003645 74003645 GLASS, INNER
WP7518P118-60 WP7518P118-60 GRATE-GRIL
WP3195996 WP3195996 GRID-PAN
74005810 74005810 GRILL, AIR (BLK)
WPW10223152 WPW10223152 HANDLE, DOOR (STAINLESS)
WP3806F011-80 WP3806F011-80 HANGER, ACCESS PANEL
W10394668 W10394668 HARNESS, MAIN
W10394792 W10394792 HARNESS, SENSOR
74011475 74011475 HINGE, DOOR
8312P191-60 8312P191-60 HOUSING
W10253462 W10253462 INSTRUCTIONS, INSTALLATION
7002P246-60 7002P246-60 INSULATION
7002P466-60 7002P466-60 INSULATION
7002P304-60 7002P304-60 INSULATION
7002P467-60 7002P467-60 INSULATION
7002P468-60 7002P468-60 INSULATION
WPW10208653 WPW10208653 INSULATION
74011509 74011509 INSULATION, FOIL
7003P082-60 7003P082-60 INSULATOR
WPW10213943 WPW10213943 KNOB (STAINLESS)
WP74011220 WP74011220 LIGHT ASY-
WP74004153 WP74004153 LIGHT- IND
WP4009F087-19 WP4009F087-19 LINER, PAN
WP2402W312-19 WP2402W312-19 LINER-DOOR
WPY707702 WPY707702 LOCKNUT
3804F294-51 3804F294-51 MAIN, BACK
WPW10201322 WPW10201322 MOTOR-BLWR
WPW10214168 WPW10214168 NAMEPLATE
WP3400029 WP3400029 NUT
Y708862 Y708862 NUT, SPEED
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
511873 511873 PAINT
799344 799344 PAINT
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
WP3196076 WP3196076 PAN-BROILR
3401F050-19 3401F050-19 PAN-GRILL
3401F051-19 3401F051-19 PAN-GRILL
WP2416F086-70 WP2416F086-70 PANEL
2618F206-51 2618F206-51 PANEL
2618F202-51 2618F202-51 PANEL- SHI
WPW10297248 WPW10297248 PANEL-DRWR
W10314422 W10314422 PANL-CNTRL
WP4020F033-80 WP4020F033-80 PEDESTAL
WP4020F032-80 WP4020F032-80 PEDESTAL
W10165724 W10165724 PLATE-ADPT
2801W033-80 2801W033-80 PLENUM
2801L037-80 2801L037-80 PLENUM
7718P024-60 7718P024-60 PLUG-MALE
WP7402P104-60 WP7402P104-60 POWER CORD
WP7801P173-60 WP7801P173-60 RACK-OVEN
5171P563-60 5171P563-60 RECEPTACLE
5171P554-60 5171P554-60 RECEPTACLE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
WP8566493 WP8566493 RELAY
3804F317-80 3804F317-80 RETAINER
3804F312-51 3804F312-51 RETAINER
8038P003-60 8038P003-60 RETAINER
3804F305-51 3804F305-51 RETAINER, INSUL.
3804F308-51 3804F308-51 RETAINER-
4026F009-51 4026F009-51 RING
4026F008-51 4026F008-51 RING
2818F001-80 2818F001-80 RING
W11347848 W11347848 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74010805 WP74010805 SCREW
WP4159193 WP4159193 SCREW
WP59002061 WP59002061 SCREW
WP90767 WP90767 SCREW
W10828565 W10828565 SCREW
7101P676-60 7101P676-60 SCREW
7003P101-60 7003P101-60 SHEILD-HT
3604F336-51 3604F336-51 SHIELD, HEAT
3604F418-51 3604F418-51 SHIELD- DO
3826F064-51 3826F064-51 SHIELD-HT
W10857933 W10857933 SPACER
Y708572 Y708572 SPADE, CONTACT
285006 285006 SPRAY
350930 350930 SPRAY
3807F754-45 3807F754-45 SUPPORT
3807F741-80 3807F741-80 SUPPORT
3807F743-51 3807F743-51 SUPPORT
W10271711 W10271711 SUPPORT
3807F615-51 3807F615-51 SUPPORT R
3807F732-51 3807F732-51 SUPPORT- R
WP74011489 WP74011489 SWITCH- IN
WP7450P034-60 WP7450P034-60 SWTCH-LMIT
WPW10159823 WPW10159823 TRIM, FRONT FRAME
WP3608F138-70 WP3608F138-70 TRIM-SIDE
W10165722 W10165722 TUBE, VENT LOWER
8026P094-60 8026P094-60 TUBE, VENT UPPER
8034P008-60 8034P008-60 TUBE-VENT
7506P406-60 7506P406-60 TUBING
72017 72017 TUCHUP
W10389303 W10389303 USE & CARE GUIDE
74009194 74009194 WASHER, HANDLE
WPY707985 WPY707985 WHEEL-FAN
