Manufacturer

Whirlpool

Model Number

JES9860CAB01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPJEA8120ADW WPJEA8120ADW ACCESSORY PARTS, CARTRIDGE, COOKTOP (RADIANT) (WHITE)
31462A 31462A ACCESSORY PARTS, CLEANER, STAINLESS STEEL
31463 31463 ACCESSORY PARTS, COOKTOP PROTECTANT
WA906B WA906B ACCESSORY PARTS, COOKTOP SCRAPER
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W10777874 W10777874 ASSEMBLY, SCROLL
3804F294-51 3804F294-51 BACK, MAIN

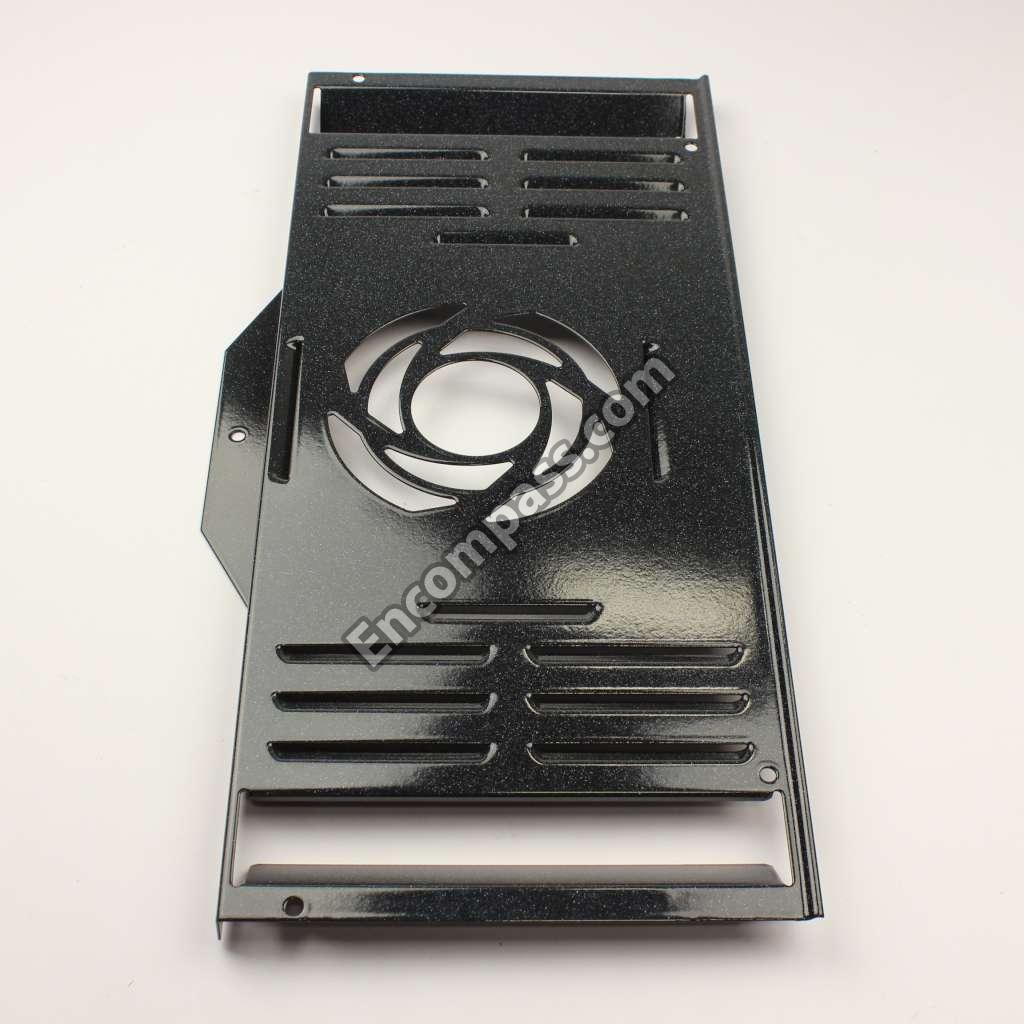

W10312218 W10312218 BAFFL-CONV
3601F373-51 3601F373-51 BAFFLE
8255P412-60 8255P412-60 BLOCK
WPY708730 WPY708730 BLOCK- TER
4020W035-80 4020W035-80 BOTTOM-PE
WP3801F656-51 WP3801F656-51 BRACKET
WP3801F621-51 WP3801F621-51 BRACKET
3801F911-51 3801F911-51 BRACKET
WP3801F631-51 WP3801F631-51 BRKT-MNTG
3801F886-51 3801F886-51 BRKT-MNTG
3801F929-51 3801F929-51 BRKT-MNTG
8405P046-60 8405P046-60 BRKT-RELAY
8405P063-60 8405P063-60 BRKT-RELAY
3804F307-51 3804F307-51 C
WP22001948 WP22001948 CAMERA LENS- INDI
WP7111P047-60 WP7111P047-60 CLAMP, HOSE
5700D526-60 5700D526-60 CLAMP-MTR
W10336909 W10336909 CLEANER
31682 31682 CLEANER
W10355051 W10355051 CLEANER, COOKTOP
7809P030-60 7809P030-60 CLIP
Y700450 Y700450 CLIP, SHUNT
WPW10281322 WPW10281322 CONNECTOR
WP8507P234-60 WP8507P234-60 CONTROL BOARD
2002X202-09 2002X202-09 COOKTOP (BLACK)
2002X202-81 2002X202-81 COOKTOP (WHITE)
W10840495 W10840495 COVER
4005F779-80 4005F779-80 COVER
4005F612-51 4005F612-51 COVER-BLCK
4005F810-51 4005F810-51 COVR-ACESS
8312P190-60 8312P190-60 CUP-GREASE
WPW10274035 WPW10274035 DOOR DOOR LATCH
WPY702326 WPY702326 DUCT, FLEXIBLE
WPW10310274 WPW10310274 ELMNT-BAKE
WP7406P430-60 WP7406P430-60 ELMNT-BROL
WPW10310263 WPW10310263 ELMNT-GRIL
W10183566 W10183566 EXTRUSION
WPW10586440 WPW10586440 FAN-BLWR
WPW10213813 WPW10213813 FAN-CONVCT
WP71002111 WP71002111 FILTER- GR
241430 241430 FOIL-ALUM
3603F075-70 3603F075-70 FRAME, DOOR (BLACK)
3603F075-71 3603F075-71 FRAME-DOOR
WPW10162384 WPW10162384 GASKT-DOOR
WPW10272330 WPW10272330 GLASS DOOR
WPW10272332 WPW10272332 GLASS DOOR
74004857 74004857 GLASS, COATED
74011543 74011543 GLASS, DRAWER (BLACK)
WP7922P058-60 WP7922P058-60 GLASS, DRAWER (WHITE)
74003645 74003645 GLASS, INNER
WP7518P118-60 WP7518P118-60 GRATE-GRIL
WP3195996 WP3195996 GRID-PAN

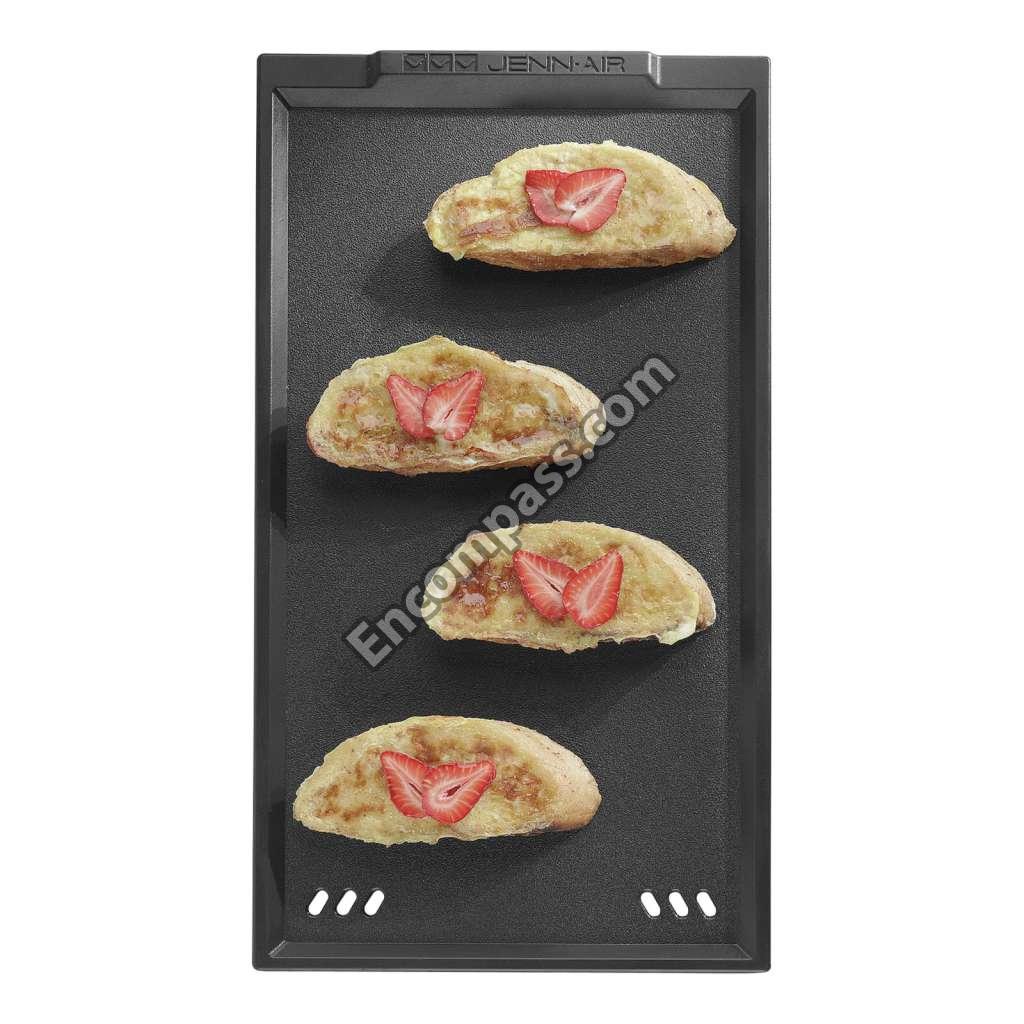

JEA8200ADX JEA8200ADX GRIDDLE- E
A341 A341 GRILL COVR
74005810 74005810 GRILL, AIR (BLK)
W10389303 W10389303 GUIDE, USE & CARE
WP3806F011-80 WP3806F011-80 HANGER, ACCESS PANEL
W10394791 W10394791 HARNS-WIRE
W10394666 W10394666 HARNS-WIRE
74011475 74011475 HINGE, DOOR
W10223163 W10223163 HNDLE-DOOR
W10223164 W10223164 HNDLE-DOOR
8312P191-60 8312P191-60 HOUSING
W10430955 W10430955 INSTRUCTIONS, INTALLATION
7002P246-60 7002P246-60 INSULATION
7002P467-60 7002P467-60 INSULATION
7002P468-60 7002P468-60 INSULATION
7002P466-60 7002P466-60 INSULATION
7002P304-60 7002P304-60 INSULATION
WPW10208653 WPW10208653 INSULATION
74011509 74011509 INSULATION, DOOR
7003P082-60 7003P082-60 INSULATOR
W10213942 W10213942 KNOB
W10207697 W10207697 KNOB
WP74011220 WP74011220 LIGHT ASY-
WP74004153 WP74004153 LIGHT- IND
WP4009F087-19 WP4009F087-19 LINER, PAN
WP2402W312-19 WP2402W312-19 LINER-DOOR
WPY707702 WPY707702 LOCKNUT

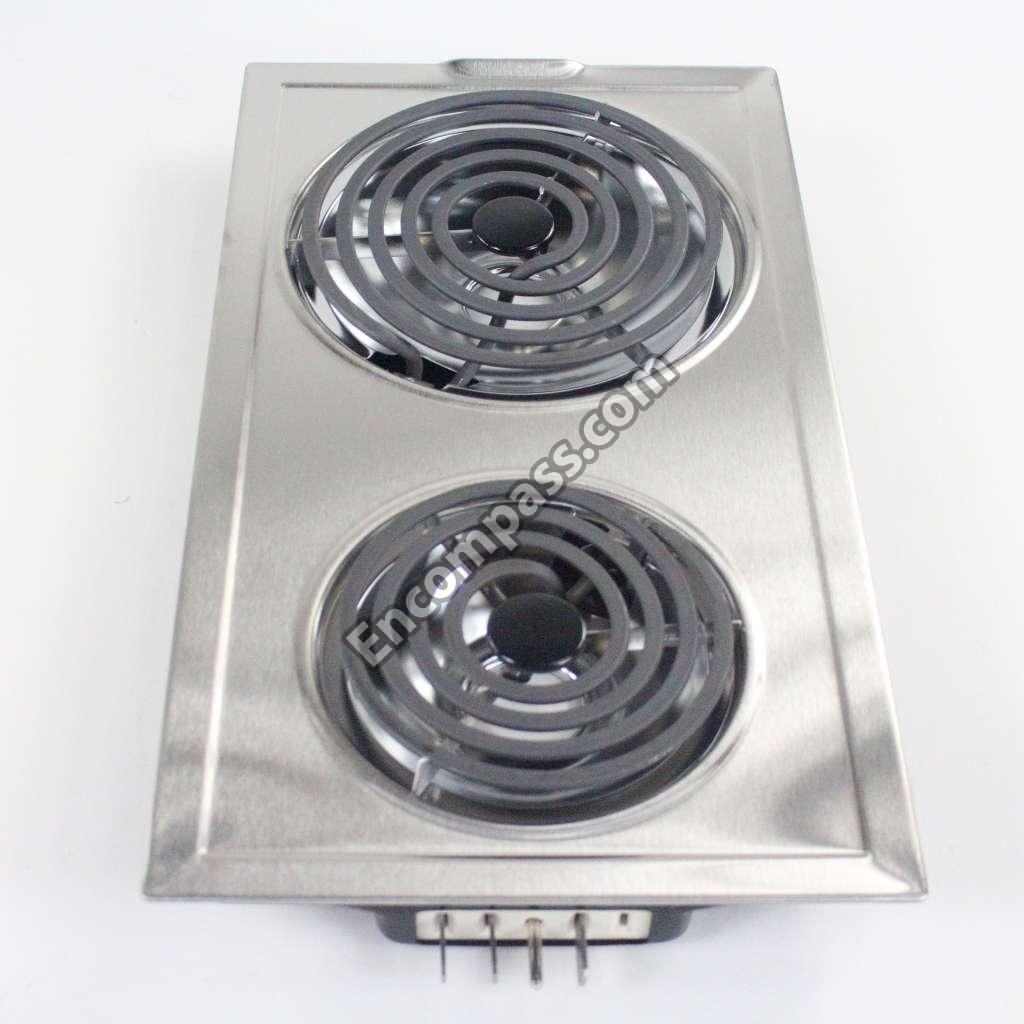

JEA7000ADSA JEA7000ADSA MODULE

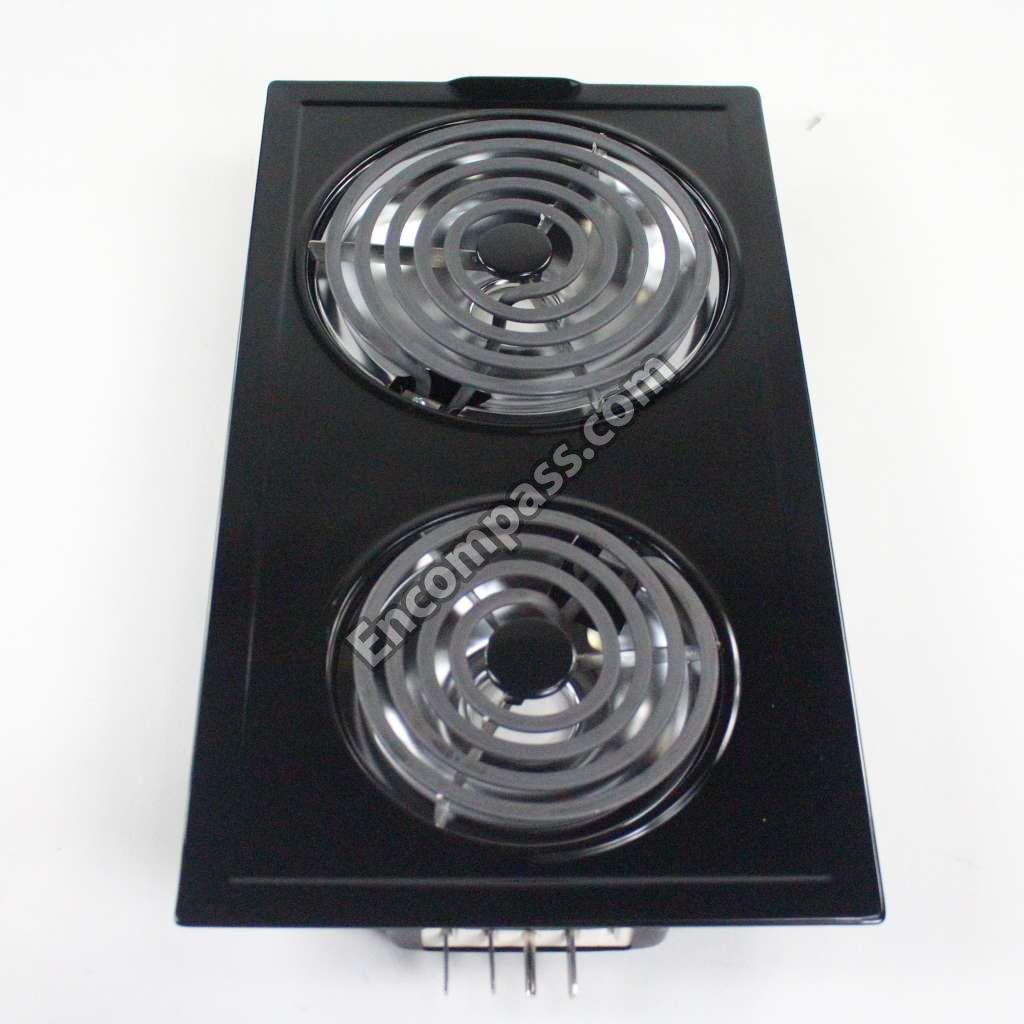

JEA7000ADBA JEA7000ADBA MODULE

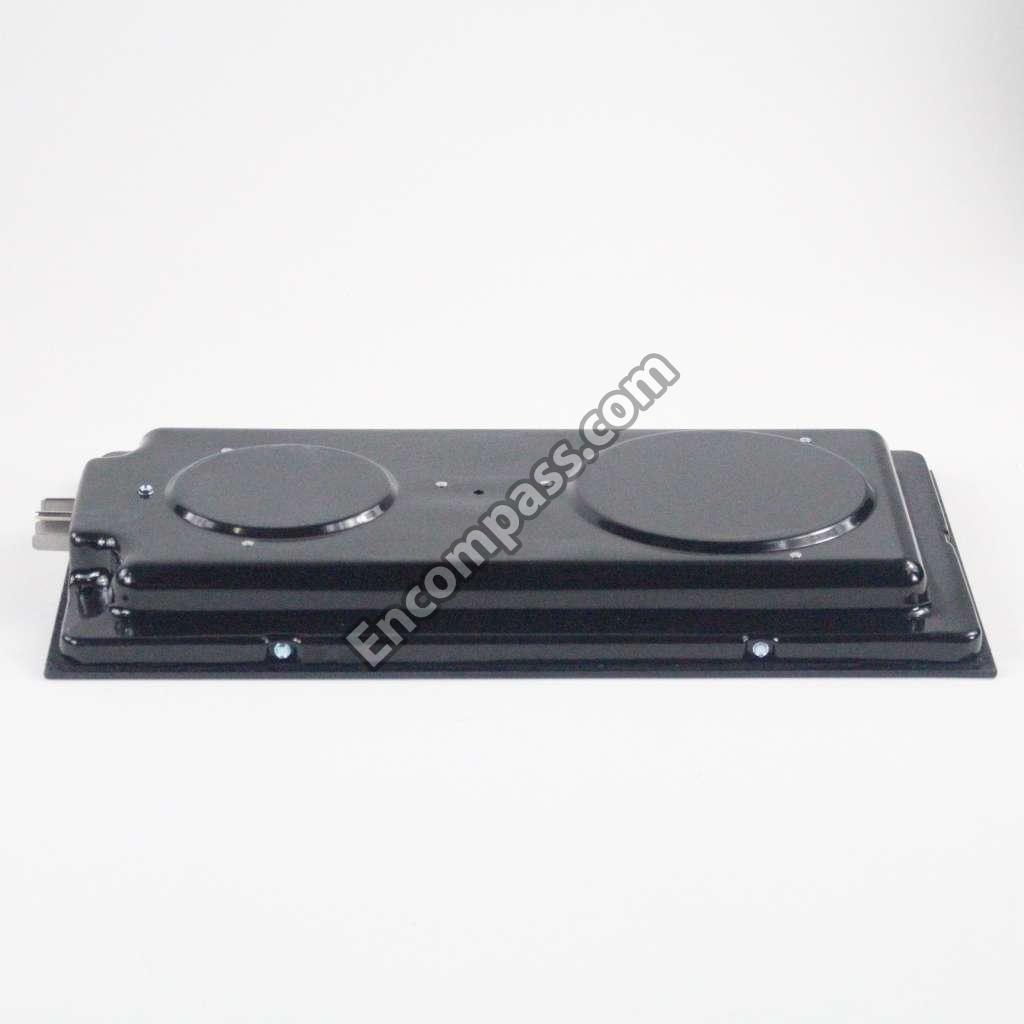

JEA8120ADBA JEA8120ADBA MODULE
WPW10201322 WPW10201322 MOTOR-BLWR
W10190723 W10190723 NAMEPLATE
W10190724 W10190724 NAMEPLATE
WP3400029 WP3400029 NUT
9831122 9831122 NUT
Y708862 Y708862 NUT, SPEED
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
511873 511873 PAINT
799344 799344 PAINT
WP3196076 WP3196076 PAN-BROILR
3401F050-19 3401F050-19 PAN-GRILL
3401F051-19 3401F051-19 PAN-GRILL
WP2416F086-70 WP2416F086-70 PANEL
2618F206-51 2618F206-51 PANEL
2416F086-71 2416F086-71 PANEL
2618F202-51 2618F202-51 PANEL- SHI
W10236209 W10236209 PANL-CNTRL
WP4020F032-80 WP4020F032-80 PEDESTAL
WP4020F033-80 WP4020F033-80 PEDESTAL
W10165724 W10165724 PLATE-ADPT
2801W033-80 2801W033-80 PLENUM
2801L037-80 2801L037-80 PLENUM
7718P024-60 7718P024-60 PLUG-MALE
WP7402P104-60 WP7402P104-60 POWER CORD
350942 350942 PRIMER
WP7430P038-60 WP7430P038-60 PROBE-MEAT
WP7801P173-60 WP7801P173-60 RACK-OVEN
WP7408P086-60 WP7408P086-60 RECEPTACLE
5171P554-60 5171P554-60 RECEPTACLE
5171P563-60 5171P563-60 RECEPTACLE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
WP8566493 WP8566493 RELAY
3804F317-80 3804F317-80 RETAINER
3804F300-51 3804F300-51 RETAINER
3804F312-51 3804F312-51 RETAINER
8038P003-60 8038P003-60 RETAINER
3804F308-51 3804F308-51 RETAINER-
4026F009-51 4026F009-51 RING
4026F008-51 4026F008-51 RING
2818F001-80 2818F001-80 RING
W11347848 W11347848 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74010805 WP74010805 SCREW
WP4159193 WP4159193 SCREW
WP59002061 WP59002061 SCREW
WP90767 WP90767 SCREW
WP489128 WP489128 SCREW
7101P676-60 7101P676-60 SCREW
7003P101-60 7003P101-60 SHEILD-HT
3604F336-51 3604F336-51 SHIELD, HEAT
3604F418-51 3604F418-51 SHIELD- DO
3826F064-51 3826F064-51 SHIELD-HT
W10857933 W10857933 SPACER
Y708572 Y708572 SPADE, CONTACT
4392901 4392901 SPRAY
285006 285006 SPRAY
350930 350930 SPRAY
350938 350938 SPRAY
350956 350956 SPRAY
3807F754-45 3807F754-45 SUPPORT
3807F741-80 3807F741-80 SUPPORT
3807F743-51 3807F743-51 SUPPORT
W10271711 W10271711 SUPPORT
3807F615-51 3807F615-51 SUPPORT R
3807F732-51 3807F732-51 SUPPORT- R
WP74011489 WP74011489 SWITCH- IN
74008265 74008265 THERMOSTAT, HI-LIMIT (UPR)
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
WPW10159823 WPW10159823 TRIM, FRAME
WP3608F138-70 WP3608F138-70 TRIM-SIDE
WP3608F138-71 WP3608F138-71 TRIM-SIDE
W10165722 W10165722 TUBE, VENT LOWER
8026P094-60 8026P094-60 TUBE, VENT UPPER
8034P008-60 8034P008-60 TUBE-VENT
7506P406-60 7506P406-60 TUBING
72032 72032 TUCHUP
72017 72017 TUCHUP
4392899 4392899 TUCHUP
74009194 74009194 WASHER, HANDLE
WPY707985 WPY707985 WHEEL-FAN
