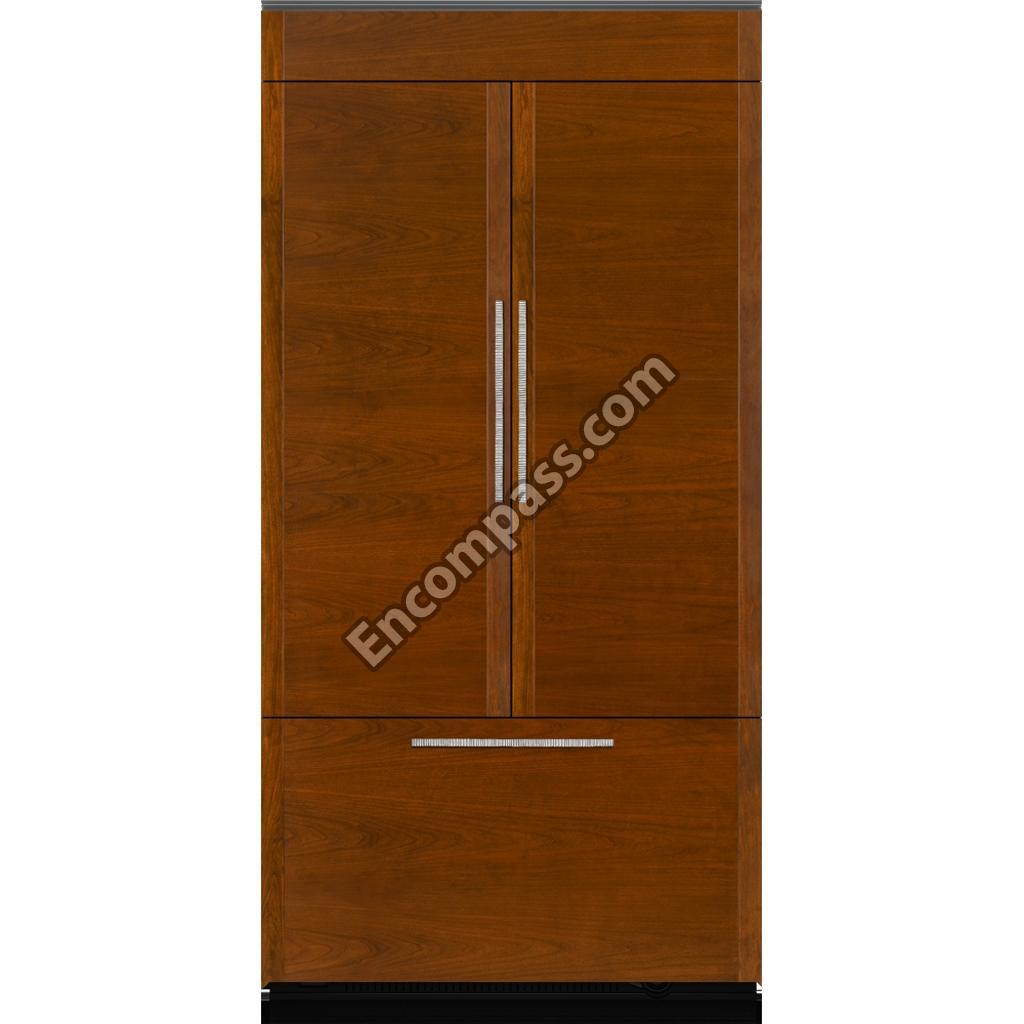

Model Image
Manufacturer

Whirlpool

Model Number

JF42NXFXDW04

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10355049 W10355049 AFFRESH STAINLESS STEEL CLEANE
W11042467 W11042467 AFFRESH STAINLESS STEEL CLEANE
2317939 2317939 AIR DEFLECTOR
WP2221296 WP2221296 AIR-BAFFLE
WP627843 WP627843 ARM-EJECTR
WPW10122563 WPW10122563 ARM-STRIPR
2317030 2317030 ASSEMBLY, ARM
2317031 2317031 ASSEMBLY, BRACKET
WPW10344547 WPW10344547 ASSEMBLY, TRIM (LEFT HAND)
W10258183 W10258183 BASKET-FZR
WP627985 WP627985 BIMETL-DEF
WPW10323035 WPW10323035 BIN CONTROL LEVER
W10323746 W10323746 BIN-CNTLVR
W10323598 W10323598 BIN-CNTLVR
WP2169142 WP2169142 BLADE-FAN
WPW10139483 WPW10139483 BLADE-FAN
2306180 2306180 BLOCK, EVAPORATOR WATER FILTER
WP8204624 WP8204624 BOLT
WPW10203457 WPW10203457 BRACKET
W10839844 W10839844 BRACKET
W10414681 W10414681 BRACKET
W10674648 W10674648 BRACKET
W10209446 W10209446 BRACKET
W10199955 W10199955 BRACKET
W10188500 W10188500 BRACKET
W10188499 W10188499 BRACKET
2320513 2320513 BRACKET, AIR RETURN
2320512 2320512 BRACKET, EVAPORATOR COVER (LEFT HAND)
2317893 2317893 BRACKET, EVAPORATOR COVER (RIGHT HAND)
2256328 2256328 BRACKET, INVERTER MOUNTING
2307945 2307945 BRACKET, MOUNTING
2006617 2006617 BRACKET, SUPPORT BASE
WP2260503B WP2260503B BUTTON
N_P N_P CABINET (NOT A SERVICEABLE PART)
WPW10188505 WPW10188505 CABINET, TRIM (BOTTOM)
2316858 2316858 CAM, MULLION (BOTTOM)
2316857 2316857 CAM, MULLION (TOP)
WP2198643 WP2198643 CAMERA LENS
WP2260518B WP2260518B CAP-FILTER
2320551 2320551 CENTER SUPPORT (LEFT HAND)
2320550 2320550 CENTER SUPPORT (RIGHT HAND)
W10331955 W10331955 CLAMP
549193 549193 CLAMP, POWER CORD
488946 488946 CLAMP, TUBE
WP2004514 WP2004514 CLAMP-TUBE
W10355010 W10355010 CLEANER
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
W10129069 W10129069 CLIP
2317000 2317000 CLIP, CONTROL BOX
2317920 2317920 CLIP, DEFROST HEATER
2317917 2317917 CLIP, DIFFUSER COVER
2307944 2307944 CLIP, EVAPORATOR HEATER
W10841139 W10841139 COMPRESSOR
2307998 2307998 CONDENSER
2309231 2309231 CONTACT, MULLION (BOTTOM)
2309230 2309230 CONTACT, MULLION (TOP)
WPW10528459 WPW10528459 CONTROL BOARD
WPW10356040 WPW10356040 CONTROL BOARD
WPW10200659 WPW10200659 CONTROL BOARD
WPW10184634 WPW10184634 CONTROL BOARD
WPW10269708 WPW10269708 CONTROL BOX, COMPLETE
WPW10203644 WPW10203644 COVER
WP2317844 WP2317844 COVER
W10197748 W10197748 COVER
W10197766 W10197766 COVER
W10194724 W10194724 COVER
W10234211 W10234211 COVER
W10167387 W10167387 COVER
W10167341 W10167341 COVER
2317004 2317004 COVER, AIR RETURN
2309083 2309083 COVER, CENTER (CRISPER PANS)
2318008 2318008 COVER, CENTER (DELI PANS)
2309000 2309000 COVER, CONDENSER
2320519 2320519 COVER, DIFFUSER
2306100 2306100 COVER, EVAPORATOR
2317829 2317829 COVER, FAN
2317078 2317078 COVER, SCREW (ROUND)
2316899 2316899 COVER, SCREW (SQUARE)
2215676 2215676 COVER, TERMINAL
2306187 2306187 COVER, WIRING (ICEMAKER)
W10426957 W10426957 COVER-DUCT
W10272180 W10272180 COVER-UNIT
W10188580 W10188580 COVER-UNIT
W10321048 W10321048 COVER-WIRE
W10316077 W10316077 COVER-WIRE
2268173 2268173 CRISPER PAN ASSEMBLY (INCLUDES NO. 2) (LEFT HAND)
2268171 2268171 CRISPER PAN ASSEMBLY (INCLUDES NO. 2) (RIGHT HAND)
W11676540 W11676540 CUP-FILL
W10251186 W10251186 DEFLECTOR
W10135430 W10135430 DEFLECTOR
REFDEODOR REFDEODOR DEODORIZER
WP2268249 WP2268249 DIFFUSER
2320523 2320523 DIFFUSER ASSEMBLY
WPW10290822 WPW10290822 DIVIDER
2317101 2317101 DIVIDER, BASKET
LW10259063 LW10259063 DOOR ASSEMBLY WH
LW10138417 LW10138417 DOOR ASSEMBLY WH
LW10138419 LW10138419 DOOR ASSEMBLY WH
WPW10202472 WPW10202472 DOOR TRIM
WPW10202480 WPW10202480 DOOR TRIM
WPW10202474 WPW10202474 DOOR TRIM
WPW10344544 WPW10344544 DOOR TRIM
WPW10131132 WPW10131132 DOOR-COMP
WPW10143759 WPW10143759 DRIER-UV
2317005 2317005 DUCT, AIR FLOW (ICEMAKER)
2307810 2307810 DUCT, DELI PAN
WPW10323173 WPW10323173 ENDCAP-TRM
WPW10323172 WPW10323172 ENDCAP-TRM
W10246796 W10246796 ENERGY GUIDE
W10195924 W10195924 EVAPORATOR
W10856615 W10856615 FAN-SCROLL
2327511 2327511 FREEZER PAN ASSEMBLY (INLCUDES ITEM 12)
WPW10289690 WPW10289690 FRONT COVER
2306175 2306175 FRONT, ICE PAN
WP2256367 WP2256367 FRONT-PAN
WP2256365 WP2256365 FRONT-PAN
WP2256247 WP2256247 FRONT-PAN
WP1106508 WP1106508 GASKET
WP2222981 WP2222981 GASKET

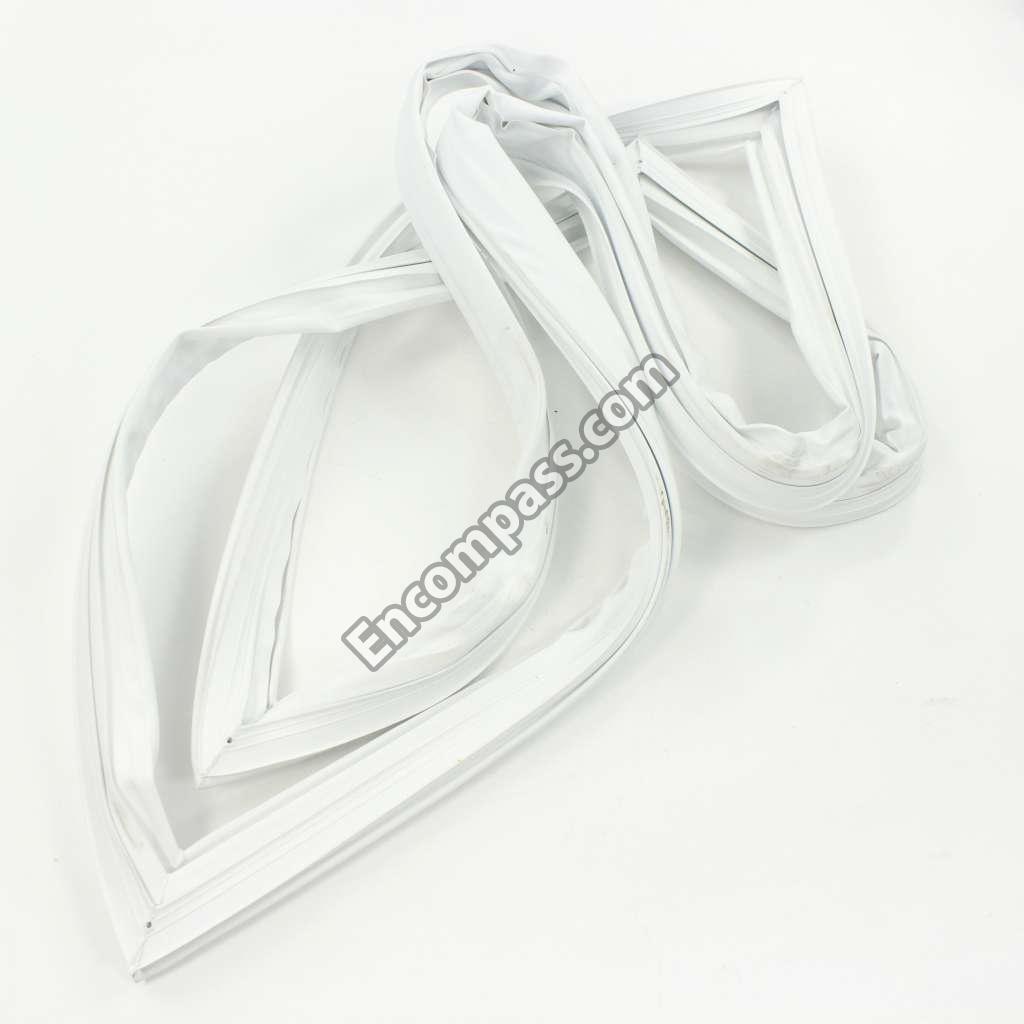

WPW10192907 WPW10192907 GASKET ASSEMBLY
8201809 8201809 GASKET ASSEMBLY
2309432 2309432 GASKET, CONDENSER
2309396 2309396 GASKET, FRONT (CRISPER COVER)
2309395 2309395 GASKET, FRONT (DELI COVER)
2309400 2309400 GASKET, REAR
WPW10198701 WPW10198701 GLASS SHELF
WP542638 WP542638 GREASE
W10861748 W10861748 GRILLE-FRT
WPW10188549 WPW10188549 GRILLE-FRT
W10852725 W10852725 GROMMET
W11671528 W11671528 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
2307584 2307584 GROMMET, CROSSOVERTUBE
2215910 2215910 GROMMET, FLEXIBLE
W10508673 W10508673 HARNS-WIRE
W10482185 W10482185 HARNS-WIRE
W10279393 W10279393 HARNS-WIRE
W10209462 W10209462 HARNS-WIRE
W10209460 W10209460 HARNS-WIRE
W10209501 W10209501 HARNS-WIRE
WP2221240 WP2221240 HEATER
W10219166 W10219166 HEATER
W10890886 W10890886 HEATER-PAN
W10167398 W10167398 HINGE-DOOR
W10136731 W10136731 HINGE-DOOR
W10167397 W10167397 HINGE-DOOR
WPW10121140 WPW10121140 HOUSING
WP2195914 WP2195914 HOUSING-IM
2306174 2306174 ICE PAN ASSEMBLY
WPW10277450 WPW10277450 ICEMAKER
WP2307650 WP2307650 INLET VALVE
WPW10121451 WPW10121451 INSERT
W10379137 W10379137 INSTALLATION INSTRUCTIONS
W11553819 W11553819 INSULATION
WPW10449006 WPW10449006 INVRTR-BOX
W10489178 W10489178 KIT-INSTAL
W10488118 W10488118 KIT-INSTAL
W10234156 W10234156 KIT-INSTAL
W11175806 W11175806 KIT-INSTAL
W10246602 W10246602 LADDER
W10213472 W10213472 LADDER
2005032 2005032 LEVELER, ADJUSTABLE
WPA3073101 WPA3073101 LIGHT BULB
W10234147 W10234147 MAIN CONTROL SERVICE SHEET
W10665413 W10665413 MAT
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
876029 876029 MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD-ICE
W11578915 W11578915 MOTOR-COND
W11671461 W11671461 MOTOR-EVAP
WP2207454 WP2207454 NUT
W10415670 W10415670 ORIFICE
799344 799344 PAINT, BULK (1 QT.) (WHITE)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ.) (BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 OZ.)
72017 72017 PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10407635 W10407635 PAN-CRISPR
W10407633 W10407633 PAN-CRISPR
2256466 2256466 PANEL, BACK
W10234194 W10234194 PIN-HINGE
W10234202 W10234202 PIN-HINGE
2222795 2222795 RAIL, UTILITY LID
W10188592 W10188592 RAIL-MULLN
WP2210509 WP2210509 RELEAS-VAC
W11671527 W11671527 RETAINER
2006841 2006841 RING, RETAINER
WPW10138054 WPW10138054 ROLLER-CAB
WP8533993 WP8533993 SCREW
WP489399 WP489399 SCREW
WP489069 WP489069 SCREW
WP488234 WP488234 SCREW
WP488787 WP488787 SCREW
2006475 2006475 SCREW
W10825422 W10825422 SCREW
WP8533928 WP8533928 SCREW
WPW10001160 WPW10001160 SCREW
WPW10191952 WPW10191952 SCREW
WP488163 WP488163 SCREW
WP488729 WP488729 SCREW
WP1163283 WP1163283 SCREW
WP8281163 WP8281163 SCREW
WP489464 WP489464 SCREW
W11624204 W11624204 SCREW
WP965173 WP965173 SCREW
W10001280 W10001280 SCREW
W10109030 W10109030 SCREW
W10135775 W10135775 SCREW
W10061370 W10061370 SCREW
WP681249 WP681249 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
W10483327 W10483327 SERVICE & WIRING SHEET
2310196 2310196 SERVICE CORD
W11430640 W11430640 SHELF-GLAS
WP2221231 WP2221231 SHIELD
2317927 2317927 SHIELD
W10321050 W10321050 SHIELD
W10129653 W10129653 SHIELD
2309248 2309248 SHIELD, LIGHT
W10405530 W10405530 SLEEVE
W11650036 W11650036 SLIDE
2302952 2302952 SLIDE, CRISPER PAN (LEFT HAND)
2302953 2302953 SLIDE, CRISPER PAN (RIGHT HAND)
2302956 2302956 SLIDE, DELI PAN (LEFT HAND)
2302957 2302957 SLIDE, DELI PAN (RIGHT HAND)
2306117 2306117 SLIDE, FREEZER BIN (LEFT HAND)
2306116 2306116 SLIDE, FREEZER BIN (RIGHT HAND)
WPW10191429 WPW10191429 SOCKET
WP2203075 WP2203075 SPACER
WPW10321131 WPW10321131 SPACER
2268331 2268331 SPACER, CRISPER (LEFT HAND)
2268332 2268332 SPACER, CRISPER (RIGHT HAND)
2306475 2306475 SPACER, DELI (LEFT HAND)
2306474 2306474 SPACER, DELI (RIGHT HAND)
2306106 2306106 SPACER, DRAWER (RIGHT SIDE)
W11527119 W11527119 STUD-SHELF
W10415668 W10415668 SUPPORT
W10415666 W10415666 SUPPORT
W10187549 W10187549 SUPPORT
W10860448 W10860448 SUPPORT
W10860229 W10860229 SUPPORT
2314054 2314054 SUPPORT, DELI COVER
2320554 2320554 SUPPORT, DRAIN PAN
W10744329 W10744329 SUPPORT, DRAWER SLIDE (WHITE)
2306105 2306105 SUPPORT, SLIDE (LEFT HAND)
W10716209 W10716209 SUPPORT, SLIDE (RIGHT HAND)
2320559 2320559 SUPPORT, VALVE
WP2266802 WP2266802 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WP2188820 WP2188820 THERMISTOR
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
2318189 2318189 TRAY, DRIP FILTER
2005925 2005925 TRIM, SIDE SEAL
WPW10207207 WPW10207207 TRIM-CABNT
W10138451 W10138451 TRIM-CABNT
W10207244 W10207244 TRIM-CABNT
W10202511 W10202511 TRIM-COVER
W10202510 W10202510 TRIM-COVER
W10203455 W10203455 TRIM-DOOR
W10203453 W10203453 TRIM-DOOR
W10202478 W10202478 TRIM-DOOR
W10202476 W10202476 TRIM-DOOR
W10202471 W10202471 TRIM-DOOR
W10202473 W10202473 TRIM-DOOR
WPW10250962 WPW10250962 TRIM-GRILL
W10306442 W10306442 TUBE
W10404239 W10404239 TUBE
W10388653 W10388653 TUBE
2317847 2317847 TUBE ASSEMBLY, WATER INLET
2314064 2314064 TUBE, DRAIN
2307566 2307566 TUBE, DRIER TRANSITION
W10528578 W10528578 TUBE, PROCESS
2309072 2309072 TUBE, TRANSITION
W10303991 W10303991 USE & CARE GUIDE
WP978025 WP978025 VALVE
876764 876764 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978028 978028 VALVE, ACCESS
978026 978026 VALVE, ACCESS
978029 978029 VALVE, ACCESS
W10001190 W10001190 WASHER
EDR3RXD1 EDR3RXD1 WATER FILTER
W11533506 W11533506 WATER TUBE
W11565275 W11565275 WATER TUBE
2310207 2310207 WIRE ASSEMBLY
WPW10483905 WPW10483905 WIRE-JUMPR
WPW10495645 WPW10495645 WIRE-JUMPR
W10482373 W10482373 WIRE-JUMPR
W10209498 W10209498 WIRE-JUMPR
