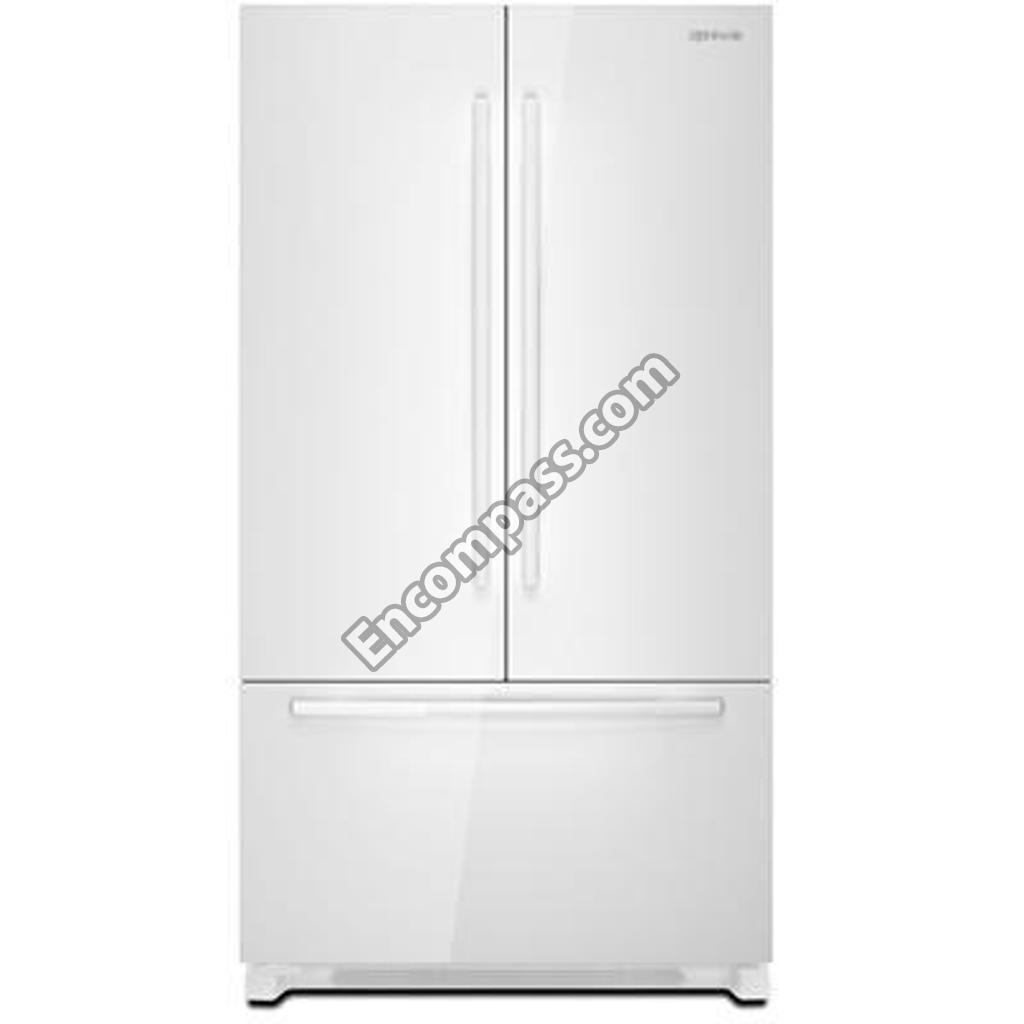

Model Image
Manufacturer

Whirlpool

Model Number

JFC2290VPF3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10184030 W10184030 ARM-DISPSR
W10318914 W10318914 ARM-EJECTR
W11559683 W11559683 ARM-SHUT
WPW10122563 WPW10122563 ARM-STRIPR
67006434 67006434 AXLE, ROLLER (2)
606755 606755 BAG
67003794 67003794 BAR, TEMP CONTROL
WPW10119854 WPW10119854 BASKET-FZR
W10120003 W10120003 BASKET-FZR
WP627985 WP627985 BIMETL-DEF
WPW10119846 WPW10119846 BIN CONTROL LEVER
WPW10119841 WPW10119841 BIN CONTROL LEVER
W10144706 W10144706 BIN-FREEZR
WP12825803 WP12825803 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
WP12777701 WP12777701 BLOCK- FIL
WPW10119790 WPW10119790 BOX, HV CONTROL

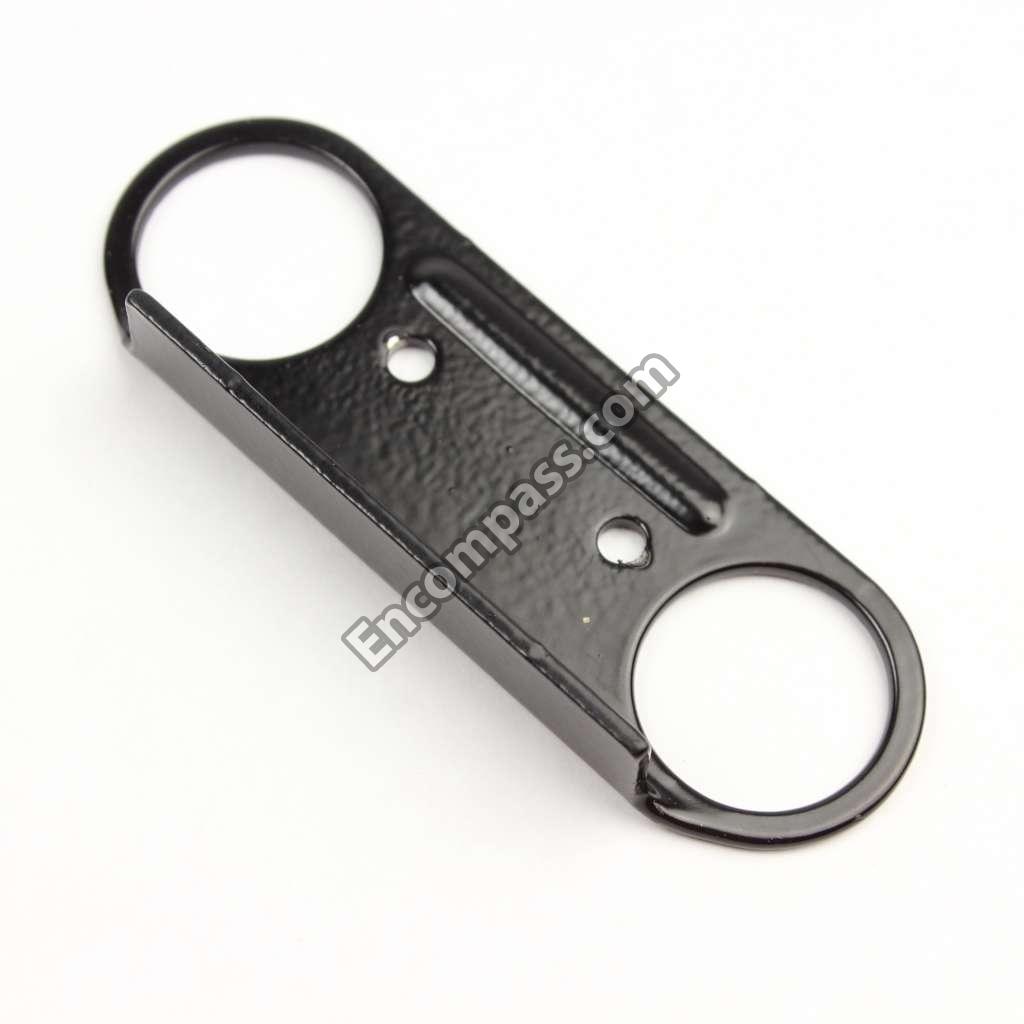

WP2256087 WP2256087 BRACKET
WPW10544403 WPW10544403 BRACKET
WPW10544404 WPW10544404 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
W10163087 W10163087 BRACKET
W10163084 W10163084 BRACKET
W10119849 W10119849 BRACKET
W10119848 W10119848 BRACKET
W10201550 W10201550 BRACKET
67006325 67006325 BRACKET, FILTER BASE
67002722 67002722 BUSHING, DOOR (WHT)
WP67002721 WP67002721 BUSHING- D
WP67002731 WP67002731 BUSHING- D
N_P N_P CABINET (NOT A SERVICABLE PART)
W11395888 W11395888 CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W10281329 W10281329 CLAMP
W11456069 W11456069 CLAMP
10526701 10526701 CLAMP, WIRE
31462A 31462A CLEANER, STNLS STEEL MAGIC
WP628379 WP628379 CLIP
WPM0104106 WPM0104106 CLIP
W11092534 W11092534 CLIP
13058002 13058002 CLIP, EVAP. MOTOR
10623002 10623002 CLIP, EVAPORATOR
W11673433 W11673433 CLIP- EVAP
WPM0114003 WPM0114003 CLIP- SPEE
WP67003638 WP67003638 CLOSER
WP67003639 WP67003639 CLOSER
W10233960 W10233960 COMPRESSOR
WPW10346415 WPW10346415 CONDENSER
WPW10594329 WPW10594329 CONTROL
WPW10356039 WPW10356039 CONTROL BOARD
WPW10120827 WPW10120827 CONTROL BOARD
WPW10116216 WPW10116216 CONTROL BOARD
WP12656822 WP12656822 COVER
W11243624 W11243624 COVER
W10116529 W10116529 COVER
W10163247 W10163247 COVER
W10153131 W10153131 COVER
W10892761 W10892761 COVER
W10892762 W10892762 COVER
12587703W 12587703W COVER, CORNER (2) (WHITE)
67003485 67003485 COVER, CORNER (BLK)
WP67003924 WP67003924 COVER- FZ
12726003 12726003 COVER- WAT
WPW10211855 WPW10211855 COVER-BACK
WP12806701 WP12806701 COVER-BOX
W10308420 W10308420 COVER-EVAP
WP67006331 WP67006331 COVER-FILT
W10377174 W10377174 COVER-FRNT
W10208593 W10208593 COVER-VALV
W10296541 W10296541 COVER-WIRE
12961602 12961602 COVER-WIRE
W10410073 W10410073 CUP-FILL
12225602 12225602 DAM (LEFT SIDE)
12225702 12225702 DAM (RIGHT SIDE)
W10157765 W10157765 DEFLECTOR
WP67002321 WP67002321 DIVIDER- P
12894229BQ 12894229BQ DOOR, FREEZER (BLACK)
12894229WQ 12894229WQ DOOR, FREEZER (WHITE)
12894231BQ 12894231BQ DOOR, LEFT (BLACK)
12894231WQ 12894231WQ DOOR, LEFT (WHITE)
12894230BQ 12894230BQ DOOR, RIGHT (BLACK)
12894230WQ 12894230WQ DOOR, RIGHT (WHITE)
WP67003637 WP67003637 DOOR-COMP
W11177241 W11177241 DRAWER SLIDE RAIL
W11177230 W11177230 DRAWER SLIDE RAIL
WPW10143759 WPW10143759 DRIER-UV
WPW10121977 WPW10121977 ENDCAP
WPW10122078 WPW10122078 ENDCAP
W11256565 W11256565 EVAPORATOR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
WP67006010 WP67006010 EXTR- GLAS
WP2300868 WP2300868 FITTING
WPW10119215 WPW10119215 FRAME
WPW10174720 WPW10174720 FRONT-PAN
W10212414 W10212414 FRONT-PAN
W10815413 W10815413 FUNNEL

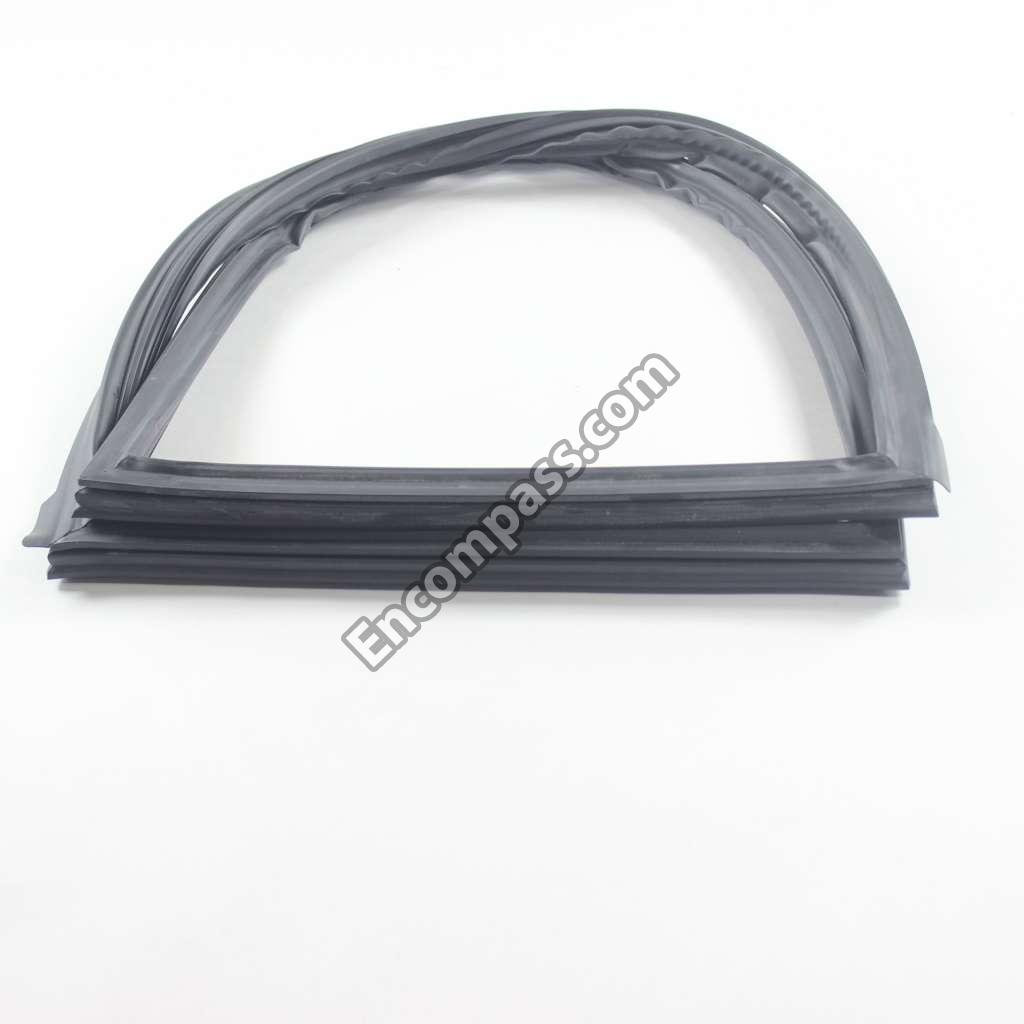

W10856123 W10856123 GASKET
W11159728 W11159728 GASKET
W11250029 W11250029 GASKET
W10443319 W10443319 GASKET, DOOR (WHITE)
67002329 67002329 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
W10436252 W10436252 GASKET-FIP
W11403914 W11403914 GASKET-FIP
W10830047 W10830047 GASKET-FIP
67006429 67006429 GASKET-HV BOX
12002497 12002497 GEAR
WP12204827 WP12204827 GLASS SHELF
WPW10156631 WPW10156631 GLASS SHELF
WP67002332 WP67002332 GLASS- PAN
WPW10170987 WPW10170987 GLIDE
WPW10170835 WPW10170835 GLIDE
WPW10170836 WPW10170836 GLIDE
WPW10132653 WPW10132653 GLIDE
WPW10132652 WPW10132652 GLIDE, DRAWER (RIGHT)
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534154 WPW10534154 GRILLE-FRT
WPW10534153 WPW10534153 GRILLE-FRT
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W10121318 W10121318 GROMMET
W10852725 W10852725 GROMMET
W10298163 W10298163 HANDLE
W10298243 W10298243 HANDLE
W10298202 W10298202 HANDLE
W10297178N W10297178N HANDLE (BLACK)
W11239562 W11239562 HARNS-WIRE
W11700330 W11700330 HARNS-WIRE
W11084235 W11084235 HARNS-WIRE
W10196195 W10196195 HARNS-WIRE
W11346623 W11346623 HEAD-FILTR
W10825088 W10825088 HEATER
12028601W 12028601W HING-BUSHG

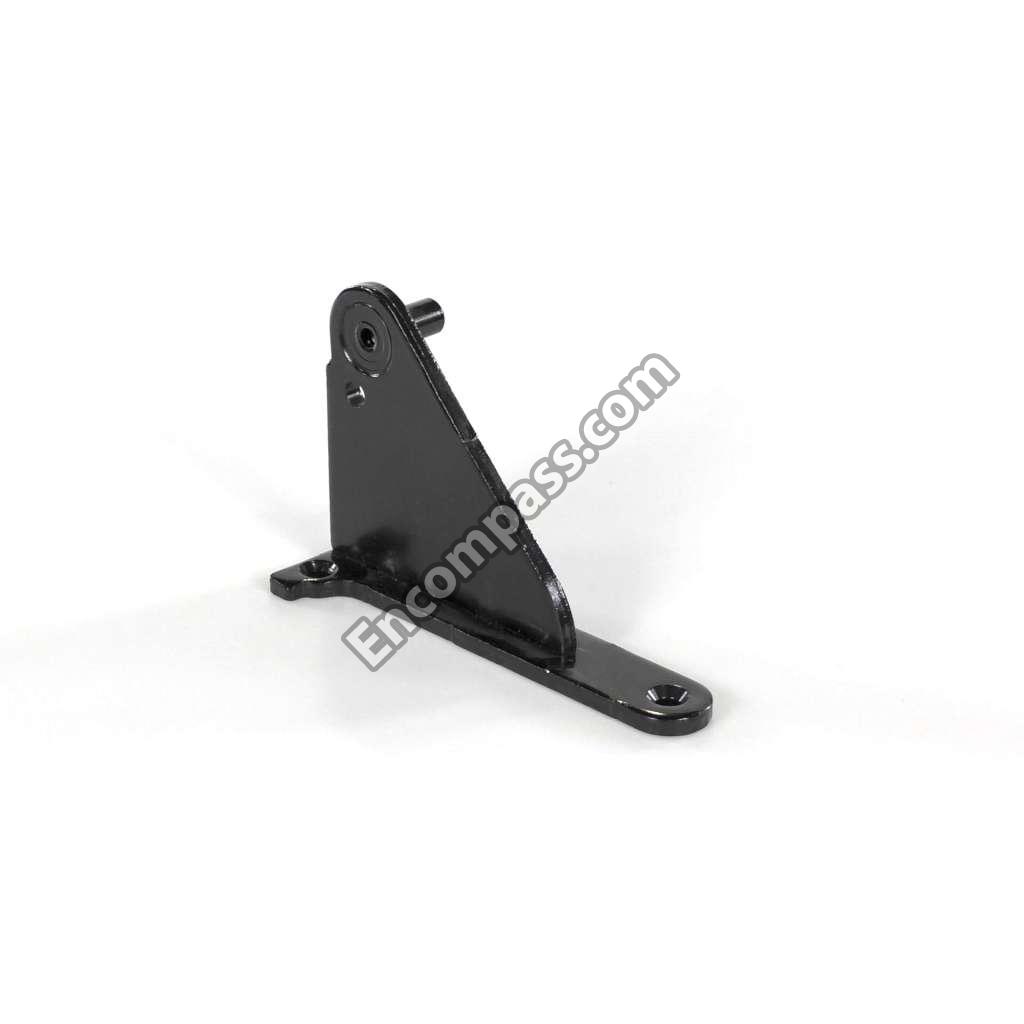

W10162695 W10162695 HINGE-DOOR
W10162694 W10162694 HINGE-DOOR
W10210891 W10210891 HINGE-DOOR
W10892768 W10892768 HINGE-DOOR
W10210883 W10210883 HINGE-DOOR
W10210882 W10210882 HINGE-DOOR
W11416469 W11416469 HOUSING
W11702858 W11702858 HOUSING
W10464766 W10464766 HOUSING
W10443023 W10443023 HOUSING
W10121004 W10121004 HOUSING
W11712699 W11712699 HOUSING
12656202 12656202 HOUSING
W10884390 W10884390 ICEMAKER
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT- PL
WP13012402 WP13012402 INSULATION
W11706807 W11706807 INSULATION
876370 876370 INSULATION
876029 876029 INSULATION
12820505 12820505 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
12002023 12002023 KIT, WATER TANK
W11498983 W11498983 KNOB
W10119222 W10119222 KNOB-CNTRL
W10273463 W10273463 LADDER
W10251971 W10251971 LADDER
WPW10141622 WPW10141622 LEVELER
W11679940 W11679940 LIGHT BULB
4396822 4396822 LIGHT BULB
W11175810 W11175810 MAGNET-DOR
W10121002 W10121002 MAGNET-DOR
WPW10451455 WPW10451455 MAT
WPW10300025 WPW10300025 MOLD-ICE
W11613295 W11613295 MOTOR-COND
WPW10281342 WPW10281342 MOTOR-MODL
W10190724 W10190724 NAMEPLATE
W10190723 W10190723 NAMEPLATE
2207415 2207415 NUT
W10316413 W10316413 OVERLAY
W10276070 W10276070 OWNERS MANUAL
W10119219 W10119219 PAN-CRISPR
WPW10655368 WPW10655368 PAN-DRIP
WPW10120008 WPW10120008 PAN-ICE
W10120005 W10120005 PAN-ICE
WP12655703 WP12655703 PAN-UTILTY
WP67006113 WP67006113 PLATE
W11727651 W11727651 PLATE
WPA3076901 WPA3076901 PLUG, BUTTON
WP67005149 WP67005149 ROLLER
W11214482 W11214482 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
W10182881 W10182881 SCOOP, ICE PAN
WP489464 WP489464 SCREW
W10709795 W10709795 SCREW
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
W11686675 W11686675 SCREW
W11311945 W11311945 SCREW
WP400021-1 WP400021-1 SCREW
WP489474 WP489474 SCREW
WP489349 WP489349 SCREW
W11573362 W11573362 SCREW
WP98165 WP98165 SCREW
W10829281 W10829281 SCREW
W10160454 W10160454 SCREW
8533917 8533917 SCREW
12992301 12992301 SCREW
12992603 12992603 SCREW
W10854958 W10854958 SCREW
WP681249 WP681249 SCREW
489136 489136 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
W11028221 W11028221 SHAFT
12999502 12999502 SHIM-HINGE
12999501 12999501 SHIM-HINGE
W11556315 W11556315 SHROUD
WPW10167023 WPW10167023 SHROUD
W11658403 W11658403 SLIDE
W10119217 W10119217 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
W10361443 W10361443 START-DEV
W10163249 W10163249 STOP-DOOR
W10153126 W10153126 STOP-DOOR
W10236396 W10236396 STRAP
WP12227305WD WP12227305WD SUPPORT
W10490807 W10490807 SUPPORT
12831101 12831101 SWEEP, DUAL TUBE
WP12575502 WP12575502 SWITCH
W11291138 W11291138 SWITCH
W11396033 W11396033 SWITCH
W10214832 W10214832 TAG, ENERGY
W11238399 W11238399 TAPE
W10448051 W10448051 TECH SHEET
833938 833938 TERMINAL
WP1117510 WP1117510 TORX KEY
WP67001279 WP67001279 TRAY- DAIR
W11547653 W11547653 TRAY-DRIP
W11024160 W11024160 TRIM-BRKR

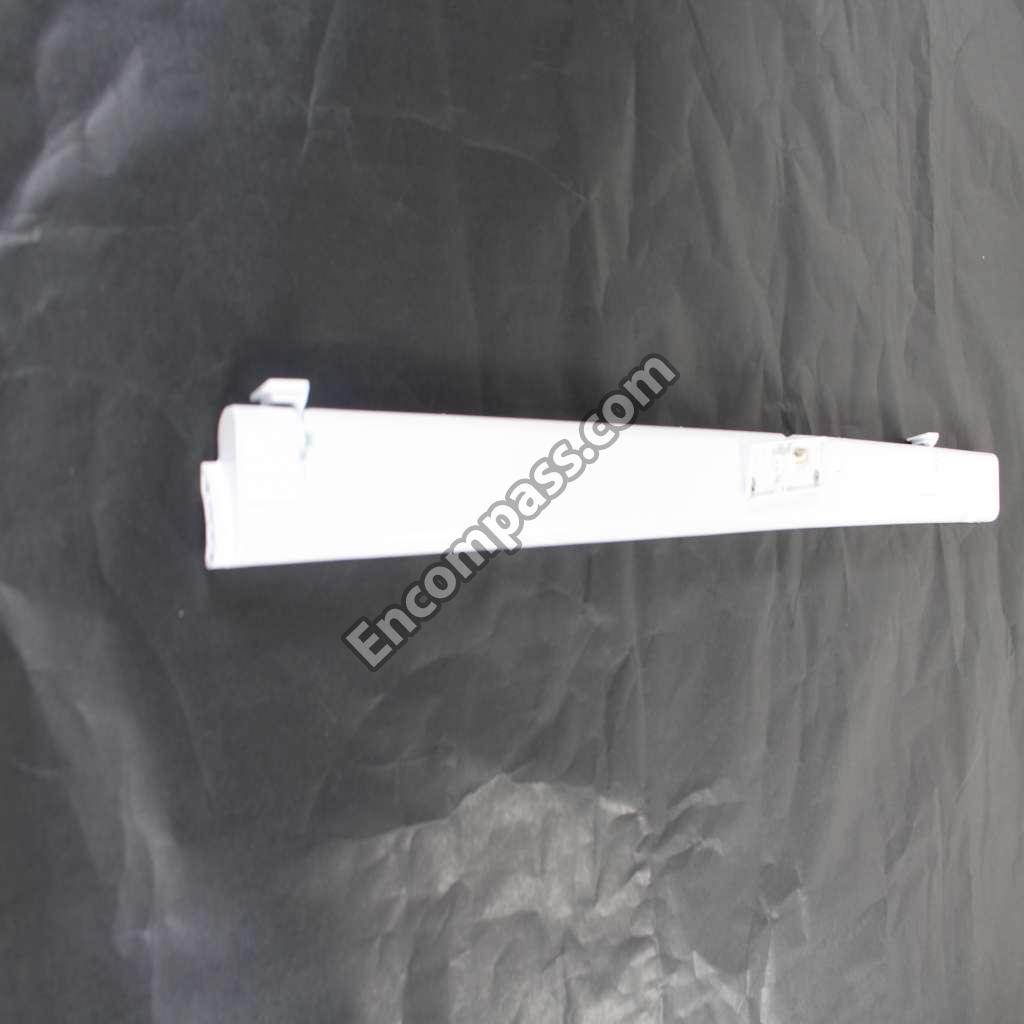

W10261282 W10261282 TRIM-DOOR
W10259825 W10259825 TRIM-DOOR
W10259829 W10259829 TRIM-DOOR
W10261284 W10261284 TRIM-DOOR
WPW10233569 WPW10233569 TUBE
W10619951 W10619951 TUBE-DRAIN
W10117324 W10117324 TUBE-WATER
WPW10420083 WPW10420083 VALVE
WP978025 WP978025 VALVE
978030 978030 VALVE
978029 978029 VALVE
978027 978027 VALVE
978026 978026 VALVE
876764 876764 VALVE
978028 978028 VALVE, ACCESS (1/2``)
EDR4RXD1 EDR4RXD1 WATER FILTER
W11176463 W11176463 WATER TUBE
W11120581 W11120581 WATER TUBE
WPW10458985 WPW10458985 WIRE HARNESS
